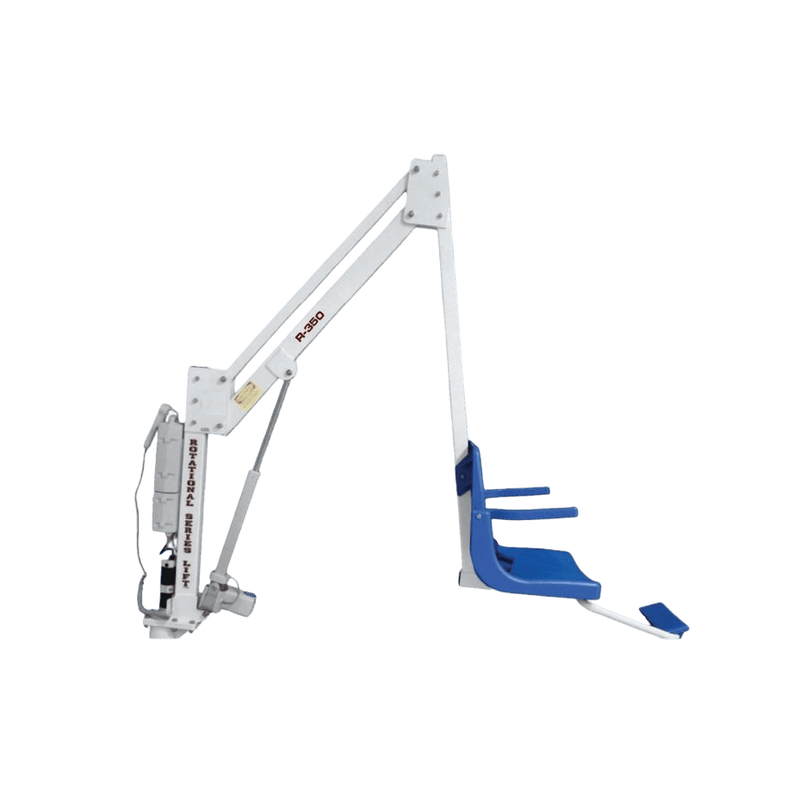

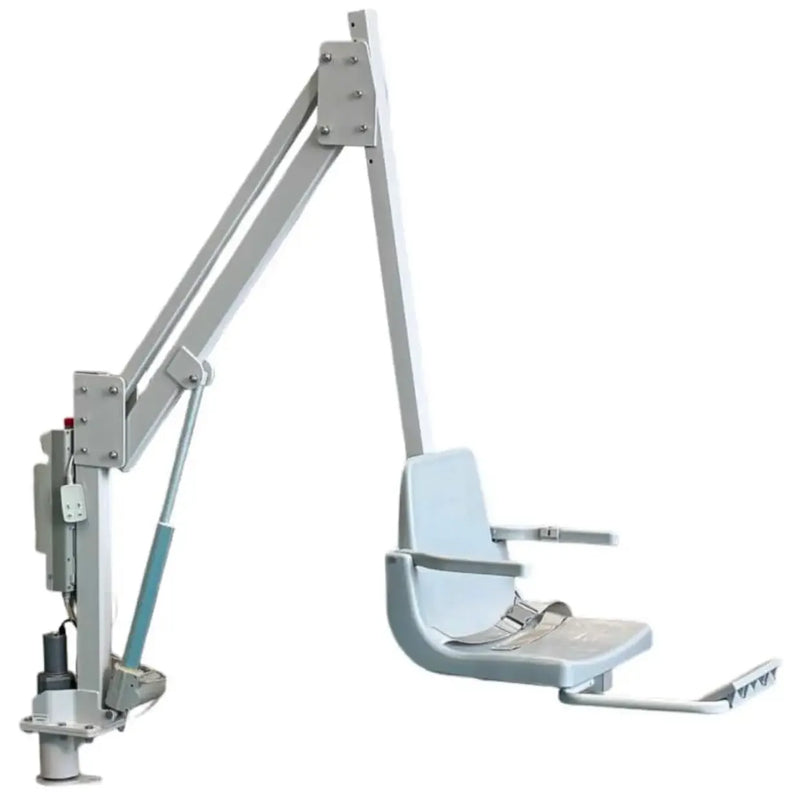

The Global Pool Products R-350MTR is a 350-pound-capacity ADA-compliant pool lift in the Rotational Series - a battery-powered, 360-degree rotating lift designed for residential in-ground pool applications. It is lab tested to meet ADA standards and provides independent pool access for users with mobility limitations. Built from 304 stainless steel with a multi-step powder coat finish and marine grade hardware, the R-350MTR is engineered for long-term outdoor pool use. It ships via UPS Ground, retrofits a standard 2-3/8" anchor, and comes ready to operate with a 24V rechargeable battery, charging system, and 4-button hand controller included.
360-degree rotation - full independent access
The R-350MTR rotates a full 360 degrees in either direction using the 4-button hand controller. From the raised position on the pool deck, the user rotates the seat over the water, then lowers into the pool to a minimum submerged depth of 18 inches - in compliance with ADA requirements for pool lifts. The seat can stop at any point in the lowering cycle to accommodate the user's comfort level. On exit, the lift raises completely to the top of the cycle before rotating back to the deck position. The full rotation capability allows installation flexibility around the pool perimeter, and the lift clears obstacles up to 14 inches tall during the rotation arc - accommodating most standard in-ground pool coping, tile borders, and deck edge details.
ADA compliance - what it means for this lift
The R-350MTR is laboratory tested to meet ADA (Americans with Disabilities Act) standards for pool lifts under the 2010 ADA Standards for Accessible Design. ADA compliance for pool lifts requires: a seat that submerges to a minimum of 18 inches below the water surface; a clear deck space of 36 inches minimum width extending 48 inches forward from 12 inches behind the rear seat edge; installation at a pool location with water depth not exceeding 48 inches; and the seat centerline positioned at least 16 inches from the pool edge in the raised position. For commercial facilities subject to ADA requirements, the R-350MTR meets these technical standards. For residential installations, ADA compliance provides confidence that the lift's design and tested performance meet the most rigorous accessible pool access standards available.
24V battery system - independent operation from the seat
The R-350MTR operates on a sealed 24V rechargeable battery that mounts into the control compartment on the lift. The included 4-button hand controller operates all lift functions from the seat: left and right rotation arrows, up arrow to raise, down arrow to lower. An emergency stop button on top of the control unit provides immediate halt capability. The battery should be charged for 5-8 hours before first use. When a low battery tone sounds, the battery should be removed and placed on the included charging unit. The charger indicator changes from red (charging) to green (fully charged). A spare battery is available as an optional accessory for high-frequency use where continuous availability is required between charges.
ADA-compliant pool lift for standard residential in-ground pools. 350 lb weight capacity. 360-degree rotation. Clears 14" obstacles. 24V sealed rechargeable battery - 4-button hand controller. Seat submerges to 18" minimum. 304 stainless steel with multi-step powder coat finish. Marine grade hardware. UV resistant. Retrofits 2-3/8" anchor. Safety seat belt, arm rests, foot rest included. Ships UPS Ground. Lab tested to meet ADA standards. Lifetime structural warranty. 5-year pro-rated warranty on actuator and controls. Made in USA by Global Pool Products.
ADA Compliant - lab tested 350 lb weight capacity 360-degree rotation Clears 14" obstacles 24V rechargeable battery 4-button hand controller Seat submerges 18" minimum 304 stainless steel construction Multi-step powder coat finish Marine grade hardware UV resistant Retrofits 2-3/8" anchor Right seat position Ships UPS Ground Lifetime structural warranty Made in USA
Specifications
Performance
| Weight capacity |
350 lbs |
| Rotation |
360 degrees - left and right |
| Obstacle clearance |
14 inches |
| Seat submersion depth |
18 inches minimum (ADA requirement) |
| Required installation water depth |
48 inches maximum (ADA) |
| ADA compliance |
Lab tested to meet ADA standards |
Power system
| Power source |
24V sealed rechargeable battery |
| Controller |
4-button hand-held (raise, lower, rotate left, rotate right) |
| Emergency stop |
Red button on control unit - turn clockwise to unlock |
| Initial charge time |
5-8 hours before first use |
| Charging indicator |
Red = charging, Green = fully charged |
| Battery charging system |
Included |
Construction
| Frame material |
304 stainless steel |
| Finish |
Multi-step powder coat |
| Hardware |
Marine grade |
| UV resistance |
Yes |
| Seat position |
Right |
| Pool type |
Fits most standard in-ground pool applications |
Installation
| Anchor compatibility |
Retrofits 2-3/8" anchor |
| Installation types |
New construction sleeve, retro fit anchor, fixed anchor |
| Deck space required |
36" wide x 48" deep (ADA minimum) |
| Deck slope maximum |
1:48 (ADA) |
| Seat centerline from pool edge |
16" minimum (ADA) |
Safety and comfort
| Safety seat belt |
Included |
| Arm rests |
Included - raise and lower |
| Foot rest |
Included |
| Low battery indicator |
Audible tone - do not use when sounding |
Shipping and warranty
| Shipping method |
UPS Ground |
| Structural warranty |
Lifetime |
| Actuator and controls warranty |
5 years pro-rated |
| Origin |
Made in USA - Bad Axe, Michigan |
What's included
R-350MTR pool lift - 304 stainless steel with powder coat finish
24V sealed rechargeable battery
Battery charging system
4-button hand-held controller

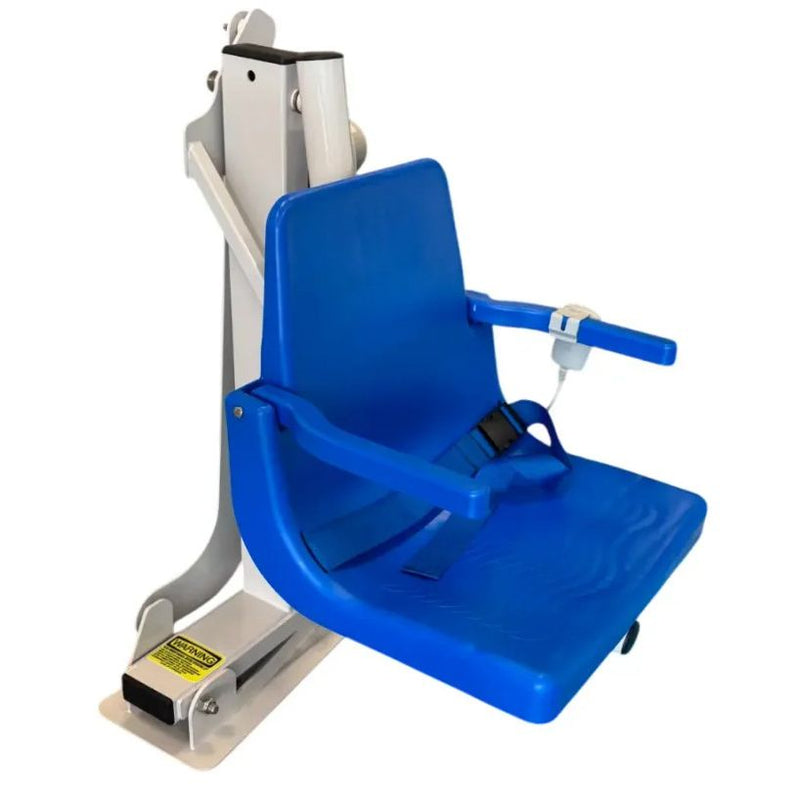

Safety seat belt
Arm rests (raise/lower)
Foot rest
Owner's Manual
Available accessories (sold separately): Lift Cover (RGLCPCB / RGLCPCG); Extra Battery (TI-Motion Battery); Superior Round Sleeve Anchor. Contact us to add accessories to your order.
Why the Global R-350MTR stands out
360-degree rotation - maximum placement flexibility
Full 360-degree rotation in either direction means the lift can be positioned at almost any point along the pool perimeter and still provide a smooth, unobstructed arc from deck to water. The lift clears obstacles up to 14 inches tall during rotation - accommodating standard pool coping profiles, raised tile borders, and deck edge transitions common in residential in-ground pool installations.
ADA compliant - lab tested to standard
The R-350MTR is not self-certified - it is laboratory tested to confirm it meets the ADA standards for pool lifts. For commercial facilities subject to ADA requirements, this distinction matters: lab-tested compliance provides documentation that the product meets the technical standard independently, not just the manufacturer's own assessment. For residential buyers, it confirms the highest available design and performance standard for pool lift accessibility.
350 lb capacity - independent 4-button operation
The 350 lb weight capacity covers the full range of residential users. The 4-button hand controller gives the user complete independent control of all lift functions from the seat: raise, lower, rotate left, rotate right. The user does not need poolside assistance to operate the lift - the ADA standard specifically requires independent operation capability, and the R-350MTR's design delivers this from the seat throughout the full transfer sequence.
304 stainless steel - outdoor pool durability
304 stainless steel is the standard corrosion-resistant grade for outdoor aquatic applications - resistant to the chlorinated and salt water environments of residential pools. Combined with a multi-step powder coat finish, marine grade hardware throughout, and UV-resistant materials, the R-350MTR is built for permanent outdoor installation without the surface degradation that lesser materials would exhibit over years of pool-side exposure.
Retrofits 2-3/8" anchor - no deck replacement needed
The R-350MTR fits a standard 2-3/8" anchor, which is the most common pool lift anchor size in existing residential pool installations. For pools that already have an anchor installed - or for installers using the standard sleeve during new construction - the R-350MTR drops in without requiring new deck core drilling or anchor replacement. The Owner's Manual covers new construction sleeve installation, retro fit anchor installation, and fixed anchor installation procedures.
Lifetime structural warranty - made in USA
The R-350MTR carries a lifetime warranty on the structural frame and a 5-year pro-rated warranty on the actuator and controls - among the strongest warranty terms available on a residential pool lift. It is designed and manufactured in Bad Axe, Michigan by Global Pool Products, whose key staff has over a century of combined industry experience. UPS Ground shipping means no freight scheduling or large-carrier delivery management is required.
About Global Pool Products
Made in USA - ADA Compliant - Lab Tested
Global R-350MTR. 350 lb capacity. 360-degree rotation. ADA compliant. Lifetime structural warranty.
Global Pool Products is a Michigan-based manufacturer of pool lifts, loungers, slides, and aquatic equipment. Products are designed and made in the USA in Bad Axe, Michigan, with a combined staff experience of over a century in the aquatic industry. The R-350MTR Rotational Series pool lift is Global's residential in-ground pool lift - ADA compliant, lab tested, 350 lb capacity, 360-degree rotation, 304 stainless steel construction with marine grade hardware, and a lifetime structural warranty. Global Pool Products does not sell direct - contact us to purchase or to locate an authorized dealer near you.
-
350 lb capacity - ADA compliant, lab tested to standard
-
360-degree rotation - clears 14" obstacles
-
24V battery + 4-button controller - fully independent operation
-
304 stainless steel - marine grade hardware - UV resistant - powder coat finish
-
Lifetime structural warranty - 5-year pro-rated actuator and controls - made in USA
Documents and Resources
Warranty
Lifetime structural warranty + 5-year pro-rated actuator and controls
The Global Pool Products R-350MTR carries a lifetime warranty on the structural frame covering defects in materials and workmanship under normal use conditions.
The actuator and controls carry a 5-year pro-rated warranty from the date of purchase. Pro-rated coverage means the warranty value decreases proportionally over the 5-year period. See the Warranty Information document above for the full pro-rated schedule and claim procedure.
The warranty does not cover damage caused by improper installation, misuse, use beyond the stated 350 lb weight capacity, failure to follow the maintenance schedule in the Owner's Manual, or normal wear items. Warranty registration is available in the Owner's Manual. Contact Global Pool Products at 866-712-0606 or sales@globalpoolprod.com for warranty claims and support.
