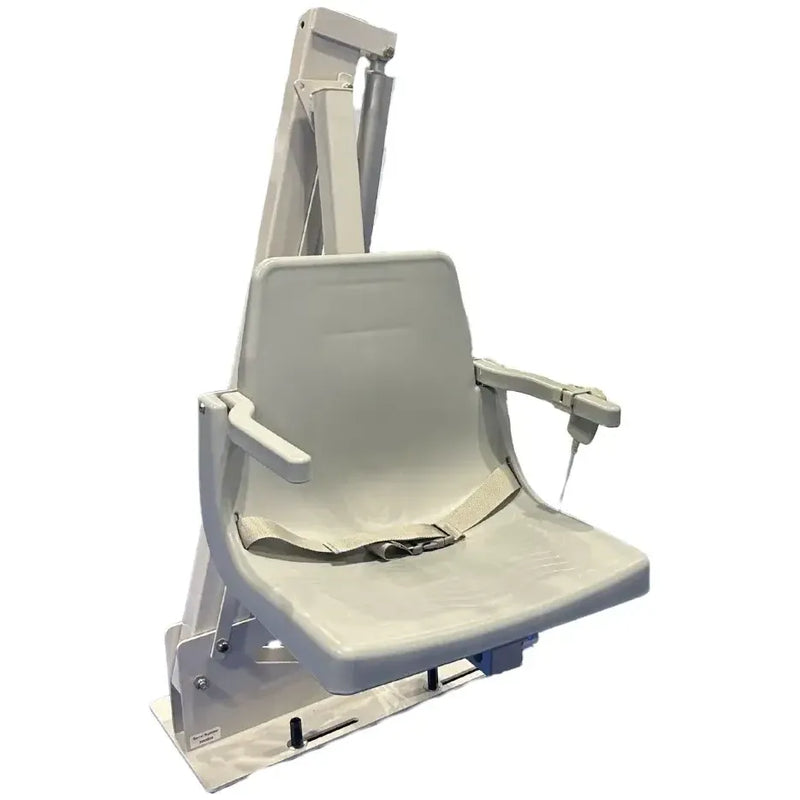

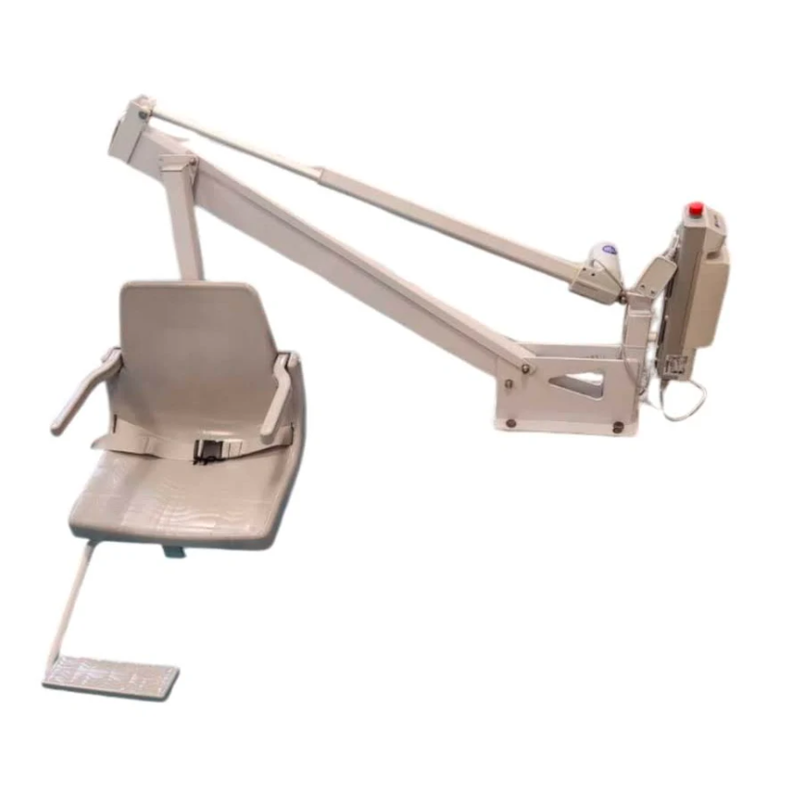

Global L-350R2 Legend Series Pool Lift
The Global Pool Products L-350R2 is a 350-pound-capacity ADA-compliant, UL Certified pool lift in the Legend Series - a battery-powered, non-rotating lift for standard residential and commercial in-ground pool and spa applications. The L-350R2 is an updated version of the L-350, adding two significant features: an Emergency Return System that safely returns a stranded user to the raised position if the handset or controls malfunction, and Marine Grade 316 stainless steel hardware (an upgrade from standard marine grade hardware). Like all Legend Series lifts, it operates on a 2-button raise/lower hand controller, ships right seat as standard, and is field reversible. Built from 304 stainless steel with a multi-step powder coat finish, it ships via UPS Ground and is manufactured in Bad Axe, Michigan by Global Pool Products.
Emergency Return System - the key L-350R2 upgrade
The Emergency Return System is the defining addition of the L-350R2 over the standard L-350. In normal operation, the 2-button hand controller raises and lowers the seat. If the handset or control box malfunctions while the user is in the lowered position in the water - a scenario where the user cannot exit the pool without the lift and cannot operate the normal controls - the Emergency Return System connects the power source directly to the actuator, bypassing the handset and control box entirely. The lift raises to the full up position, returning the user to the pool deck regardless of handset or control box condition. For any installation where a single user will use the lift without a poolside attendant present, the Emergency Return System provides an independent backup path to safety that the standard L-325 and L-350 do not have. This safety feature alone distinguishes the L-350R2 as the more appropriate choice for solo residential use or unattended commercial installations.
Marine Grade 316 stainless steel hardware
The L-350R2 specifies Marine Grade 316 stainless steel hardware throughout. Grade 316 stainless steel contains molybdenum, which significantly improves its resistance to chloride corrosion compared to standard marine grade or 304 stainless. In a pool environment with continuous chlorine and salt water exposure, 316 stainless hardware provides superior long-term corrosion resistance at all fastener and connection points. Combined with the 304 stainless steel frame and multi-step powder coat finish, the L-350R2 is built for outdoor pool installation with the highest corrosion resistance hardware specification in the Legend Series.
Fixed anchor installation - commercial-ready design
The L-350R2 Owner's Manual covers fixed anchor installation only - distinct from the L-325 and L-350 which also document new construction sleeve and drop-in anchor procedures. The L-350R2 is available with or without anchor and is compatible with both the drop-in anchor (GLCQDIA) and 4-point anchor (GLCQPA) systems available from Global Pool Products. The fixed anchor approach is standard in commercial pool facilities where the lift has a permanent dedicated installation position. For residential installations, confirm the anchor configuration with the dealer before ordering. Field reversibility is retained: the seat converts from right to left position using the included Reversible Instructions without factory service.
ADA-compliant, UL Certified pool lift - 350 lb capacity. Emergency Return System - safely raises user to deck if handset or controls fail. Marine Grade 316 stainless steel hardware. Non-rotating - 2-button raise/lower operation. Field reversible - right seat standard, converts to left in field. Seat submerges to 18" minimum. 24V sealed rechargeable battery. 304 stainless steel frame with multi-step powder coat. UV resistant. Safety seat belt, arm rests, foot rest included. Ships UPS Ground. 5-year structural warranty. 5-year pro-rated warranty on actuator and controls. Made in USA by Global Pool Products.
ADA Compliant - lab tested UL Certified - UL 60335-2-1000 350 lb weight capacity Emergency Return System Marine Grade 316 stainless hardware Non-rotating - 2-button raise/lower Field reversible - right or left seat Seat submerges 18" minimum 24V rechargeable battery 304 stainless steel frame Multi-step powder coat finish UV resistant Ships UPS Ground 5-year structural warranty 5-year pro-rated actuator and controls Made in USA
✓ ADA compliant and UL Certified to UL 60335-2-1000. The L-350R2 is laboratory tested to meet the 2010 ADA Standards for Accessible Design and certified to the UL 60335-2-1000 safety standard - the specific UL standard for pool lifts. Includes Emergency Return System for independent backup safety if controls malfunction.
ℹ️ L-350R2 vs L-350 - two meaningful upgrades. The L-350R2 adds two features not present on the standard L-350: (1) Emergency Return System - returns user safely to the raised position if the handset or control box fails while the user is in the water; (2) Marine Grade 316 stainless steel hardware - superior chloride corrosion resistance over standard marine grade hardware. Capacity (350 lbs), operation (2-button), field reversibility, frame construction, and warranty terms are identical between L-350R2 and L-350. Choose the L-350R2 for solo use without poolside attendants, or for any installation where the Emergency Return System safety backup is a priority.
Specifications
Performance
| Weight capacity |
350 lbs |
| Rotation |
None - fixed arc raise/lower |
| Seat submersion depth |
18 inches minimum (ADA requirement) |
| Required installation water depth |
48 inches maximum (ADA) |
| ADA compliance |
Lab tested to meet ADA standards |
| Safety certification |
UL Certified - UL 60335-2-1000 |
Safety features
| Emergency Return System |
Bypasses handset - raises user to deck if controls fail |
| Emergency stop button |
Red button on control unit - turn clockwise to unlock |
| Low battery indicator |
Audible tone - stop use immediately when sounding |
Power and controls
| Power source |
24V sealed rechargeable battery |
| Controller |
2-button hand-held (raise up, lower down) |
| Initial charge time |
5-8 hours before first use |
| Charging indicator |
Amber/orange = charging, Green = fully charged |
| Battery voltage (charged) |
26-28 volts |
| Battery charging system |
Included |
Construction
| Frame material |
304 stainless steel |
| Hardware |
Marine Grade 316 stainless steel |
| Finish |
Multi-step powder coat |
| UV resistance |
Yes |
| Seat position |
Right (standard) - field reversible to left |
| Pool type |
Fits most standard in-ground pool and spa applications |
| Origin |
Made in USA - Bad Axe, Michigan |
Installation
| Anchor options |
Drop-in anchor (GLCQDIA) or 4-point anchor (GLCQPA) |
| Available as |
With drop-in anchor or without anchor |
| Deck space required |
36" wide x 48" deep (ADA minimum) |
| Deck slope maximum |
1:48 (ADA) |
| Seat centerline from pool edge |
16" minimum (ADA) |
| Shipping method |
UPS Ground |
L-350R2 vs L-350 vs L-325
| Emergency Return System |
L-350R2: Yes | L-350: No | L-325: No |
| Hardware grade |
L-350R2: 316 SS | L-350: Marine grade | L-325: Marine grade |
| Capacity |
L-350R2: 350 lbs | L-350: 350 lbs | L-325: 325 lbs |
| Operation, warranty, UPS |
Identical across all three models |
What's included
L-350R2 pool lift - 304 stainless steel frame, 316 stainless hardware
24V sealed rechargeable battery
Battery charging system
2-button hand-held controller
Emergency Return System
Safety seat belt
Arm rests (raise/lower)
Foot rest
Owner's Manual
Reversible Instructions
Available with or without anchor: Drop-in Anchor for L-Series (GLCQDIA) and 4-Point Anchor for L-Series (GLCQPA) available separately. Other accessories (sold separately): Lift Cover (GLCPCXB / GLCPCXG); Extra Battery. Contact us to specify anchor configuration and add accessories to your order.
Why the Global L-350R2 stands out
Emergency Return System - critical safety backup
If the handset or control box fails while the user is in the water, the Emergency Return System connects power directly to the actuator, bypassing all normal control electronics and raising the lift to the full up position automatically. For a user who cannot exit the pool without the lift and cannot summon assistance, this backup system provides an independent, non-electronic path back to the pool deck. The L-325 and L-350 do not include this system - the L-350R2 is the correct choice for any solo or unattended installation.
Marine Grade 316 stainless hardware - superior corrosion resistance
Grade 316 stainless steel contains molybdenum, which significantly improves resistance to chloride pitting corrosion compared to 304 or standard marine grade hardware. All fastener, connection, and hardware points in a pool lift are in direct or indirect contact with chlorinated water, which aggressively attacks lower-grade stainless over years of use. The L-350R2's 316 stainless hardware provides superior longevity at every fastened joint throughout the lift's service life.
UL Certified to UL 60335-2-1000
The L-350R2 is certified to UL 60335-2-1000 - the specific UL safety standard for pool lifts. This is independent third-party certification, not self-assessment. For commercial facilities where procurement specifications require UL listing to a named standard, the L-350R2's UL 60335-2-1000 certification satisfies that requirement explicitly. For residential buyers, it confirms the highest level of independent safety evaluation available for a pool lift.
2-button operation - simple independent control
The L-350R2 uses the same straightforward 2-button raise/lower controller as the L-325 and L-350. Down arrow lowers, up arrow raises. The user can stop at any comfortable point in the lower cycle to exit into the pool; completing the full raise cycle back to the top is recommended when exiting the pool for the safest exit position. Perform a test run empty before first manned use to confirm the full raise/lower arc is clear of all pool edge obstacles.
Field reversible - right or left seat
The L-350R2 ships right seat as standard and converts to left seat in the field using the included Reversible Instructions - no factory service required. The correct seat orientation depends on the pool deck layout and the user's transfer direction preference. Field reversibility means the orientation can be confirmed and adjusted on installation day after the anchor position is set and the deck geometry is assessed, without needing to return the lift or order a different configuration.
5-year structural warranty - made in USA
The L-350R2 carries a 5-year structural warranty and 5-year pro-rated actuator and controls warranty - the same terms as the L-325 and L-350. Manufactured in Bad Axe, Michigan by Global Pool Products. UPS Ground shipping provides standard parcel delivery without freight carrier coordination. Global Pool Products does not sell direct - contact us to specify the anchor configuration, purchase through an authorized dealer, and add accessories to the order.
About Global Pool Products
Made in USA - ADA Compliant - UL Certified
Global L-350R2. 350 lb. Emergency Return System. 316 stainless hardware. 2-button. Field reversible.
Global Pool Products is a Michigan-based manufacturer of pool lifts and aquatic equipment, made in Bad Axe, Michigan with a combined staff experience of over a century in the aquatic industry. The L-350R2 is the upgraded model in Global's Legend Series - 350 lb capacity, ADA compliant, UL Certified (UL 60335-2-1000), non-rotating 2-button operation, Emergency Return System, Marine Grade 316 stainless steel hardware, field reversible, and 5-year structural warranty. Ships UPS Ground. Global Pool Products does not sell direct - contact us to purchase or locate an authorized dealer near you.
-
350 lb capacity - ADA compliant + UL Certified (UL 60335-2-1000)
-
Emergency Return System - raises user to deck if handset or controls fail
-
Marine Grade 316 stainless hardware - superior chloride corrosion resistance
-
Non-rotating 2-button - field reversible right or left seat
-
5-year structural warranty - 5-year pro-rated actuator and controls - made in USA
L-350R2 vs L-350 vs L-325 - which Legend to choose
L-350R2 vs L-350 vs L-325 - choosing within the Legend Series
All three Legend Series models are non-rotating, 2-button, field reversible, ADA compliant, UL Certified, 304 stainless frame, multi-step powder coat, marine grade hardware, 24V battery, 5-year structural warranty, and UPS Ground. The differences are: L-325 has 325 lb capacity, no Emergency Return System, standard marine grade hardware. L-350 has 350 lb capacity, no Emergency Return System, standard marine grade hardware. L-350R2 has 350 lb capacity, Emergency Return System, and Marine Grade 316 stainless steel hardware. Choose the L-350R2 for solo or unattended use where the Emergency Return System safety backup is required, or for installations where 316 stainless hardware longevity is a priority. Choose the L-350 or L-325 for attended installations where the Emergency Return System is not required and standard hardware is sufficient. Choose between L-325 and L-350 based on required weight capacity.
Documents and Resources
Warranty
5-year structural warranty + 5-year pro-rated actuator and controls
The Global Pool Products L-350R2 carries a 5-year warranty on the structural frame covering defects in materials and workmanship under normal use conditions.
The actuator and controls carry a 5-year pro-rated warranty from the date of purchase. The pro-rated schedule means the warranty value decreases proportionally over the 5-year period. See the Warranty Information document above for the full pro-rated schedule and claim procedure.
The warranty does not cover damage caused by improper installation, misuse, use beyond the stated 350 lb weight capacity, failure to follow the maintenance schedule in the Owner's Manual, or normal wear items. Warranty registration is available in the Owner's Manual. Contact Global Pool Products at 866-712-0606 or sales@globalpoolprod.com for warranty claims and support.
