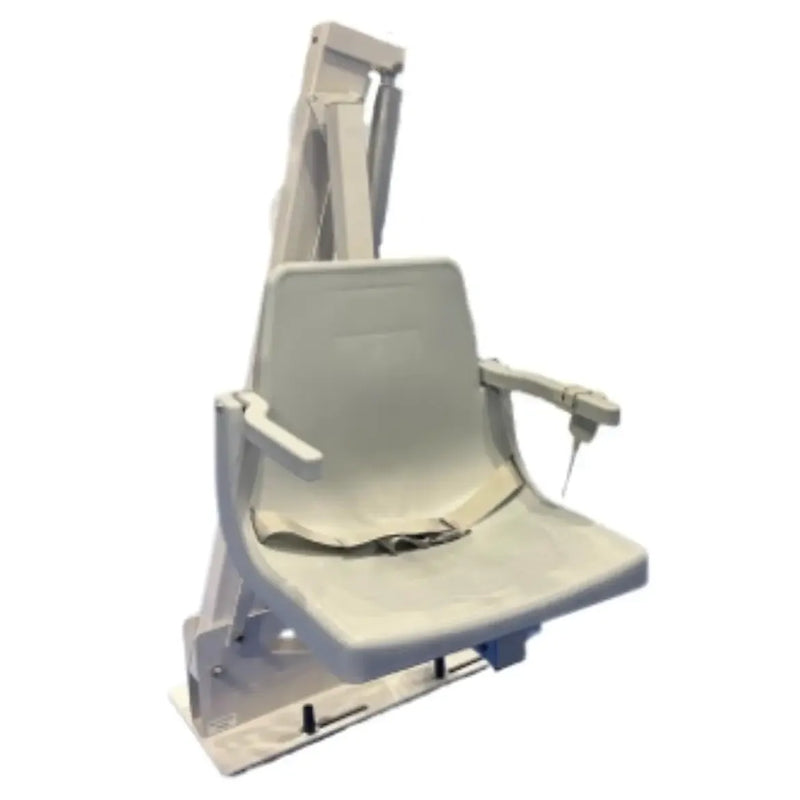

Global L-325 Legend Series Pool Lift
The Global Pool Products L-325 is a 325-pound-capacity ADA-compliant, UL Certified pool lift in the Legend Series - a battery-powered, non-rotating lift designed for standard residential in-ground pool applications. It is laboratory tested to meet ADA standards and UL Certified for independent safety verification. The L-325 operates on a simple 2-button raise/lower hand controller, ships right seat position as standard, and is field reversible to left seat position without professional service. Built from 304 stainless steel with a multi-step powder coat finish and marine grade hardware, it ships via UPS Ground and is manufactured in Bad Axe, Michigan by Global Pool Products. The L-325 carries a 5-year structural warranty and a 5-year pro-rated warranty on actuator and controls.
Legend Series - non-rotating, 2-button simplicity
The L-325 is Global Pool Products' non-rotating Legend Series lift - distinct from the Rotational Series (R-350MTR, R-375, R-450R) which rotate 90 or 360 degrees to position the seat over the water. The Legend Series uses a fixed arm that swings the seat over the pool edge in a straight raise/lower arc from the anchor position. The 2-button hand controller operates raise (up arrow) and lower (down arrow) only - a simpler control interface than the Rotational Series' 4-button controller. For pools with straightforward deck geometry where the anchor can be positioned to place the seat directly over the water without requiring the extended arc of a rotating lift, the L-325 is the cleaner and more economical solution. Before lowering, perform a test run with the seat empty to confirm the lift arc clears all pool edge obstacles; when exiting the pool, complete the full raise cycle to the top before exiting the seat.
Field reversible - right seat standard, converts to left
The L-325 ships with the seat in the right position as standard. It is field reversible - the seat can be converted from right to left position in the field using the included Reversible Instructions document, without returning the lift to the factory or requiring professional service. Right seat position means the user transfers from the right side of the seat onto the pool deck; left seat position means the user transfers from the left side. The correct seat position depends on the specific pool deck layout and the user's transfer preference. Confirm the required seat position for the installation before ordering - while field reversibility allows the change to be made on site, having the correct orientation from the start simplifies installation. The Reversible Instructions PDF (see Documents section below) covers the full conversion procedure.
24V battery system - 2-button independent operation
The L-325 operates on a sealed 24V rechargeable battery that snaps into the control compartment on the lift. The 2-button hand controller raises and lowers the seat. A red emergency stop button on top of the control unit provides immediate halt - turn clockwise to the up position before use to ensure the unit is in the on position. The battery should be charged for 5-8 hours before first use. During charging, the indicator light is amber/orange; when fully charged, the light turns green. Battery voltage should read between 26 and 28 volts when tested. If the battery cannot charge above 25 volts, replace the battery. When the low battery audible tone sounds during use, stop immediately and recharge before continuing. An optional extra battery is available for high-frequency use installations.
ADA-compliant, UL Certified pool lift for standard residential in-ground pools. 325 lb weight capacity. Non-rotating - 2-button raise/lower operation. Field reversible - right seat standard, converts to left seat in field. Seat submerges to 18" minimum. 24V sealed rechargeable battery. 304 stainless steel with multi-step powder coat finish. Marine grade hardware. UV resistant. Safety seat belt, arm rests, foot rest included. Ships UPS Ground. 5-year structural warranty. 5-year pro-rated warranty on actuator and controls. Made in USA by Global Pool Products.
ADA Compliant - lab tested UL Certified 325 lb weight capacity Non-rotating - 2-button raise/lower Field reversible - right or left seat Seat submerges 18" minimum 24V rechargeable battery 304 stainless steel construction Multi-step powder coat finish Marine grade hardware UV resistant Right seat position standard Ships UPS Ground 5-year structural warranty 5-year pro-rated actuator and controls Made in USA
✓ ADA compliant and UL Certified. The L-325 is laboratory tested to meet the 2010 ADA Standards for Accessible Design for pool lifts and independently UL Certified. Meets requirements for minimum 18" seat submersion depth and fully independent 2-button operation from the seat.
ℹ️ L-325 vs Rotational Series - which is right for the pool? The L-325 is a non-rotating lift: the seat raises and lowers in a fixed arc from the anchor point. The Rotational Series (R-350MTR, R-375) rotates 360 degrees to swing the seat over the pool from the deck position. Choose the L-325 for pools with standard deck geometry where the anchor can be placed to lower the seat directly into the water without rotation. Choose the Rotational Series for pools where the anchor position requires the seat to rotate over the pool edge to reach the water, or where maximum placement flexibility around the pool perimeter is needed.
Specifications
Performance
| Weight capacity |
325 lbs |
| Rotation |
None - fixed arc raise/lower |
| Seat submersion depth |
18 inches minimum (ADA requirement) |
| Required installation water depth |
48 inches maximum (ADA) |
| ADA compliance |
Lab tested to meet ADA standards |
| Safety certification |
UL Certified |
Power and controls
| Power source |
24V sealed rechargeable battery |
| Controller |
2-button hand-held (raise up, lower down) |
| Emergency stop |
Red button on control unit - turn clockwise to unlock |
| Initial charge time |
5-8 hours before first use |
| Charging indicator |
Amber/orange = charging, Green = fully charged |
| Battery voltage (charged) |
26-28 volts |
| Battery charging system |
Included |
Construction
| Frame material |
304 stainless steel |
| Finish |
Multi-step powder coat |
| Hardware |
Marine grade |
| UV resistance |
Yes |
| Seat position |
Right (standard) - field reversible to left |
| Pool type |
Fits most standard in-ground pool applications |
Installation
| Installation types |
New construction anchor, drop-in anchor |
| Deck space required |
36" wide x 48" deep (ADA minimum) |
| Deck slope maximum |
1:48 (ADA) |
| Seat centerline from pool edge |
16" minimum (ADA) |
| Shipping method |
UPS Ground |
Safety and comfort
| Safety seat belt |
Included |
| Arm rests |
Included - raise and lower |
| Foot rest |
Included |
| Low battery indicator |
Audible tone - stop use immediately when sounding |
Warranty and origin
| Structural warranty |
5 years |
| Actuator and controls |
5 years pro-rated |
| Origin |
Made in USA - Bad Axe, Michigan |
Legend Series comparison
| L-325 (this listing) |
325 lbs | 2-button | Non-rotating | 5-yr structural |
| L-350 |
350 lbs | 2-button | Non-rotating | See L-350 listing |
What's included
L-325 pool lift - 304 stainless steel with powder coat finish
24V sealed rechargeable battery
Battery charging system
2-button hand-held controller
Safety seat belt
Arm rests (raise/lower)
Foot rest
Owner's Manual
Reversible Instructions
Available accessories (sold separately): Lift Cover (GLCPCXB / GLCPCXG); Extra Battery. Contact us to add accessories to your order.
Why the Global L-325 stands out
ADA compliant + UL Certified
The L-325 carries both ADA lab testing and independent UL Certification - dual third-party verification of compliance and product safety. ADA compliance testing confirms the lift meets the 2010 Standards for Accessible Design requirements for pool lifts. UL Certification independently evaluates the lift's electrical and mechanical safety systems. For commercial facilities with UL certification requirements, and for residential buyers who want the highest available independent safety assurance, the L-325 delivers both.
2-button simplicity - straightforward operation
The L-325's 2-button controller - down to lower, up to raise - is the simplest pool lift operation interface available. For users who find multiple-button controllers confusing or difficult to manage from the seat, the L-325's two-function controller eliminates any ambiguity: one button goes down, one goes up. The user does not need to stop mid-cycle; the lift can be paused at any point in the lower cycle when a comfortable position to exit is reached.
Field reversible - no factory return needed
The L-325 ships right seat as standard. If the pool deck layout or user transfer preference requires left seat position, the conversion is done in the field using the included Reversible Instructions - no returning the lift, no professional service call required. This flexibility means the L-325 can be ordered without knowing the final seat orientation and adjusted on installation day once the anchor position is confirmed and the optimal seat direction is clear.
304 stainless steel - outdoor pool durability
304 stainless steel is the standard corrosion-resistant grade for outdoor aquatic applications, resistant to the chlorinated and salt water environments of residential pools. Combined with a multi-step powder coat finish, marine grade hardware, and UV-resistant materials, the L-325 is built for permanent outdoor installation. The regular maintenance schedule in the Owner's Manual - daily inspection, weekly surface cleaning, monthly battery check - keeps the stainless and powder coat surfaces in optimal condition over years of pool-side exposure.
5-year structural warranty - UPS Ground
The L-325 carries a 5-year structural warranty and a 5-year pro-rated warranty on the actuator and controls. UPS Ground shipping means no freight scheduling or large-carrier coordination - the lift arrives via standard parcel delivery. For the pool owner who wants a straightforward purchase, straightforward delivery, and a clearly warranted product from a USA manufacturer, the L-325 delivers on all three counts.
Made in USA - century of combined experience
Global Pool Products is located in Bad Axe, Michigan. Key staff members bring over a century of combined aquatic industry experience to the design and manufacturing process. The L-325 is built in the USA using materials and processes selected for quality, safety, and long service life in outdoor aquatic environments. Global does not sell direct - contact us to purchase or locate an authorized dealer near you.
About Global Pool Products
Made in USA - ADA Compliant - UL Certified
Global L-325. 325 lb capacity. Non-rotating. 2-button. Field reversible. ADA + UL Certified.
Global Pool Products is a Michigan-based manufacturer of pool lifts and aquatic equipment, made in Bad Axe, Michigan with a combined staff experience of over a century in the aquatic industry. The L-325 is the 325-lb-capacity model in Global's Legend Series - ADA compliant, UL Certified, non-rotating, 2-button raise/lower operation, field reversible, 304 stainless steel construction, and 5-year structural warranty. Ships UPS Ground. Global Pool Products does not sell direct - contact us to purchase or locate an authorized dealer near you.
-
325 lb capacity - ADA compliant + UL Certified, lab tested
-
Non-rotating - simple 2-button raise/lower hand controller
-
Field reversible - right seat standard, converts to left in field
-
304 stainless steel - marine grade hardware - UV resistant - powder coat
-
5-year structural warranty - 5-year pro-rated actuator and controls - made in USA
L-325 vs L-350 - Legend Series comparison
L-325 vs L-350 - capacity is the only difference
The Legend Series L-325 and L-350 are the same lift in two weight capacity options. Both are non-rotating, 2-button raise/lower, field reversible, ADA compliant, UL Certified, 304 stainless steel with multi-step powder coat, marine grade hardware, 24V battery, and 5-year structural warranty. The L-325 has a 325 lb weight capacity. The L-350 has a 350 lb weight capacity. Choose the L-325 for users up to 325 lbs where the lower capacity is sufficient and appropriate. Choose the L-350 for users approaching or over 325 lbs where the extra 25 lbs of capacity provides comfortable headroom above the rated limit. Both ship via UPS Ground. Both are made in Bad Axe, Michigan. Both carry the same 5-year structural and 5-year pro-rated component warranty terms.
Documents and Resources
Warranty
5-year structural warranty + 5-year pro-rated actuator and controls
The Global Pool Products L-325 carries a 5-year warranty on the structural frame covering defects in materials and workmanship under normal use conditions.
The actuator and controls carry a 5-year pro-rated warranty from the date of purchase. The pro-rated schedule means the warranty value decreases proportionally over the 5-year period. See the Warranty Information document above for the full pro-rated schedule and claim procedure.
The warranty does not cover damage caused by improper installation, misuse, use beyond the stated 325 lb weight capacity, failure to follow the maintenance schedule in the Owner's Manual, or normal wear items. Warranty registration is available in the Owner's Manual. Contact Global Pool Products at 866-712-0606 or sales@globalpoolprod.com for warranty claims and support.
