Our multiplace Walk-In hyperbaric hard chamber by far is the best available in this price range. In fact, we have no competition in the hyperbaric hard chamber space with this incredibly well-crafted system. Our system is unique in the industry of high-end hyperbaric’s as it does not require any special venting due to the fact that the net room oxygen does not change as the unit is operated.
This hyperbaric chamber system is designed to support 1.3 ATA/1.6/1.8/2.0 ATA, as selectable operating pressures with 2 chairs. sitable This system will be integrated with oxygen generators and is much safer to operate than the more expensive systems that require oxygen tanks.

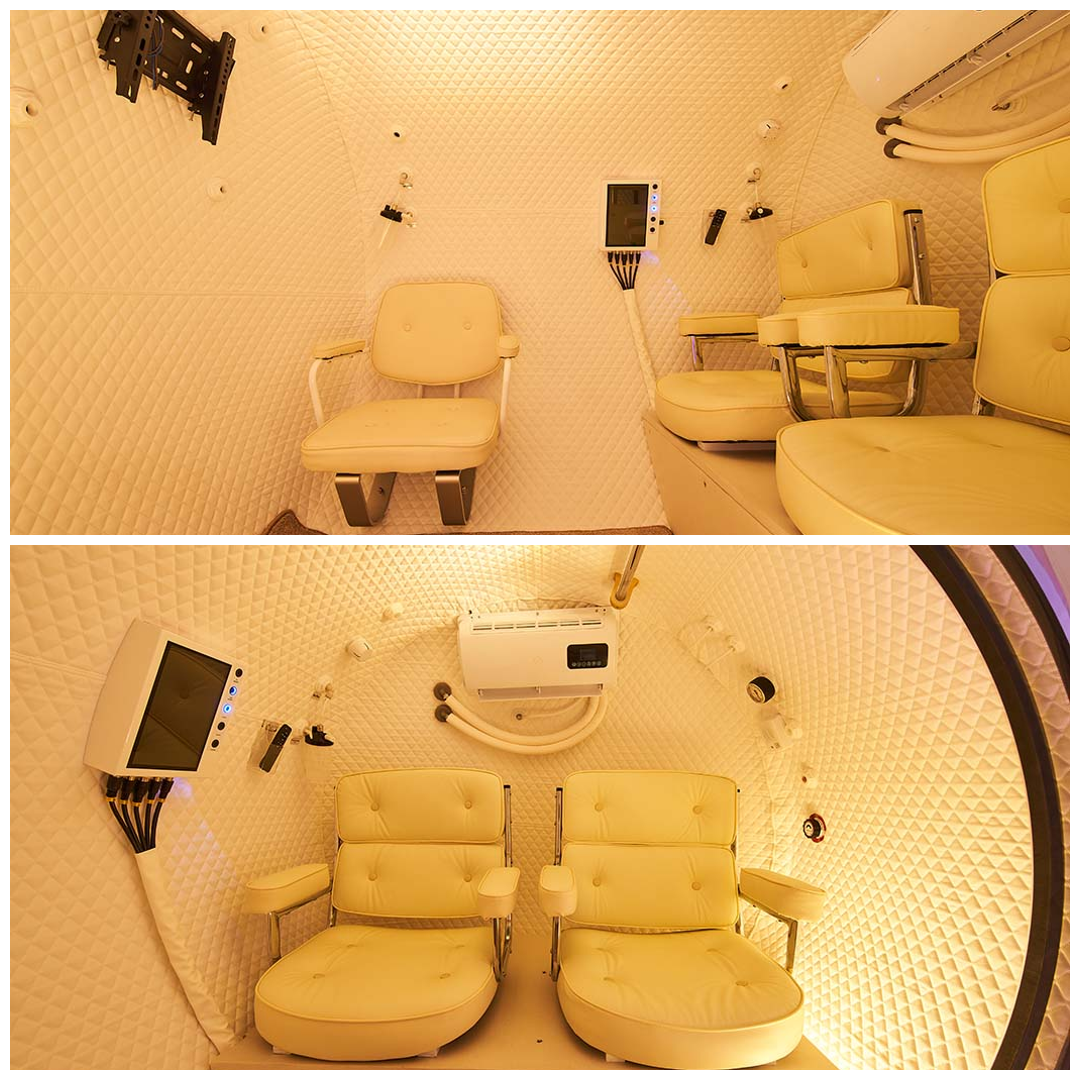

The chamber can be customized for a 2-person, 3-person or 4-person layout, based on individual preferences in the "CHAIR OPTIONS" tab.
Our system is unique in the industry of high-end hyperbaric’s as it does not require any special venting due to the fact that the net room oxygen does not change as the unit is operated.
This hyperbaric chamber system is designed to support 1.3 ATA, 1.5 ATA and 1.6 ATA as selectable operating pressures.
This system will be integrated with oxygen generators and is much safer to operate than the more expensive systems that require oxygen tanks. Oxygen Health System’s multiplace M5200 hyperbaric hard chambers are designed for safety, durability, comfort, and ease of entry and exit along with many more advanced features.
This hyperbaric hard chamber system is designed for practitioners or home users who want a more advanced system that allows for higher pressurization in a hyperbaric therapy system and that also provides a simplified entry and exit.
Can be operated continuously making it ideal for doctors office.
Just power it up, get inside, and hit the button to start therapeutic sessions. Clients of all shapes and sizes will love this system for its expansive roominess and the luxury it can provide in an environment of everyday and all-day usage.
The combination of our chamber and specially selected equipment allows breathing at levels up to 95% oxygen.
Can Be Operated Independently Without Assistance of a 2nd person.
There is no need for costly installation with our hard chamber system, and our chamber itself is quite compact – perfect for practices already short on space. The chamber is simple to operate and has very low running costs, the only consumable being electricity.
Optional Addons:We are the only hyperbaric manufacturer to offer an air conditioning system for use with Hyperbaric Oxygen Chamber Systems. Doctors should contact us directly to find out about features only available to Doctors.
International Sales We sell internationally and can provide our systems to your international voltage and plug type requirements.
A positive patient experience Our HBOT chamber comes equipped with all of the essentials to ensure your sessions run smoothly. The interior is designed to be as comfortable as possible, with our large window positioned to minimize the effects of claustrophobia and keep the patient relaxed. Our sliding door systems allow for easy entrance and exit from the system.
Optimal Air Conditioner The inclusion of a dehumidifier (built into the all-in-one compressor) unit is a great addon the is free with this unit. However, In a confined space or where the room temperature is not adjustable to the optimal 68 degrees or lower, the treatment might become slightly uncomfortable for some patients. The optional inclusion of an air conditioning unit can be integrated and allows you to maintain a more constant temperature inside the chamber is available at an additional cost.
Interior Comfort & Operation The interior is padded and contains a soft mattress and pillow. The operation of the hyperbaric chamber can also be controlled from inside, with basic controls and emergency alarm located within reach.
Entertainment The standard treatment time of 60 – 90 minutes can have a positive impact. Our chamber comes with a dim interior light to allow patient relaxation, while still allowing them to read a book.
For Practitioners
Our Hyperbaric Chamber is designed to be easily controlled and allows you to be in constant contact with the patient. The ease of operation requires very little training, and the sessions can easily be managed by staff. For maximum effect, each session generally lasts 60 – 90 minutes.
For Pets Accompany your pet inside the chamber so they can enjoy the benefits of Hyperbaric Oxygen. Also, ask about our smaller pet chambers.
Ergonomic Chamber Control Our user-friendly control station is designed to ensure simple operation and management. The functional layout allows full management and oversight of the chamber, controls and communications.
Emergency & Preventative Measures The hyperbaric chambers are equipped with numerous safety features for peace of mind for both practitioner and patient. Whilst hyperbaric chamber use is considered very safe in the medical industry, there is always the risk of complications. We have invested heavily in measures to ensure patient safety, such as:
1. More gradual pressurization of the chamber; allowing for staff assessment and discomfort checks. 2. Emergency Alarm control for the patient to alert staff. 3. Emergency Pressure Relief Valve; reduces pressure in the case of an emergency. 4. Intercom phone system; for ease of communication with the patient. 5. Easy Entry and Exit via our unique sliding door. 6. Interior controls all for single user operation of all features without supervised assistance. 7. All our hard chambers have an interior grounding mat to mitigate any static charge that could occur during your session. 8. The system slowly depressurizes in a safe manner if power is lost. 9 Internal Emergency door release button.
Operational Costs: There are no consumables required to operate the hyperbaric chamber, only the electricity to run the air compressor/oxygen concentrator/air cooler (single machine). Per hour cost for electricity is roughly 39 cents per hour.
Warranty: We take pride in our product quality and all hyperbaric chambers come with our standard 3 years materials and workmanship warranty.
Specifications
Size:
64″ D: Depth is 64 inches.
91″ L: Length is 91 inches.
79″ H: Height is 79 inches.
Weight: 1043lb
Brand: Oxygen Health Systems
FEATURES:
Operating Pressure:2.0 ATA | 14 PSI | 100 kPa (Total systems is 1200 watts)
Main Body-The Bladder: 4mm thick 304 Grade Stainless Steel
Window: The sliding glass door makes for ease of entry and exit. Additionally, it also allows for ample light into the chamber while providing the ability to view clients easily.
Wheels: Yes, allows for ease of movement around the Home/Office.
Noise: < 60 db
Can Be Operated Independently Without Assistance of a 2nd person: Yes, Interior controls to lock the door and start pressurization without assistance.
Power Outage Alarm System: Yes, Included. An alarm alerts you when there is a power outage.
Timer: Allows incremental auto controlled session time up to 2 hours.
Communication System: Yes, Intercom.Alerts customers of unexpected power outages.
Attendant Buzzer –Yes Included. Alerts attendant for assistance. ‘
Remote Control - Yes, Included to ease unattanded operation.
Two-way LCD display for operation - Yes Included.
Integrated Smart Controller/ Redundant Compressor system: two 520-watt compressors, which are an adjustable pressure control systems, oil-free, low noise with two mufflers, activated carbon two-way filtering technology, and provides high volume air flow at 120 LPM. Designed to purify air and dust contaminants efficiently giving you purer air quality:
7.9″ L: 7.9 inches long
19.7″ W: 19.7 inches wide
23.6″ H: 23.6 inches high
Weight: 1043lbs
Watt: 1300
Air Relief Valve:Dual pressure relief valves at the foot of the chamber and a patented emergency relief valve. In the event of an emergency, you can press the release button from inside the chamber which will quickly depressurize so you can then exit the chamber.
Internal and External Gauge: Both are included, therefore the patient and a person outside of the hyperbaric chamber can monitor the internal pressure while completing their hyperbaric oxygen therapy session.
Entry to Chamber: Easy Entry and Exit via our unique sliding door.
Oxygen Concentrator: A 10 liter per minute Drive DeVilbiss Concentrator is included. 15 LPM Total Oxygen Flow, 70 LPM, Air Flow 640 watts, 18 to 20 PSIG giving you 95% air purity. FDA approved. 3-year warranty.
Installation: We can even arrange installation services for a truly worry-free experience. (additional fees apply)
All Equipment Voltage: 110-120 volts and 220 available upon request. Oxygen concentrator 640 watts, compressor 520 watts, dehumidifier 300 watts. Additional upgrade for the air conditioner 550 watt.
Certification: CE, ISO9001, ISO14001, ISO13485
Get started quickly with our video training and ongoing support for setup with video calls and phone assistance if needed!
Items Included In The Order
We understand our customers. Medical equipment needs to work from day 1, which is why we include everything required to operate the chamber smoothly, ensuring a positive experience for both physician and patient.
Items Included In The Order List:
Internal control panel allows for multi-person operation from the inside of the unit.
Easy-slide large polycarbonate cabin door for easy access. Activated by pressure, with automatic release upon de-pressurization.
The automatic air pressure system, the door is sealed by pressure.
All-In-One Machine: (Included 4 x 10 LPM = 40 LPM Oxygen generator, Dehumidifier, and air compressor)
Digital display and control systems allow the practitioner to see current interior Pressure, Air Temperature, Humidity, and Percent Oxygenation.
Interior and exterior pressure gauges.
The timer on digital control allows automatic programming of session time.
Communication interphone with attendant alerting.
Our grounding system has documented benefits to support inflammation response positively while providing a static-free environment for safety. See Pubmed Article
Oxygen breathing headsets, nasal cannulas, and facemasks for ability to treat at 95% oxygen.
Expansion port allows for secondary devices to be connected or allows for future upgrades of other alternative devices if required.
Negative ION UNIT to enhance treatment. Due to the addition of the negative ion device, our customers can experience the relaxing benefit of fresh air similar to being on a beach. This option would allow customers to receive pure oxygen containing negative ions at high pressure and promote the body’s self-renewal process; enhance the vitality of immune cells. See NIH Research . In addition, our negative ion system will help reduce mold and mildew reduction.
Oxygen Concentrator
FDA Approved providing stable oxygen purity at 10 LPM with 95% purity after 5 minutes.Provides a hefty 640 Watt Motor for long-lasting durability and 18 to 20 PSIG suitable for high-pressure chambers! Click here for the Specifications
Air Compressor
Adjustable pressure control systemOil-free low noise design provides high volume Air Flow at 120 LPM.Provides activated carbon two-way filtering technology.Effectively Purifies air and all dust contaminants.
Air Dehumidifier
Dehumidifier provided as a standard option also saves over $700 in cost.
Grounding System
Includes: 1. Hyperbaric Chamber ground connection port. (System requires a blank port of chamber). 2. Silver infused Queen size fabric
Size: 27.56 x 78.74 INCHES (70 CM X 200 CM). 3. Rubber mat can alternately be utilized internally or externally to the chamber and measures 35 inches by 23.5 inches.
The Rubber mat is included for those customers who want the ease of disinfection of the chamber and can be wiped down with 70% disinfectant after every session.
Operation: Plug the white wire into the 3rd outlet ground connection to establish your ground connection.
Air Conditioning - OPTIONAL - NOT INDLUDED.
CHECK IN OPTIONAL ADDONS SECTION:
We have the option to order an Air Conditioning system. We are the only hyperbaric manufacturer to offer an air conditioning system for use with Hyperbaric Oxygen Chamber Systems. Call for details.
Our New Air Conditioner is a two-part system with a condenser on the inside of the chamber and the cooling unit on the outside of the Chamber. This system provides all the comfort you will need during your sessions or during extended usage of the system.
INTERNAL AND EXTERNAL PRESSURE GAUGE
Internal and External high-precision pressure gauges, allowing you to control pressure changes at any time.
Allows for accurate observation of pressure inside and outside the chamber.
Emergency Pressure Relief Valve
Patented design emergency relief valve,in case of emergency,the user can press the release button from interior to depressurize the chamber quickly,then open the zippers to exit the chamber quickly.
Chamber can be used from 1 to 4 person depending on which set up you are going to choose.
Warranty
Oxygen Health Systems Warranty Period is 3 years, full coverage warranty on the main chamber with a 20-year warranty on all soft chamber windows.Oxygen Health Systems further guarantees its hardware oxygen concentrator, air conditioner, dehumidifier, air compressor, etc. against defects for 1 year from the date of purchase.
We pride ourselves on painstaking accuracy and crafting our equipment with the very highest quality raw materials. Based on 7 years of performance data we know with a high degree of certainty that if there are manufacturing defects, they are most likely to occur within the first 12 months. Should any faulty materials and/or workmanship on the equipment be found, we provide troubleshooting guidance. Upon that, should the issue remain unresolved, we provide complete replacement of all affected components. Oxygen Health Systems at its option and sole discretion will replace the warranty item(s). The warranty does not cover damage as a result of misuse, overuse, mishandling, unauthorized modification, sheathing change, inadequate maintenance, improper equipment handling or user operation.
FAQ
Q: Can I do HBOT by myself or is it a 2 person job. Set up / machine on? Answer: You can use all of our hyperbaric chambers alone. You do not need a second person to get you inside and close the doors.
Q: What all do I need with this hyperbaric chamber? Answer: This hyperbaric chamber comes with everything you need to get started. Oxygen concentrator, masks, chamber, set up manual, and our support!
Q: Do you ship to Alaska & Hawaii:
Answer: We absolutely ship to Alaska and Hawaii! Please email us at the email address below or call us at 251-292-1169 with your address for a shipping quote. Email us at support@mediriser.com for any shipping support.
