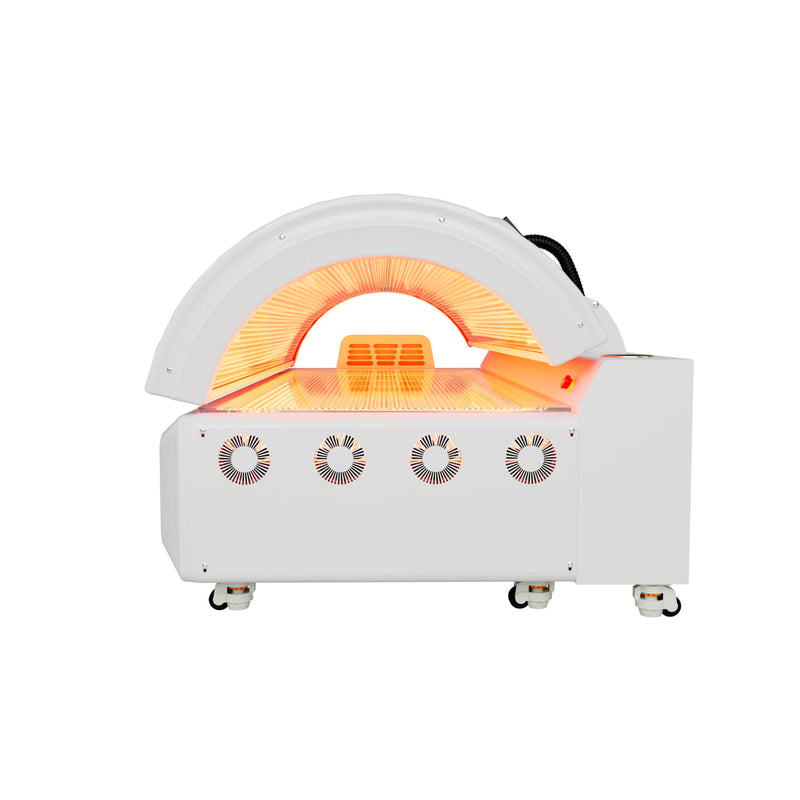

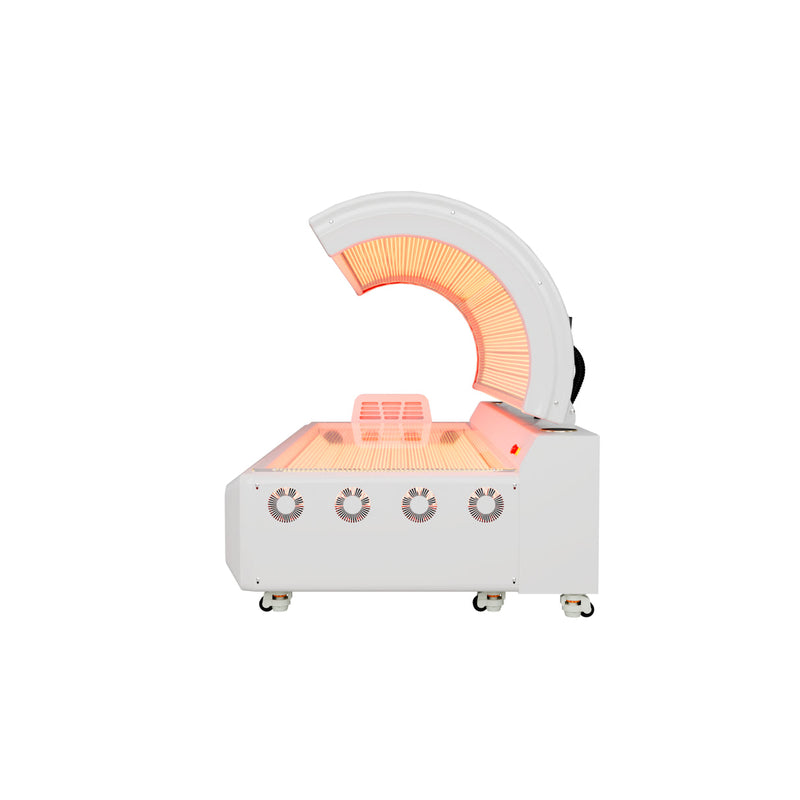

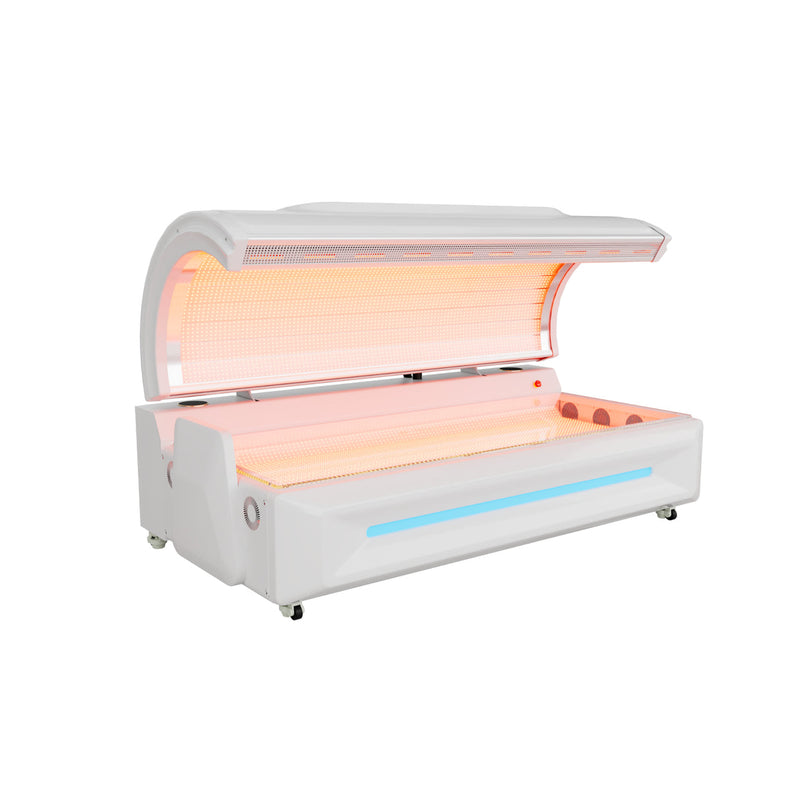

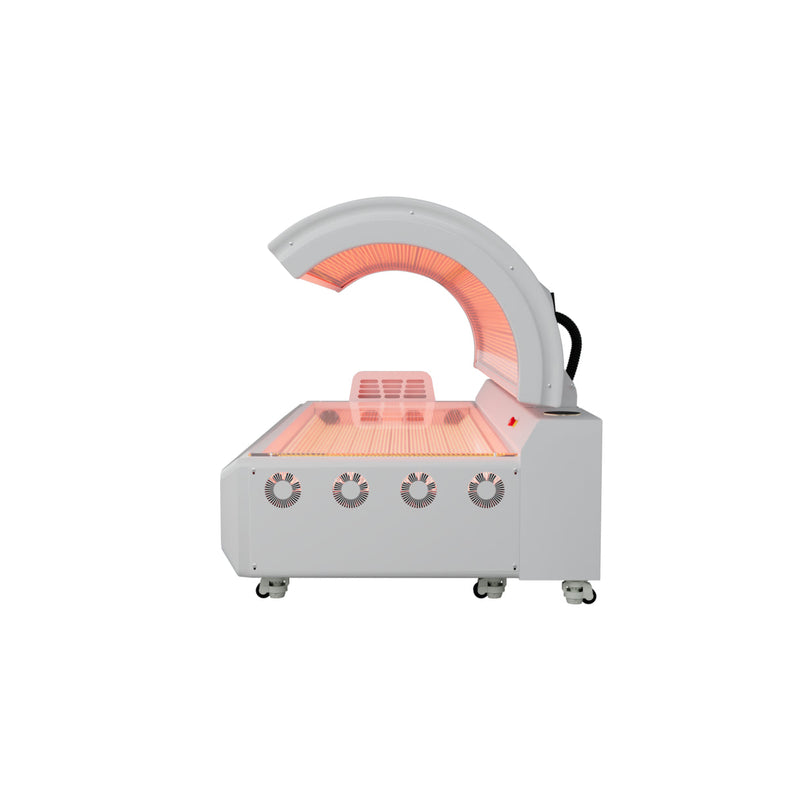

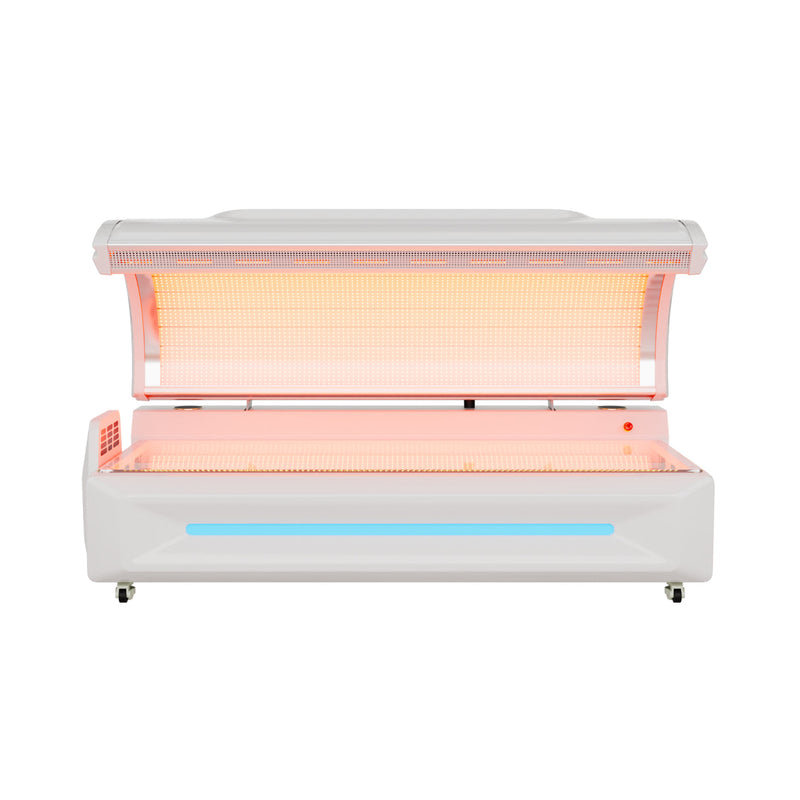

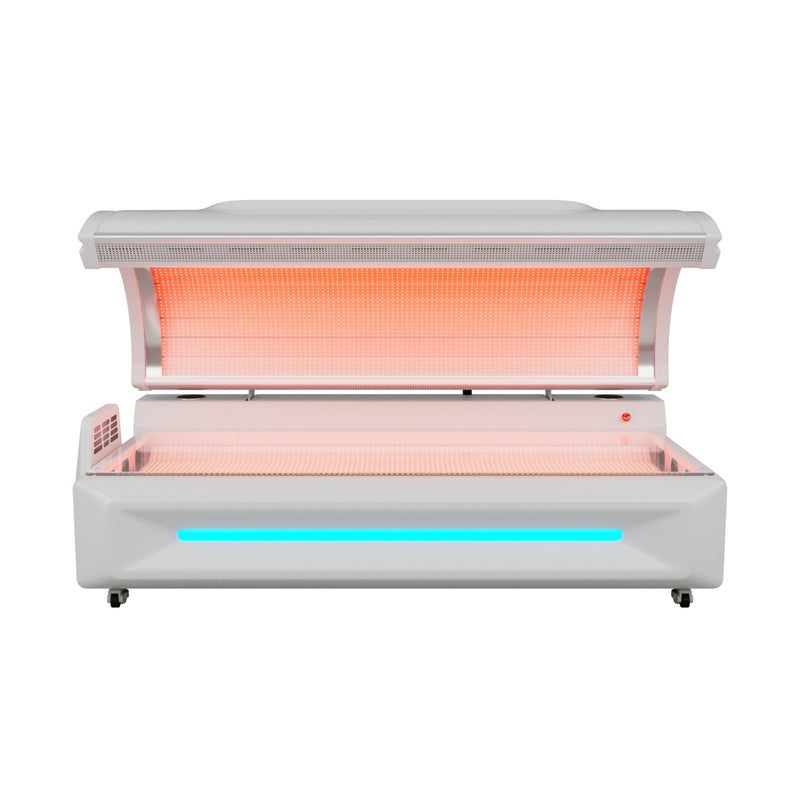

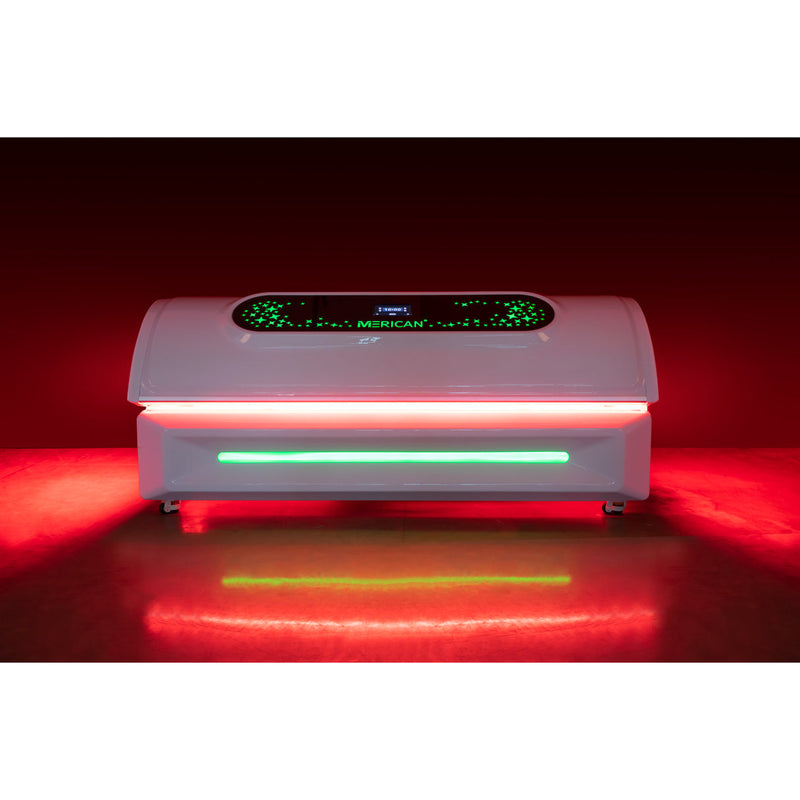

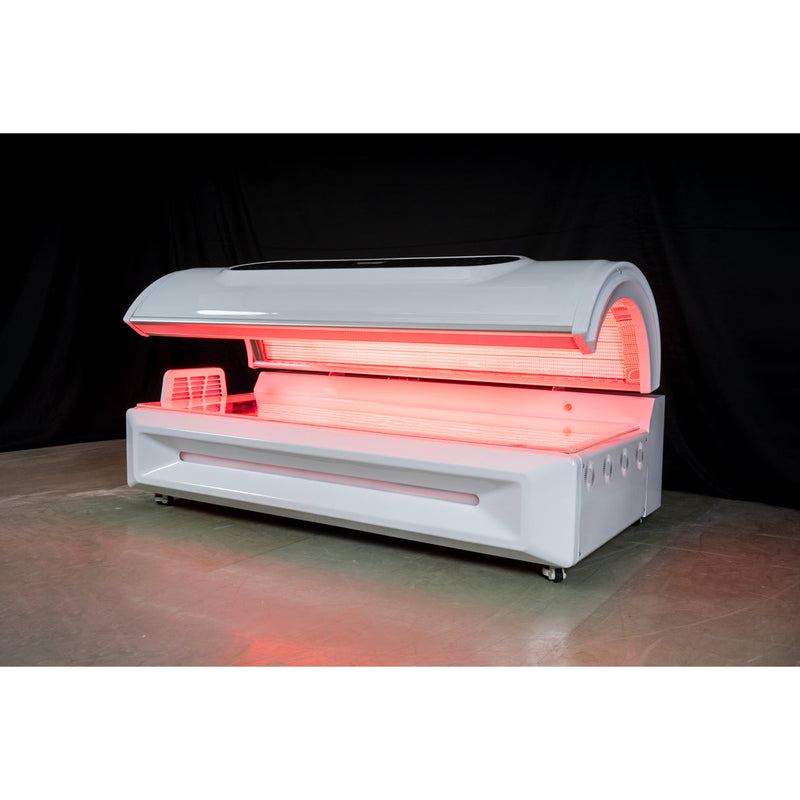

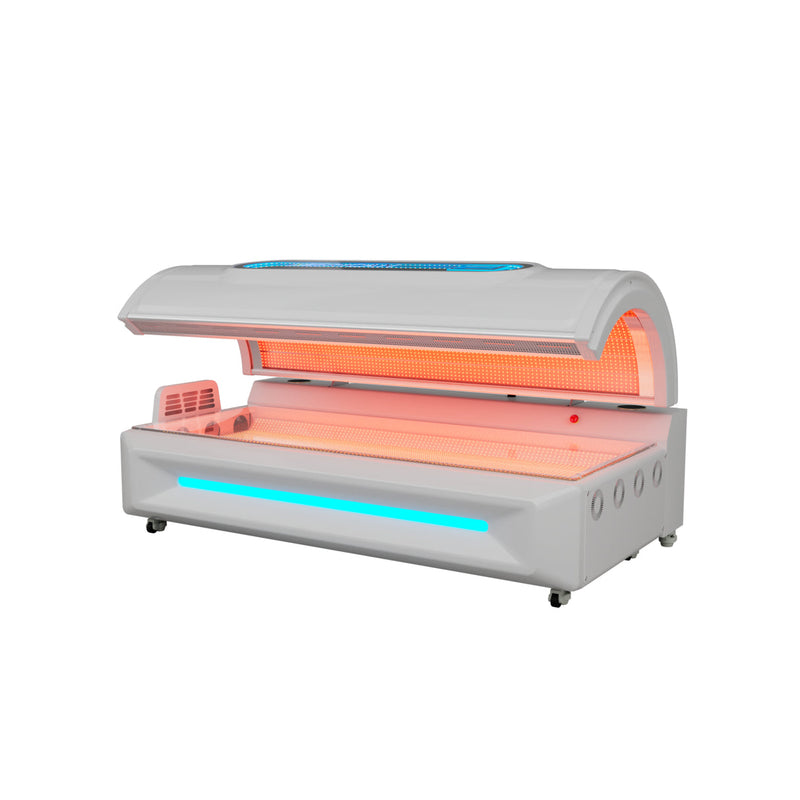

The Merican M5 is a full-cabin red light therapy bed that delivers the advanced control architecture of the M5N Plus IoT management, commercial external control, customisable pulse frequency modulation, integrated mobility wheels, and custom logo branding in a lower-density LED configuration designed for professional and clinical environments where connected facility management and operational flexibility are the primary requirements. At 16,560 Taiwan Epistar LEDs at 3,000W in the same 89.57" × 48.62" footprint as the M5N Plus, the M5 achieves up to 120 mW/cm² at user level across the full-cabin enclosed surface. It is the IoT-connected, mobile full-cabin bed in the Merican range for facilities that prioritise smart facility integration and room-level flexibility alongside solid full-body light therapy performance.
16,560 Taiwan Epistar LEDs 630 to 1,241 W/m², up to 120 mW/cm² at 3,000W
The M5's LED array uses 16,560 Taiwan Epistar diodes at 3,000W a lower LED density than the M5N Plus (36,800 LEDs at 5,500W) in the same physical cabinet. The full-cabin enclosed geometry still produces 630 to 1,241 W/m² across the treatment surface, translating to up to 120 mW/cm² at user level the same peak user-level irradiance figure as the M5N Plus. This is achievable because the irradiance specification reflects the peak output at the central zone of the treatment surface, where LED density is concentrated, within the efficiency advantage of the enclosed cabin format. LED lifespan is rated at 100,000 hours. The unit requires a hardwired dedicated circuit at 220V or 380V no plug connection is available at this power level.
IoT management, commercial external control, and customisable pulse frequency modulation
The M5 shares the full advanced control architecture of the M5N Plus: an intelligent management system with IoT management enabling network-connected remote access and session monitoring, commercial external control for integration with facility building management or wellness management systems, and customisable pulse frequency modulation from 0 to 1,000 Hz. Five wavelength channels red at 633nm and 660nm, and near-infrared at 810nm, 850nm, and 940nm are each independently controllable. This control stack is designed for facilities where multiple therapy units are managed centrally, sessions are initiated and monitored remotely, or the therapy bed needs to operate as a connected node within a broader facility technology infrastructure rather than as a standalone device controlled manually at the bedside.
Same footprint as M5N Plus mobility wheels, 595.25 lbs, IoT in a 3,000W hardwired cabinet
The M5 occupies exactly the same floor footprint as the M5N Plus: 89.57" × 48.62" × 37.99" at 595.25 lbs, with integrated mobility wheels. Facilities that have planned their room layout around the M5N Plus dimensions can install the M5 in the same space with identical clearance requirements and cable routing. The mobility wheels allow repositioning within the room after installation the same practical operational flexibility available on the M5N Plus and M6N Plus, not available on the M4N Plus, M6N, MMB Plus, or M11 Plus. Custom logo branding is included at no additional cost. The unit is covered by a 5-year manufacturer warranty on the main unit and core components.
A full-cabin red light therapy bed with 16,560 Taiwan Epistar LEDs delivering up to 120 mW/cm². Dimensions: 89.57" L × 48.62" W × 37.99" H. Weight: 595.25 lbs. Five independently controlled wavelengths: red 633nm and 660nm, NIR 810nm, 850nm, and 940nm. Irradiance: 630–1,241 W/m² (up to 120 mW/cm²). Pulse system: 0–1,000 Hz customisable frequency modulation. 100,000-hour LED lifespan. IoT management + commercial external control + intelligent management system. Wireless PAD remote. Bluetooth music. Integrated mobility wheels. Intelligent temperature monitoring + automatic overheat protection. 3,000W - 220V or 380V hardwired, no plug. Eyewear goggles included. Custom logo branding included. White. 5-year warranty. Commercial and household use. Manufactured by Merican, est. 2008 trusted in 100+ countries.
Full-cabin enclosed bed design 16,560 Taiwan Epistar LEDs Up to 120 mW/cm² irradiance 630–1,241 W/m² irradiance range 100,000-hour LED lifespan 5 wavelengths independent control Red: 633nm + 660nm NIR: 810nm + 850nm + 940nm Pulse system: 0–1,000 Hz IoT management Commercial external control Customisable pulse frequency modulation Wireless PAD remote Bluetooth music Integrated mobility wheels Intelligent temperature monitoring Automatic overheat protection 3,000W - 220V or 380V No plug hardwired installation Eyewear goggles included Custom logo branding included White 5-year warranty Merican est. 2008 - 100+ countries
Specifications
Dimensions and weight
| Length |
89.57 in (2,275 mm) |
| Width |
48.62 in (1,235 mm) |
| Height |
37.99 in (965 mm) |
| Net weight |
595.25 lbs (270 kg) |
| Available colour |
White |
| Application |
Commercial and household use |
Light system
| LED type |
Taiwan Epistar LED |
| Total LEDs |
16,560 |
| LED lifespan |
100,000 hours |
| Irradiance range |
630–1,241 W/m² |
| Irradiance (user level) |
Up to 120 mW/cm² |
| Red wavelengths |
633nm, 660nm |
| Near-infrared wavelengths |
810nm, 850nm, 940nm |
| Wavelength control |
Independent per wavelength channel |
| Pulse system |
Yes, 0 to 1,000 Hz |
| Treatment modes |
Continuous wave and pulsed |
Electrical and control
| Power |
3,000W |
| Voltage |
220V or 380V |
| Power plug |
No, hardwired dedicated circuit
with breaker and RCD/GFCI |
| Control system |
Intelligent management system
+ commercial external control
+ IoT management |
| Pulse control |
Customisable frequency modulation |
| Remote control |
Wireless PAD remote |
| Audio |
Bluetooth music |
Features and inclusions
| Temperature monitoring |
Intelligent real-time built-in system |
| Overheat protection |
Automatic activates cooling +
audible alert if threshold exceeded |
| Mobility |
Integrated wheels repositionable |
| Eyewear goggles |
Included |
| Custom logo branding |
Included |
Warranty
| Main unit warranty |
5 years |
| Coverage |
Defects in materials and workmanship
under normal use |
| Remedies |
Defective parts repaired or replaced |
| Manufacturer |
Merican est. 2008 |
| Markets served |
100+ countries |
Merican M5 - Unit Overview
What's included
Merican M5 Red Light Therapy Bed
16,560 Taiwan Epistar LED array pre-installed
5-wavelength light system (633, 660, 810, 850, 940nm)
Independent wavelength control system
Pulse system (0–1,000 Hz) with customisable frequency modulation
Intelligent management system
IoT management capability
Commercial external control support
Wireless PAD remote
Bluetooth music system
Intelligent temperature monitoring system
Automatic overheat protection system
Integrated mobility wheels
Protective eyewear goggles
Custom logo branding (included)
Why the Merican M5 stands out
IoT + commercial external control at 3,000W
The M5 delivers the full advanced control architecture IoT management, commercial external control, customisable pulse frequency modulation at 3,000W on 220V or 380V. For facilities that need network-connected therapy bed management and facility system integration without the 5,500W power demand of the M5N Plus, the M5 is the direct solution.
Mobility wheels repositionable after installation
Integrated mobility wheels allow the 595.25 lb M5 to be repositioned within a room despite the hardwired power connection. Among full-cabin enclosed beds in the Merican range with IoT capability, the M5 is the only option that also includes wheels connecting, monitoring, and moving the unit within the treatment space.
Up to 120 mW/cm² in the full-cabin format
16,560 Taiwan Epistar LEDs in the enclosed cabin geometry produce 630 to 1,241 W/m² across the treatment surface up to 120 mW/cm² at the central peak zone. The full-cabin enclosure concentrates the LED output at the client surface, achieving professional irradiance levels from a lower LED count than open-format equivalents.
Customisable pulse frequency modulation
The 0-to-1,000 Hz pulse system supports customisable frequency settings rather than fixed presets allowing specific frequencies to be dialled in precisely for individual protocols. Combined with five independently controlled wavelengths, the M5 provides two fully flexible dimensions of session customisation.
M5N Plus footprint lower power demand
The M5 occupies the identical 89.57" × 48.62" × 37.99" footprint as the M5N Plus at the same 595.25 lb weight, allowing it to fit rooms sized for the M5N Plus. At 3,000W vs 5,500W, the M5 places a lower electrical infrastructure demand on the facility relevant for sites where 5,500W dedicated circuits are not readily available.
Custom branding + 5-year warranty
Custom logo branding is included at no extra cost, allowing the M5 to be presented under any facility's own brand identity. The 5-year manufacturer warranty covers the main unit and core components, with defective parts repaired or replaced during the warranty period.
About Merican
Merican Optical Energy Research Center Technology
IoT-connected full-cabin therapy at 3,000W mobile, branded, and backed for five years.
Founded in 2008, Merican is a global manufacturer of professional red light therapy and wellness equipment trusted in more than 100 countries. The M5 is positioned as the IoT-connected, mobile full-cabin enclosed bed for facilities where smart system integration and operational flexibility are essential requirements, but where the full 5,500W power demand of the M5N Plus is a constraint. It brings 16,560 Taiwan Epistar LEDs, up to 120 mW/cm², the complete advanced control stack including IoT and commercial external control, integrated mobility wheels, and custom branding in the same physical cabinet as the M5N Plus at a lower power footprint.
-
16,560 Taiwan Epistar LEDs up to 120 mW/cm², 100,000-hour lifespan
-
IoT management + commercial external control network-connected facility integration
-
Five independent wavelengths red 633 + 660nm, NIR 810 + 850 + 940nm
-
Integrated mobility wheels repositionable after hardwired installation
-
Custom logo branding included 5-year warranty
Commercial and Household Installation
3,000W hardwired same footprint as M5N Plus, lower electrical demand.
The M5 requires a hardwired dedicated circuit with breaker and RCD/GFCI protection at 3,000W available at 220V or 380V. At 3,000W it draws the same power as the M4N Plus but without the plug-in option; a hardwired installation by a licensed electrician is required. The electrical infrastructure demand is lower than the M5N Plus (5,500W), M6N Plus (6,500W), and M11 Plus (7,500W), making the M5 a practical choice for facilities where dedicated high-amperage circuits are available but 5,500W+ service is not.
The integrated mobility wheels allow the unit to be repositioned within the room after hardwired installation cable management should account for the intended repositioning range during room planning. The IoT management and commercial external control capabilities should be discussed with your facility IT team or Merican's commercial team before ordering to confirm integration compatibility with your existing management systems. Custom logo branding and pulse frequency presets are configured prior to or after delivery contact us before placing your order to coordinate artwork and any specific frequency requirements. Eyewear goggles are included and should be worn during all sessions.
Warranty
5-year warranty
The Merican M5 Red Light Therapy Bed is covered by a 5-year manufacturer warranty on the main unit and core system components, covering defects in materials and workmanship under normal use from the date of purchase. Defective parts will be repaired or replaced during the warranty period; shipping or service costs may vary depending on the case and location.
Warranty coverage does not include damage resulting from misuse, improper installation, unauthorised modifications, accidents, neglect, or normal wear and tear. To maintain warranty coverage, the unit must be installed, operated, and maintained in accordance with the manufacturer's guidelines. Retain your proof of purchase and product serial number for all warranty claims and support requests. We are an authorised Merican dealer.
