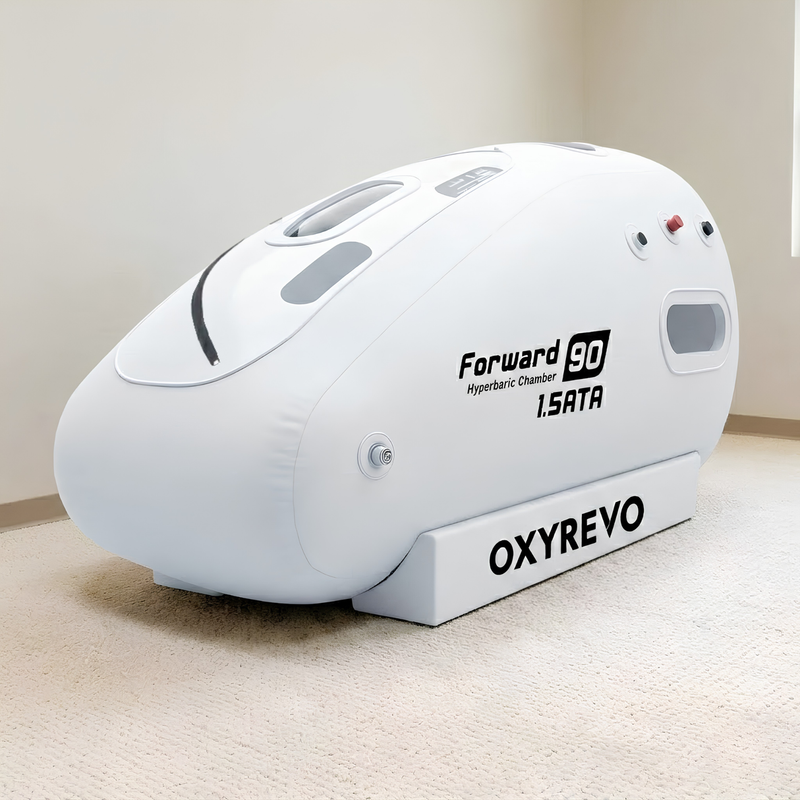

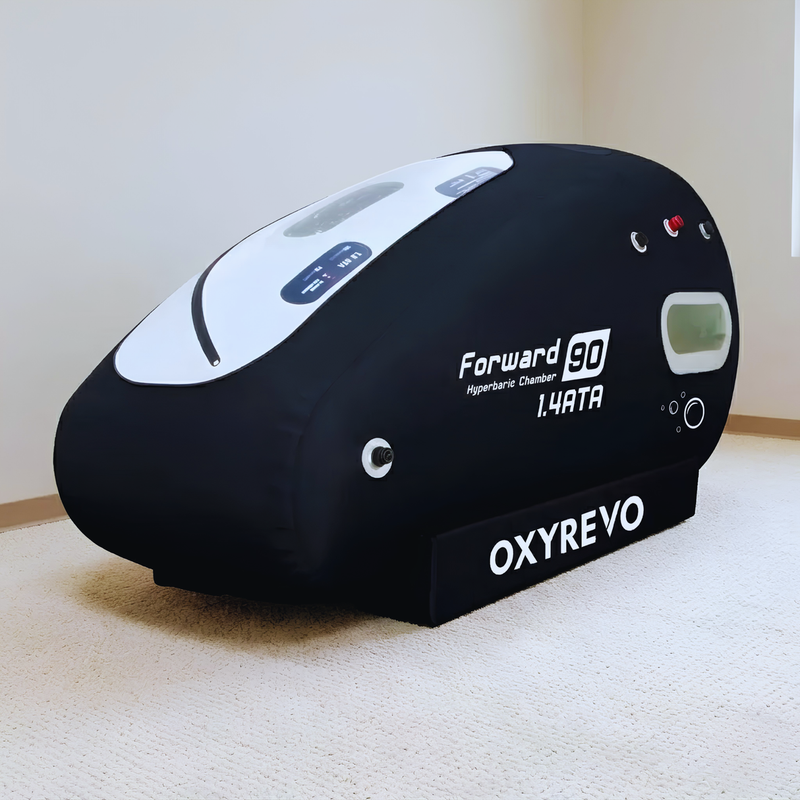

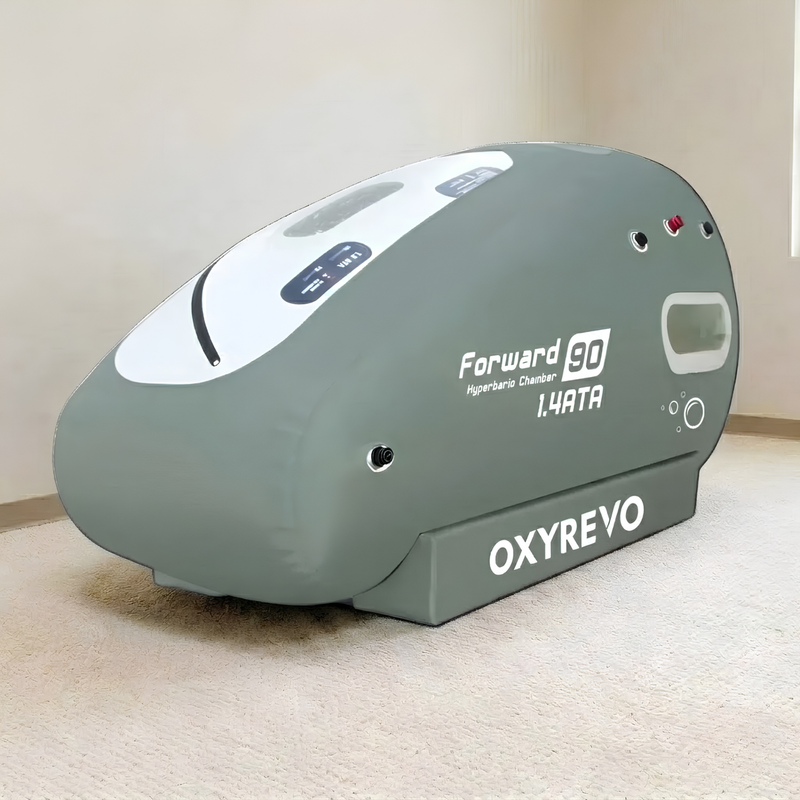

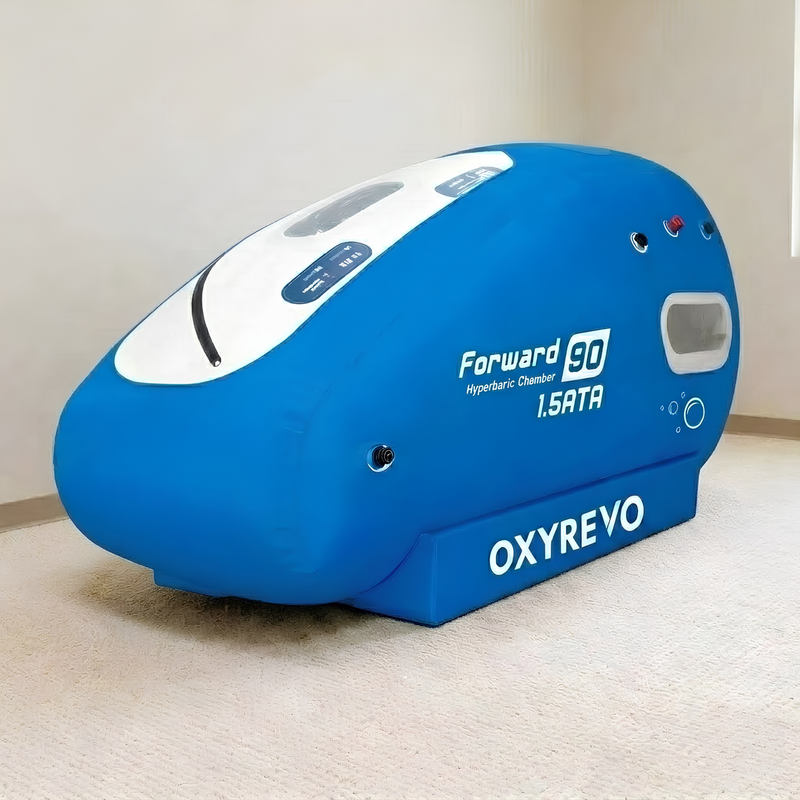

Compact Comfort, Same Powerful Performance
Experience the full benefits of oxygen therapy in a smaller, more space-conscious design. The Forward90 MINI Soft Sitting Hyperbaric Chamber is purpose-built for users who prefer a relaxed seated position while keeping their footprint minimal.
Designed for versatility and effortless daily use, it comes with an adjustable folding chair that allows you to sit upright or recline throughout your session. Despite its compact dimensions (66" L × 47" W × 47" H), the Forward90 MINI delivers identical performance to the standard Forward90, operating reliably at 1.4 ATA or 1.5 ATA for efficient pressurization and consistent oxygen delivery.
Powered by a 10L oxygen concentrator (90–97% purity) and a smooth, intuitive pressure control knob, the MINI puts full personalization of every session in your hands. Dual YKK zippers, double air filtration, and an eco-friendly, non-toxic interior guarantee clean, dependable performance session after session. Its lightweight internal frame maintains a perfect shape under pressure, while a memory foam seat pad elevates comfort during extended therapy sessions.
An ideal fit for clinics, home setups, or wellness studios that require a high-performing sitting chamber without sacrificing valuable space.
"This is a MINI version"
What's the AC Upgrade?
Your chamber ships with a standard air cooler that keeps the interior marginally cooler than surrounding conditions (typically running 2–4°F above room temperature inside).
Upgrade to the Water Chiller AC Unit to:
- Actively control and maintain internal temperature
- Keep the chamber cool and comfortable, even in warmer rooms
- Stay refreshed throughout longer sessions
Want flexibility?
Choose "AC-Ready" ports come factory pre-cut so AC can be installed at any future point with zero modifications required. A reliable backup for warm climates and hot days.
Why Combine Red Light Therapy and HBOT?
HBOT drives enhanced oxygen delivery to body tissues, supporting cellular repair, improving circulation, and reducing inflammation, while RLT energizes mitochondria to boost energy production and collagen synthesis. Used together, they complement each other by refining oxygen utilization at the cellular level, yielding faster healing, deeper recovery, and more impactful overall results.
📖
Every chamber from Mediriser arrives with a free Protocol Book containing step-by-step instructions, expert insights, and thorough guidance for safely addressing 20+ conditions.
UAE Racer Aliyyah Koloc is an OxyRevo User!
Specifications
| Forward90 Mini Chamber |
|---|
 |
Working Pressure: 1.4 ATA / 1.5 ATA |
|
Weight: 15 kg / 30 lbs |
|
Dimensions: 66 inch L × 47 inch W × 47 inch H |
|
Windows: 4 large, multi-layered windows |
|
Sound Level: ≤50 dB |
|
Folding Chair: Adjustable |
|
Cover Color: Grey, OEM available |
| Standard Version |
|---|
 |
Air Compressor: Model AE01, 110V/220V, 19.29 inch L × 11.42 inch W × 15.75 inch H, 550W, 72 L/min, 35 lbs |
|
Air Cooler: Model ZLA01, 110V/220V, 11.81 inch L × 7.48 inch W × 13.39 inch H, 210W, 120 L/min, 13 lbs |
|
Oxygen Concentrator: Model HG10, 110V/220V, 18.11 inch L × 17.32 inch W × 30.71 inch H, 500W, 10 L/min, 66 lbs |
|
Operation: Separate units with individual setup and manual control |
|
Efficiency: Effective dehumidifying and cooling, continuous oxygen production, double input/output filters |
|
Notes: Lower cost, lightweight, portable, and economical to transport |
| Pro Version |
|---|
 |
All-in-One Unit: Air Compressor, 10L Oxygen Concentrator, 2 Cooling Machines, Anion Generator, Timing Alarm, Oxygen Meter, Water Container, Air Filters |
|
Dimensions & Weight: 27.56 inch L × 13.78 inch W × 29.53 inch H, 176.37 lbs |
|
Operation: One-press activation, integrated control |
|
System: Enhanced dehumidifying and cooling, continuous oxygen |
|
Feature: Nano Water Ion Technology, 99% virus sterilization |
| Optional Add-On: Red Light Therapy |
|---|
 |
Red Light: 660 nm |
|
Near Infrared: 850 nm |
|
Power Supply: DC 24V |
|
Power Rating: 120W |
|
LEDs: 40 pcs |
|
Panel Dimensions: 9.45 inch × 5.51 inch × 1.18 inch |
| Water Chiller AC |
|---|
 |
Input Power: AC220V / 50Hz |
|
Total Power: 230W – 900W (by model) |
|
Tank Capacity: 4L – 5L (approx. 1.0 – 1.3 gal) |
|
Cooling Capacity: 1,875 BTU – 6,480 BTU |
|
Temp Control Range: 14°F to –40°F (model dependent) |
|
Accuracy: ±1.8°F (±1°C) |
|
Display Resolution: 0.1°F (0.1°C) |
|
Sensor Type: PT100 |
|
Flow Rate: 2.6 – 4.0 gal/min (10 – 15 L/min) |
|
Lift Height: 10 – 23 ft (3 – 7 m) |
|
Cooling Tank Size: approx. 7 inch × 6 inch (Φ18×16 cm) up to 8.7 inch × 7 inch (Φ22×18 cm) |
|
Net Weight: 66 – 121 lbs (30 – 55 kg) |
|
Dimensions: 15.7 inch × 11 inch × 21 inch up to 18.5 inch × 14.5 inch × 26.8 inch |
Features, Benefits & Applications
Unique curved zipper shape design
Heat welded, no toxic glues or sewing
Durable laser printing, no paper glued labels
1.2 to 1.5 ATA pressure adjustable
Extra quiet pressure relief valves
Dual pressure data display inside and outside
Benefits
Faster healing, reduced inflammation, stronger immunity, stress relief, improved skin and energy, enhanced recovery for athletes, and support for chronic conditions.
Applications
Ideal for post-surgery, sports injuries, migraines, stroke, TBI, chronic fatigue, autism, diabetes, and overall wellness recovery.
What's in the Box?
The OXYREVO Forward 90 Mini Portable Sitting Hyperbaric Chamber arrives as a complete, ready-to-use package for your hyperbaric oxygen therapy journey:
Chamber:
Internal/external pressure gauges
Operating Unit:
All-in-One Machine (For Pro Version)
Accessories:
Spare activated carbon cotton filters
Education:
🎁
FREE Protocol Book ($1,000 Value)
Warranty
Warranty basics
All machines and components come with a warranty plus lifetime technical support at no cost. If any quality issues occur within the warranty period that can be easily repaired, we will provide replacement parts free of charge, along with step-by-step repair guidance through pictures and videos. If the issue cannot be fixed, we will promptly send you a new machine at no cost.
Warranty length
2-Year
Commercial Warranty
3-Year
Residential Warranty
Lifetime
Technical Support
Component durability:
Soft Chamber Capsule: 10,000 hours
Air Compressor: 10,000 hours
Oxygen Concentrator: 5,000 hours
Remedies and costs
Replacement parts and repair guidance are provided free of charge during the warranty period. If the issue cannot be resolved through repair, a new machine will be sent at no cost. For service or maintenance enquiries, contact Customer Services at 📞 (251) 292-1169 or 📩 support@mediriser.com.
Shipping
Shipping and claims overview
Standard lead time is 2–4 weeks. An expedited shipping option is available that reduces production time from 3–5 weeks down to 1–2 weeks for an additional fee. We also offer US-based lifetime product support. Our network of technicians across the United States is available to assist you whenever needed.
Filing a claim
If there is an issue with your shipment or your chamber arrives damaged, please contact our customer service team as soon as possible. Email 📩 support@mediriser.com or call 📞 (251) 292-1169 and include your full name, order number, and photos of any damage.
Returns
Return Policy
Our Hyperbaric Chambers are individually tested with care by our professional technicians prior to shipment. Due to the nature of the product, we do not accept returns on Hyperbaric Chambers.
Refunds
If you would like to discuss a return or have concerns about your order, please contact our customer support team at 📩 support@mediriser.com or call us at 📞 (251) 292-1169.
