Hard Chamber, Higher Pressure

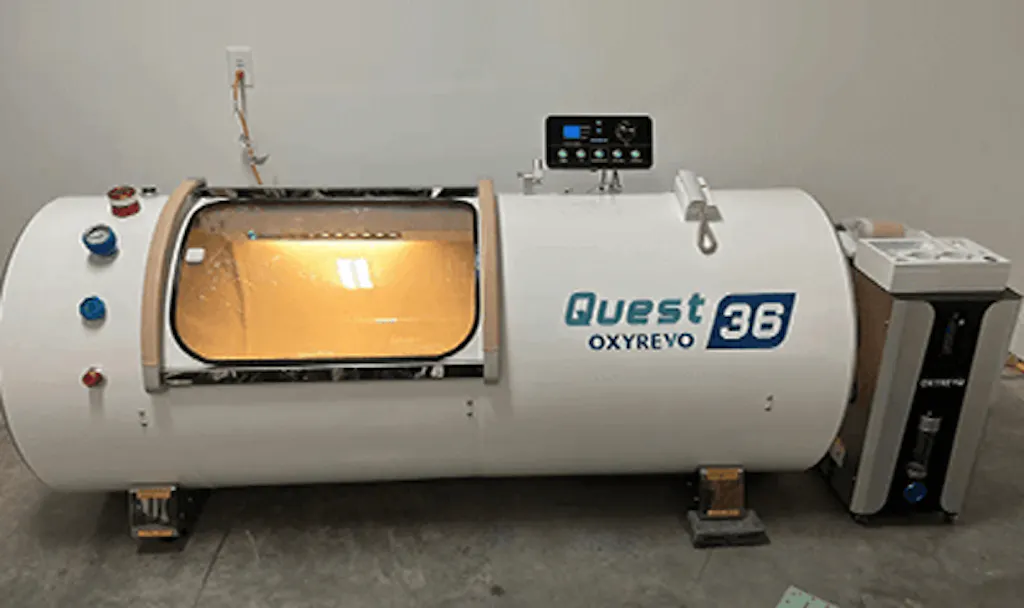

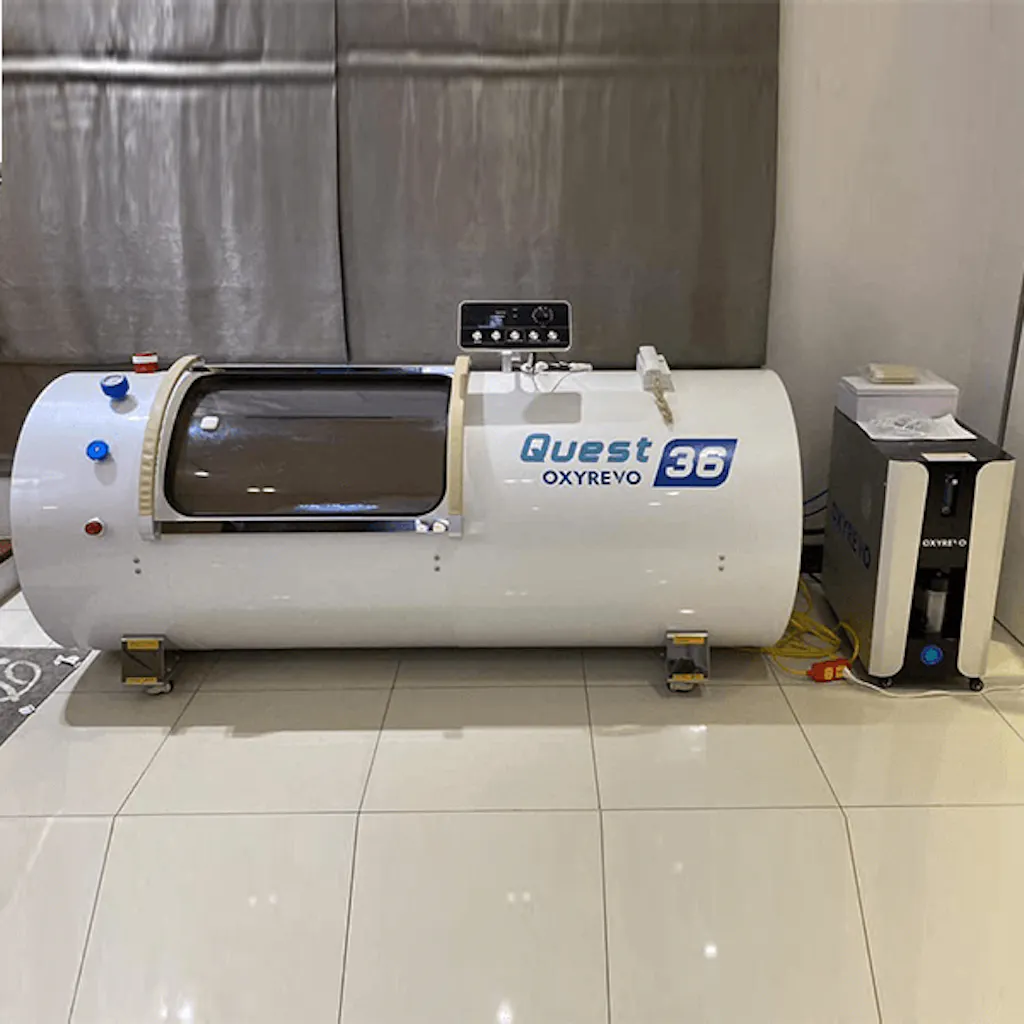

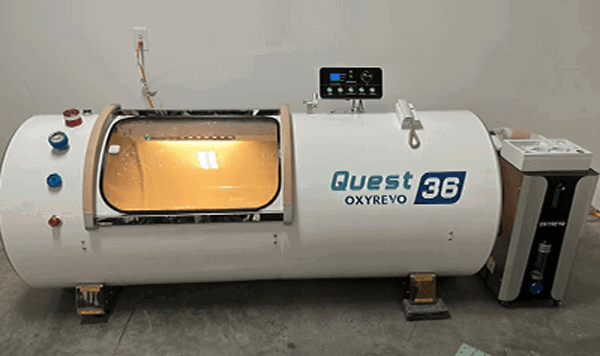

The OxyRevo Quest36 is a premium lay-down hard-shell hyperbaric chamber forged from heavy-duty stainless steel, spanning 89" in length and 36" in width. Operating at 1.5 ATA with the capability to reach 2.0 ATA, it delivers the pressure flexibility needed to pursue faster, more impactful therapy outcomes.
The OxyRevo Quest36 is outfitted with a wide-opening door, dual viewing windows, and a straightforward digital display for seamless daily operation. Four integrated wheels allow effortless repositioning, while built-in LED lighting, an onboard phone system, and a programmable timer of up to 120 minutes keep every session convenient and controlled. A 10L oxygen concentrator produces 90–97% purity oxygen, supported by dual controls and dual pressure readouts accessible from both inside and outside the chamber.
Safety is woven into every aspect of its design, with an emergency pressure valve that fully depressurizes the chamber within 30 seconds. The chamber's solid construction, transparent real-time monitoring, and dependable communication system work together to keep users protected and comfortable from start to finish.
What's the AC Upgrade?
Your chamber arrives with a standard air cooler that maintains a slightly reduced temperature relative to ambient conditions (typically running 2–4°F above room temperature inside).
Upgrade to the Water Chiller AC Unit to:
- Take full active control of internal temperature
- Maintain a cool, comfortable interior even in warm rooms
- Stay relaxed and focused throughout longer sessions
Want flexibility?
Choose "AC-Ready" ports are factory pre-cut, making future AC installation possible at any time with absolutely no modifications. The perfect contingency for warmer climates and hot-weather months.
Why Combine Red Light Therapy and HBOT?
HBOT elevates oxygen delivery throughout body tissues, supporting cellular repair, stimulating circulation, and reducing inflammation, while RLT awakens mitochondria to ramp up energy output and collagen production. Combined, these two powerful therapies reinforce each other at the cellular level, optimizing oxygen utilization and leading to swifter healing, more complete recovery, and stronger overall therapeutic results.
📖
Every chamber from Mediriser is packaged with a free Protocol Book filled with step-by-step instructions, professional tips, and detailed guidance for safely using your chamber across 20+ conditions.
Specifications
| Chamber |
|---|
 |
Working Pressure: 1.5 ATA / 1.6 ATA / 2.0 ATA |
|
Dimensions: 89 inch L × 36 inch W × 36 inch H (7.42 ft × 3 ft × 3 ft) |
|
Weight: 573 lbs |
|
Material: Stainless Steel |
|
Windows: 2 transparent windows |
|
Oxygen Purity: 90–97% |
|
Chamber Color: White, OEM available |
| All-In-One Machine Unit |
|---|
 |
Components: Air Compressor (1), Oxygen Concentrator (10L), Cooling Machines (2), Anion Generator, Timing Alarm, Oxygen Meter, Water Container, Air Filters |
|
Dimensions: 27.56 inch L × 13.78 inch W × 29.53 inch H |
|
Weight: 176.37 lbs |
|
Technology: Nano Water Ion Technology for pure, clean air with anti-virus disinfection |
|
Virus Sterilization Rate: 99% |
| Optional Add-On: Red Light Therapy |
|---|
 |
Red Light Wavelength: 660 nm |
|
Near Infrared Wavelength: 850 nm |
|
Power Supply: DC 24V |
|
Power Rating: 120W |
|
Red LEDs: 24 pcs |
|
Panel Length: 35 inch L |
| Water Chiller AC |
|---|
 |
Input Power: AC220V / 50Hz |
|
Total Power: 230W – 900W (varies by model) |
|
Tank Capacity: 4L – 5L (approx. 1.0 – 1.3 gallons) |
|
Cooling Capacity: 1,875 BTU – 6,480 BTU |
|
Temperature Control Range: 14°F to –40°F (model dependent) |
|
Accuracy: ±1.8°F (±1°C) |
|
Display Resolution: 0.1°F (0.1°C) |
|
Sensor Type: PT100 |
|
Flow Rate: 2.6 – 4.0 gallons/min (10 – 15 L/min) |
|
Lift Height: 10 – 23 ft (3 – 7 m) |
|
Cooling Tank Size: approx. 7 inch × 6 inch (Φ18×16 cm) up to 8.7 inch × 7 inch (Φ22×18 cm) |
|
Net Weight: 66 – 121 lbs (30 – 55 kg) |
|
Dimensions: 15.7 inch × 11 inch × 21 inch up to 18.5 inch × 14.5 inch × 26.8 inch |
Features, Benefits & Applications
Pressure adjustable from 1.2 to 1.5 ATA, or 1.4 to 2.0 ATA in the upgraded configuration
At 89 inches long and 36 inches in diameter, the chamber provides generous, unrestricted space for a fully comfortable session
Wide-opening door, full-size viewing windows, 2-way communication system, and an intuitive digital display
Wheel-mounted base for easy relocation, paired with an emergency valve for instantaneous pressure relief
Integrated LED reading lights and a built-in automatic timer for added in-session convenience
Uninterrupted two-way communication maintained throughout every session
Equipped with a 10L oxygen concentrator delivering 90–97% pure oxygen
Benefits
Hyperbaric oxygen therapy works to lower inflammation, ease pain, and combat fatigue while accelerating the body's natural healing and recovery processes. It reinforces immune strength, promotes healthy circulation, supports anti-aging and skin wellness, and provides relief for neurological and chronic health conditions.
Applications
Widely used for post-surgical and athletic recovery, migraine relief and stroke rehabilitation, traumatic brain injury and chronic fatigue management, and supportive care for anxiety, depression, autism spectrum conditions, and diabetic wound treatment.
What's in the Box?
The OXYREVO Quest36 Hard Hyperbaric Chamber arrives fully equipped and ready to begin your hyperbaric oxygen therapy journey:
Chamber:
Internal/external pressure gauges
Operating Unit:
Accessories:
Education:
🎁
FREE Protocol Book ($1,000 Value)
