Merits USA Power Wheelchair Gemini

Save 32% Save 32%
Original price $5,999.00
Original price $5,999.00 - Original price $5,999.00
Original price $5,999.00
Current price $4,071.00
$4,071.00 - $4,071.00
Current price $4,071.00
Color: Red

In Stock & Ready To Ship

Fast & Free Shipping. All orders dispatched within 1-2 days.

Free Returns

Easy Returns 30 Day Hassle-Free Returns

Questions? Call Us Now

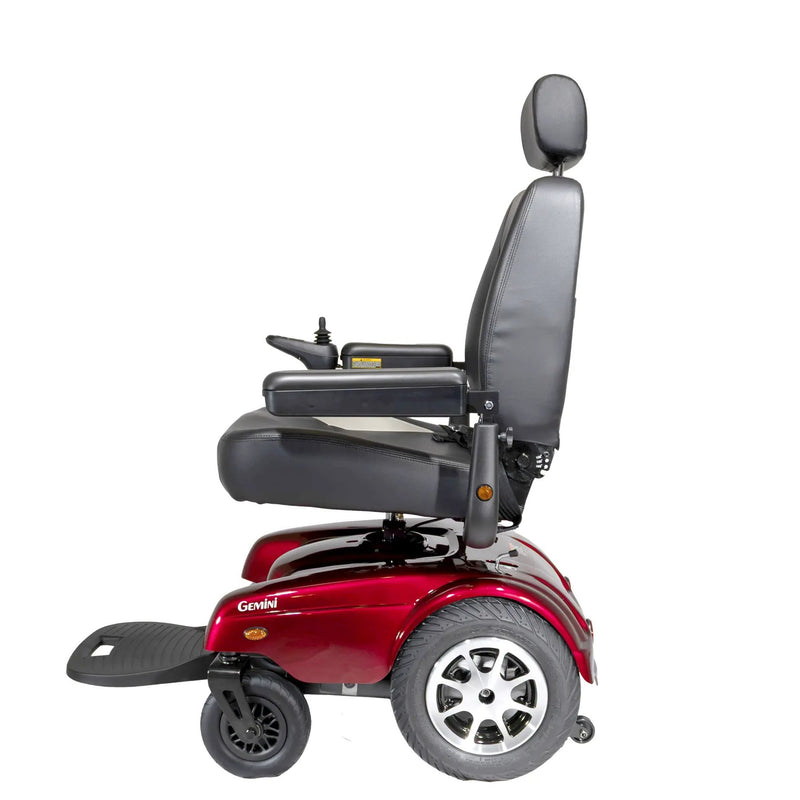

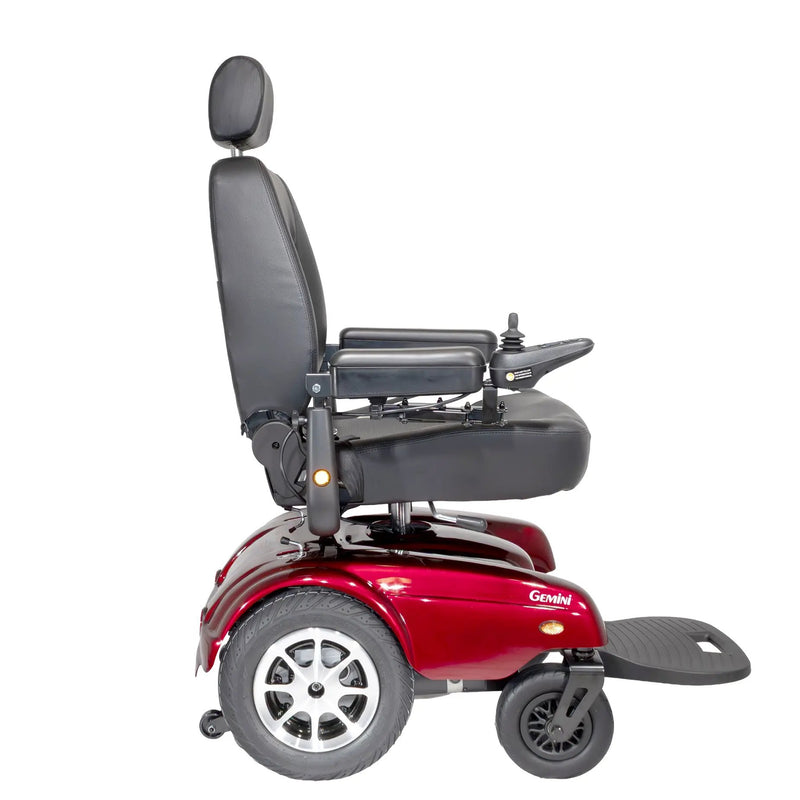

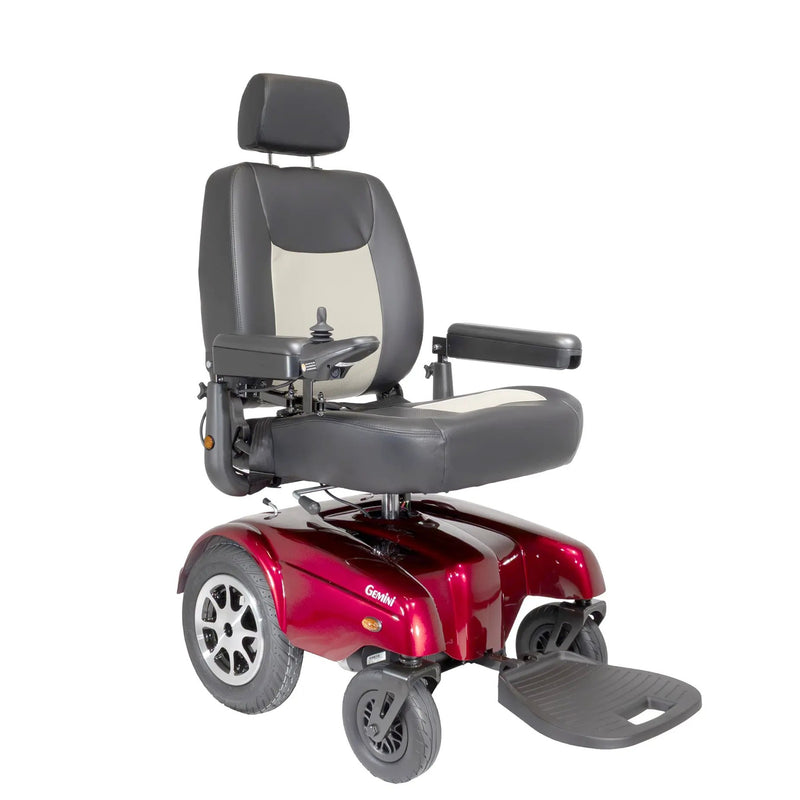

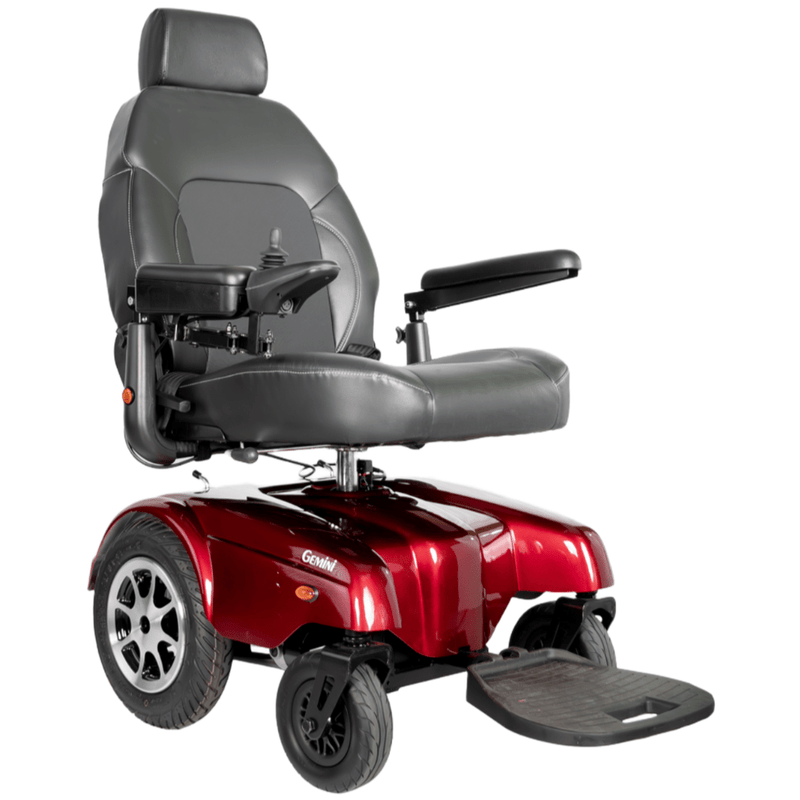

Introducing the Merits Health Gemini Heavy-Duty Power Wheelchair:

Are you in search of a robust rear-wheel drive power chair with a remarkable weight capacity and an impressive battery range? Look no further! The Merits Health Gemini P301 is a powerhouse in the world of power wheelchairs, offering unparalleled performance and comfort.

High Weight Capacity & Comfort Seat:

With a substantial 450 lbs weight capacity, the Gemini stands out as one of the highest weight capacity power wheelchairs available. Additionally, you can opt for the elevating seat feature, allowing you to raise or lower the seat by up to 10 inches. Note that choosing the elevating seat option reduces the weight capacity to 350 lbs. The standard seat measures a spacious 22" x 22", offering swivel, tilt-back, and fold-down capabilities for added convenience. This swivel feature is a rare find in power chairs with such high weight capacities. The armrests can be flipped up and adjusted outward to provide the user with more seating space.

Long Battery Range & Fast Speed:

The Gemini operates on two 50AH batteries, delivering an impressive 20-mile battery range per charge. The chair's charging process is hassle-free, with the charger conveniently plugging into the joystick. You won't need to bend down or crouch to plug it in. Once fully charged, the charger automatically shuts off, eliminating concerns about overcharging. Moreover, while most power wheelchairs offer a top speed of 4 mph, the Gemini boasts a top speed of 5 mph, providing an extra level of speed and freedom.

Excellent Choice for Indoor & Outdoor Use:

The Gemini power wheelchair is a versatile choice, suitable for both indoor and outdoor environments. It comes equipped with adjustable arms, a swing-away joystick, a 22" x 22" standard seat, a seat belt, flip-up armrests, and a flip-up footplate. This chair is designed and manufactured by Merits Health Products, a reputable brand with over 30 years of experience in the mobility industry.

Merits Health Gemini Benefits & Features:

  • Weight capacity: 450 lbs
  • Unique suspension system and high-density foam seat for a smooth and comfortable ride
  • Sophisticated controller with 14" aluminum cast drive wheels for excellent maneuverability
  • Comfortable 22" wide captain seat with swivel and folding capabilities, adjustable headrest, and backrest
  • Aluminum footplate with flip-up height and angle adjustability for various comfort positions
  • Programmable controller with a wide range of selections to suit different user needs
  • Non-programmable controller option available
  • Colors available: Red

The Gemini power wheelchair from Merits Health combines comfort and functionality seamlessly. With its impressive weight capacity, adjustable features, top-notch suspension system, and outstanding maneuverability, it ensures a superb user experience. Whether for home use or on-the-go adventures, the Gemini is the perfect choice.

With a tight 21-inch turning radius, 4-inch ground clearance, 10-degree incline rating, 14-inch foam-filled drive tires, and advanced suspension, the Gemini offers confidence on various terrains. It boasts a 20-mile drive range and a max speed of 5 mph, making it ideal for long-distance journeys.


  •  4” ground clearance for easy obstacle clearance
  • 14” rubber drive tires for superior traction
  • 20” or 22” ergonomic, semi-reclining seats: up to 135°
  • Dynamic LiNX controller for easy programming and diagnostics
  • Optional 5” power seat lift: reduces weight capacity to 350 lbs.

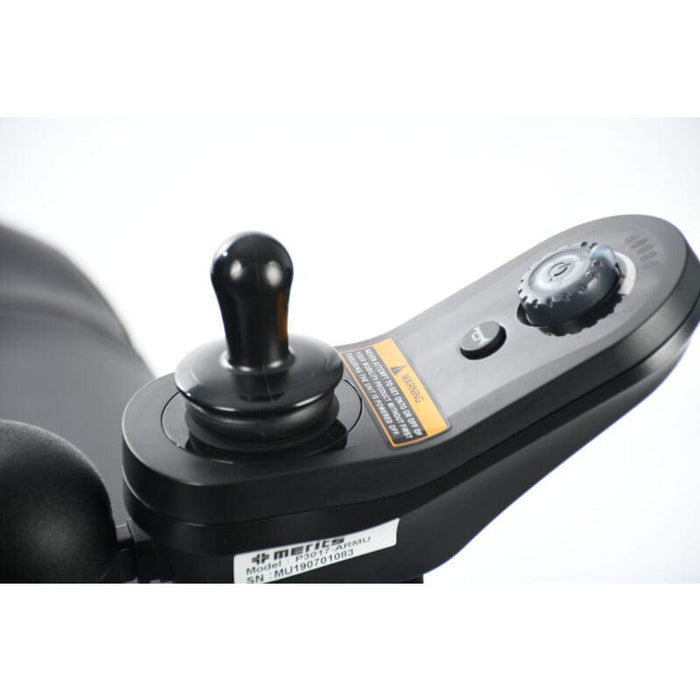

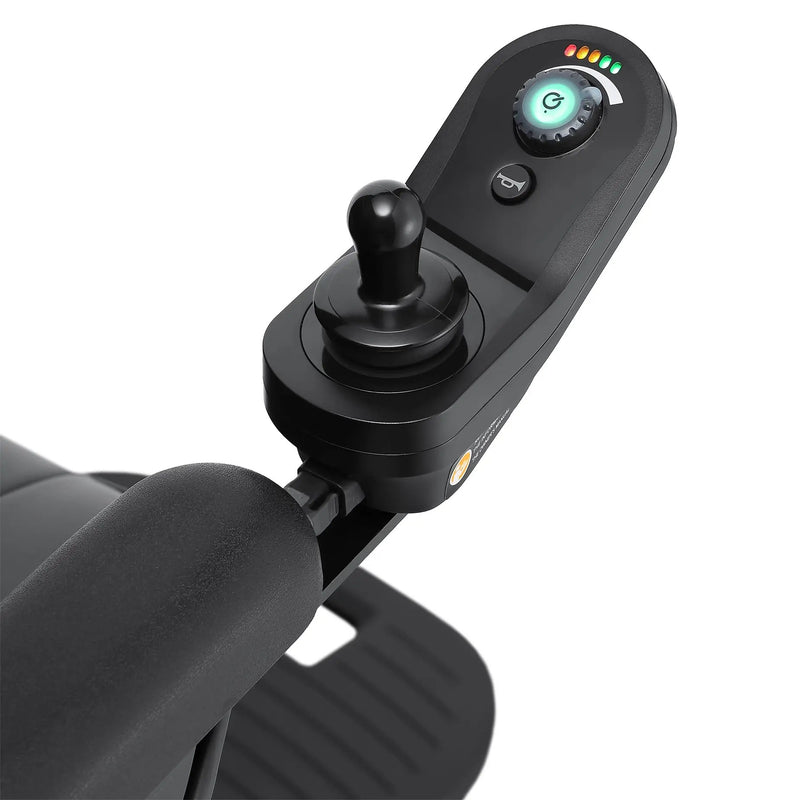

Swing-away joystick
USB adapter
5”power seat lift
Oxygen tank holder
Cane & crutch holder
Foldable rear basket
Walker holder
XL footplate
Elevating legrests


  • Product Number: P30111 w/lift, P301
  • Weight Capacity: 450 lbs, 350 lbs
  • Drivetrain: RWD
  • Seat Type: Captain or Pan
  • Seat Width: P301: 22", P30111: 20”
  • Seat Depth: P301: 22”, P30111: 20”
  • Backrest Height: 22"
  • Seat-to-Floor Height: P301: 22”- 24”, P30111: 24” - 29”

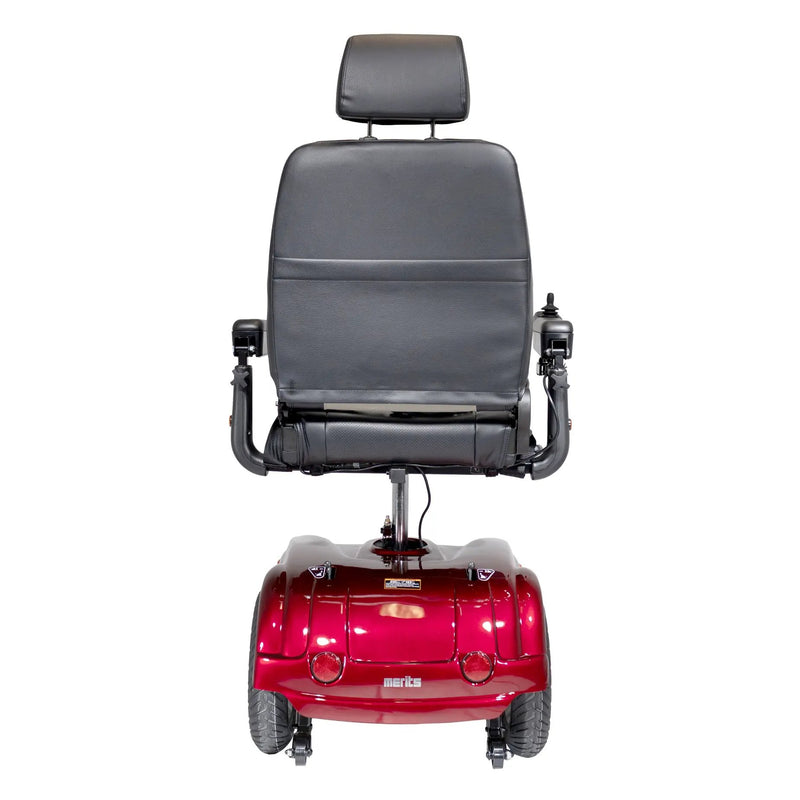

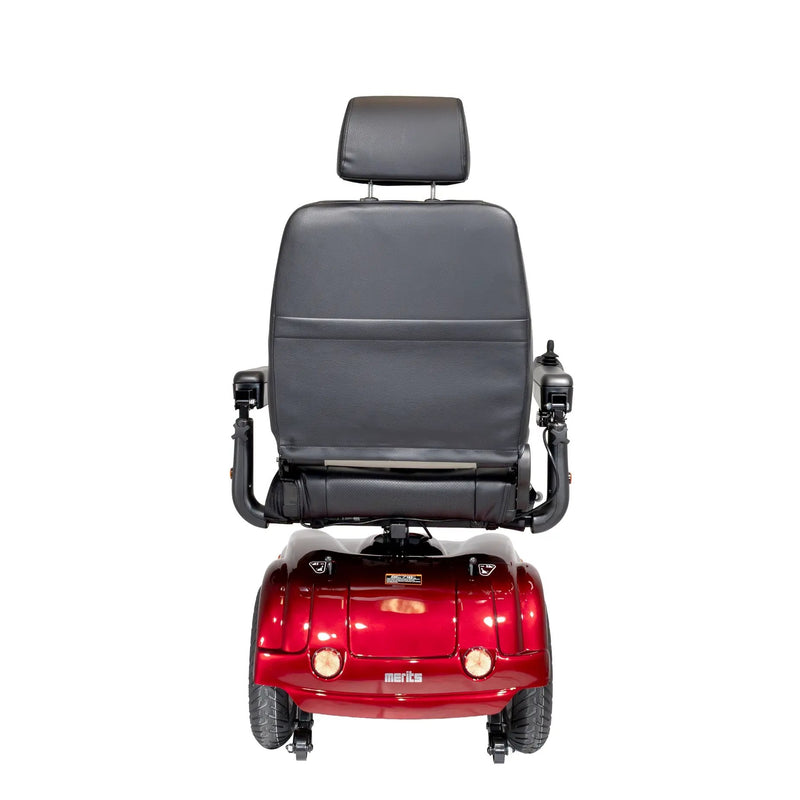

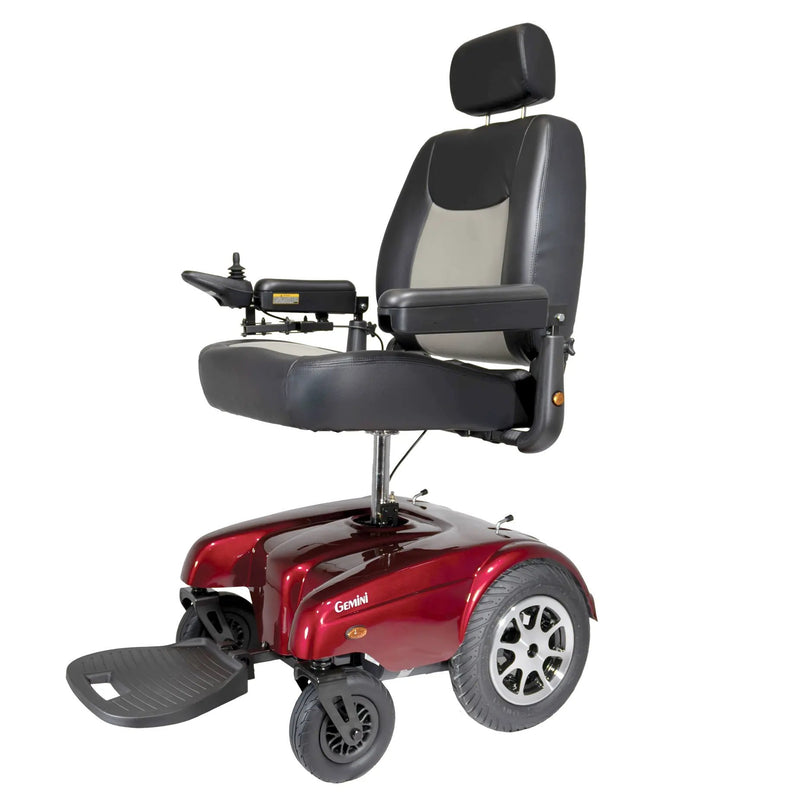

  • Elevating Seat: P30111 - 5"
  • Overall Length: 41"
  • Overall Width: 24"
  • Overall Height: 45"
  • Turning Radius: 21"
  • Ground Clearance: 4"
  • Total Weight: 242 lbs, 350 lbs
  • Weight of Heaviest Piece: 126 lbs, 146 lbs
  • Max Speed: 5 mph
  • Per Charge Range: up to 20 miles
  • Motor: DC 24V, 240W
  • Controller: P&G VR2 60A
  • Battery Size (2): 12V/22NF (50AH)
  • Charger: 5A off-board
  • Gradient: 10°
  • Front Wheels: 9" foam filled

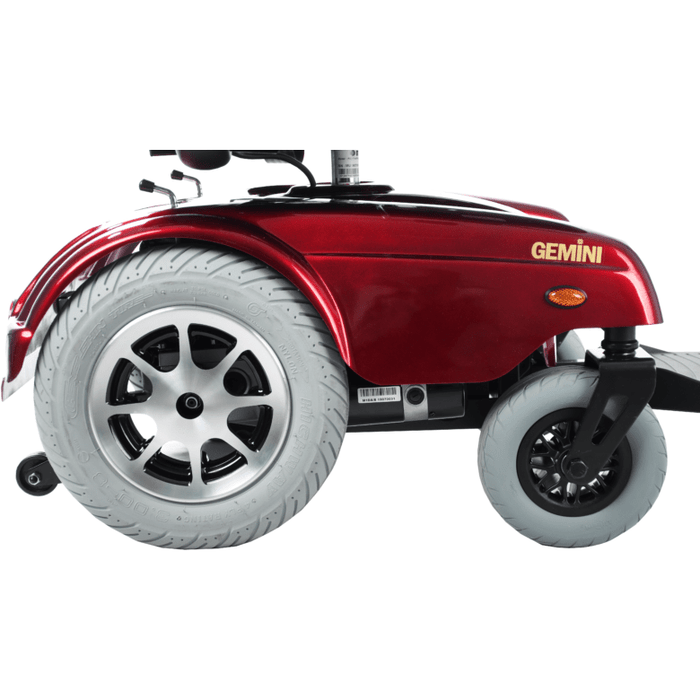

  • Drive Wheels: 14" foam filled
  • Rear Wheels: 3" anti-tippers
  • Group: Group 2: Heavy Duty
  • HCPCS Code: K0824/K0825

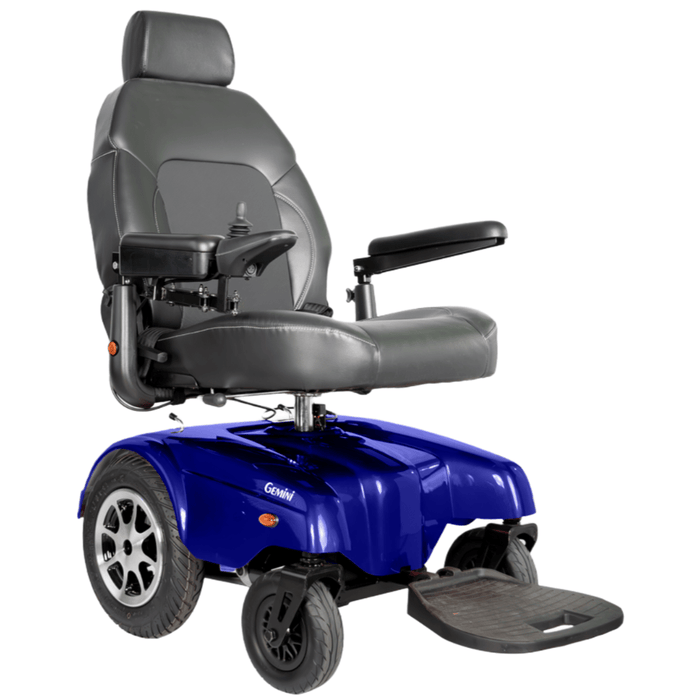

  • Standard Colors: Red or Blue


What is the weight capacity of the Merits Health Gemini Heavy-Duty Power Wheelchair?

The Gemini has a weight capacity of up to 450 lbs. However, if you choose the elevating seat option, the weight capacity reduces to 350 lbs.

How far can I travel on a single battery charge?

The Gemini offers an impressive 20-mile battery range per charge, although this can vary depending on user weight and terrain.

Is the Gemini suitable for indoor and outdoor use?

Yes, the Gemini is designed for both indoor and outdoor use, making it versatile for various environments and situations.

What is the top speed of the Gemini Power Wheelchair?

The Gemini has a top speed of 5 mph, making it slightly faster than most power chairs in its class.

Is the Gemini wheelchair programmable?

Yes, it features a programmable controller with a wide range of selections to cater to different user needs. Additionally, a non-programmable controller option is available for those who prefer simplicity.
