The Merican M11 Plus is a full-cabin red light therapy bed engineered around a cabin structure that conforms to natural body contours developed through ergonomic research and clinical evaluation to ensure balanced body support and consistent positioning during every session. The enclosed design surrounds the user from above and below within a refined full-cabin structure, delivering uniform multi-wavelength light coverage across the complete body surface while maintaining spatial efficiency suitable for professional wellness environments. With 56,160 LEDs producing 135 mW/cm² irradiance and a recommended session time of just 10 to 12 minutes, the M11 Plus represents the highest-output lying-down therapy bed in the Merican commercial range.
56,160 LEDs at 135 mW/cm² the highest irradiance in the Merican bed range
The M11 Plus carries 56,160 LED diodes producing 135 mW/cm² a step above the 129 mW/cm² LED-level output of every other model in the Merican lineup. This is not a marginal difference: at 135 mW/cm², the M11 Plus delivers measurably greater energy density per session minute than the M6N, MMB, or M4N at comparable session lengths. The result is that a 10-to-12-minute session in the M11 Plus delivers a higher accumulated light dose than a session of the same duration in any other Merican bed model which is the operational logic behind the M11 Plus being positioned at the top of the range. LED lifespan is rated at 100,000 hours, maintaining calibrated output across years of daily commercial use without diode replacement.
Five independent wavelengths with pulse system 1–10,000 Hz
The M11 Plus operates across five wavelengths red at 633nm and 660nm, and near-infrared at 810nm, 850nm, and 940nm each independently controllable per channel. What distinguishes the M11 Plus from other models in the range is the pulse system: a frequency-adjustable pulsed delivery mode that operates from 1 Hz to 10,000 Hz. This range covers the full spectrum of pulsed light therapy protocols in clinical and research use from low-frequency pulsing associated with neural and recovery applications at the lower end, to high-frequency modes at the upper range giving operators access to a breadth of protocol customisation that fixed-frequency or on/off pulsed systems cannot match. Custom wavelength configurations are available on request for facilities with specific protocol requirements.
Full-cabin design with intelligent temperature monitoring, overheat protection, and surround audio
The enclosed full-cabin structure of the M11 Plus addresses the thermal management challenge inherent to high-output enclosed beds directly: built-in temperature sensing technology provides real-time cabin temperature regulation throughout each session, and a separate automatic overheat detection system activates cooling functions and audible alerts independently if temperature thresholds are exceeded. These are two distinct systems operating in parallel continuous regulation and emergency protection rather than a single combined mechanism. The integrated Bluetooth surround audio system allows clients to stream audio from their own devices during sessions, and the wireless smart control interface supports one-touch remote session management for facilities where staff operate the unit from outside the treatment area.
Custom logo branding included eyewear goggles included 3-year warranty
The M11 Plus includes custom logo branding as standard the front panel and exterior can be configured with the facility's own brand identity rather than the Merican name, allowing the unit to be presented as a proprietary system within a clinic, medical spa, or premium wellness environment. This feature is included at no additional cost and is coordinated prior to or following delivery. Protective eyewear goggles are included with the unit a specific inclusion that reflects the M11 Plus's position as a high-irradiance system where eye protection during sessions is a standard safety consideration. The unit is available in Lunar White, Crystal Black, or custom colour. A 3-year manufacturer warranty covers the main unit and core components.
An advanced full-cabin red light therapy bed with 56,160 LEDs at 135 mW/cm² highest irradiance in the Merican bed range. Dimensions: 54" L × 55" W × 92" H. Net weight: 683.43 lbs. Five independently controlled wavelengths: red 633nm and 660nm, NIR 810nm, 850nm, and 940nm custom wavelengths available. Pulse system: 1–10,000 Hz. 100,000-hour LED lifespan. Continuous wave and pulsed modes. Intelligent temperature monitoring + automatic overheat protection. Bluetooth surround audio. LCD touchscreen + wireless control pad. 7,500W 220V or 380V dedicated circuit required. No plug hardwired installation. Eyewear goggles included (free). Custom logo branding included. Lunar White, Crystal Black, or custom colour. 3-year warranty. Manufactured by Merican, est. 2008 trusted in 100+ countries.
Full-cabin enclosed bed design 56,160 LEDs 135 mW/cm² irradiance 100,000-hour LED lifespan 5 wavelengths independent control Red: 633nm + 660nm NIR: 810nm + 850nm + 940nm Custom wavelengths available Pulse system: 1–10,000 Hz Continuous wave + pulsed modes Intelligent temperature monitoring Automatic overheat protection LCD touchscreen + wireless control pad Bluetooth surround audio 7,500W 220V or 380V 10–12 min recommended session Eyewear goggles included Custom logo branding included Lunar White / Crystal Black / Custom 3-year warranty Merican est. 2008 100+ countries
Specifications

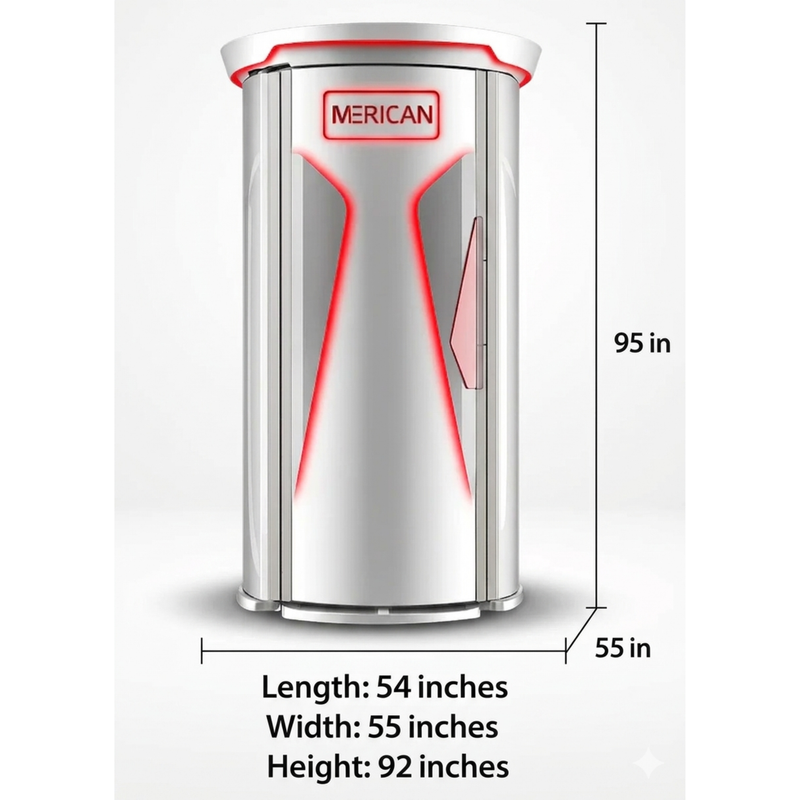

Dimensions and weight
| Length |
54 in (1,372 mm) |
| Width |
55 in (1,397 mm) |
| Height |
92 in (2,337 mm) |
| Net weight |
683.43 lbs (310 kg) |
| Available colours |
Lunar White / Crystal Black / Custom |
Light system
| Total LEDs |
56,160 |
| LED lifespan |
100,000 hours |
| Irradiance |
135 mW/cm² |
| Red wavelengths |
633nm, 660nm |
| Near-infrared wavelengths |
810nm, 850nm, 940nm |
| Custom wavelengths |
Available on request |
| Wavelength control |
Independent per wavelength channel |
| Pulse system |
Yes, 1 to 10,000 Hz |
| Treatment modes |
Continuous wave and pulsed |
| Recommended session |
10–12 minutes |
Electrical and control
| Power |
7,500W |
| Voltage |
220V or 380V |
| Power plug |
No, hardwired dedicated circuit
with breaker and RCD/GFCI |
| Control system |
LCD touchscreen panel |
| Remote control |
Wireless control pad |
| Audio |
Built-in Bluetooth surround speakers |
Features and inclusions
| Temperature monitoring |
Intelligent real-time built-in system |
| Overheat protection |
Automatic activates cooling +
audible alert if threshold exceeded |
| Eyewear goggles |
Included free with unit |
| Custom logo branding |
Included seamless brand alignment |
| Movable wheels |
No ,permanent installation |
| Intended use |
Commercial wellness, aesthetic,
clinical, medical wellness |
Warranty
| Main unit warranty |
3 years |
| Coverage |
Defects in materials and workmanship
under normal commercial use |
| Remedies |
Defective parts repaired or replaced |
| Manufacturer |
Merican est. 2008 |
| Markets served |
100+ countries |
Merican M11 Plus - Unit Overview
What's included
Merican M11 Plus Red Light Therapy Bed
56,160 LED array pre-installed
5-wavelength light system (633, 660, 810, 850, 940nm)
Independent wavelength control system
Pulse system (1–10,000 Hz)
LCD touchscreen control panel
Wireless control pad
Built-in Bluetooth surround speaker system
Intelligent temperature monitoring system
Automatic overheat protection system
Protective eyewear goggles (free)
Custom logo branding (included)
Why the Merican M11 Plus stands out
135 mW/cm² highest irradiance in the range
At 135 mW/cm², the M11 Plus delivers greater energy density per session minute than any other Merican bed model. With a recommended session of 10 to 12 minutes, this means a higher accumulated light dose per session the defining performance advantage of the M11 Plus over every other model in the lineup.
Pulse system 1–10,000 Hz
The frequency-adjustable pulse system spans from 1 Hz to 10,000 Hz covering the full range of pulsed light therapy protocols in current clinical and research use. No other model in the Merican range offers this breadth of pulse frequency control, making the M11 Plus the only choice for facilities running frequency-specific treatment protocols.
Custom logo branding included
Custom logo branding is included at no additional cost. The M11 Plus can be presented under any facility's own brand identity clinic name, spa logo, or custom design directly on the unit exterior. Coordinated prior to or after delivery, this feature makes the M11 Plus the natural choice for premium branded wellness environments.
Dual thermal management systems
Two independent thermal management systems operate in parallel: continuous real-time temperature monitoring that regulates cabin conditions throughout every session, and a separate automatic overheat protection circuit that activates cooling and audible alerts if thresholds are exceeded. Two systems, not one for redundant safety in a high-output enclosed bed.
Eyewear goggles included free
Protective eyewear goggles are included with the M11 Plus at no additional cost a specific inclusion that reflects the unit's 135 mW/cm² output level, at which eye protection during sessions is a standard safety requirement for both clients and operators.
Full-cabin ergonomic enclosure
The cabin structure conforms to natural body contours, developed through ergonomic research and clinical evaluation. The enclosed design ensures balanced body support and consistent positioning throughout every session, maintaining stable light exposure geometry across the full treatment surface for the duration of each session.
About Merican
Professional Light Therapy Equipment Since 2008
The most advanced bed-format system in the Merican commercial range.
Founded in 2008, Merican is a global manufacturer of professional red light therapy and wellness equipment trusted in more than 100 countries. The M11 Plus is the flagship bed-format system in the Merican lineup combining 56,160 LEDs at 135 mW/cm², a 1-to-10,000 Hz pulse system, dual thermal management, and custom logo branding in an ergonomically developed full-cabin enclosure. It is the model within the range most directly suited to high-performance clinical, medical aesthetics, and premium wellness environments where output performance, protocol customisation, and brand integration are all primary purchasing considerations.
-
56,160 LEDs at 135 mW/cm² highest irradiance of any Merican bed model
-
Pulse system 1–10,000 Hz full frequency range for protocol customisation
-
Five independent wavelengths red 633 + 660nm, NIR 810 + 850 + 940nm
-
Custom logo branding included seamless facility brand alignment
-
Eyewear goggles included free with every unit
-
3-year warranty backed by a manufacturer operating since 2008
Commercial Installation and Operation
Hardwired commercial installation permanent, high-output, fully branded.
The M11 Plus operates at 7,500W and requires a hardwired dedicated circuit with breaker and RCD/GFCI protection no plug connection is available for this model. Available at 220V or 380V depending on local facility infrastructure, the installation must be performed by a licensed electrician prior to first use. At 683.43 lbs net weight, the M11 Plus is a permanent facility installation; unlike some other models in the Merican range, it does not include mobility wheels and should be sited definitively during installation.
Custom logo branding is coordinated directly contact us before placing your order to discuss branding options, artwork requirements, and lead time. Custom wavelength configurations are also available on request for facilities with specific protocol requirements beyond the standard five-wavelength setup. The wireless control pad supports remote session management from outside the treatment area. The LCD touchscreen handles all in-unit session control. Protective eyewear goggles are included in the box and should be used by clients and operators during every session at this irradiance level.
Warranty
3-year limited warranty
The Merican M11 Plus Red Light Therapy Bed is covered by a 3-year limited warranty on the main unit and core system components, covering defects in materials and workmanship under normal commercial use. Defective parts will be repaired or replaced during the warranty period; shipping or service costs may vary depending on the case and location.
Warranty coverage does not include damage resulting from misuse, improper installation, unauthorised modifications, accidents, neglect, or normal wear and tear. To maintain warranty coverage, the unit must be installed, operated, and maintained in accordance with the manufacturer's guidelines. Retain your proof of purchase and product serial number for all warranty claims and support requests. We are an authorised Merican dealer.
