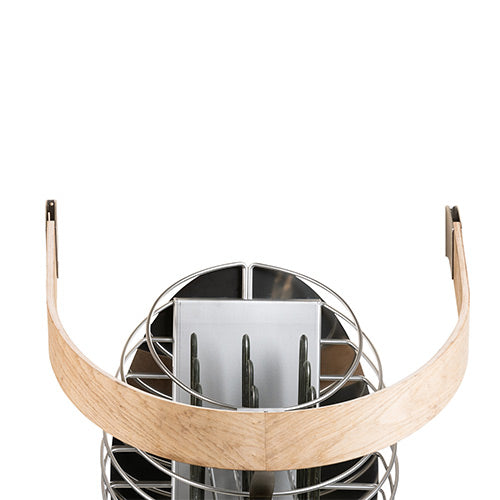

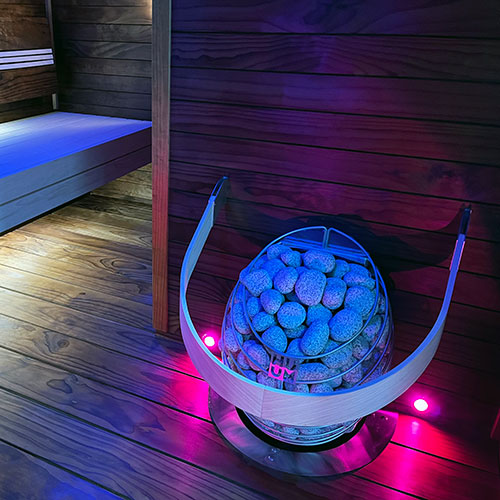

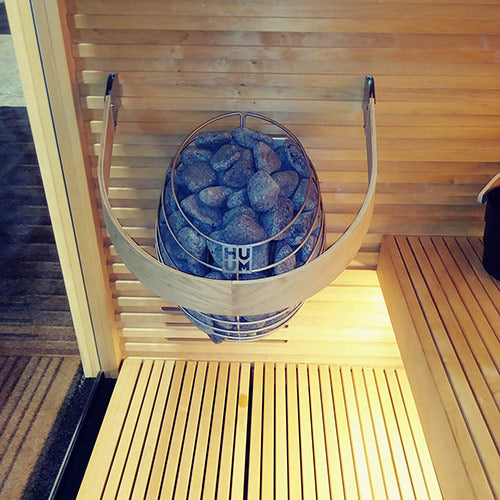

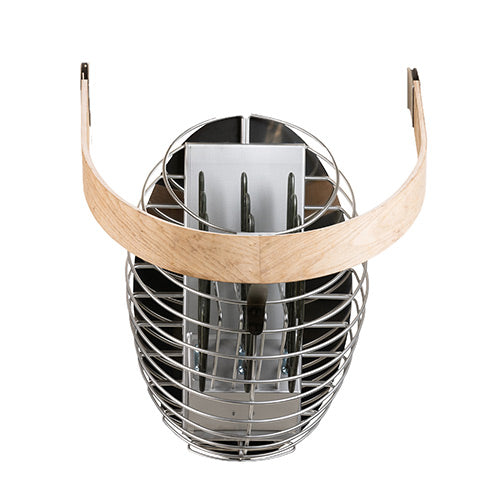

The HUUM Rail D (part number H3001062) is a safety railing for the HUUM DROP electric sauna heater. It is made of light-colored wooden arcs on stainless steel supports, and it forms an arch around the front of the heater to help prevent accidental contact with the hot heater. The rail hangs on the heater's stone grate and is fixed to the wall with two stainless steel supports. It also gives the DROP a styled, Scandinavian look that complements the sauna interior. HUUM recommends having a safety railing in every sauna. The Rail D fits the DROP heater in the 4.5, 6, 7.5 and 9 kW sizes. The heater, controller, and stones are sold separately. Includes an installation manual.
A guard around the front of a hot heater
A sauna heater runs at a high temperature, and the heater body and stones are hot. The Rail D puts a wooden arch around the front of the DROP so that bathers do not brush against it by accident. The light wood matches the look of a sauna interior, and the stainless steel supports hold the rail to the heater and the wall. It is a contact guard only. It does not replace the clearances to combustible materials that the heater's own manual requires.
Check the fit before you order
The Rail D is made for the HUUM DROP electric heater. HUUM's other heaters each have their own rail: Rail C for the CLIFF, Rail S for the STEEL, and Rail H or Rail HM for the HIVE and HIVE Mini. The rails are not interchangeable, so match the rail to your heater model before ordering. HUUM's manual is written for the DROP generation sold in the 4.5, 6, 7.5 and 9 kW sizes, so confirm your heater size with us if you are unsure.
Installing and caring for the rail
According to HUUM's installation manual: connect the wooden arches to the support with the 4 x 13 mm screws to form a complete railing. Place the railing on the DROP's heater grates in the third gap from the top, and fasten the support with a bolt and nut. Level the railing, mark where it touches the wall, then remove it and mark and drill the screw openings (the manual specifies 2 mm holes) for the wall supports. Fix each support to the wall with two screws, put the railing back on the DROP, and fix the outside support plates with the remaining screws. The longer wall screws are general-purpose, so ask a specialist whether they suit your wall. The manual also says to treat all wooden parts with a heat-resistant, non-toxic wood preservative, and to reapply it at least once a year, to prevent warping, cracking, and decay. The preservative is not included. Installation of the heater itself must follow its own manual and local code.
Wooden safety railing with stainless steel supports for the HUUM DROP electric sauna heater (4.5, 6, 7.5 and 9 kW). Helps prevent accidental contact with the hot heater. Hangs on the heater's grate and is fixed to the wall with two stainless steel supports. Not for CLIFF, STEEL, or HIVE heaters, which have their own rails. Installation manual included.
Safety rail for DROP heaters Light wooden arcs Stainless steel supports Helps prevent accidental contact Fits DROP 4.5 / 6 / 7.5 / 9 kW Hangs on the heater grate, fixed to the wall Not for CLIFF, STEEL or HIVE Installation manual included
Specifications
Product details
| Brand |
HUUM |
| Model |
Rail D |
| Part number / SKU |
H3001062 |
| UPC / GTIN |
4745090279009 |
| Product type |
Safety rail for electric sauna heaters |
| Material |
Light-colored wooden arcs, stainless steel supports |
Fit and installation
| Fits |
HUUM DROP electric sauna heater, 4.5, 6, 7.5 and 9 kW |
| Does not fit |
CLIFF (Rail C), STEEL (Rail S), HIVE (Rail H / HM) |
| Mounting |
Hangs on the heater grate in the third gap from the top; supports fixed to the wall |
| Wall fixing |
Two screws per support (general-purpose; check they suit your wall) |
| Clearances |
The rail does not replace the heater's required clearances |
| Wood care |
Treat with heat-resistant, non-toxic wood preservative (not included); reapply at least once a year |
What's included
Wooden arcs with stainless steel supports
Bolt and nut
Screws for the railing, supports, and wall
Installation manual
Not included: the HUUM DROP heater, the controller, sauna stones, and wood preservative. Follow the heater's installation and operation manual and local code for clearances and electrical installation.
Why the HUUM Rail D stands out
Guards against accidental contact
The wooden arch goes around the front of the heater and keeps bathers from brushing against it. HUUM recommends having a safety railing in every sauna.
Light wood, stainless steel supports
The rail has light-colored wooden arcs that complement the heater's design, held by stainless steel supports. It gives the DROP a modern Scandinavian look.
Hangs on the heater grate
The rail sits on the DROP's stone grate, in the third gap from the top, and is bolted to its support. Two supports then fix it to the wall.
Fits all DROP sizes
The Rail D is made for the DROP heater in the 4.5, 6, 7.5 and 9 kW sizes. It does not replace the clearances in the heater's manual.
Step-by-step manual
HUUM's manual shows each step, from joining the arches to levelling the rail, marking the wall, and fixing the supports. It also covers the wood preservative the rail needs.
Made for the DROP Series
The Rail D is for the HUUM DROP electric heater. The CLIFF, STEEL, and HIVE heaters each have their own rail, so match the rail to your heater model before ordering. We are an authorized HUUM dealer.
About HUUM
HUUM - Rail D - Safety Rail - DROP Heaters
HUUM Rail D. Wooden safety rail for the DROP heater.
HUUM is an Estonian sauna heater brand with a minimalist Nordic design, founded by Siim Nellis, who is the third in his family to build sauna stoves. Its heaters and stoves are made in Estonia from stainless steel and other quality materials, and its products have won international design awards, including the Red Dot Award and the European Product Design Award. The Rail D is the safety railing for the DROP electric heater. It helps prevent accidental contact with the hot heater, and it hangs on the heater grate and fixes to the wall with stainless steel supports. We are an authorized HUUM dealer.
- Light wooden arcs on stainless steel supports
- Fits DROP 4.5, 6, 7.5 and 9 kW
-
Hangs on the heater grate and fixes to the wall
- Installation manual included
