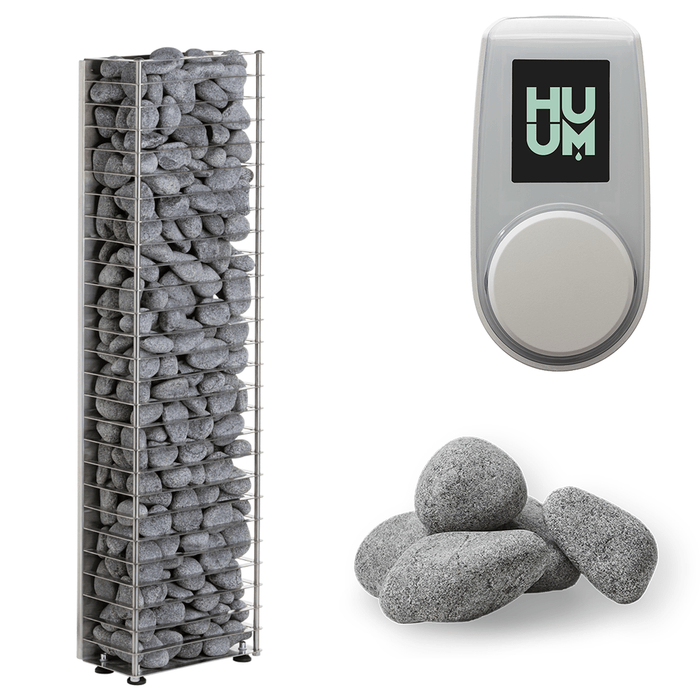

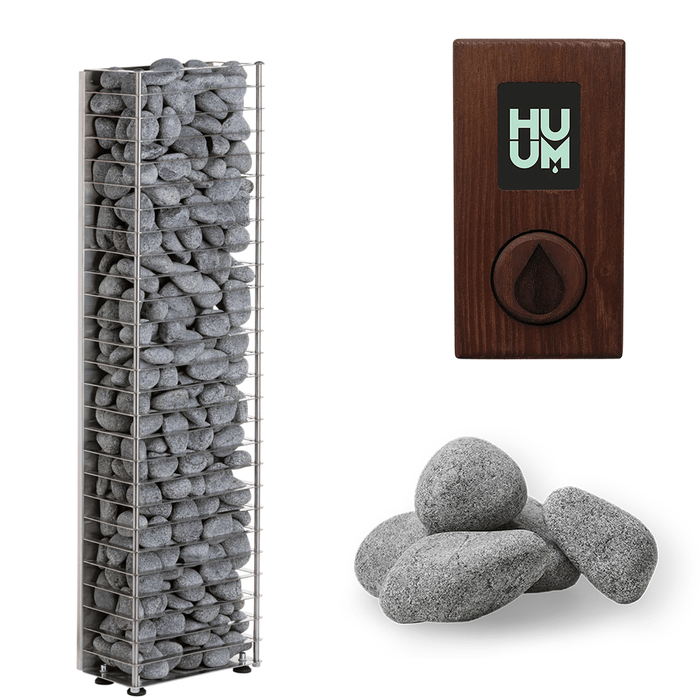

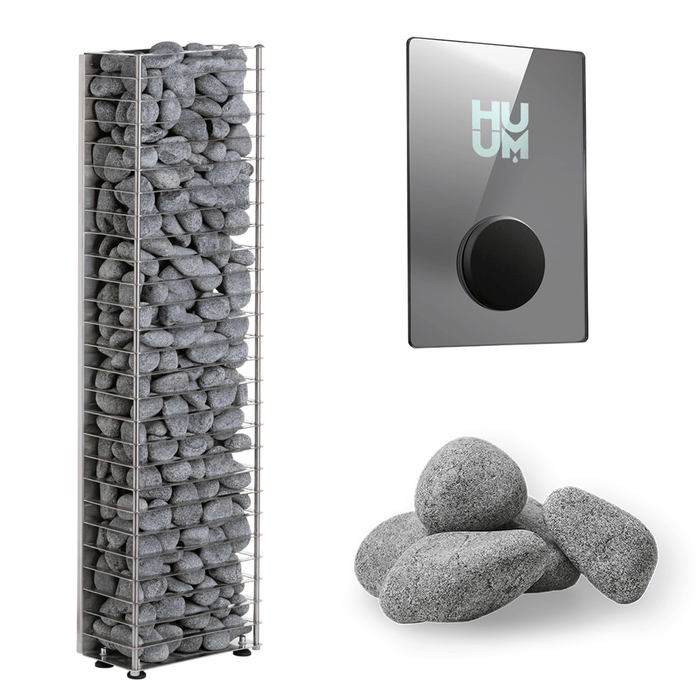

The HUUM CLIFF 9STU Package is the complete ready-to-operate bundle for the 9kW CLIFF electric sauna heater - covering the heater, controller, UKU Extension Box, and stones in a single order. The package includes the CLIFF 9kW heater, UKU Local controller, UKU Extension Box, and 165 lbs of sauna stones (5 boxes, 3-5 cm rounded olivine). The 9kW is the mid-output configuration of the CLIFF floor heater platform, designed for rooms from 317 to 529 cubic feet - sitting between the CLIFF 6 (176-353 cu ft) and the CLIFF 10.5 (353-600 cu ft). The CLIFF 9kW shares the same open recycled-steel cage design, removable rib slats, and internal air duct as all CLIFF floor models - the same Red Dot Award 2021 form factor that is 10.6" wide and 6.3" deep throughout the entire CLIFF lineup. Safety clearances at 9kW are 9.45" (24 cm) at the sides, matching the 10.5kW clearance. The UKU Extension Box included in this package is required for the 9kW model at this installation. Max 230°F. SGS certified. 5-year limited warranty (excluding elements). Designed and made in Estonia by HUUM.
What the package includes - all four required components

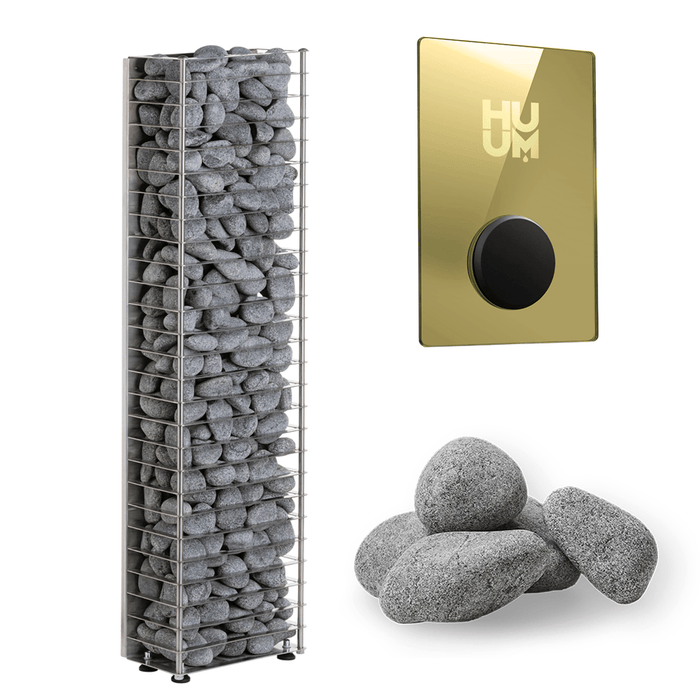

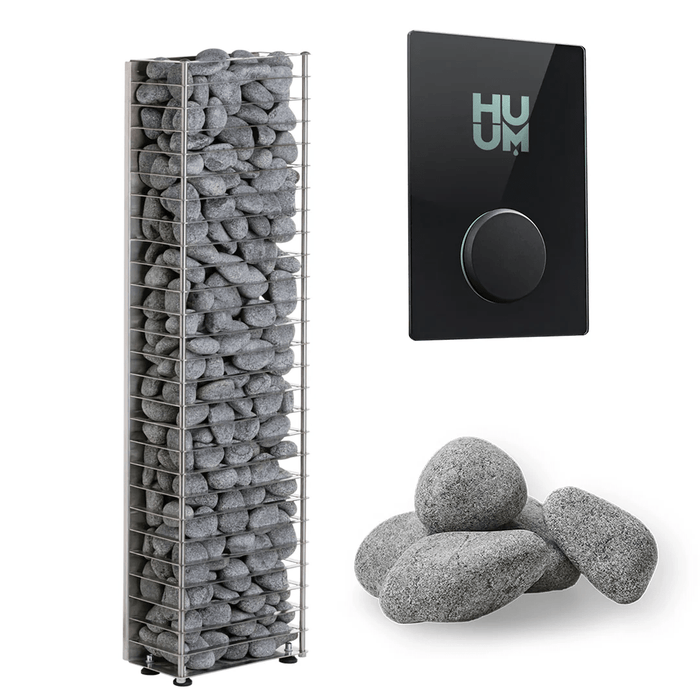

The CLIFF 9STU Package (SKU 534-BDL-CLIFF90STULB) combines the four items needed to operate the CLIFF 9kW in a single order. The CLIFF 9kW heater has no built-in controls and requires a UKU controller for all operation. This package includes the UKU Local controller (physical wall panel), the UKU Extension Box, and 165 lbs of sauna stones (5 boxes, 3-5 cm rounded olivine). A buyer purchasing the CLIFF 9 heater alone would need to separately source the UKU controller, the UKU Extension Box, and the stones before the heater could be operated. The package eliminates all three separate purchases. The LB suffix in the SKU (534-BDL-CLIFF90STULB) identifies the specific configuration: Local controller and Extension Box. Buyers who prefer Wi-Fi and app control can separately purchase the UKU Wi-Fi controller as an upgrade to the included UKU Local panel.
CLIFF 9kW - the mid-range CLIFF for medium-sized home saunas
The CLIFF floor heater platform covers three output levels: 6kW (176-353 cu ft), 9kW (317-529 cu ft), and 10.5kW (353-600 cu ft). The 9kW sits in the middle - covering medium-sized home saunas where the CLIFF 6 would be undersized and the 10.5kW would be more output than the room requires. The CLIFF 9 and CLIFF 10.5 share the same 9.45" (24 cm) side clearances, the same 10.6"W x 6.3"D body dimensions, and the same 165-lb stone capacity (5 boxes). The key differences from the CLIFF 10.5 are output (9kW vs 10.5kW) and room range ceiling (529 cu ft vs 600 cu ft). For a medium home sauna in the 317-529 cu ft range, the CLIFF 9STU Package provides the correct output in the complete CLIFF package format.
Red Dot Award 2021 - recycled cage, open stones, precise loading
The CLIFF's open recycled-steel cage is fabricated from the cutouts produced during STEEL heater manufacturing. HUUM's description of the design intent: eliminating metal waste and ensuring full use of all material. The CLIFF won the Red Dot Design Award in 2021 for the combination of visual identity, recycled material story, and functional open-stone design. The 165 lbs of rounded olivine stones are fully visible inside the sauna room through the open cage. The removable rib slats - with 2 prop blocks included - allow stones to be loaded with minimal air gaps for tighter stone arrangement and more consistent heat distribution. Stones are in direct contact with the heating elements for maximum heat transfer efficiency from element surface to stone mass.
9kW electric sauna heater package for rooms from 317 to 529 cubic feet. CLIFF 9STU Pkg - complete package: CLIFF 9kW heater, UKU Local controller, UKU Extension Box, and 165 lbs stones (5 boxes, 3-5 cm rounded olivine). All four required components in one order. Open recycled-steel cage - Red Dot Award 2021. Removable rib slats for precise stone loading. Internal air duct - 25% faster heat-up. Safety distances: 9.45" (24 cm) sides. Optional Reflect C can halve clearances. Dimensions: 10.6"W x 6.3"D x 38.4"H. Max 230°F. 240V/1PH - 30A - 10AWG. Optional: Rail C safety railing; Reflect C reflector panel; Flange CS bench embedding. Pallet delivery required. SGS certified. 5-year limited warranty (excl. elements). Designed and made in Estonia by HUUM.
9 kW 317 to 529 cu ft Complete package - heater, UKU Local, Extension Box, and 165 lbs stones UKU Local controller included UKU Extension Box included 165 lbs stones included (5 boxes, 3-5 cm rounded olivine) CLIFF open recycled-steel cage - Red Dot Award 2021 Removable rib slats for precise stone loading Internal air duct - 25% faster heat-up Safety: 9.45" (24 cm) sides 10.6"W x 6.3"D x 38.4"H Max 230°F 240V/1PH - 30A - 10AWG Optional Reflect C - halves clearances Optional Rail C safety railing SGS certified 5-year limited warranty (excl. elements) Designed and made in Estonia by HUUM
Specifications
Package contents
| Heater |
HUUM CLIFF 9kW electric sauna heater |
| Controller (included) |
UKU Local controller |
| Extension Box (included) |
UKU Extension Box |
| Stones (included) |
165 lbs / 75 kg (5 boxes, 3-5 cm rounded olivine) |
| Prop blocks (included) |
2 prop blocks for rib slat removal during stone loading |
Performance
| Power output |
9 kW |
| Fuel type |
Electric (240V/1PH) |
| Room volume |
317 to 529 cu ft |
| Max temperature |
230°F (110°C) |
| Stone capacity |
165 lbs / 75 kg (5 boxes, 3-5 cm rounded olivine) - included |
| Stone size |
3-5 cm rounded olivine (1-2 in) |
| Air duct benefit |
25% faster heat-up - extends element life |

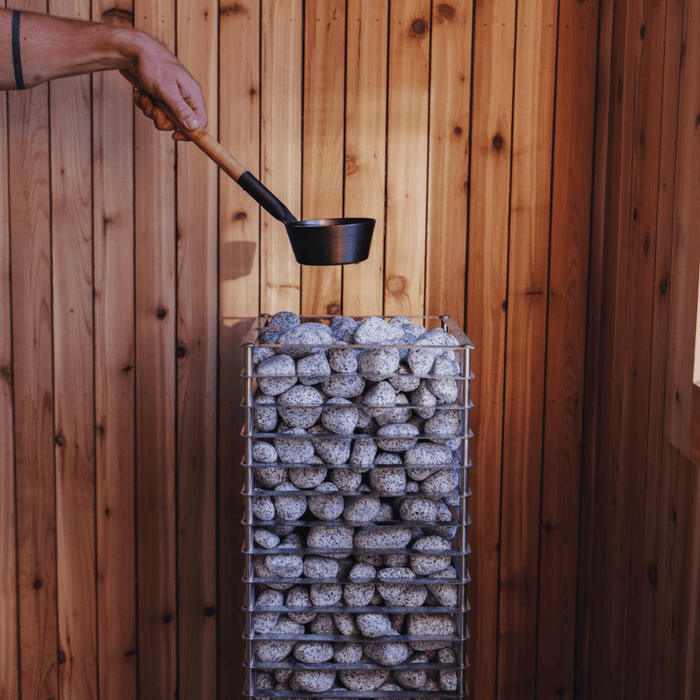

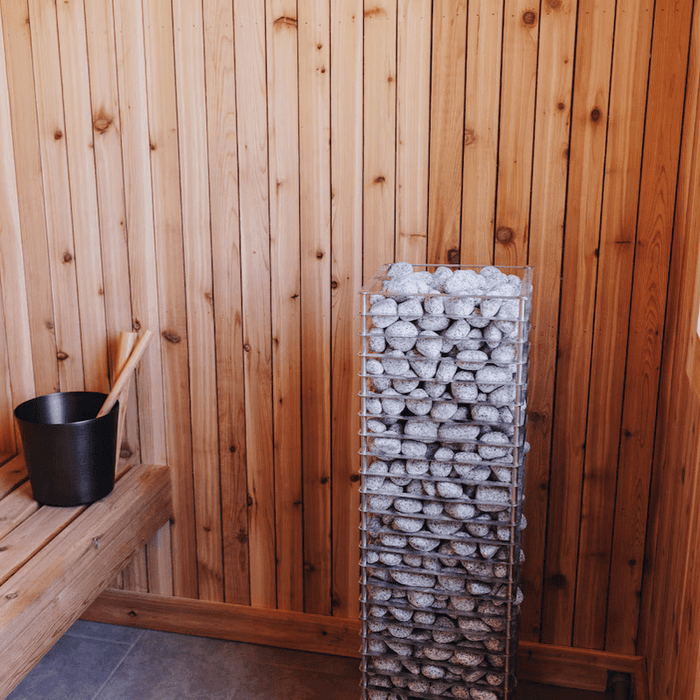

CLIFF cage and stone features
| Cage design |
Open recycled-steel cage - stones visible |
| Cage material origin |
Recycled cutouts from STEEL heater manufacturing |
| Design award |
Red Dot Design Award 2021 |
| Removable rib slats |
Yes - precise and accurate stone stacking |
| Prop blocks included |
2 prop blocks for rib slat removal |
| Element-stone contact |
Direct - stones in contact with heating elements |
Safety distances
| Sides (9kW) |
9.45 in (24 cm) |
| Front |
16.5 in (419 mm) |
| With Reflect C panel |
Side distances can be halved (optional) |
| CLIFF 6kW side clearance (ref.) |
2.36 in (6 cm) - 6kW model only |
Physical dimensions
| Width |
10.6 in (270 mm) |
| Depth |
6.3 in (160 mm) |
| Height |
38.4 in (975 mm) |
| Installation |
Floor-mounted |
| Delivery |
Scheduled pallet freight - appointment required |
CLIFF 9 vs CLIFF 6 vs CLIFF 10.5 - output comparison
| CLIFF 6 |
6kW | 176-353 cu ft | 2.36" sides | no Ext. Box |
| CLIFF 9 (this package) |
9kW | 317-529 cu ft | 9.45" sides | Ext. Box included |
| CLIFF 10.5 |
10.5kW | 353-600 cu ft | 9.45" sides | Ext. Box included |
| Body dimensions (all 3) |
10.6"W x 6.3"D x 38.4"H - identical |
| Stone capacity (all 3) |
165 lbs (5 boxes) - identical |
Electrical
| Voltage / phase |
240VAC, 1-phase, 60Hz |
| Circuit breaker |
30A |
| Wire size |
10AWG |
| UKU Extension Box |
Included in this package |
| Certification |
SGS certified |
| Max temperature |
230°F (110°C) |
UKU Local controller (included) and optional accessories

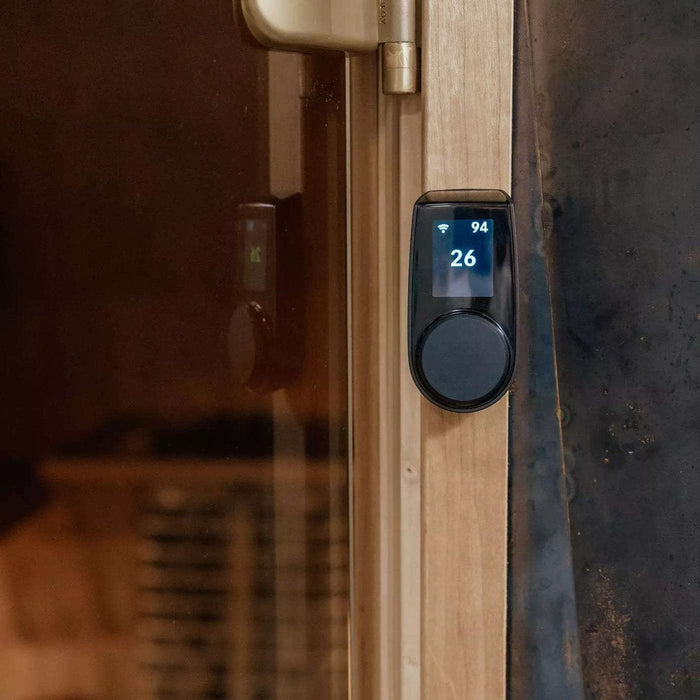

| Controller type |
UKU Local - physical wall panel |
| Remote / app control |
Not available (UKU Local - no Wi-Fi) |
| Safety features |
Door sensor, overheating protection, child safety lock |
| Wi-Fi upgrade |
UKU Wi-Fi controller available separately |
| Safety railing |
Rail C (CLIFF-specific) - sold separately |
| Reflector panel |
Reflect C (halves side clearances) - sold separately |
| Bench embedding |

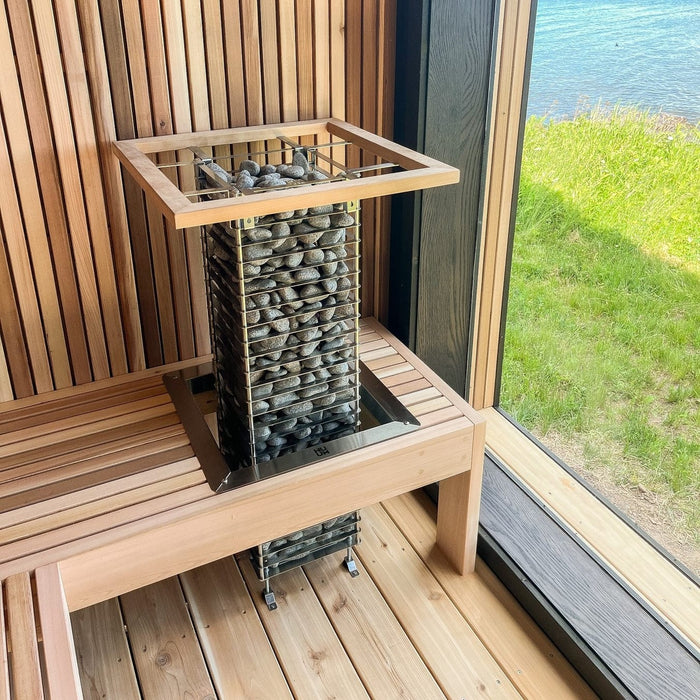

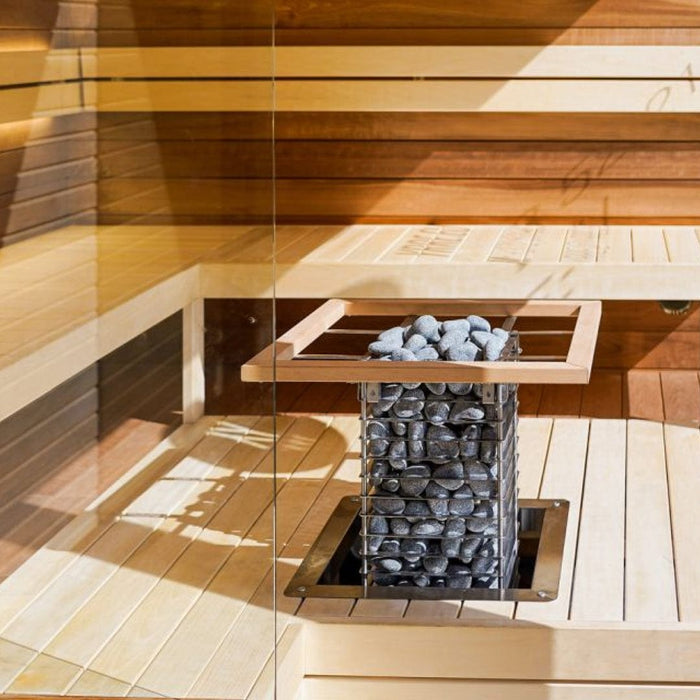

Flange CS (CLIFF-specific) - sold separately |
| Certification |
SGS certified | 5-year limited warranty (excl. elements) |
What's included
HUUM CLIFF 9kW floor-mounted electric sauna heater with open recycled-steel cage
UKU Local controller (wall panel)
165 lbs 1" to 2" (3-5 cm) Round Sauna Stones
2 prop blocks for rib slat removal during stone loading
CLIFF Installation and Operation Manual
UKU Installation and Operation Manual
Extension Installation Manual
5-year limited warranty (excluding elements)
Required (not included): Licensed electrician for wiring (240V/1PH, 30A circuit breaker, 10AWG wire). An additional box of stones is recommended. Optional accessories (sold separately - CLIFF-specific): Rail C safety railing; Reflect C reflector panel (halves side clearances); Flange CS bench embedding flange. To upgrade to Wi-Fi control, the UKU Wi-Fi controller is available separately.
Why the HUUM CLIFF 9STU Package stands out
Complete package - heater, controller, Extension Box, and stones
The CLIFF 9STU Package combines all four items needed to operate the CLIFF 9kW into a single order. The CLIFF 9kW requires a UKU controller for all operation (no built-in controls), a UKU Extension Box for the 9kW configuration, and the stones before a first session can be run. Purchasing the heater alone leaves three separate sourcing and ordering steps. The package covers all four - heater, UKU Local controller, UKU Extension Box, and 165 lbs of stones - so the only remaining requirement after delivery is the licensed electrician for the 240V/1PH, 30A, 10AWG wiring.
9kW for 317-529 cu ft - the mid-range CLIFF
The CLIFF 9kW serves the medium home sauna range - 317 to 529 cubic feet - where the CLIFF 6 (up to 353 cu ft) reaches its ceiling and the CLIFF 10.5 (up to 600 cu ft) provides more output than is needed. For a home sauna in the 317-529 cu ft range where the CLIFF's Red Dot open-cage design is the aesthetic and the narrow 10.6"W x 6.3"D profile is the installation requirement, the 9kW is the correct output specification. The body dimensions, stone capacity (165 lbs / 5 boxes), internal air duct, and side clearances (9.45") are identical to the CLIFF 10.5 - only the output and room range upper limit differ.
Extension Box included - required component, no separate purchase
The UKU Extension Box is included in this package. For the CLIFF 9kW installation at BathingBrands, the Extension Box is part of the package to ensure a complete, fully operational system. Purchasing the CLIFF 9 heater alone would leave the Extension Box as a separate purchase. The Extension Installation Manual included in this package documents the correct wiring configuration for the Extension Box alongside the heater and UKU Local controller. The UKU Wi-Fi controller can be purchased separately as an upgrade if remote smartphone access is preferred over the included physical wall panel control.
Red Dot Award 2021 - open cage, recycled steel, precise stone loading
The CLIFF won the Red Dot Design Award in 2021 for its combination of visual identity, recycled material story, and functional open-stone design. The cage ribs are made from the stainless steel cutouts produced during STEEL heater manufacturing - material that would otherwise be production waste. HUUM's description: the body of the heater is made from cutouts of a stainless steel sheet created during the production of STEEL electric heaters, which eliminates metal waste and ensures full use of all material. The open cage puts the 165-lb stone column on visual display. Removable rib slats allow precise stone arrangement to minimise air gaps in the stone bed.
165 lbs of stones with direct element contact and 25% faster heat-up
The CLIFF 9kW holds 165 lbs of rounded olivine stones (5 boxes, 3-5 cm) in direct contact with the heating elements - maximising heat transfer efficiency from element surface to stone mass. The internal air duct channels air through the stone column to increase heating speed by up to 25% and reduce thermal stress on the elements, extending their service life. HUUM's description of the design: the stones are engineered to be in direct contact with the heating elements for more efficient heat transference. The air tunnel also extends element life as a byproduct of the more efficient thermal management.
CLIFF Series - 6kW, 9kW, and 10.5kW floor models
The CLIFF 9STU Package covers the 9kW mid-range configuration of the CLIFF floor heater series. The CLIFF Series spans: CLIFF 6 (6kW, 176-353 cu ft, 2.36" side clearances, heater only - no package), CLIFF 9 in this package (9kW, 317-529 cu ft, 9.45" sides, complete package), and CLIFF 10.5 in the CLIFF 11STU Package (10.5kW, 353-600 cu ft, 9.45" sides, complete package). All three floor models share the same 10.6"W x 6.3"D body, open recycled-steel cage, removable rib slats, 165-lb stone capacity (5 boxes), internal air duct, Red Dot Award 2021 design, CLIFF-specific optional accessories (Rail C, Reflect C, Flange CS), SGS certification, and 5-year warranty. Designed and made in Estonia by HUUM. We are an authorized HUUM dealer.
About HUUM
Designed in Estonia - SGS Certified - CLIFF Series - Red Dot Award 2021 - Complete Package
HUUM CLIFF 9STU Pkg. 9kW. 317-529 cu ft. Heater, UKU Local, Extension Box, and 165 lbs stones.
HUUM is an Estonian sauna heater company. The CLIFF 9STU Package is the complete ready-to-operate bundle for the CLIFF 9kW electric sauna heater - Red Dot Award 2021 open recycled-steel cage, removable rib slats, internal air duct (25% faster heat-up), UKU Local controller, UKU Extension Box, and 165 lbs stones (5 boxes, 3-5 cm) all included. A licensed electrician for wiring is the only remaining requirement. We are an authorized HUUM dealer.
-
9kW electric - 317-529 cu ft - CLIFF open recycled-steel cage
-
UKU Local + UKU Extension Box included - all required components
-
165 lbs stones included (5 boxes, 3-5 cm) - direct element-stone contact
-
Red Dot Award 2021 - removable rib slats - internal air duct 25% faster
- 9.45" side clearances - SGS certified - 5-year warranty (excl. elements)
CLIFF 9STU Pkg vs CLIFF 11STU Pkg vs CLIFF 6 - CLIFF Series selection guide
CLIFF 9STU Pkg vs CLIFF 11STU Pkg vs CLIFF 6 - output, room range, and purchase format
Three CLIFF configurations serve different room sizes and purchase preferences. CLIFF 6 H1004012 (heater only): 6kW, 176-353 cu ft, 10.6"W x 6.3"D, 165 lbs stones sold separately, 2.36" side clearances, no Extension Box needed, 30A/10AWG. Right for smaller rooms where the tightest possible CLIFF clearances and heater-only purchase are preferred. CLIFF 9STU Pkg 534-BDL-CLIFF90STULB (this listing): 9kW, 317-529 cu ft, same 10.6"W x 6.3"D CLIFF body, 165 lbs stones included, 9.45" side clearances, UKU Local + Extension Box included, 30A/10AWG. Right for medium rooms (317-529 cu ft) as a complete all-in-one package. CLIFF 11STU Pkg 534-BDL-CLIFF105STULBX: 10.5kW, 353-600 cu ft, same 10.6"W x 6.3"D CLIFF body, 165 lbs stones included, 9.45" side clearances, UKU Local + Extension Box included. Right for the largest rooms (up to 600 cu ft) in the CLIFF lineup. All three CLIFF floor models share the identical body dimensions, open recycled-steel cage, removable rib slats, 165-lb stone capacity, internal air duct, Red Dot Award 2021 design, SGS certification, and 5-year warranty.
Manuals and Documents
Warranty
5-year limited warranty (excluding elements)
The HUUM CLIFF 9kW carries HUUM's 5-year limited warranty from the date of purchase. The warranty covers defects in manufacturing and materials under normal use and maintenance conditions. Heating elements are excluded from the 5-year term and carry a separate warranty period per the warranty document. The warranty does not cover damage caused by improper installation, failure to follow the installation and operating guidelines (including the Extension Installation Manual for the UKU Extension Box), use of incorrect stone type or size (decorative stones must not be used; use only rounded olivine 3-5 cm in the CLIFF), operating without the required stone load, or damage from inadequate electrical installation. HUUM recommends rounded olivine stones to complement the open-cage design and achieve milder steam. The UKU Local controller and UKU Extension Box included in the package carry their own separate HUUM product warranty terms. Proof of purchase from an authorized HUUM dealer is required for warranty claims. We are an authorized HUUM dealer.
