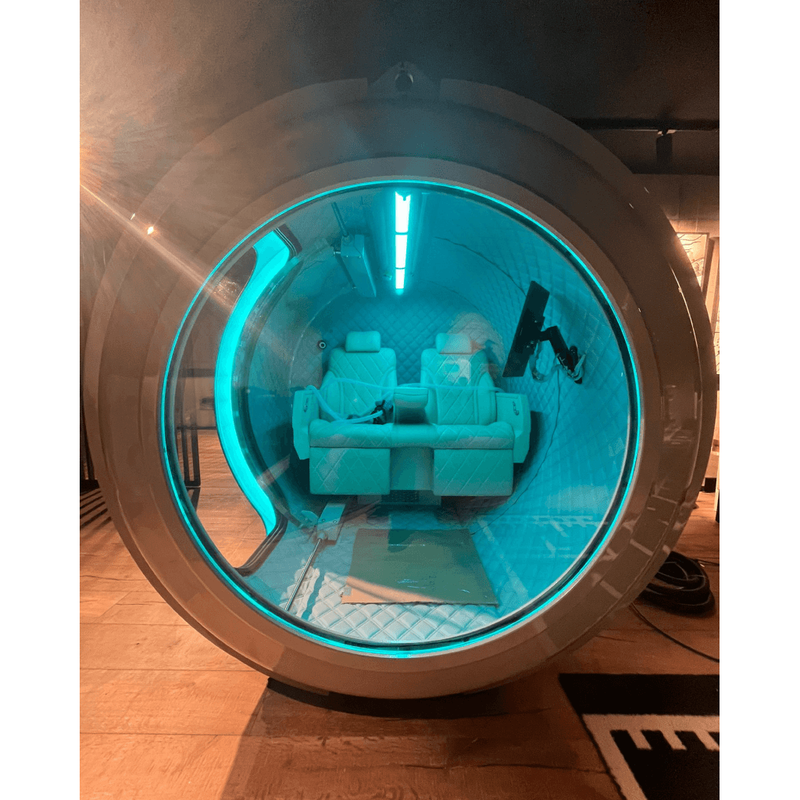

Inside ATLANTIS, high-quality ecologic leather upholstery wraps the interior in comfort and style, with a choice of leather color, stitch color, stitch design, and embroidery options for full personalization. Ergonomic seating, adjustable LED RGB lighting, an entertainment system, and an advanced air cooling system create a calm and premium therapy environment for both users. ATLANTIS is equipped with an advanced medical sensor suite including high-accuracy CO2 tracking sensors, independent dual oxygen analyzers, IP65-rated temperature and humidity modules, and standard multi-port medical penetrators for the safe, pressure-sealed introduction of external medical lines such as clinical aspirators or ventilators. The system is also certified under CISPR 11 Class A and IEC 60601-1-2 medical standards for electromagnetic compatibility, ensuring zero interference with other hospital equipment.
BIBS Mask
The Built-In Breathing System (BIBS) is regulated by the tempo of your breath. The BIBS regulator circulates oxygen effectively through the polyurethane hose while removing carbon dioxide, ensuring a safe and controlled therapy environment with always-pure oxygen breathing for both users.
Continuous Flow of Oxygen
Unlike demand regulators, BIBS systems provide a constant flow of oxygen regardless of breathing patterns. This is beneficial for patients who struggle with deep breaths or have conditions affecting their respiratory muscles.
Reduced Risk of CO2 Buildup
The system constantly flushes the chamber with fresh oxygen, helping prevent the buildup of carbon dioxide, which can be harmful at high pressures.
Simplified Operation
BIBS systems require minimal interaction from the user, making them easier to use for patients with limited mobility or cognitive abilities.
Controlled Oxygen Concentration
The flow rate of oxygen can be precisely adjusted to deliver the desired concentration, even if the pressure inside the chamber fluctuates.

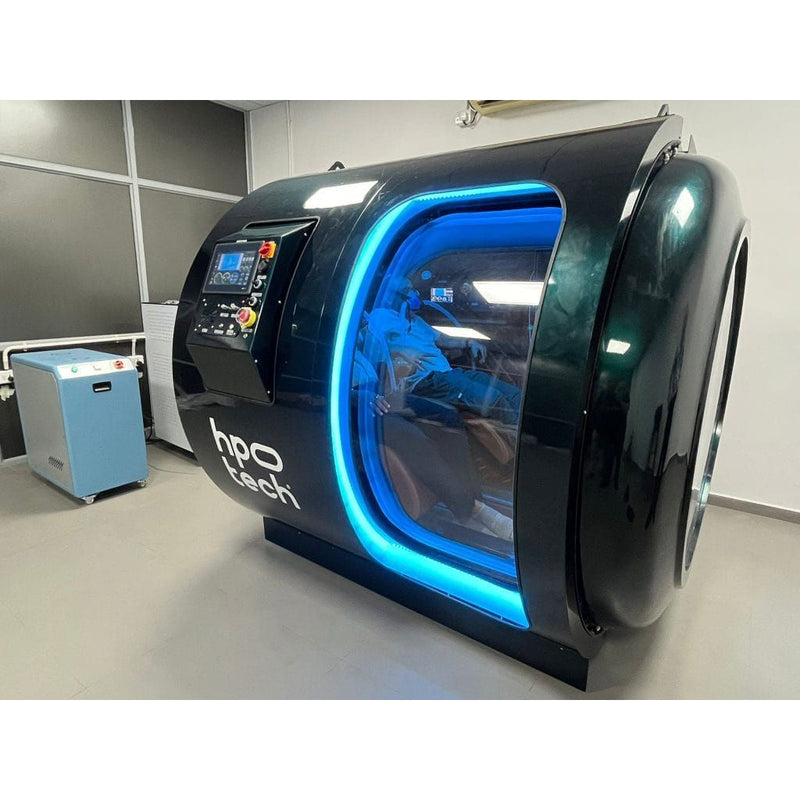

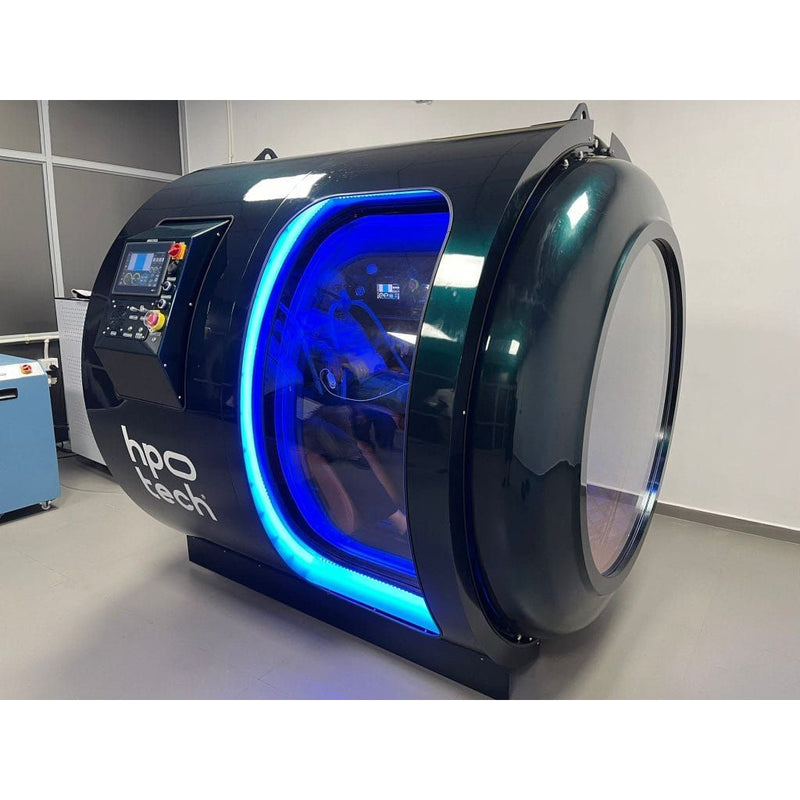

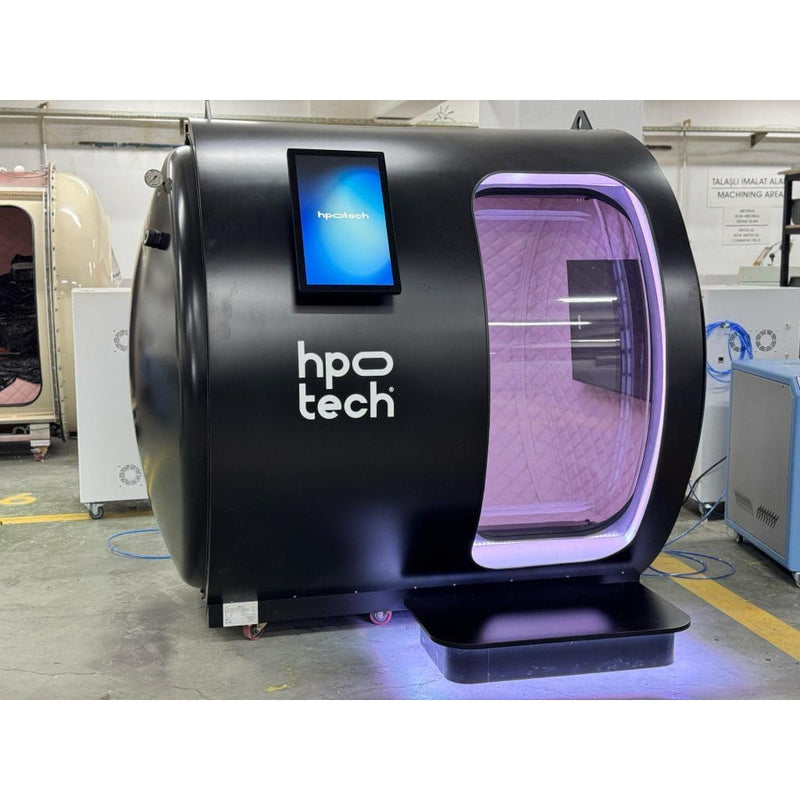

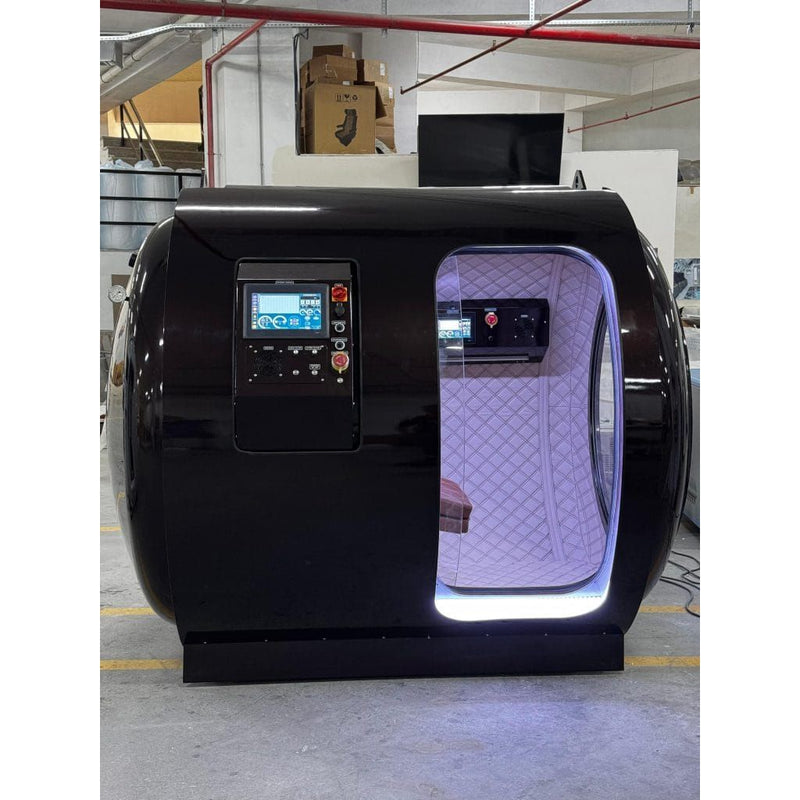

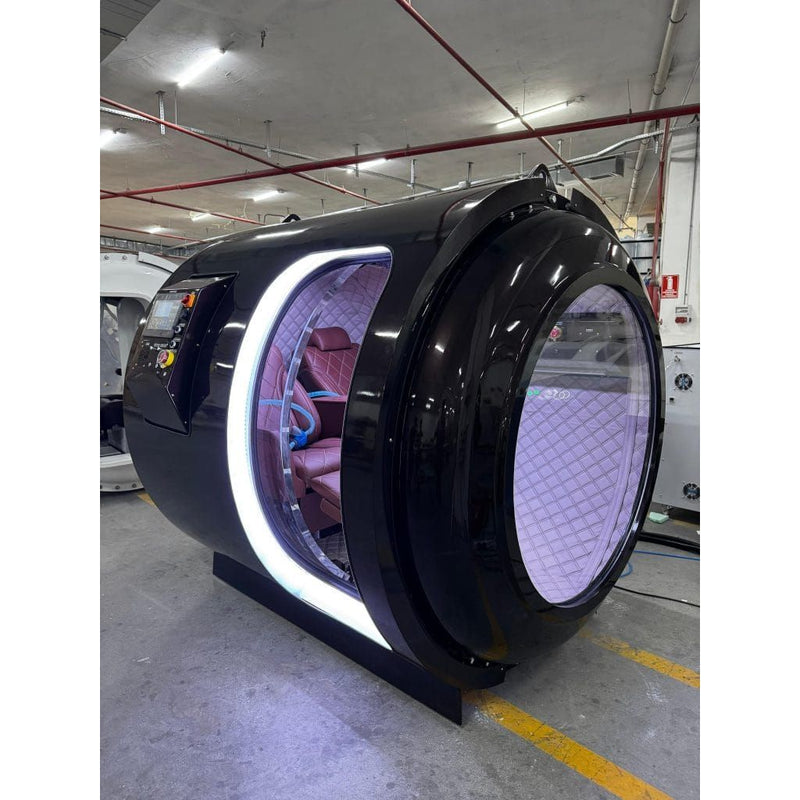

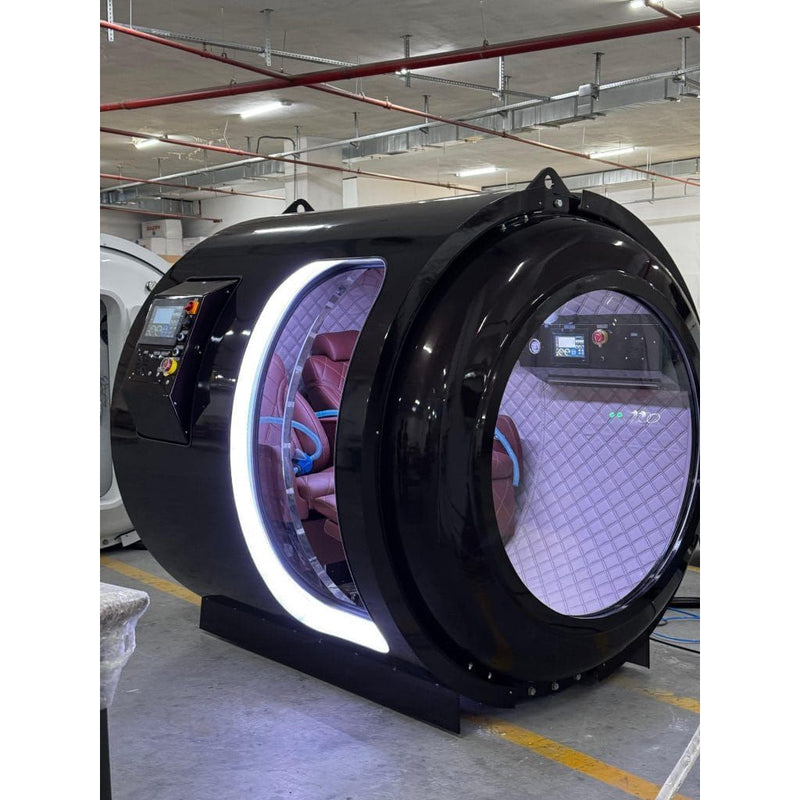

External Control Panel
Navigate pressure adjustments, monitor vital information, maintain clear communication with your patient, and control every aspect of the chamber with confidence. Features a 10.1 inch industrial TFT touchscreen display with 1024x600 resolution and LED backlighting, unified main control console, internal audio hub, and proprietary chassis-integrated gas control valves.

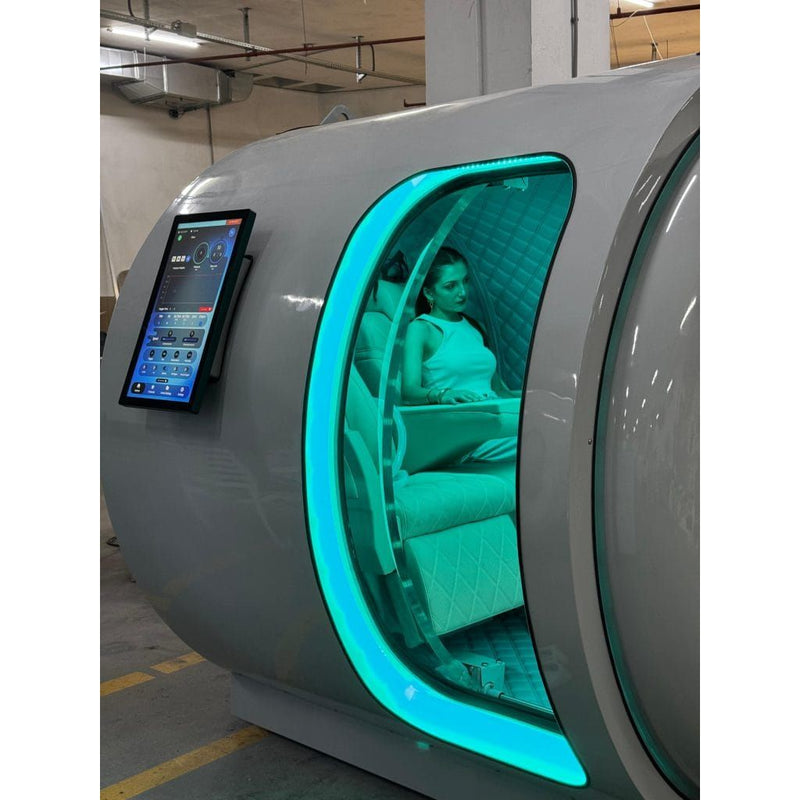

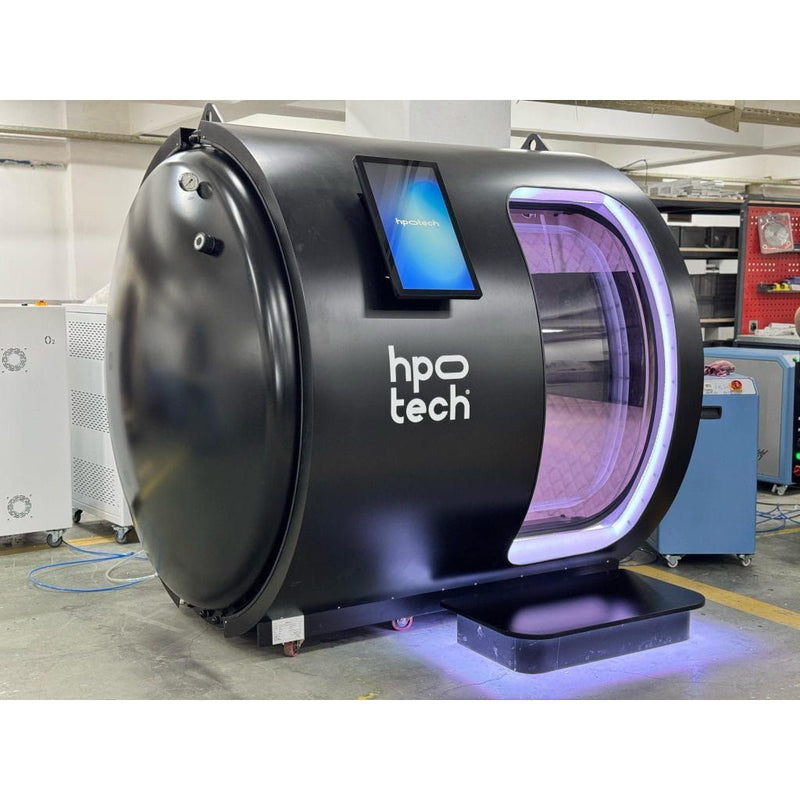

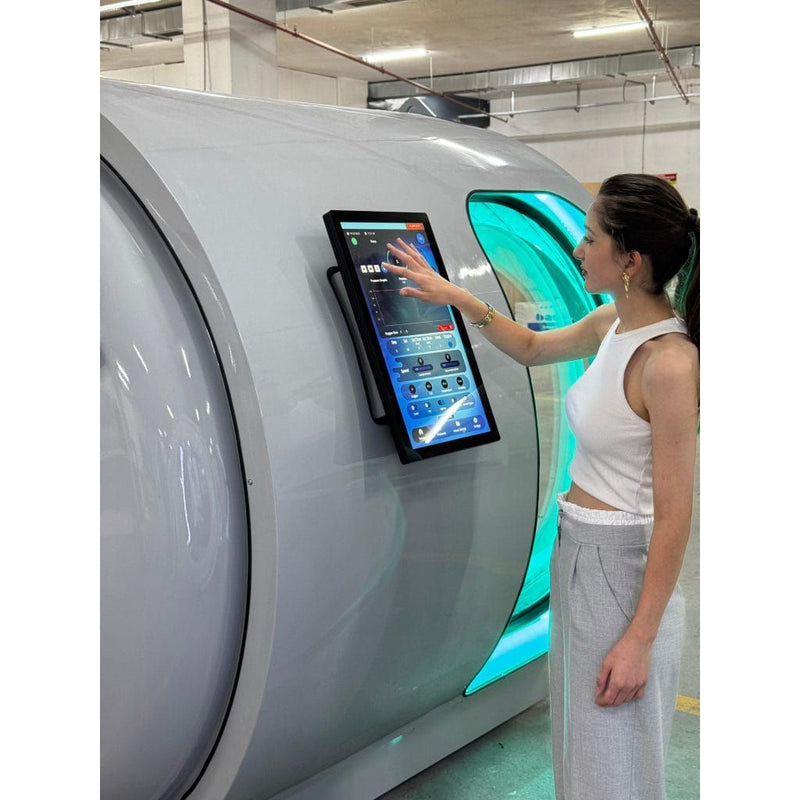

External Control Tablet
Manage everything with the intuitive touchscreen control, from setting the pressure and session parameters to locking the chamber door. Monitor the session with clear visuals and data on chamber pressure, time, and other vital information.
Manual De/Compression Knob
Take command with the manual pressure knobs, adjusting compression and decompression independently of the automatic system for greater control over any phase of the session.
Power On Switch
The switch turns on the electrical equipment, activating the control panels for manual and/or automatic HBOT sessions.
Emergency Decompression Valve
In case of emergency, the pressure chamber is relieved by rotating the manual spherical valve from inside or outside the chamber, providing a physical backup to all software controls.
Emergency Stop Button
Terminates the session in the pressure room if needed and quickly drops chamber pressure to a safe level. Available on both external and internal control panels.
External Intercom
Provides voice connection with the users inside the chamber. Always open for crystal clear communication with volume control, ensuring continuous contact throughout every session.
USB Port
The USB 3.0 port allows software updates, uploading custom settings, or downloading the session archive for record-keeping and clinical review.
Internal Control Panel
Take charge of the hyperbaric experience from within. Features a 10.1 inch industrial TFT touchscreen display with 1024x600 resolution and LED backlighting. Adjust pressure, time, and settings while monitoring key information. All commands are mirrored for outside and inside user control.
Internal Control Tablet
Manage everything from within the chamber with the intuitive touchscreen, from setting pressure and session parameters to monitoring all vital information during treatment.
Chamber Pressure Indicator
A mechanical dial indicator provides a quick analog reading of pressure variations inside the chamber, giving the patient an instant visual reference at all times.
Internal Cooler
Operated using the control tablet, the internal cooler adjusts chamber temperature when pressurized, maintaining a comfortable HBOT session experience throughout.
Internal Intercom
Provides voice communication with outside operators. Always open for crystal clear communication, ensuring users inside are never isolated during treatment.
UV-C Light Disinfection
The chamber features UV-C light disinfection that inactivates viruses and bacteria from surfaces and ambient air, keeping the interior environment clean and safe between sessions.
Occupancy Sensor
Automatically disables UV-C when someone enters the pressure chamber, ensuring disinfection operates only when the chamber is unoccupied and safe to run.
Centralized Software Control
The control consoles, located on the outside and inside the chamber, provide the controls and instrumentation for chamber operation including the gas control systems and communications system. The user-friendly interface allows customization of specific HBOT protocols with accurate metrics and simple controls.
Real-Time Session Monitoring
Sensors track essential parameters during HBOT sessions, enabling real-time monitoring and adjustments. The system gathers and displays real-time session information including pressure, oxygen, temperature, humidity, patient vitals, and treatment duration.
Session Status Management
The protocols of each HBOT session are recorded in the data logger for future reference. This enables healthcare providers to observe treatment response, adjust protocols if necessary, and assess the overall progress of the therapy.
Advanced Automation System
The chamber is fully automated via an advanced Automation System powered by automation software, industrial PLC, sensors, valves, and a PC. The PLC is the central control unit, monitoring and controlling all connected devices to streamline operations and reduce manual intervention. The system is compliant with IEC 62304 Class C - the highest software safety standard for medical devices.
Advanced Medical Sensor Suite
High-accuracy carbon dioxide (0-5000 ppm) tracking sensors, independent dual oxygen analyzers, and IP65-rated temperature and humidity modules provide comprehensive real-time environmental monitoring throughout every session.
Multi-Port Medical Penetrators
Standard-equipped, welded blind-flanged penetrator ports allow the safe, pressure-sealed introduction of external medical lines such as clinical aspirators or ventilators, supporting advanced clinical monitoring inside the chamber.
Electromagnetic Compatibility (EMC)
Certified under CISPR 11 Class A and IEC 60601-1-2 medical standards, ensuring zero electromagnetic interference with other sensitive hospital equipment during HBOT sessions.

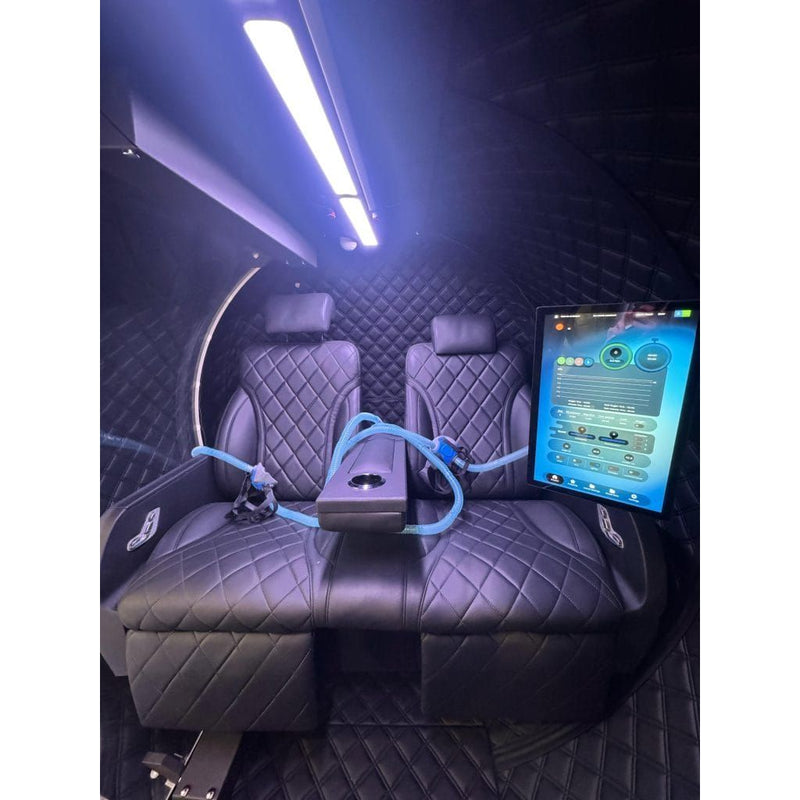

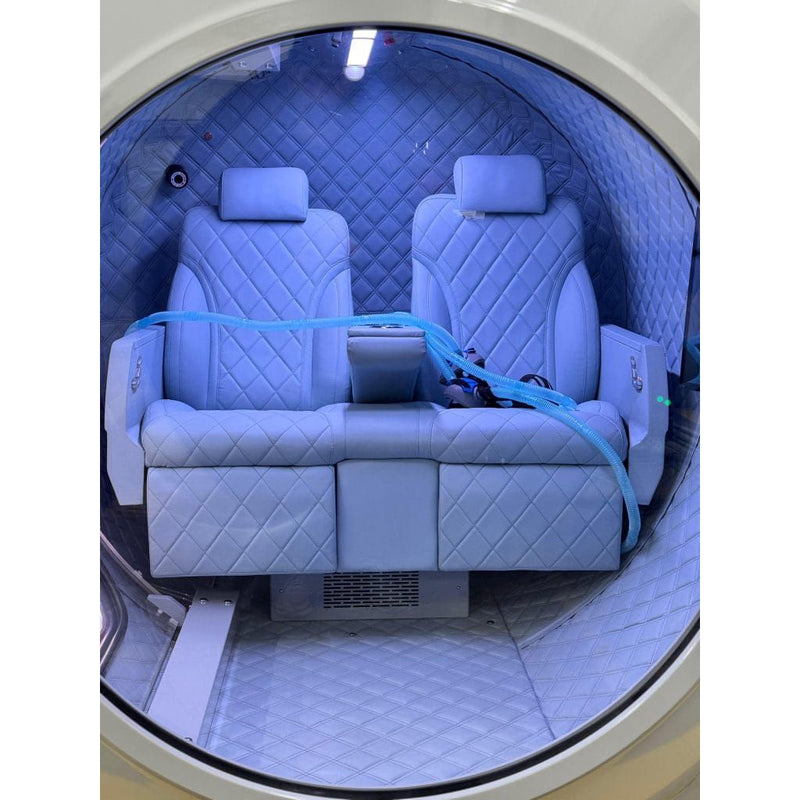

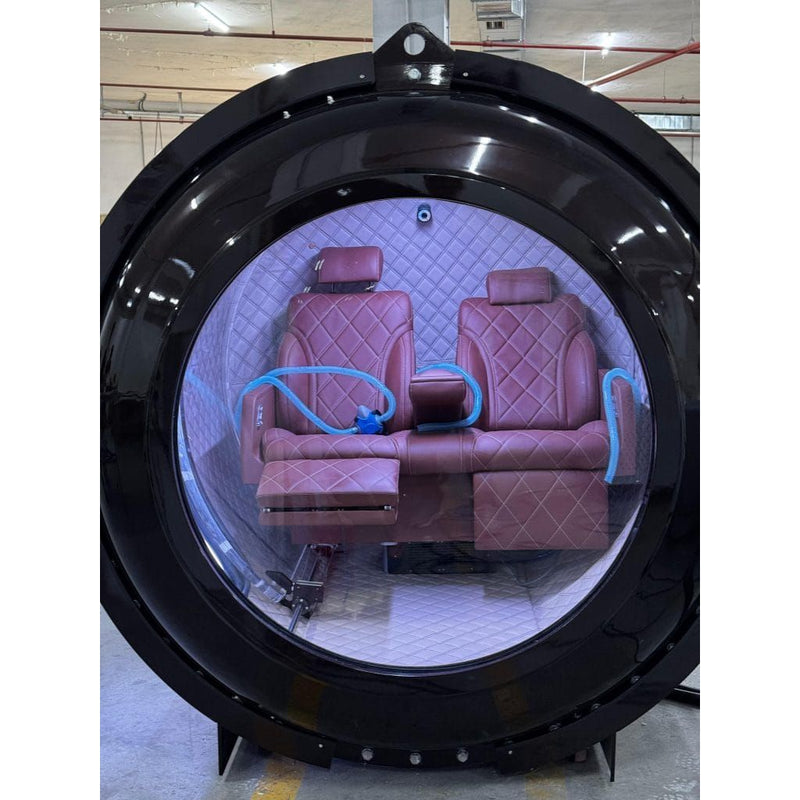

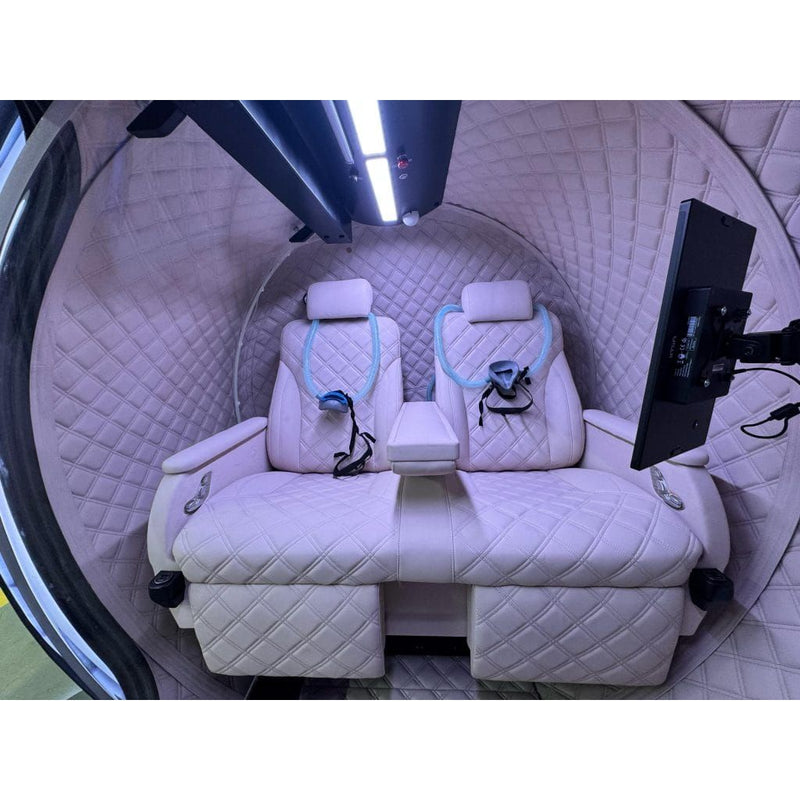

Ergonomic Seating
Tailored to your body's physiology, the ergonomic seats reduce pressure point stress and boost circulation, ensuring a relaxed and effective session for both users. Choose between 3 ergonomic chair models with automatic or manual controls, including the luxury electric Maybach chair range with full customization options.
Interior Leather
The interior is wrapped in high-quality ecologic leather upholstery for the most comfortable and inviting feeling, with a classy look. Choose your favorite leather color, stitch color, stitch design, or embroidery options for a fully personalized interior.
Patient Monitoring
Chamber penetrations and electrical connectors provide the capability to connect vital monitoring equipment such as EEG, ECG, TCOM, and blood pressure devices for both users simultaneously.

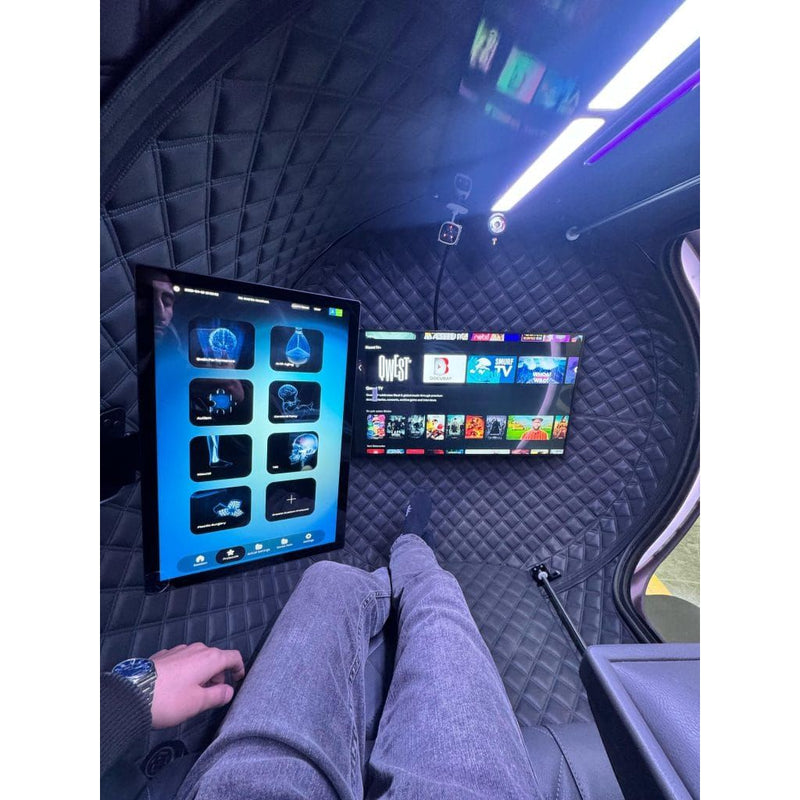

Entertainment System
The chamber is equipped with large-screen TV or tablets for the users, including other customizable additions to improve the in-chamber experience throughout the session.

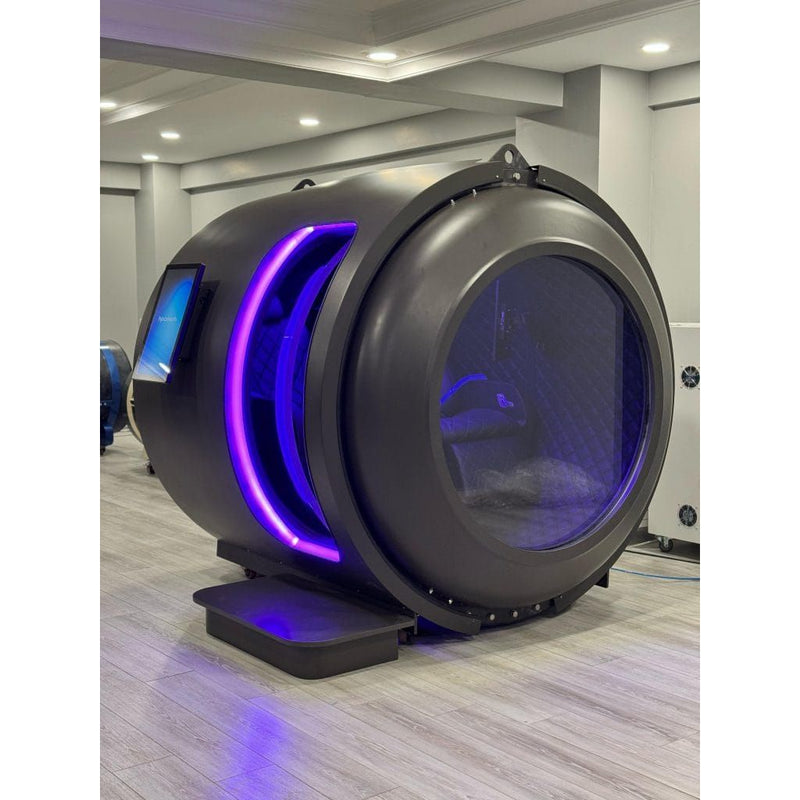

Adjustable LED RGB Lighting
Adjustable LED RGB lighting allows users and operators to create a personalized, serene atmosphere inside the chamber during each session.
Ventilation
The automatic ventilation system ensures the air inside the chamber is always fresh throughout the duration of every session.
Pneumatic Controls
Chamber controls are completely pneumatic in nature and require only a compressed gas source, keeping operation clean and reliable.
Discrete Power Source
A discrete power source allows continued operation of chamber communications in the event of a power outage, maintaining safety and connectivity at all times.
