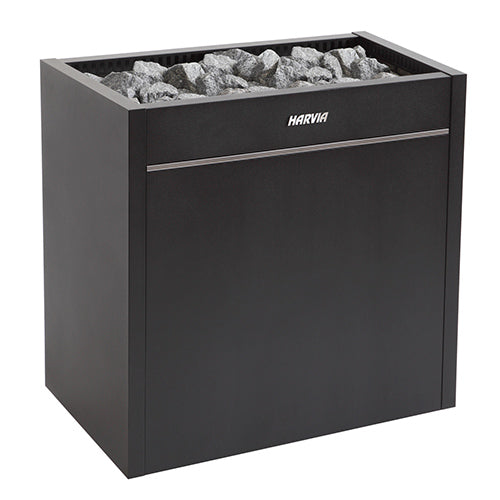

Harvia Virta Pro HL200E Virta Pro Series 20.0kW Sauna Heater
The Harvia Virta Pro HL160E is a 16kW heavy-duty electric sauna heater for large sauna rooms from 354 to 918 cubic feet, designed for health clubs, spas, hotels, apartment buildings, and high-frequency residential use. This listing is the heater only. A Xenio or Fenix control unit, the LTY45 power extension unit, and 200 lbs of AC3020 sauna stones (5 boxes) are all required for operation and sold separately. The Virta Pro is Harvia's commercial-grade electric heater series - a step above the standard Virta series in output capacity, construction robustness, and maintenance engineering. At 16kW covering rooms up to 918 cubic feet, the HL160E is the most powerful single-phase Virta Pro model and one of the highest-output single-phase electric sauna heaters available for North American installation.
Commercial-grade construction - dual-group elements and front maintenance hatch
The Virta Pro is distinguished from the standard Virta series by two engineering features specific to heavy-use environments. First, the heating elements are divided into two separate groups inside the heater body. This division allows one group to be serviced or replaced while the other group continues to operate - in a high-frequency commercial sauna where downtime is costly, the ability to perform element maintenance without taking the heater fully offline is a significant operational advantage. Second, the front-facing maintenance hatch provides access to the element groups and internal components without disturbing the stone load. Elements can be inspected and replaced through the front hatch with the stones in place, reducing the time and disruption of each service event. The heater body is stainless steel construction throughout, appropriate for the high-humidity, high-heat sauna environment under continuous commercial use.
Three required components - control, LTY45 power extension, and AC3020 stones
The HL160E requires three separate component purchases for a complete installation. First, a Xenio CX45-U1-U3-XW or Fenix FX45-U1-U3-XC control unit - the 16kW output level requires the CX45 or FX45 capacity tier; the CX30 or FX30 is not compatible with a 16kW heater. Second, the LTY45 power extension unit - this Harvia-specific component is required for the Virta Pro's higher-output operation and connects the heater's dual element groups to the Xenio or Fenix control system. Third, 200 lbs of AC3020 sauna stones in 5 boxes. The Virta Pro requires AC3020 stones (10-15 cm) - the larger specification, the same used in the Virta Combi series. Standard AC3000 stones (5-10 cm) must not be used as substitutes. All three component categories are sold separately at BathingBrands.
Side-wall or floor mount - flexible large-sauna installation
The HL160E can be installed against a side wall or floor-mounted in the sauna room, providing installation flexibility for the large commercial sauna rooms this heater is designed to serve. In large rooms, bench configurations and room geometry vary significantly from installation to installation - the choice between side-wall and floor mounting is made based on the specific room layout, stone loading access requirements, and maintenance access for the front hatch. The heater ships on a wooden pallet and delivery requires a scheduled appointment. The driver provides delivery only - facility management should plan for on-site movement of the pallet to the installation location before delivery day.
16kW heavy-duty electric sauna heater for large rooms from 354 to 918 cubic feet. Designed for health clubs, spas, hotels, and high-frequency use. Heating elements divided into two groups for easy maintenance. Front-facing maintenance hatch - service without disturbing stones. Side-wall or floor mount. Required (all sold separately): Xenio CX45-U1-U3-XW or Fenix FX45-U1-U3-XC control; LTY45 Harvia power extension unit; 200 lbs AC3020 stones - 5 boxes (10-15 cm). Stainless steel construction. 240V / 1-phase. ETL Listed. Ships on wooden pallet - scheduled delivery. Made in Finland by Harvia.
16 kW 354 to 918 cu ft Heavy-duty commercial and high-frequency use Elements divided into two groups - easy maintenance Front-facing maintenance hatch Side-wall or floor mount Control: CX45-U1-U3-XW or FX45-U1-U3-XC (sold separately) LTY45 power extension unit required (sold separately) Stones: 200 lbs AC3020 (5 boxes 10-15 cm) sold separately Stainless steel construction 240V / 1-phase Ships on wooden pallet - scheduled delivery ETL Listed - made in Finland by Harvia
Specifications
Electrical
| Power output |
16 kW |
| Voltage |
240V / 1-phase / 60 Hz |
| Required control |
Xenio CX45-U1-U3-XW or Fenix FX45-U1-U3-XC |
| Required power extension |
LTY45 (sold separately) |
| Certification |
ETL Listed |
Room sizing and stones
| Room volume |
354 to 918 cu ft |
| Required stone load |
200 lbs (5 boxes AC3020) |
| Stone size required |
AC3020 - 10-15 cm (NOT AC3000 5-10 cm) |
| Stones included |
No - sold separately |
Commercial features
| Element groups |
Two - serviceable independently |
| Maintenance access |
Front-facing hatch - service without moving stones |
| Construction |
Stainless steel |
| Mounting options |
Side-wall or floor mount |
| Delivery |
Wooden pallet - scheduled appointment required |
| Origin |
Made in Finland by Harvia |
Required components (all sold separately)
| Control option 1 |
Xenio CX45-U1-U3-XW - built-in WiFi, MyHarvia app |
| Control option 2 |
Fenix FX45-U1-U3-XC - 4.3" touchscreen, MyHarvia 2 |
| Power extension |
LTY45 - required for Virta Pro operation |
| Stones |
200 lbs AC3020 (10-15 cm) - 5 boxes |
Virta Pro series context
| HL160E (this listing) |
16kW | 240V/1PH | 354-918 cu ft |
| HL200E |
20kW | 208V/3PH | 354-1130 cu ft |
| Both require |
CX45/FX45 control + LTY45 + AC3020 stones |
What's included
Harvia Virta Pro HL160E 16kW sauna heater - stainless steel
Installation and operation manual
Required (all sold separately at BathingBrands): Xenio CX45-U1-U3-XW or Fenix FX45-U1-U3-XC control unit; LTY45 power extension unit; 200 lbs AC3020 sauna stones - 5 boxes (10-15 cm). A licensed electrician is required. Do not connect to a GFI/GFCI breaker. Scheduled pallet delivery - plan for on-site movement to installation location.
Why the Harvia Virta Pro HL160E stands out
Dual-group elements - commercial maintenance advantage
Dividing the 16kW heating element load into two independent groups allows one group to be serviced while the other continues operating. In a health club, spa, or hotel sauna where downtime directly affects facility revenue and guest experience, the ability to maintain the heater without full shutdown is a meaningful operational advantage over single-group heaters of equivalent output.
Front maintenance hatch - service without stone disruption
The front-facing maintenance hatch allows element inspection and replacement through the front of the heater body with the stone load in place. Stone loads of 200 lbs are heavy to remove and reload - avoiding this disruption at each service event significantly reduces the labour time and operational impact of routine element maintenance for facility management.
16kW - up to 918 cu ft on single-phase power
At 16kW on a 240V/1-phase circuit, the HL160E is among the highest-output single-phase electric sauna heaters available for North American installation. For large commercial sauna rooms from 354 to 918 cubic feet where three-phase power is not available, the HL160E delivers the output required for full room heating without the three-phase electrical infrastructure that many commercial facilities lack.
200 lbs AC3020 stones - large thermal mass
The Virta Pro's 200-lb stone capacity with AC3020 (10-15 cm) stones provides substantial thermal mass for extended commercial sessions. In a health club or spa sauna with back-to-back user sessions throughout the day, the large stone mass maintains consistent temperature and steam quality between sessions without requiring full cool-down and reheat cycles.
Side-wall or floor mount - flexible commercial install
Commercial sauna rooms vary significantly in layout, bench configuration, and available wall space. The HL160E's ability to install as a side-wall mount or floor mount gives facility designers and installers the flexibility to position the heater optimally for the specific room - bench clearances, maintenance access for the front hatch, and stone loading access are all considerations in the placement decision.
CX45 or FX45 + LTY45 - the correct control configuration
The HL160E requires the CX45 (not CX30) control tier and the LTY45 power extension unit - three separate components from the control side of the installation. The Fenix FX45-U1-U3-XC (4.3" touchscreen, MyHarvia 2, AI learning, smart timer) is the more capable pairing; the Xenio CX45-U1-U3-XW provides built-in WiFi via MyHarvia. Both are sold separately at BathingBrands.
About Harvia
Made in Finland - ETL Listed
Harvia Virta Pro HL160E. 16kW. 354-918 cu ft. Commercial-grade. Dual element groups. Front hatch.
Harvia is a Finnish sauna and spa company with over 70 years of manufacturing history. The Virta Pro HL160E is the 16kW single-phase model in Harvia's commercial-grade Virta Pro series, designed for health clubs, spas, hotels, and high-frequency use. Dual heating element groups and a front maintenance hatch enable in-service element maintenance without full shutdown. This listing is the heater only - Xenio CX45 or Fenix FX45 control, LTY45 power extension, and 200 lbs of AC3020 stones (5 boxes) are required and sold separately. Ships on wooden pallet - scheduled delivery. We are an authorized Harvia dealer.
-
16kW, 354-918 cu ft - 240V/1PH, ETL Listed
-
Dual element groups - service one group while other operates
-
Front maintenance hatch - service without stone removal
-
Control required: CX45-U1-U3-XW or FX45-U1-U3-XC (sold separately)
-
LTY45 + 200 lbs AC3020 stones required (all sold separately)
Virta Pro HL160E vs HL200E
Virta Pro HL160E (16kW/1PH) vs HL200E (20kW/3PH) - choosing for the room and power supply
The Virta Pro series has two models for the North American market. The HL160E (this listing): 16kW, 240V/1-phase, 354-918 cu ft. The HL200E: 20kW, 208V/3-phase, 354-1130 cu ft. For facilities with only single-phase power available, the HL160E is the only Virta Pro option - the HL200E requires three-phase power. For facilities with three-phase power and rooms approaching or exceeding 918 cubic feet, the HL200E is the correct choice - it covers a larger room range and delivers more output. Both require CX45 or FX45 control, LTY45 power extension, and AC3020 stones. Both ship on wooden pallets with scheduled delivery. Both have dual heating element groups and front maintenance hatch access. Confirm the facility's electrical supply phase before selecting between them. A licensed electrician is required for both. Do not connect to GFI/GFCI breakers.
Manuals and Documents
Warranty
Harvia limited warranty
The Harvia Virta Pro HL160E is covered by Harvia's limited warranty from the date of purchase. The warranty covers defects in manufacturing and materials under normal use conditions. The warranty does not cover damage caused by improper installation, use without the required stone load, use of incorrect stone specification (AC3000 must not be substituted for AC3020), operating without the LTY45 power extension unit, connection to a GFI/GFCI breaker, or failure to follow Harvia's installation and operating guidelines. A licensed electrician is required for all electrical connections. Proof of purchase from an authorized Harvia dealer is required for warranty claims. We are an authorized Harvia dealer.
