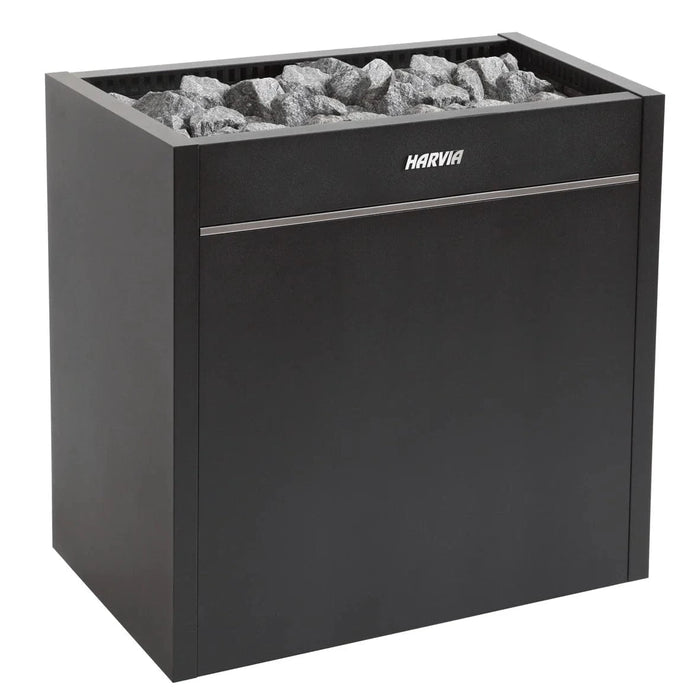

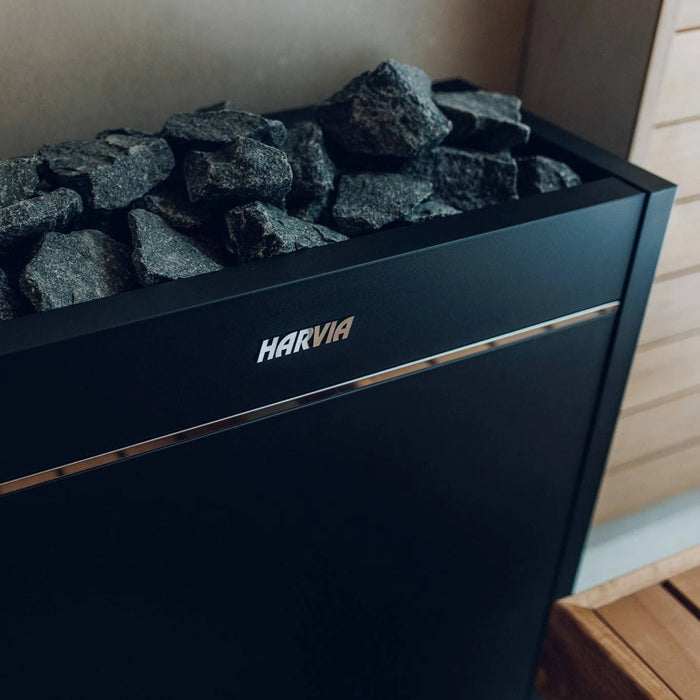

Harvia Virta Pro HL160E Virta Pro Series 16.0kW Sauna Heater
The Harvia Virta Pro HL160E is a 16.0kW floor-mounted electric sauna heater for rooms from 354 to 918 cubic feet, designed and classified by Harvia as a professional-grade heater for heavy-duty use in spas, hotels, apartment buildings, and health clubs. The Virta Pro platform steps up from the standard Virta in two key ways: the heating elements are divided into two independent groups, each serviceable as a separate pull-out module through the front maintenance hatch; and the stone capacity increases to 200 lbs (5 boxes AC3020, 5-10 cm, sold separately). The two-group element design is the Virta Pro's defining structural feature - it allows the heater to be wired on two independent circuits (2x min. 16.7A each) for load balancing, and it means each element group can be serviced independently without taking the entire heater offline. A separate Xenio controller is required and sold separately. A Harvia power extension is also required for two-group wiring installations. 240V/1PH, 60Hz. ETL certified. Made in Finland by Harvia.
Virta Pro platform - professional-grade for heavy-duty and commercial use
Harvia classifies the Virta Pro explicitly for professional use - not just households. The HL160E is the 16kW configuration, suited for large sauna rooms from 354 to 918 cu ft in facilities where the heater runs multiple sessions daily across years of continuous operation. Harvia's description is direct: thanks to its strong construction, heating elements divided into two groups and exceptionally easy maintenance, the Virta Pro heater is an excellent choice for heavy-duty use. The Virta Pro steps up from the standard Virta Series in three ways - higher output at 16kW (vs the Virta HL90E's 9kW), a larger stone capacity (200 lbs vs 110 lbs), and the two-group element architecture that provides both wiring flexibility and independent serviceability that the standard Virta's single-group design does not offer.
Two-group elements - independent wiring and per-group serviceability
The most technically significant feature of the Virta Pro platform is the division of the 16.0kW heating elements into two independent groups. Each group can be wired on its own circuit - the heater can run on two separate 16.7A breakers rather than a single 25A circuit - which simplifies load balancing in commercial electrical installations and is a common requirement in apartment buildings and hotel facilities with dedicated circuit allocation per sauna room. Each element group is also a separate pull-out module accessible through the front maintenance hatch. If one group requires element replacement, only that group needs to be pulled out - the other group stays in place, and neither requires stone removal. For a heater in a commercial facility running multiple sessions daily, this is a meaningful operational advantage that reduces maintenance downtime compared to heaters requiring full stone removal for element access.
200 lbs of stones with front hatch access - soft steam and easy service

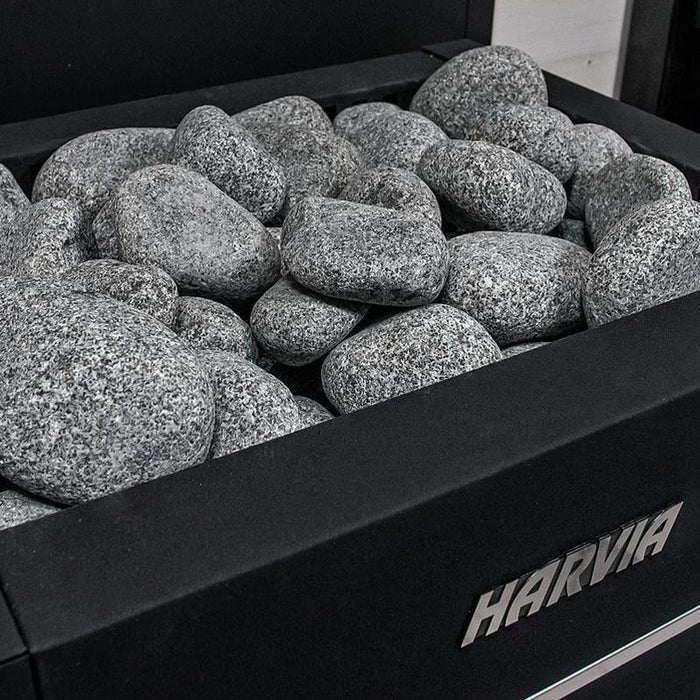

The Virta Pro HL160E holds 200 lbs (5 boxes AC3020, 5-10 cm) in an open stone cage with direct rock-to-element contact. The large stone mass stores substantial thermal energy during heat-up and releases it as soft, consistent steam throughout the session. Efficient air circulation through the open cage heats the sauna quickly. The front maintenance hatch gives access to both element groups and all wiring connections without touching the stones - every connection and every serviceable component is reached from one side of the heater. The stone cage is designed with efficient air circulation in mind: air moves through the stone bed in all directions, heating the stones evenly and distributing steam across the full stone surface when water is poured.
16.0kW floor-mounted electric sauna heater for rooms from 354 to 918 cubic feet. Virta Pro Series - professional-grade for heavy-duty use in spas, hotels, health clubs, and apartment buildings. Heating elements divided into two independent groups - per-group serviceability, two-circuit wiring option. 200 lbs AC3020 stones required (5 boxes, 5-10 cm, sold separately). Elements separated from stones - longer element lifespan. Front maintenance hatch - pull-out element module per group - no stone removal required. Floor-mounted - sidewall or corner installation. Dimensions: 31"W x 13"D x 33"H. 240V/1PH - 2x min. 16.7A or single 25A - 10AWG cable. IPX4 rated. Xenio controller required - sold separately. Power extension required for 2-group wiring. ETL certified. 2-year warranty (consumer). Made in Finland by Harvia.
16.0 kW 354 to 918 cu ft Virta Pro Series - professional heavy-duty use Elements divided into two independent groups Two-circuit wiring option - 2x 16.7A or single 25A Per-group pull-out element serviceability Floor-mounted - sidewall or corner install 200 lbs AC3020 stones required (5 boxes, 5-10 cm) Elements separated from stones - longer lifespan Front maintenance hatch - no stone removal required 31"W x 13"D x 33"H 240V/1PH - 10AWG cable IPX4 rated Xenio controller required - sold separately Power extension required for 2-group wiring ETL certified 2-year warranty (consumer) Made in Finland by Harvia
⚠️ 200 lbs AC3020 stones (5 boxes, 5-10 cm) required - not included. Xenio controller required - not included. Power extension required for two-group wiring - not included. All three must be purchased separately before the heater can be operated. An additional box of stones is recommended for selection of best-fitting stones. A licensed electrician is required for all wiring and installation per local code. Two-group wiring requires 2x independent circuits with min. 16.7A each on 10AWG. Single-circuit wiring requires min. 25A on 10AWG. Confirm the correct wiring approach with your electrician before installation.
ℹ️ Virta Pro HL160E vs Virta HL90E - two platforms, two levels of output and serviceability. Virta HL90E HL9U1UL: 9.0kW, 177-494 cu ft, single-element group, single-circuit wiring (37.5A), 110 lbs stones (3 boxes), 2" safety clearances all sides. Suitable for frequent home sauna use and smaller commercial applications. Virta Pro HL160E HL16U1UL (this listing): 16.0kW, 354-918 cu ft, two independent element groups, two-circuit or single-circuit wiring, 200 lbs stones (5 boxes), professional classification for spas, hotels, and health clubs. The Virta Pro's two-group element architecture provides per-group serviceability and load-balancing wiring that the standard Virta cannot offer. Choose the Virta HL90E for a home sauna or smaller commercial room in the 177-494 cu ft range. Choose the Virta Pro HL160E for large professional or commercial applications in the 354-918 cu ft range where the two-group element design and 16kW output are required.
Specifications
Performance
| Power output |
16.0 kW |
| Fuel type |
Electric (high voltage 240V/1PH) |
| Room volume |
354 to 918 cu ft |
| Stone capacity |
200 lbs (5 boxes AC3020, 5-10 cm) - sold separately |
| Stone size |
O 5-10 cm (AC3020) |
| User group classification |
Professionals - heavy-duty use |
Two-group element architecture
| Element groups |
2 independent groups |
| Two-circuit wiring |
2x min. 16.7A on 10AWG (requires power extension) |
| Single-circuit wiring |
Min. 25A on 10AWG |
| Per-group serviceability |
Each group is independent pull-out module |
| Power extension |
Required for two-group wiring - sold separately |
Electrical
| Voltage / phase |
240VAC, 1-phase, 60Hz |
| Fuse (single circuit) |
Min. 25A |
| Fuse (two-group circuit) |
2x min. 16.7A |
| Supply cable |
10AWG |
| IP rating |
IPX4 |
| Control |
Separate Xenio controller required - sold separately |
Physical dimensions
| Width |
31 in (787 mm) |
| Depth |
13 in (330 mm) |
| Height |
33 in (838 mm) |
| Net weight (heater only) |
92.6 lbs (42.0 kg) |
| Gross weight (packaged) |
56.2 lbs - heater only, no stones |
| Package width |
16.93 in |
| Package depth |
19.69 in |
| Minimum room ceiling height |
6.56 ft (2,000 mm) |
Construction
| Body material |
Stainless steel |
| Color |
Black |
| Elements |
Two independent groups - separated from stones |
| Installation |
Floor-mounted - sidewall or corner |
| Maintenance access |
Front hatch - pull-out element modules per group |
| Use environment |
Interior - wet area |
Certifications and compliance
| US/Canada certifications |
ETL certified |
| Origin |
Made in Finland by Harvia |
| Warranty |
2-year limited (consumer use) |
Required accessories (sold separately)
| Stones (required) |
200 lbs AC3020 (5 boxes, 5-10 cm) - additional box recommended |
| Controller (required) |

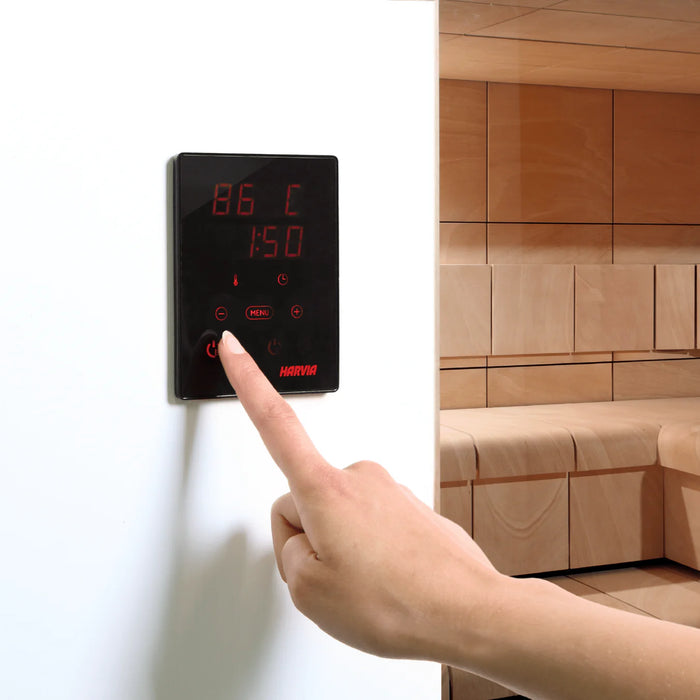

Harvia Xenio (compatible models per Harvia spec) |
| Power extension (two-group) |
Required for two-group wiring - sold separately |
| Optional safety railing |

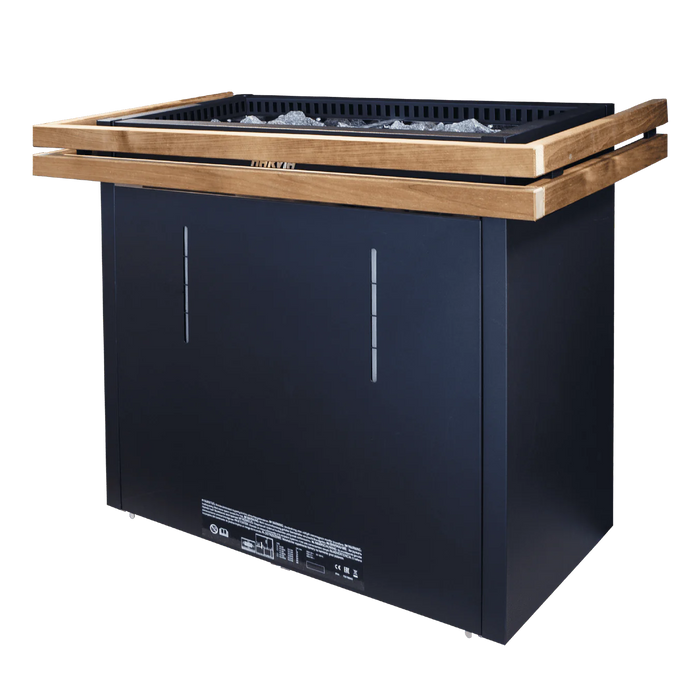

Harvia HL4S (Virta Pro safety railing for HL16) |
What's included
Harvia Virta Pro HL160E 16.0kW floor-mounted electric sauna heater
Fastening kit
Stone cage / protective guard
Installation and operation manual
2-year limited warranty (consumer use)
Required (not included): 200 lbs AC3020 stones - 5 boxes, 5-10 cm (additional box recommended); Harvia Xenio controller; Harvia power extension (for two-group wiring). Optional accessories (sold separately): Harvia HL4S safety railing. A licensed electrician is required for all wiring and installation per local code.
Why the Harvia Virta Pro HL160E stands out
Two independent element groups - commercial-grade architecture
The defining structural difference between the Virta Pro and the standard Virta is the division of the heating elements into two independent groups. This is not just a wiring option - it is a fundamental change to how the heater is serviced and powered. Each group is a separate physical module, wired independently, accessible independently through the front hatch, and replaceable without touching the other group or any of the stones. For a commercial facility where the heater runs daily and maintenance downtime has a real cost, the two-group design means element replacement can be done faster and with less disruption than with single-group heaters.
Two-circuit wiring - load balancing for commercial installations
The two-group element architecture allows the HL160E to be wired on two independent 16.7A circuits rather than a single 25A circuit. In commercial buildings - apartment buildings, hotels, health clubs - dedicated circuit allocation per sauna room often makes two smaller circuits more practical than a single large one. The two-circuit option also provides load-balancing flexibility: each group draws evenly from its own circuit, and either group can be isolated for service without shutting down the entire heater. A Harvia power extension is required for two-group wiring and is sold separately. A licensed electrician is required for all wiring.
200 lbs of stones - soft, abundant steam for large rooms
At 200 lbs (5 boxes AC3020, 5-10 cm), the Virta Pro HL160E carries the largest stone load in the Virta Series - nearly double the Virta HL90E's 110 lbs. The large stone mass stores significant thermal energy during heat-up and releases it steadily throughout the session. Steam quality is soft and consistent - the stones are heated evenly through direct rock-to-element contact and the open cage structure, so water thrown on any part of the stone surface produces the same quality of steam. For a 354-918 cu ft sauna room serving multiple bathers in rounds, the 200-lb stone load provides the thermal reservoir to sustain the session.
Front hatch maintenance - per-group access, no stone removal
The front maintenance hatch on the Virta Pro provides access to both element groups and all wiring connections without removing a single stone. Each element group is a pull-out module - accessed through the front hatch, disconnected from its circuit, and replaced as a complete unit. All connections have adequate space around them inside the hatch for a comfortable working environment. For a heater installed against a sauna wall with the minimum clearances, front-only access means no repositioning the heater for service. This is consistent with the Virta platform's design-from-day-one approach to maintenance - every aspect of the heater is accessible from the front without disturbing the installation.
Efficient air circulation - rapid heat-up for large rooms
The Virta Pro's open stone cage design allows air to circulate through the stone bed from multiple directions simultaneously. This air movement distributes heat through the stone mass evenly and rapidly, reducing the time needed to bring a 354-918 cu ft room to bathing temperature. Harvia specifically notes the efficient air circulation as enabling the sauna to heat up very quickly - a relevant capability for a commercial heater that may need to reach temperature between back-to-back sessions. The elements separate from the stones also means air is not blocked by element bodies within the stone bed, allowing more unobstructed flow through the full stone volume.
Virta Pro Series platform - HL160E and related configurations
The HL16U1UL is the 16.0kW 240V/1PH configuration of the Virta Pro Series. The same Virta Pro platform is available at 12.0kW (Virta Pro HL120E) for smaller large-room applications and at 20.0kW (Virta Pro HL200E) for the largest commercial sauna rooms. All Virta Pro models share the two-group element architecture, front maintenance hatch, separated element design, and professional-use classification. The Virta Pro is also available in a Combi configuration (Virta Pro Combi) that adds a built-in steamer for combined sauna and steam output. The standard Virta Series (HL60E, HL90E, HL120E) provides the same front hatch and separated element features at lower outputs for household use. Made in Finland by Harvia. We are an authorized Harvia dealer.
About Harvia
Made in Finland - ETL Certified - Virta Pro Series - Professional Grade
Harvia Virta Pro HL160E. 16.0kW. 354-918 cu ft. Two-group elements. Professional heavy-duty use.
Harvia is a Finnish sauna and spa company established in 1950. The Virta Pro HL160E is the 16.0kW professional-grade configuration of the Virta Pro Series - an electric sauna heater built for spas, hotels, health clubs, and apartment buildings. Heating elements divided into two independent groups for per-group serviceability and two-circuit wiring. 200 lbs of stones, front maintenance hatch, elements separated from stones. Stones (200 lbs, 5 boxes AC3020), Xenio controller, and power extension for two-group wiring are required and sold separately. We are an authorized Harvia dealer.
-
16.0kW electric - 354-918 cu ft - Virta Pro professional heavy-duty platform
-
Two independent element groups - per-group serviceability - two-circuit wiring option
-
200 lbs AC3020 stones required (5 boxes) - elements separated from stones
-
Front maintenance hatch - pull-out element modules - no stone removal
-
Xenio controller required - ETL certified - 240V/1PH - 10AWG cable
Virta Pro HL160E vs Virta HL90E vs Club K10G - professional vs home use comparison
Virta Pro HL160E vs Virta HL90E vs Club K10G - choosing the right floor-mounted electric heater
Three floor-mounted Harvia electric heater platforms serve different output and use-case requirements. Virta HL90E HL9U1UL: 9.0kW, 177-494 cu ft, single element group, single 37.5A circuit, 110 lbs stones (3 boxes), household-grade, 2" clearances all sides. Right for a home sauna or small commercial room needing frequent long sessions with easy element replacement. Virta Pro HL160E HL16U1UL (this listing): 16.0kW, 354-918 cu ft, two independent element groups, 200 lbs stones (5 boxes), professional-grade classification for spas, hotels, and health clubs. Two-circuit wiring option for load balancing. Per-group element serviceability without stone removal. Right for large commercial and professional sauna rooms requiring 16kW and two-group element architecture. Club K10G HRKGU10CU1UL: 10kW, 388-600 cu ft, floor-mounted Club Series heavy-duty platform, 132 lbs stones (3 boxes), all-stainless steel body, direct rock-to-element contact, open-air stone cage, multi-layer body construction. Right for continuous commercial use where Club-grade stainless steel durability and a large stone mass are the priority. Choose the Virta Pro HL160E for large rooms (354-918 cu ft) where two-group element serviceability and 16kW professional output are the specification.
Manuals and Documents
Warranty
2-year limited warranty (consumer use)
The Harvia Virta Pro HL160E is covered by Harvia's 2-year limited warranty from the date of purchase for consumer use. The warranty covers defects in manufacturing and materials under normal use conditions. The warranty does not cover damage caused by improper installation, use of incorrect stone type or size (non-AC3020, or stones outside the 5-10 cm specified diameter range), operating without the required minimum stone load, failure to follow the installation and operating guidelines in the manual, or damage from inadequate electrical installation including incorrect wiring of the two-group circuit configuration. A licensed electrician is required for all wiring and installation. Proof of purchase from an authorized Harvia dealer is required for warranty claims. We are an authorized Harvia dealer.
