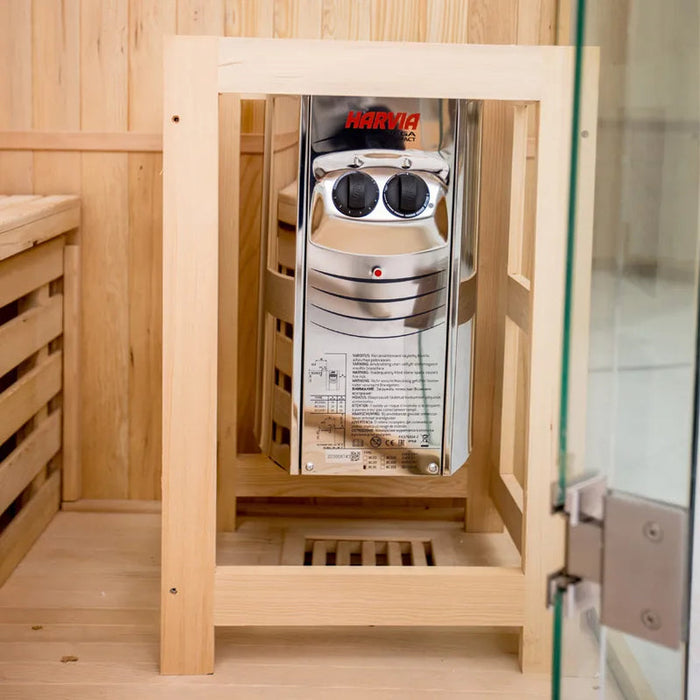

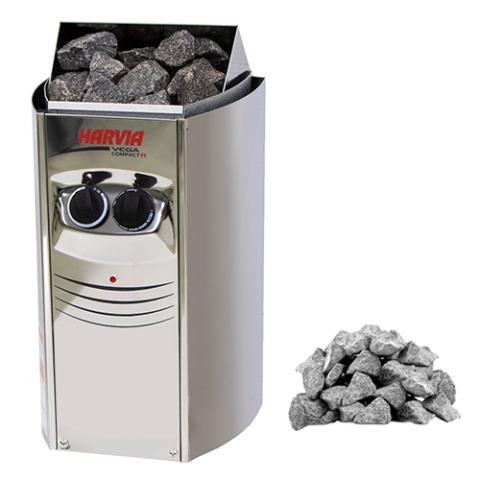

Harvia Vega Compact 3500 Vega Compact Series 3.5kW Sauna Heater 240V

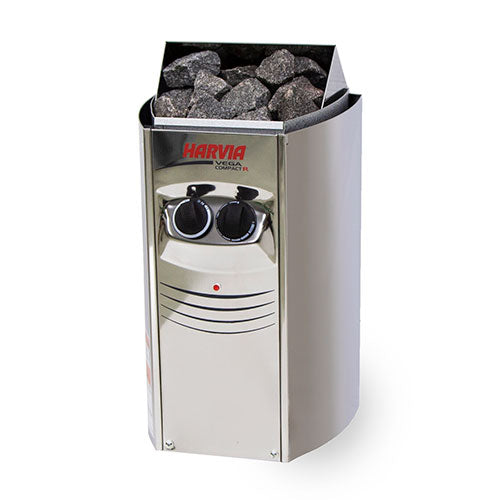

The Harvia Vega Compact 3500 is a 3.5kW wall-mounted sauna heater for rooms from 70 to 175 cubic feet, running on a standard 240V/1-phase circuit. It is the standalone heater unit - stones (1 box of Harvia AC3000, approx. 29 lbs) are required for operation and sold separately. The Vega Compact is the simplest complete sauna heater in the Harvia 240V range: a compact stainless steel wall mount with built-in operating switches at the top of the unit, designed to be installed low on the sauna wall so that lower benches receive plenty of steam. No external control unit is needed. The symmetric heater body allows the switches to be configured on either the left or right side at installation.
3.5kW on 240V - ideal for compact to mid-sized home saunas
At 3.5kW on a 240V/1-phase circuit, the Vega Compact 3500 covers rooms from 70 to 175 cubic feet - the range of a tight single-person sauna cabin through a standard small two-person home sauna. The 240V supply enables higher output than the 120V Vega Compact 1900 (which covers only up to 106 cu ft), making the 3500 the correct choice for anyone with a 240V supply available and a room in the 106-175 cu ft range that the 120V model cannot adequately heat. A 20A two-pole breaker and 12 AWG wire are required. A licensed electrician is required for the permanent wall connection.
Built-in top controls - symmetric, left or right configurable

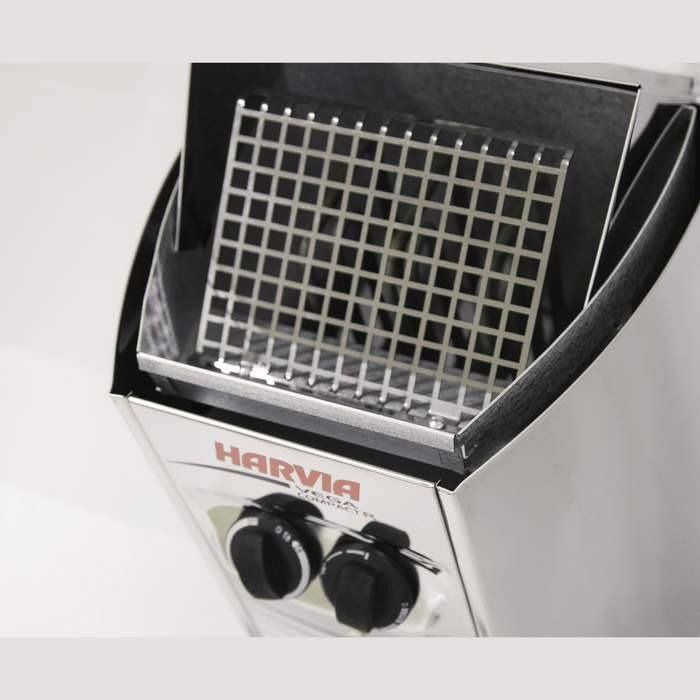

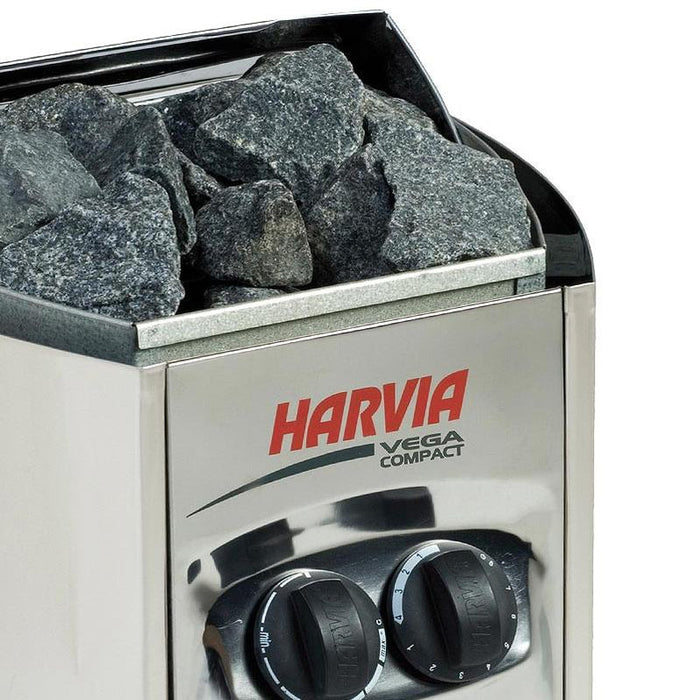

The operating switches are built into the upper part of the heater body rather than at the base as on the KIP series. This top placement is the specific ergonomic decision that defines the Vega Compact range: because the heater is designed to be mounted low on the sauna wall, top-positioned switches remain at a comfortable operating height even when the heater is installed near floor level. The symmetric shape of the heater allows the switch module to be placed on either the left or right side depending on which side is more accessible from the bench. No external control unit is needed or compatible with this heater.
Single-screw wall mount - installs low for lower bench steam

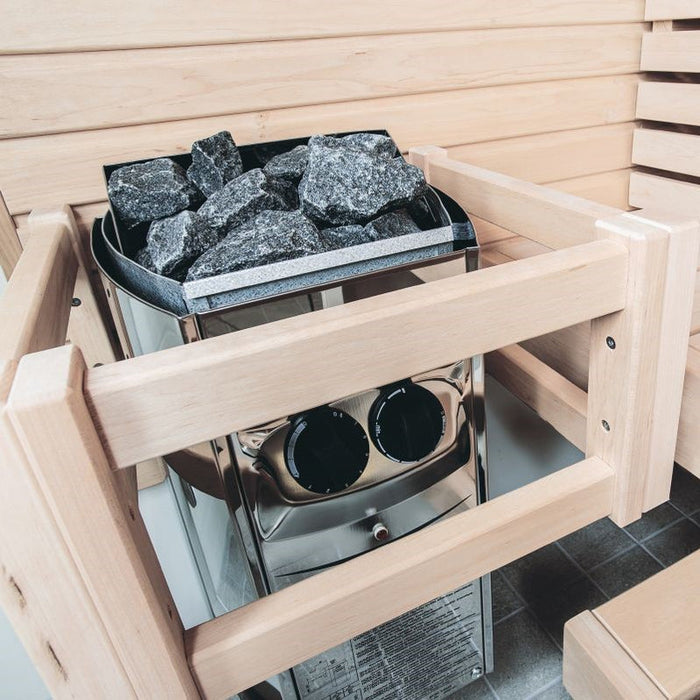

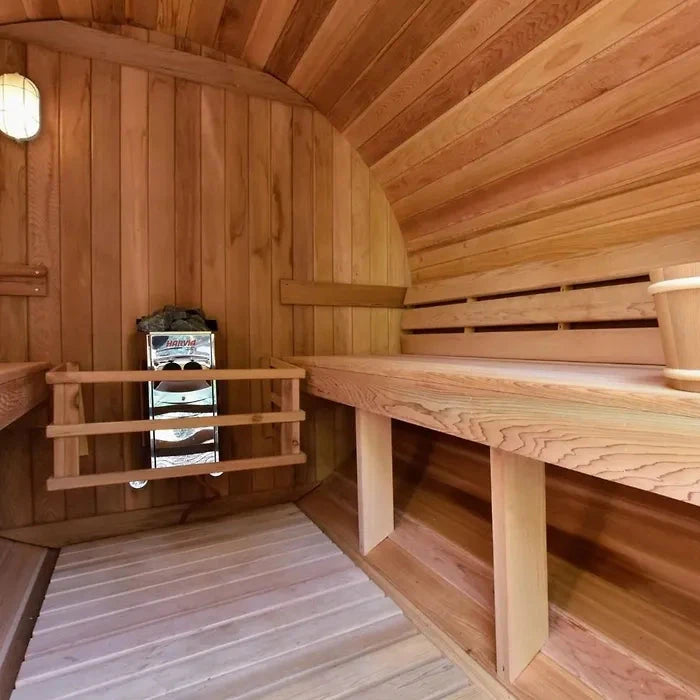

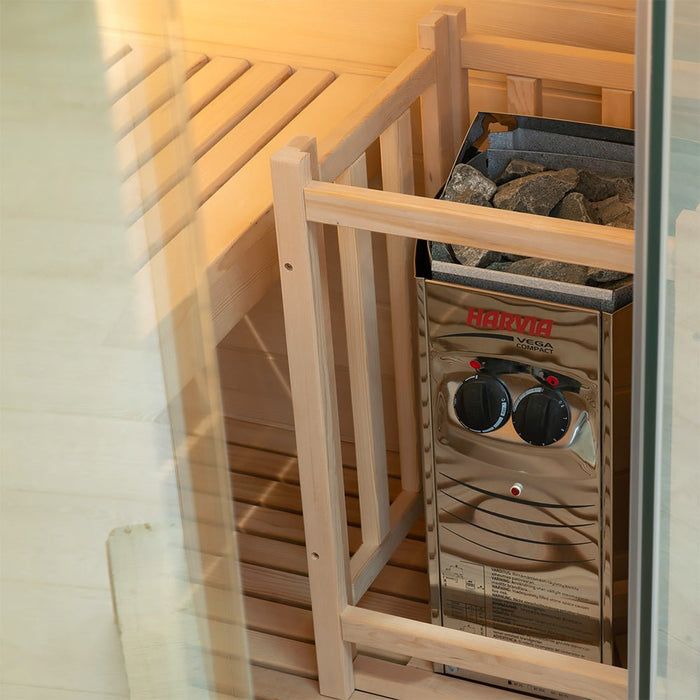

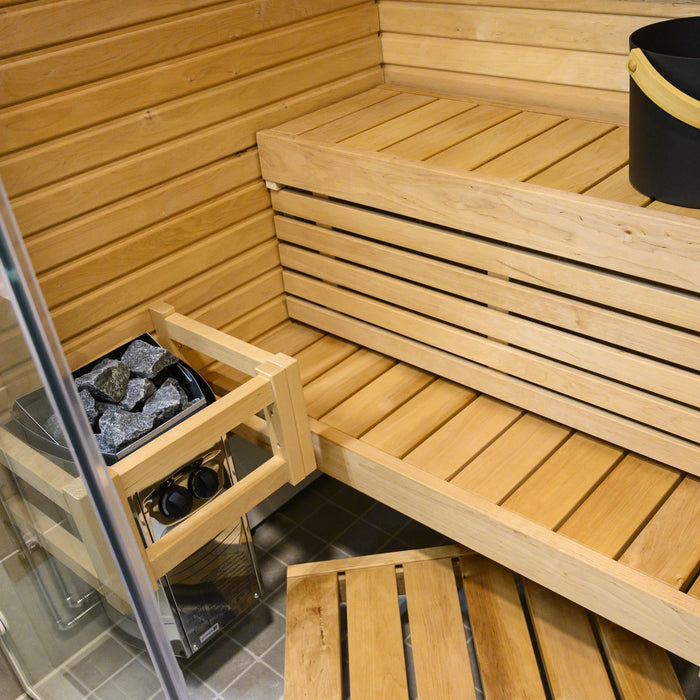

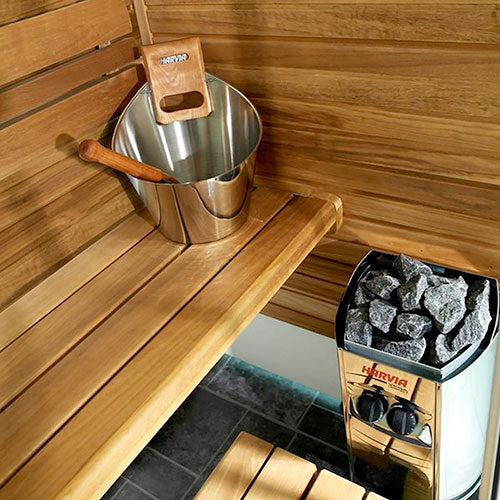

The Vega Compact mounts to its wall bracket with a single screw and can be positioned lower on the sauna wall than conventional heaters. A lower installation position places the stone mass closer to the floor and the lower bench level, ensuring bathers on the lower bench receive radiant heat and loyly steam directly from the heater rather than only from heat descending from the upper part of the room. In small sauna rooms where the lower bench may be the only bench, this placement makes a meaningful practical difference to the steam experience.
3.5kW wall-mounted sauna heater for rooms from 70 to 175 cubic feet. Standalone heater - stones not included (1 box AC3000 required, approx. 29 lbs, sold separately). Stainless steel construction. Built-in operating switches at top of unit - symmetric, configurable left or right. Designed to mount low on wall for lower bench steam coverage. Single-screw wall bracket mount. 21.0"H x 11.0"W x 11.0"D, 15.4 lbs heater weight. Stone capacity 28.5 lbs. Safety distance 0.4" front and sides (combustible). IPX4 wet area rated. ETL certified. 240V / 1-phase, 20A breaker, 12 AWG wire. No external control unit needed. Designed and made in Finland by Harvia. 2-year consumer / 1-year commercial warranty.
3.5 kW 70 to 175 cu ft 240V / 1-phase - 20A breaker Built-in top controls Controls left or right configurable Single-screw wall mount Installs low for lower bench steam Stainless steel construction 21.0"H x 11.0"W x 11.0"D 0.4" safety distance combustible materials IPX4 wet area rated ETL certified Made in Finland 2-year warranty
Specifications
Electrical
| Power output |
3.5 kW |
| Voltage |
240V / 1-phase / 60 Hz |
| Circuit breaker required |
20 A (two-pole - no GFI/GFCI) |
| Wire gauge |
12 AWG |
| IP rating |
IPX4 - wet area approved |
| Certification |
ETL |
Dimensions and weight
| Height |
21.0" (533 mm) |
| Width |
11.0" (279 mm) |
| Depth |
11.0" (279 mm) |
| Net weight (heater only) |
15.4 lbs (6.99 kg) |
| Color |
Stainless steel |
| Mounting |
Wall-mounted - single screw on included bracket |
Room sizing and stones
| Room volume |
70 to 175 cu ft (2.0 to 5.0 m³) |
| Stone capacity |
28.5 lbs (12.93 kg) |
| Stones required |
1 box Harvia AC3000 - approx. 29 lbs |
| Stone size |
5-10 cm (2-4") |
| Stones included |
No - sold separately |
| Stone type |
Harvia AC3000 (required for warranty) |
Safety distances
| Front - combustible materials |
0.4" (10 mm) |
| Sides - combustible materials |
0.4" (10 mm) |
| Front - non-combustible materials |
1.0" (25 mm) |
| Sides - non-combustible materials |
1.0" (25 mm) |
| Ceiling clearance |
3.84 ft (1,170 mm) |
| Floor minimum (1-phase) |
0.79" (20 mm) |
| Minimum room height |
6.56 ft (2,000 mm) |
Controls and installation
| Control type |
Built-in operating switches - top of unit |
| Control position |
Left or right side - configurable at installation |
| Mounting method |
Single screw on included wall bracket |
| Installation height |
Can mount low on wall |
| External control compatibility |
None - built-in controls only |
| Remote / WiFi |
No |
Construction and warranty
| Main material |
Stainless steel outer shell |
| Use environment |
Interior wet area (IPX4) |
| Consumer warranty |
2 years |
| Commercial warranty |
1 year |
| Serviceable |
Yes - replacement elements available |
| Origin |
Designed, engineered, and made in Finland |
What's included
Harvia Vega Compact 3500 3.5kW wall-mounted sauna heater
Wall mounting bracket
Installation and operation manual
Not included (required for operation): 1 box of Harvia AC3000 sauna stones (5-10 cm, approx. 29 lbs) - sold separately. For a complete package with stones included, see the Vega BC35 PKG listing.
Why the Vega Compact 3500 stands out
3.5kW covers rooms up to 175 cu ft
Nearly double the room coverage of the 120V Vega Compact 1900 (106 cu ft max) in the same physical heater footprint. For rooms between 106 and 175 cubic feet on a 240V supply, the Vega Compact 3500 is the correct Vega Compact model and the most compact 240V heater in the Harvia range.
Built-in top controls - operable when mounted low
Operating switches at the top of the unit stay at a comfortable height even when the heater is installed low on the sauna wall. The symmetric body allows left or right switch placement. No external control unit needed - the Vega Compact 3500 is entirely self-contained once electrically connected.
Single-screw mount - installs low
Wall bracket plus one screw - the simplest installation in the Harvia 240V range. Designed to mount lower than conventional heaters so bathers on the lower bench receive steam and radiant heat directly from the stone mass rather than only from heat descending from above.
0.4" safety clearance - tightest spaces
Only 0.4 inches of clearance from combustible materials on the front and sides - the smallest safety envelope in the Harvia range. The Vega Compact installs very close to wooden bench structures and sauna walls, making it practical in the small rooms it is designed to serve.
Compact 21"H x 11"W x 11"D footprint
The smallest 240V heater footprint in the Harvia catalog. At 21 inches tall and 11 inches wide and deep, the Vega Compact takes up the minimum possible wall area. In small sauna rooms where every inch matters, this compact profile preserves usable space that a larger heater would consume.
ETL certified - 20A installation
ETL certified for the US market. 240V/1-phase on a standard 20A two-pole breaker with 12 AWG wire. IPX4-rated for wet area use. A licensed electrician is required for the permanent wall connection. The heater must be permanently wired - it is not a plug-in appliance.
About Harvia
Made in Finland - 75 years
The Vega Compact 3500. The most compact 240V Harvia heater for small and mid-sized home saunas.
Harvia has been making sauna heaters in Finland since 1950. The Vega Compact 3500 is the straightforward 240V choice for small home sauna rooms: compact stainless steel construction, built-in top switches, single-screw bracket mount, and a 0.4-inch safety clearance that fits it into the tightest installations. At 3.5kW on 240V it covers rooms up to 175 cubic feet - nearly double the 120V model's range in the same physical package. No external control, no data cable, no app. Wire it in, load the stones, and it is operational.
-
3.5kW on 240V - covers 70 to 175 cu ft, the correct size for most compact home saunas
-
Built-in top switches - left or right configurable, no external unit needed
-
Single-screw wall mount - mounts low, 0.4" safety clearance from combustibles
-
Compact 21"H x 11"W x 11"D - smallest 240V heater footprint in the Harvia range
-
ETL certified, IPX4, made in Finland - 2-year consumer warranty
Heater only vs package
Vega Compact 3500 (heater only) vs Vega BC35 PKG (heater + stones)
This listing (HCBU352401) is the Vega Compact 3500 heater only - the same product code as the Vega BC35 PKG, but without the included stones. If purchasing the heater and stones together in a single order is preferred, the Vega BC35 PKG includes one box of Harvia AC3000 stones with the heater. Both listings contain exactly the same HCBU352401 heater unit. The choice is simply whether stones are purchased here separately or as part of the package. For buyers who already have stones on hand, the standalone heater listing is the appropriate option.
A standard 2-pole 20A breaker and 12 AWG wire are required. Do not connect to a GFI or GFCI breaker. Only Harvia AC3000 stones (5-10 cm) should be used. The heater must be permanently wired to the wall - it is not a plug-in appliance. A licensed electrician is required for all electrical connections.
Manuals and Documents
Warranty
2-year consumer warranty / 1-year commercial warranty
The Harvia Vega Compact 3500 is covered by a 2-year limited warranty for consumer (residential) use and a 1-year limited warranty for commercial use from the date of purchase. The warranty covers defects in manufacturing and materials including heating elements and controls. Heating elements are serviceable and replacements are available. The warranty is void if: the heater is connected to a GFI/GFCI breaker (standard 2-pole required), incorrect stones are used (must be Harvia AC3000, 5-10 cm), insufficient stones are installed, or the heater is improperly installed. Proof of purchase from an authorized Harvia dealer is required. We are an authorized Harvia dealer.
