Harvia Vega BC19 Pkg Vega Series 1.9kW Sauna Heater Package, Built-In Controls
The Harvia Vega BC19 Package is the most compact and accessible sauna heater in the Harvia lineup - a 1.9kW, 120V wall-mounted heater designed specifically for small home saunas up to 106 cubic feet, complete with one box of Harvia AC3000 sauna stones. The BC19 is the right choice when the sauna room is a tight one-person or narrow two-person cabin and a standard 240V circuit is not available or not practical. It runs on a standard 120V/15A household circuit - the same supply that powers a bathroom outlet - which means no dedicated 240V circuit, no electrician required for the circuit itself (though an electrician is required for the permanent wall connection), and no panel upgrade in most homes. It is the simplest complete sauna heater package in the Harvia catalog.
120V operation - the most accessible electrical installation in the Harvia range
Every other heater in this lineup - the KIP series, The Wall series, the Spirit series - runs on 240V and requires a dedicated 240V circuit with a 20A to 40A breaker and 8 to 12 AWG wire installed by a licensed electrician before the heater can be used. The BC19 runs on 120V/1-phase. This single distinction opens the BC19 to installations that would otherwise require significant electrical work: a small sauna in a basement with an existing 120V outlet nearby, a prefab sauna cabin in a space without 240V access, or any location where adding a 240V circuit is impractical or cost-prohibitive. A 15A or 20A standard household circuit is sufficient. A licensed electrician is still required for the permanent wall connection, but the circuit infrastructure itself is already present in most homes.
Built-in top-mounted controls - no bending required
The Vega BC19 is a built-in-control heater - no external control unit is needed or compatible. The controls are placed at the top of the unit, which is the specific ergonomic decision that defines the Vega Compact range: the heater is designed to be mounted low on the sauna wall so that lower bench bathers receive steam directly, and the top-mounted controls ensure those controls remain at a comfortable operating height regardless of how low the heater is positioned. The symmetric shape of the BC19 means the controls can be configured on either the left or right side at installation - matching the preferred access side for any room layout. The control manages on/off and temperature directly from the heater body.
Single-screw wall mount - can be installed very low
The BC19 attaches to the wall mounting bracket with a single screw - the simplest installation of any Harvia heater. The wall bracket is included in the package. The heater is specifically designed to be mounted lower on the sauna wall than conventional heaters, which are typically installed at or above bench height. A lower installation position means the stone mass is closer to the floor and the radiant heat and loyly steam reach bathers seated on the lower bench directly rather than rising to the top of the room before dispersing. In a small single-person sauna where the lower bench may be the only bench, this is a meaningful practical difference from a conventionally positioned heater.

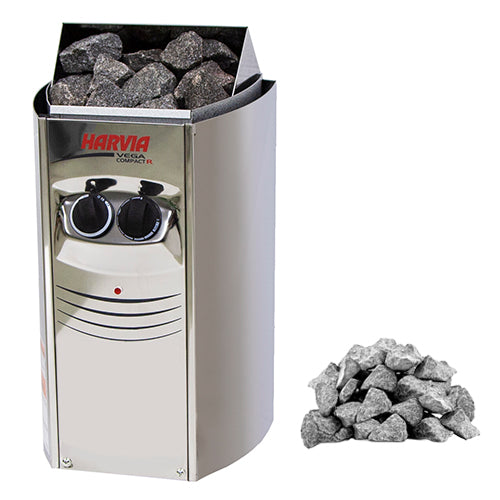

Complete wall-mounted sauna heater package for rooms from 70 to 106 cubic feet. Includes Vega BC19 1.9kW stainless steel heater and 1 box Harvia AC3000 sauna stones. Runs on standard 120V / 1-phase - no 240V circuit required. Built-in controls at top of unit - operable without bending. Symmetric shape - controls configurable left or right at installation. Single-screw wall mount - installs low for even heat to lower benches. 21.0"H x 11.0"W x 11.0"D, 15.4 lbs heater weight. Stone capacity 28.5 lbs (1 box AC3000 included). Safety distance 0.4" front and sides (combustible). IPX4 wet area rated. ETL certified. 120V / 1-phase, 15A circuit, 12 AWG wire. No external control unit needed. Designed and made in Finland by Harvia. 2-year consumer warranty.
Package - heater + stones included 1.9 kW 70 to 106 cu ft 120V / 1-phase - standard household circuit No 240V circuit needed Built-in controls - top of unit Controls left or right configurable Single-screw wall mount Mounts low for lower bench steam Stainless steel construction 21.0"H x 11.0"W x 11.0"D 0.4" safety distance combustible materials IPX4 wet area rated ETL certified Made in Finland 2-year warranty
Specifications
Electrical
| Power output |
1.9 kW |
| Voltage |
120V / 1-phase / 60 Hz |
| Circuit required |
15 A (standard household circuit) |
| Wire gauge |
12 AWG |
| IP rating |
IPX4 - wet area approved |
| Certification |
ETL |
Dimensions and weight
| Height |
21.0" (533 mm) |
| Width |
11.0" (279 mm) |
| Depth |
11.0" (279 mm) |
| Net weight (heater only) |
15.4 lbs (6.99 kg) |
| Color |
Stainless steel |
| Mounting |
Wall-mounted - single screw on included bracket |
Room sizing and stones
| Room volume |
70 to 106 cu ft (2.0 to 3.0 m³) |
| Stone capacity |
28.5 lbs (12.93 kg) |
| Stones included (package) |
1 box Harvia AC3000 - approx. 29 lbs |
| Stone size |
5-10 cm (2-4") |
| Stone type |
Harvia AC3000 (required for warranty) |
Safety distances
| Front - combustible materials |
0.4" (10 mm) |
| Sides - combustible materials |
0.4" (10 mm) |
| Front - non-combustible materials |
1.0" (25 mm) |
| Sides - non-combustible materials |
1.0" (25 mm) |
| Ceiling clearance |
3.84 ft (1,170 mm) |
| Floor minimum (1-phase) |
0.79" (20 mm) |
| Minimum room height |
6.56 ft (2,000 mm) |
Built-in controls and installation
| Control type |
Built-in manual switches - top of unit |
| Control position |
Left or right side - configurable at installation |
| Mounting method |
Single screw on included wall bracket |
| Installation orientation |
Vertical - can mount low on wall |
| External control compatibility |
None - built-in controls only |
| Remote use |
No |
Construction and warranty
| Main material |
Stainless steel outer shell |
| Use environment |
Interior wet area (IPX4) |
| Consumer warranty |
2 years |
| Commercial warranty |
1 year |
| Serviceable |
Yes - replacement elements available |
| Origin |
Designed, engineered, and made in Finland |
What's included

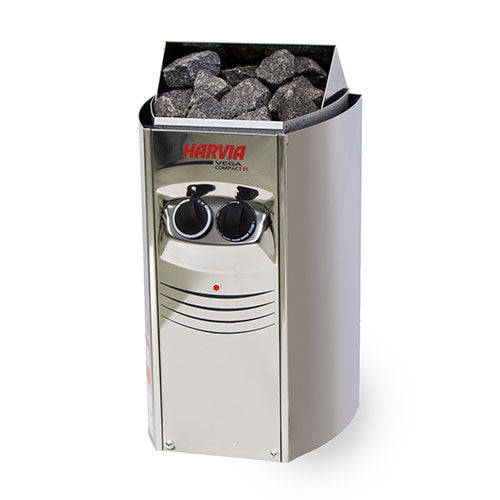

Harvia Vega BC19 1.9kW wall-mounted sauna heater (stainless steel)

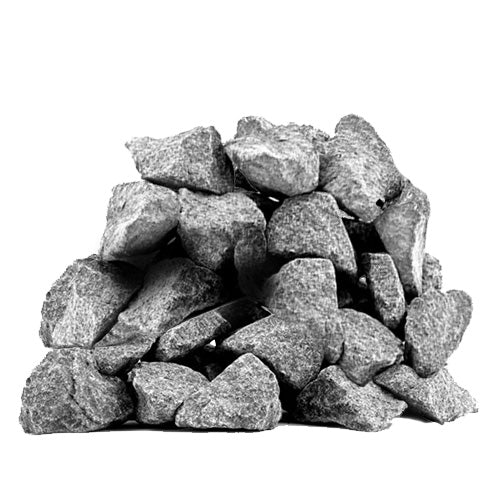

1 box Harvia AC3000 sauna stones (5-10 cm, approx. 29 lbs)
Installation and operation manual
Not included: No external control unit is needed or compatible with this heater. A licensed electrician is required for the permanent 120V wall connection.
Why the Vega BC19 Package stands out
120V - no dedicated 240V circuit needed
The only heater in this range that runs on a standard 120V household circuit. No 240V panel work, no heavy wire pulls, no 30A or 40A breaker installation. A 15A household circuit is sufficient. A licensed electrician is still required for the permanent wall connection, but the circuit infrastructure is already present in most homes.
Top-mounted controls - no bending
Controls at the top of the unit, designed to stay at a comfortable operating height when the heater is mounted low on the wall. The symmetric heater body lets the controls be configured on either the left or right side at installation - matching the preferred access side of any small sauna layout.
Single-screw mount - installs low
The wall bracket attaches to the wall and the heater slides onto it with one screw - the simplest installation of any Harvia heater. Designed to mount low, placing the stone mass close to floor level so lower bench bathers receive radiant heat and loyly steam directly rather than waiting for heat to descend from above.
Compact 21"H x 11"W x 11"D footprint
Smallest physical footprint in the Harvia range at 21" tall and 11" wide and deep. In a small sauna room where every inch of wall space counts, the BC19's compact form takes up the minimum possible area while still delivering a proper sauna heating experience for rooms up to 106 cubic feet.
0.4" safety clearance - fits tightest spaces
Only 0.4 inches of safety clearance from combustible materials required on the front and sides. This is the smallest safety envelope of any Harvia heater in this catalog - the BC19 can be installed very close to wooden bench structures and sauna walls without any special non-combustible backing required.
Stones included - complete package
One box of Harvia AC3000 stones (5-10 cm, approx. 29 lbs) is included - the full stone requirement for the BC19's 28.5-lb stone capacity. No separate stone purchase needed. The only remaining requirement is the 120V electrical connection by a licensed electrician.
About Harvia
Made in Finland - 75 years
The Vega BC19. Harvia's smallest heater package, for the smallest saunas, on the most accessible circuit.
Harvia has been making sauna heaters in Finland since 1950. The Vega BC19 is the most accessible entry point into Harvia electric sauna heating: a 120V heater that runs on a standard household circuit, fits into saunas as small as 70 cubic feet, mounts to the wall with a single screw, and operates without any external control unit. It is the heater for buyers who want Finnish quality and reliability in a sauna that a larger heater simply cannot serve - whether because the room is too small, the electrical supply is 120V only, or the installation constraints make a 240V heater impractical.
-
Package includes heater and stones - 1 box Harvia AC3000 (5-10 cm) included
-
120V operation - standard 15A household circuit, no 240V panel work
-
Built-in top controls - left or right configurable, mounts very low on wall
-
Single-screw wall mount - simplest installation of any Harvia heater
-
ETL certified, IPX4, made in Finland - 2-year consumer warranty
Choosing the right Harvia heater
Is the BC19 the right heater for your sauna?
The BC19 is the correct choice when three conditions are met: the sauna room is between 70 and 106 adjusted cubic feet, the supply is 120V/1-phase, and built-in manual controls without WiFi or remote capability are acceptable. If the room is larger, a 240V heater is required - the KIP45B (4.5kW, 100-211 cu ft, 240V/20A) is the next step up. If digital controls or remote preheat are wanted, the Virta or Spirit series with a Xenio or Fenix control is the appropriate choice. If the room is the right size but 240V is available, the KIP45B still makes sense as it provides more headroom for larger or less-insulated rooms in the same bracket. The BC19 is purpose-built for the smallest and simplest sauna installation in the Harvia range - it is the right heater when those conditions match, and not the right heater when they do not.
Only Harvia AC3000 stones (5-10 cm) should be used. Do not use stones that are too small or decorative stones - they can fracture at sauna temperatures. The heater must be permanently wired to the wall by a licensed electrician; it is not a plug-in appliance. Do not connect to a GFI/GFCI breaker.
Manuals and Documents
The official Harvia installation and operation manual for the Vega BC19 (HCBU1912241) is available directly from the Harvia product page below. It covers wall bracket installation, the single-screw mounting method, minimum floor height and safety clearance requirements, 120V electrical wiring, stone loading, operating the built-in controls, and maintenance procedures. Review before scheduling your electrician.
Available Documents
Warranty
2-year consumer warranty / 1-year commercial warranty
The Harvia Vega BC19 is covered by a 2-year limited warranty for consumer (residential) use and a 1-year limited warranty for commercial use from the date of purchase. The warranty covers defects in manufacturing and materials including heating elements and controls. Heating elements are serviceable and replacements are available. The warranty is void if: the heater is connected to a GFI/GFCI breaker, incorrect stones are used (must be Harvia AC3000, 5-10 cm), insufficient stones are installed, or the heater is improperly installed. Proof of purchase from an authorized Harvia dealer is required. We are an authorized Harvia dealer.
