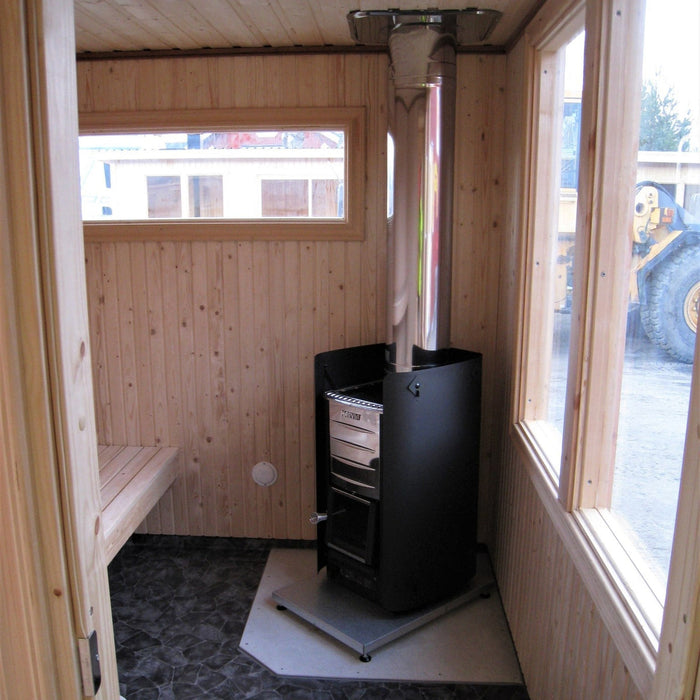

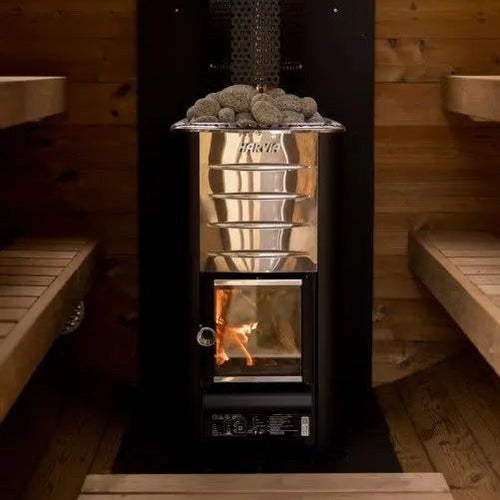

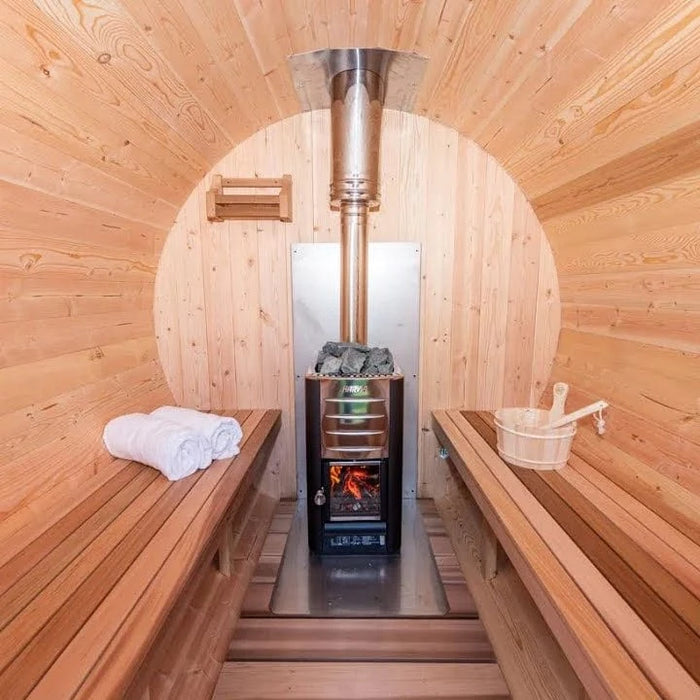

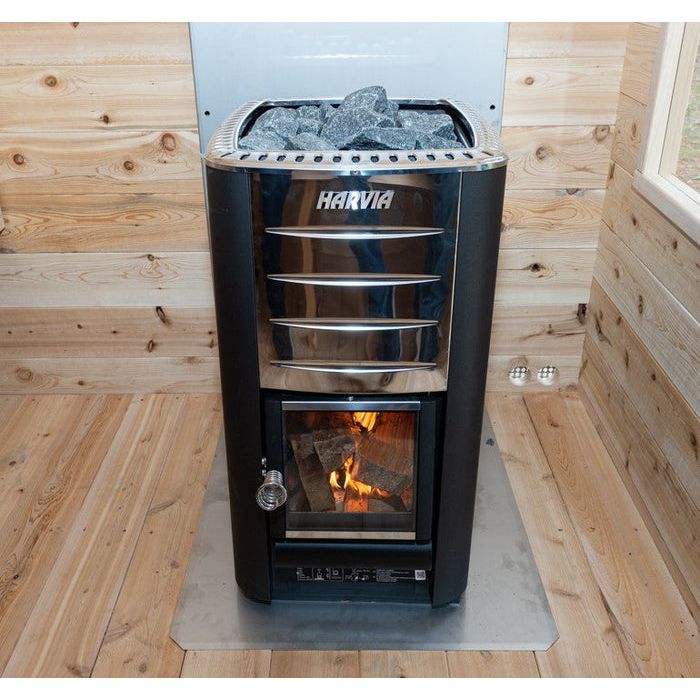

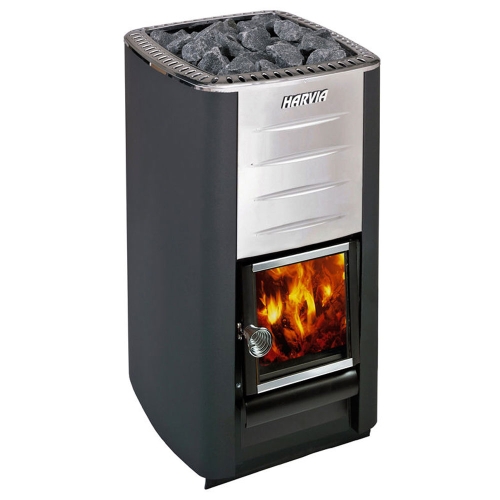

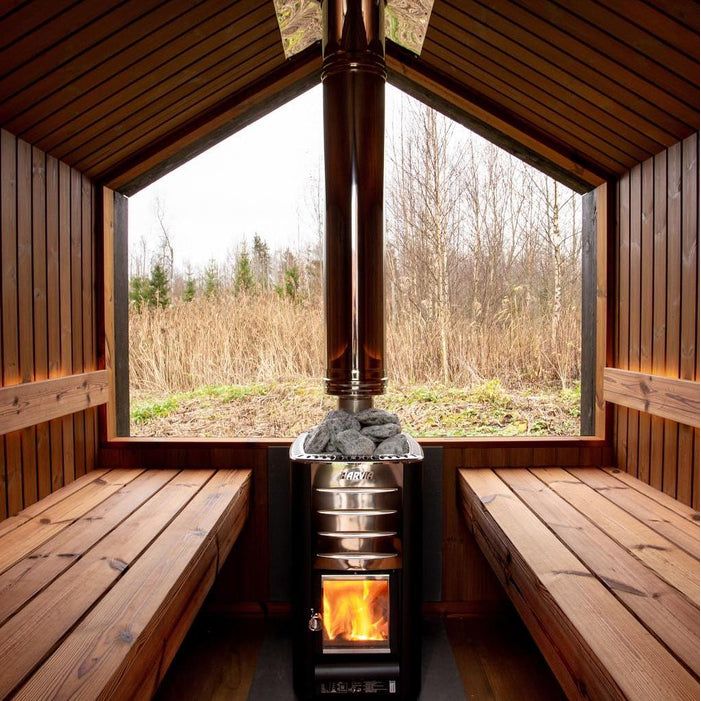

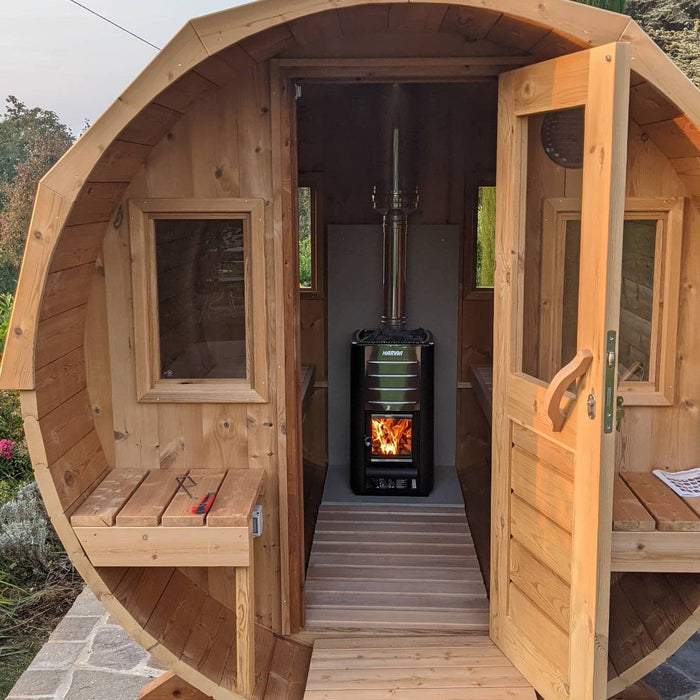

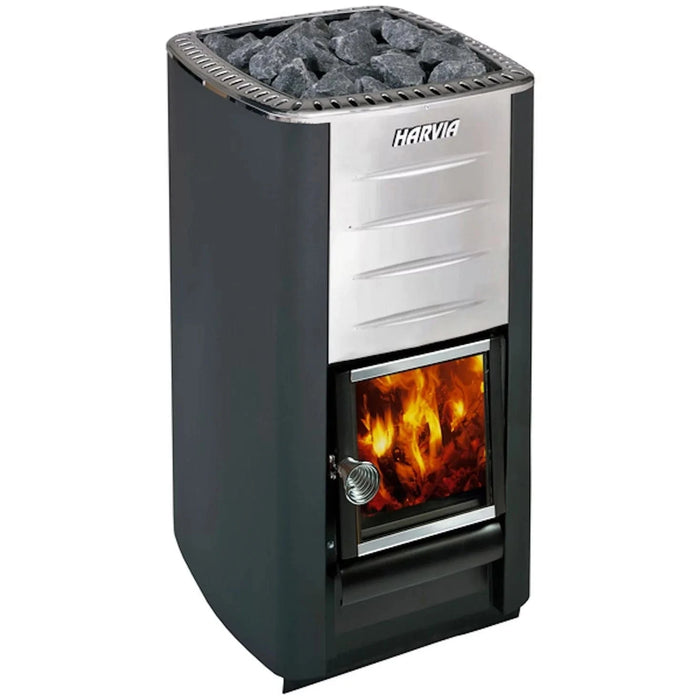

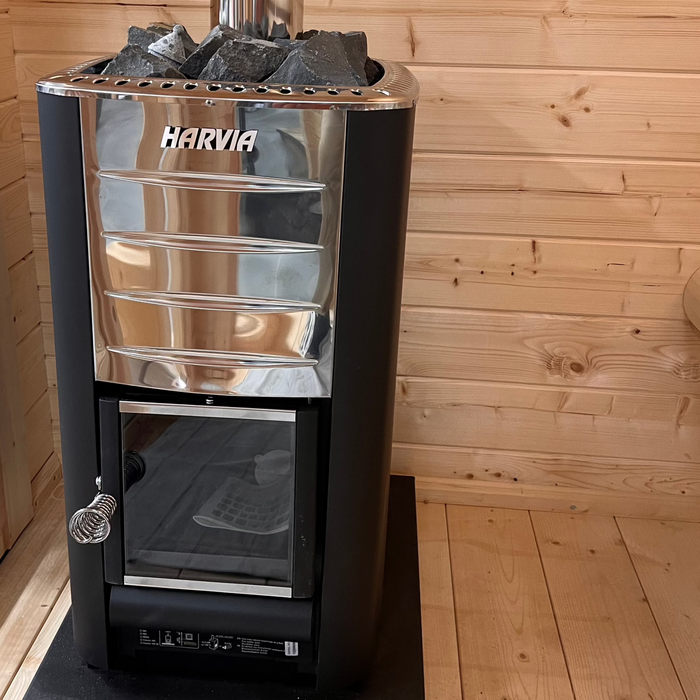

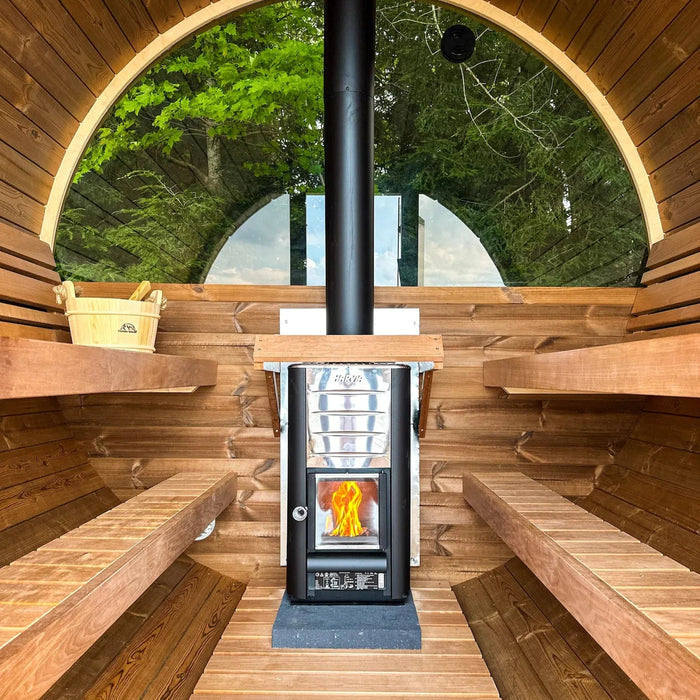

Harvia M3 M Series 16.5kW Wood-Burning Sauna Stove
The Harvia M3 is a 16.5kW wood-burning sauna stove for rooms from 212 to 459 cubic feet, in an elegant graphite black finish with a stainless steel air-flow spoiler. A best-selling classic in Harvia's lineup, the M3 is notably compact at 15.4"W x 16.9"D x 28.15"H - smaller in footprint than the Legend Series stoves - making it the preferred choice for tighter sauna installations where floor space is limited. No electricity is required. The firebox is accessed from inside the sauna room. The glass door lets the warm glow of the fire complement the sauna atmosphere. Stones (66 lbs, 2 boxes of AC3020, 10-15 cm) are required for operation and sold separately.
Best-selling compact classic - graphite black with stainless steel spoiler
The Harvia M3 has been an industry best-seller for years - a straightforward, reliable, compact wood-burning sauna stove that suits the widest range of home sauna installations. The graphite black finish with stainless steel air-flow spoiler is a distinctive look that differs from the black steel frame of the Legend Series: the M3 has a cleaner, more modern profile suited to both traditional log sauna rooms and contemporary sauna cabin builds. The stainless steel spoiler is not purely aesthetic - it directs airflow across and through the stone mass for efficient, even heat distribution. The M3's compact dimensions (15.4"W x 16.9"D x 28.15"H) make it the easier stove to fit in smaller sauna rooms where the Legend 150's wider 21" footprint would be too large or where the available floor space near the bench is tight.

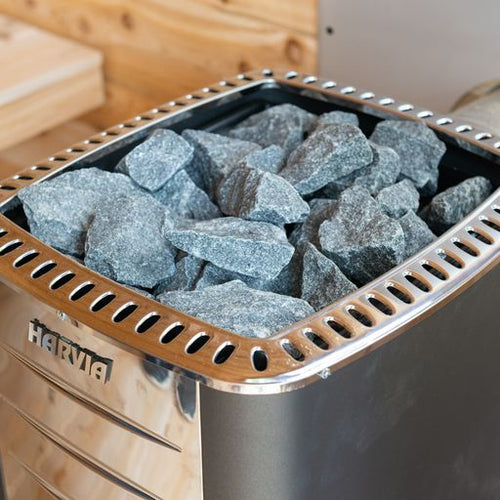

Air-flow spoiler and efficient air circulation
The stainless steel air-flow spoiler is a defining engineering feature of the M3. It is specifically designed to direct heat and air circulation through and around the stone mass, ensuring even heat distribution throughout the sauna room and bringing the stones to temperature efficiently. When water is ladled onto the stones for steam (loyly), well-circulated, evenly heated stones produce a rounder, more consistent steam response than unevenly heated stone masses. The M3's spoiler-driven circulation is a key reason for its reputation for even heat despite its compact size and relatively modest 66-lb stone load compared to larger stoves.
North American installation - 6" flue adapter required
Like all Harvia wood-burning sauna stoves, the M3 uses a 115mm (4.5") European standard flue connection. A 6" (155mm) adapter is required for every North American chimney installation and must be purchased separately. The M3 is compatible with Harvia flue pipe components including the WZ11520, WZ11550, and WZ115100 pipe extensions and the WZ115155 adapter for North American installation. Wall clearance is 2" (50mm) from combustible walls provided air can circulate freely in front and to one side of the stove; increase to 4" (100mm) if the stove is installed in a recessed wall niche. A licensed or certified chimney professional is recommended for all flue installations.
16.5kW wood-burning sauna stove for rooms from 212 to 459 cubic feet. Best-selling compact classic. Graphite black with stainless steel air-flow spoiler. Glass door - see the fire from inside. No electricity required. Even heat and efficient air circulation from the stainless steel spoiler. 66 lbs stones required (2 boxes AC3020 10-15 cm, sold separately). Flue: 115mm (4.5") - 6" North American adapter required (sold separately). Adjustable legs. Ash box included. Optional pipe-mounted water heater compatible. 15.4"W x 16.9"D x 28.15"H. 2-year warranty (consumer), 6-month (commercial). Designed, engineered, and made in Finland by Harvia.
16.5 kW 212 to 459 cu ft (6-13 m³) Best-selling compact classic Wood-burning - no electricity required Graphite black finish Stainless steel air-flow spoiler Glass door - see the fire Even heat - efficient air circulation 66 lbs AC3020 stones required (2 boxes, 10-15 cm) 115mm flue - 6" adapter required for North America Adjustable legs Ash box included Optional pipe-mounted water heater 15.4"W x 16.9"D x 28.15"H 2-year warranty (consumer) Made in Finland by Harvia
⚠️ 66 lbs of AC3020 stones (2 boxes, 10-15 cm) required - not included. An additional box is recommended - each natural stone is unique in shape and size; extra stones allow selection of the best fit. A 6" (155mm) North American flue adapter is also required and sold separately. A licensed chimney professional is recommended for all flue installations.
ℹ️ M3 vs Legend 150 - same room range, very different stoves. Both cover 212-459 cu ft. Key differences: M3 is 15.4"W x 16.9"D x 28.15"H with 66 lbs of stones - compact, best-suited for space-limited sauna rooms. Legend 150 is 21"W x 28"D x 30"H with 264 lbs of stones - larger stone mass for more sustained heat after the fire dies, with a cast-iron glass door and two-stage combustion air grate. Choose the M3 for compact footprint, lighter stone load, and quick setup. Choose the Legend 150 for maximum stone mass, longer sustained heat, and the cast-iron door aesthetic.
Specifications
Performance
| Power output |
16.5 kW |
| Fuel type |
Wood - no electricity required |
| Room volume |
212 to 459 cu ft (6-13 m³) |
| Stone capacity (maximum) |
66 lbs (30 kg) |
| Stone requirement |
66 lbs - 2 boxes AC3020 (10-15 cm) - sold separately |
Physical
| Dimensions (W x D x H) |
15.4" x 16.9" x 28.15" (390 x 430 x 720 mm) |
| Frame finish |
Graphite black |
| Spoiler |
Stainless steel air-flow spoiler |
| Door |
Glass door |
| Mounting |
Floor-standing with adjustable legs |
| Ash box |
Included |
Wall clearances
| Standard clearance (all sides) |
2" (50mm) - provided air circulates in front and to one side |
| Recessed wall installation |
4" (100mm) all sides for air circulation |
| Safety Distances document |
See Declaration of Performance for full clearance data |
Flue and installation
| Flue connection diameter |
115mm (4.5") - standard European |
| North American adapter |
6" (155mm) adapter required - sold separately |
| Firebox access |
From inside the sauna room (standard M3 model) |
| Legs |
Adjustable for levelling |
M3 vs Legend 150 comparison
| Output |
M3: 16.5kW | Legend 150: 16kW |
| Dimensions |
M3: 15.4"W x 16.9"D x 28.15"H | Legend 150: 21"W x 28"D x 30"H |
| Stone load |
M3: 66 lbs (2 boxes) | Legend 150: 264 lbs (6 boxes) |
| Door |
M3: Glass door | Legend 150: Cast-iron glass door |
| Air system |
M3: Stainless steel spoiler | Legend 150: Two-stage combustion grate |
| Room range |
Both: 212-459 cu ft |
Optional accessories (sold separately)
| North American flue adapter |
Harvia WZ115155 (6" / 155mm adapter) |
| Pipe-mounted water heater |
Harvia WL200 or WL300 |

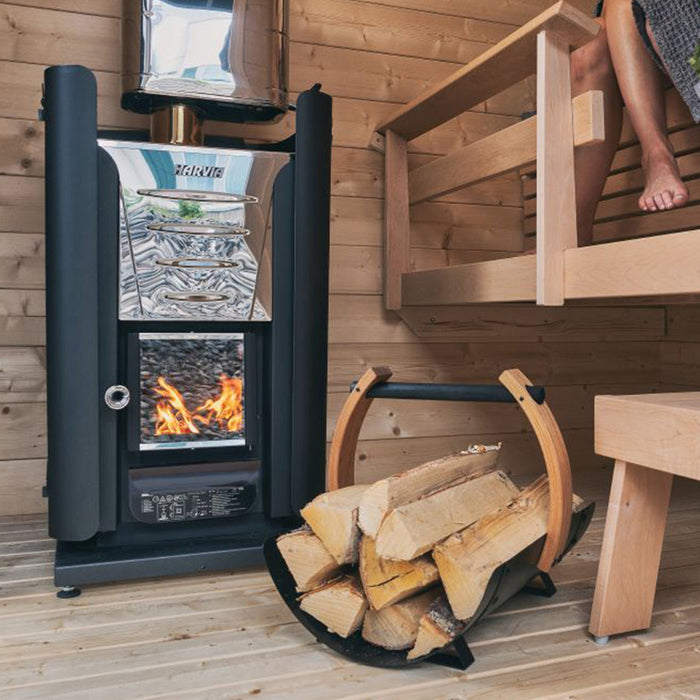

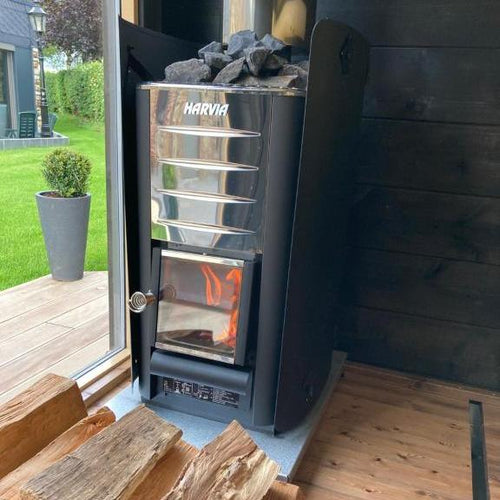

| Protective shield |
Harvia WL450 (for M1/M2/M3/M3SL) |
| Flue pipe extensions |
Harvia WZ11520, WZ11550, WZ115100 |
| Through-wall firebox variant |
M3SL for outside-room wood loading |
What's included
Harvia M3 wood-burning sauna stove - graphite black with stainless steel spoiler
Stove door
Ash box
Adjustable legs
Installation and operation manual
Required (not included): 66 lbs AC3020 sauna stones - 2 boxes, 10-15 cm (an additional box recommended); 6" North American flue adapter (Harvia WZ115155). Optional accessories (sold separately): Pipe-mounted water heater (WL200 or WL300); protective shield (WL450); flue pipe components (WZ11520, WZ11550, WZ115100). A licensed chimney professional is recommended for all flue installations.
Why the Harvia M3 stands out
Industry best-selling compact classic
The M3 has been a consistently best-selling wood-burning sauna stove for years - a track record that reflects its combination of compact footprint, reliable performance, and accessible stone requirement (66 lbs vs 264 lbs for the Legend 150). For sauna builders, contractors, and homeowners who want a proven, well-supported wood-burning stove that fits most small sauna room configurations without requiring a large floor area, the M3 is the standard-setter in its category.
Stainless steel air-flow spoiler - even heat
The stainless steel spoiler directs airflow through and across the stone mass precisely to produce even heat distribution and efficient stone heating. The result is a consistent temperature throughout the sauna room and stones that heat evenly for good loyly (steam response) when water is ladled. The spoiler is a key engineering feature that distinguishes the M3's thermal performance from simpler wood stoves without active airflow direction.
Compact footprint - 15.4" wide
At 15.4" wide and 16.9" deep, the M3 occupies significantly less floor space than the Legend 150 (21"W x 28"D). In a 212-459 cu ft sauna room, bench placement and available floor space near the stove can be tight. The M3's compact profile gives sauna builders more flexibility in positioning the stove relative to the bench layout and required safety distances, and makes it the preferred choice for small barrel saunas, cabin saunas, and outdoor sauna builds where floor area is at a premium.

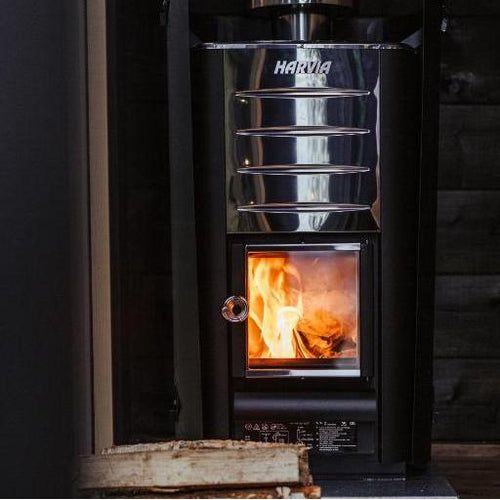

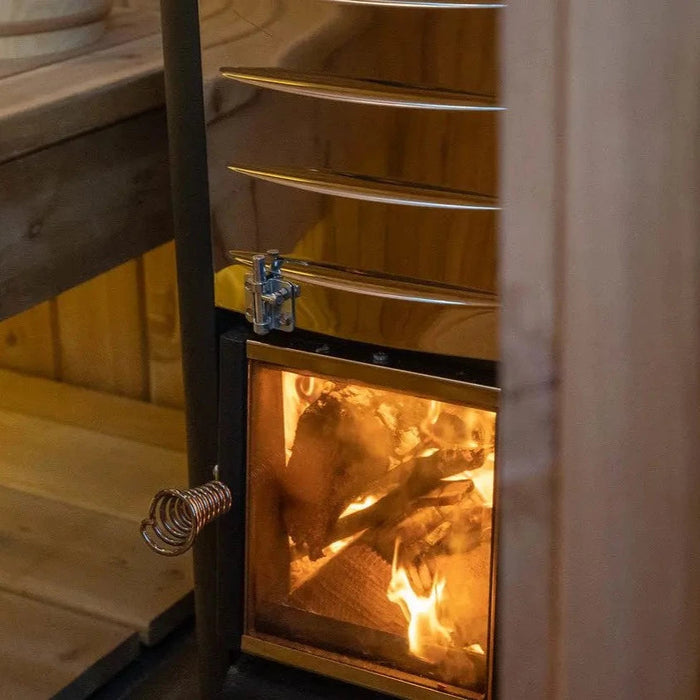

Glass door - fire visible from inside
The M3's glass door lets the fire glow be seen from inside the sauna room throughout the session. The crackling fire visible through the glass contributes to the traditional sauna atmosphere - the visual presence of the fire is a meaningful part of the wood-burning sauna experience that an opaque metal door eliminates. The glass door also allows the bather to monitor the fire state without opening the door.
66 lbs stones - lighter load, easier setup
The M3's 66-lb stone requirement (2 boxes of AC3020) is a practical advantage for installation: considerably easier to source, handle, and load compared to the Legend 150's 264 lbs (6 boxes). For buyers fitting out a sauna for the first time, or for installations where stone delivery to the sauna site is challenging, the M3's lighter stone requirement reduces both cost and physical setup effort. An additional box beyond the minimum 2 is still recommended - natural stones vary in shape and size, and extra stones allow selection of the best-fitting pieces.
Optional pipe-mounted water heater + protective shield

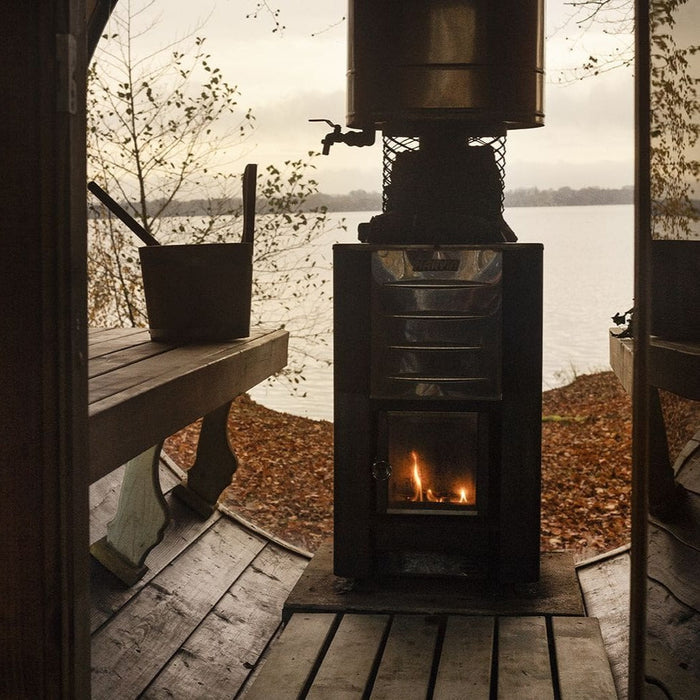

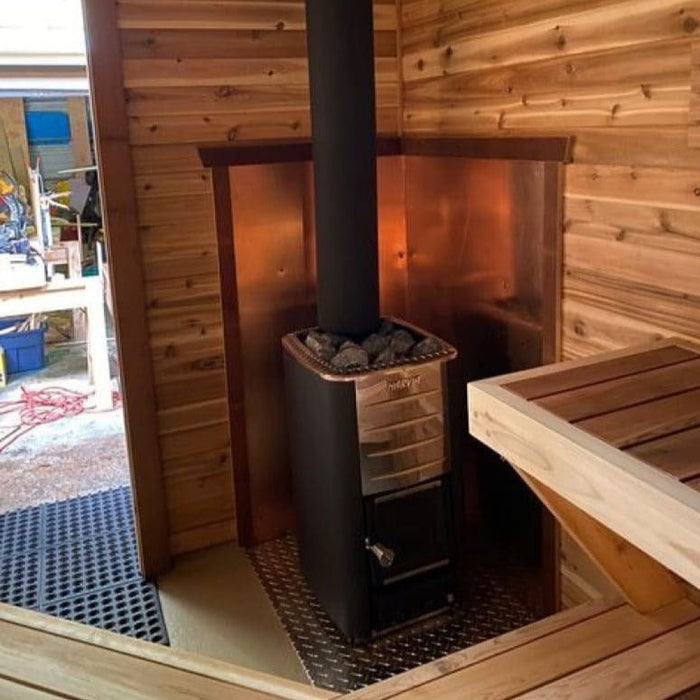

The M3 is compatible with Harvia pipe-mounted water heaters (WL200 and WL300, sold separately) for on-demand hot water heated by flue gas waste heat. It is also compatible with the Harvia WL450 protective shield designed specifically for the M1/M2/M3/M3SL series. The through-wall loading variant (M3SL) is available for installations where loading wood from outside the sauna room is preferred. Both require the same AC3020 stones and 6" North American flue adapter.
About Harvia
Made in Finland - Wood-Burning - M Series
Harvia M3. 16.5kW wood-burning. Best-selling compact. 212-459 cu ft. Graphite black + stainless spoiler.
Harvia is a Finnish sauna and spa company established in 1950. The M3 is Harvia's best-selling compact wood-burning sauna stove - 16.5kW, 212-459 cu ft, graphite black with stainless steel air-flow spoiler, glass door, and a notably compact 15.4"W x 16.9"D x 28.15"H footprint. 66 lbs of AC3020 stones (2 boxes) and a 6" North American flue adapter are required and sold separately. Designed, engineered, and made in Finland. We are an authorized Harvia dealer.
-
16.5kW wood-burning - 212-459 cu ft - no electricity required
-
Best-selling compact classic - 15.4"W x 16.9"D x 28.15"H
-
Graphite black with stainless steel air-flow spoiler
-
66 lbs AC3020 stones (2 boxes) required - sold separately
-
6" North American flue adapter required - sold separately
M3 (WKM3) vs M3SL (WKM3SL) - firebox access
M3 (WKM3) vs M3SL (WKM3SL) - same stove, different firebox direction
The Harvia M3 is available in two firebox access configurations. WKM3 (this listing): standard model - the firebox door faces into the sauna room and wood is loaded from inside the sauna. WKM3SL: SL model - the firebox extends through the sauna wall so wood is loaded from outside the sauna room, from an adjacent room or outdoors. Both the WKM3 and WKM3SL share the same stove body, stone capacity (66 lbs), room coverage (212-459 cu ft), dimensions (15.4"W x 16.9"D x 28.15"H), graphite black finish, stainless steel spoiler, glass door, and all other specifications. The only difference is the firebox access direction. Both are compatible with the WL450 protective shield, WL200/WL300 pipe water heaters, and Harvia flue pipe components. Both require the same 6" North American adapter and AC3020 stones. Choose the WKM3SL if loading from outside the sauna is preferred or required by the layout.
Manuals and Documents
Warranty
2-year limited warranty (consumer use) | 6-month limited warranty (commercial use)
The Harvia M3 is covered by a 2-year limited warranty from the date of purchase for consumer use and a 6-month limited warranty for commercial use. The warranty covers defects in manufacturing and materials under normal use conditions. The warranty does not cover damage caused by improper installation, use of incorrect stone type or size, operating without the required stone load, failure to follow the installation and operating guidelines, damage from inadequate chimney maintenance, or soot fires. A licensed or certified chimney professional is recommended for all flue installation and regular chimney sweep maintenance. Proof of purchase from an authorized Harvia dealer is required for warranty claims. We are an authorized Harvia dealer.
