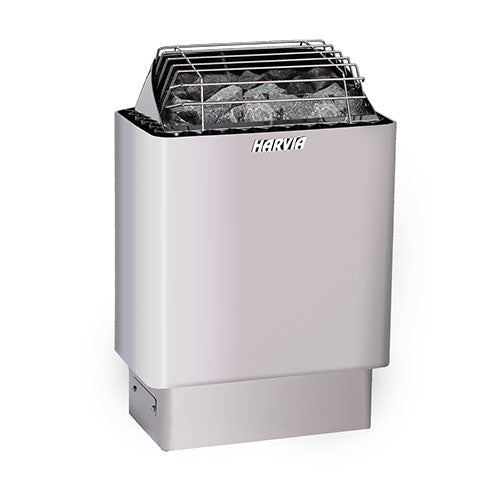

The Harvia KIP45W is a 4.5kW wall-mounted electric sauna heater for rooms from 100 to 210 cubic feet. The W in the model name identifies this as the external controller variant of the KIP45 platform - operation is managed through a separate Xenio CX170 controller (sold separately) rather than the built-in manual dials of the KIP45B. This distinction matters for buyers who want digital touchscreen control, Wi-Fi connectivity, and the ability to control the sauna remotely via the MyHarvia app. The polished stainless steel body uses dual-wall construction that keeps the exterior surface cool to the touch, allowing direct mounting on a wooden sauna wall with the included bracket. The large stone cavity holds 44 lbs of AC3000 stones (1 box, 5-10 cm, sold separately) with direct rock-to-element contact for efficient heat transfer and soft steam. Available in 240V/1PH for residential use and 208V/3PH for commercial installations. UL listed. ETL certified. Made in Finland by Harvia.
KIP45W - the external-controller variant of the most popular KIP configuration
The Harvia KIP is described by multiple authorised dealers as the most sought-after model in the industry - a traditional wall-mounted sauna heater that has been in continuous production and use for decades. The KIP45W is the W-model (external controller) variant of the 4.5kW KIP45 platform. The KIP series has two control configurations at each output level: the B-model (built-in controls) with manual temperature and timer dials integrated into the heater body, and the W-model (external controller) designed to be paired with a separate wall-mounted Xenio controller. The KIP45W is for buyers who want the KIP platform at 4.5kW with external digital control capability - touchscreen temperature management, precise scheduling, Wi-Fi connectivity, and remote app control from anywhere - rather than the simpler manual dial approach of the KIP45B.
KIP platform - dual-wall construction, large stone cavity, direct contact
The KIP45W uses the same proven KIP platform body as the KIP45B: dual-wall stainless steel construction that keeps the exterior cool to the touch, a large stone cavity for maximum heat release, direct rock-to-element contact for efficient heat transfer, and a protective stone guard. The dual-wall design means the heater body can be mounted at the specified 4.92" clearances on front and sides from combustible materials without any additional shielding - the outer steel surface stays cool enough for a wood sauna wall at the minimum distance. The wall mounting bracket is included. The compact 16.1"W x 11"D x 23.6"H profile leaves the full floor area usable for benches and movement within the room.
240V/1PH residential and 208V/3PH commercial - two configurations
The KIP45W is available in two electrical configurations: 240V/1PH for residential home saunas and 208V/3PH for commercial installations in apartment buildings, hotels, and health clubs. The 240V/1PH version requires a minimum 18.8A fuse and 10AWG supply cable. The correct configuration must be selected at the time of purchase. Both require the Xenio CX170 controller, which connects to the heater via the supplied control cable and can be surface or flush mounted in the sauna room, shower room, dressing room, or elsewhere within the rated cable distance. A licensed electrician is required for all wiring and installation per local code.
4.5kW wall-mounted electric sauna heater for rooms from 100 to 210 cubic feet. KIP Series W-model - requires separate Xenio CX170 controller for digital touchscreen, Wi-Fi, and MyHarvia app control. Polished stainless steel. Dual-wall construction - cool exterior surface - direct mount on wooden walls. Large stone cavity - direct rock-to-element contact. Protective stone guard. 44 lbs AC3000 stones required (1 box, 5-10 cm, sold separately). Xenio CX170 controller required - sold separately. Dimensions: 16.1"W x 11"D x 23.6"H. Safety distances: 4.92" front and sides, 7.01" floor. 240V/1PH (residential) or 208V/3PH (commercial). 18.8A fuse (240V/1PH). 10AWG cable. IPX4 rated. UL listed. ETL certified. 2-year warranty (consumer). Made in Finland by Harvia.
4.5 kW 100 to 210 cu ft KIP Series W-model - external Xenio CX170 controller Digital touchscreen - Wi-Fi - MyHarvia app control Polished stainless steel Dual-wall construction - cool exterior surface Large stone cavity - direct rock-to-element contact 44 lbs AC3000 stones required (1 box, 5-10 cm) Xenio CX170 controller required - sold separately 16.1"W x 11"D x 23.6"H Safety: 4.92" front and sides, 7.01" floor 240V/1PH (residential) or 208V/3PH (commercial) 18.8A fuse - 10AWG cable IPX4 rated UL listed - ETL certified 2-year warranty (consumer) Made in Finland by Harvia
⚠️ 44 lbs AC3000 stones (1 box, 5-10 cm) required - not included. Xenio CX170 controller required - not included. Both stones and controller must be purchased separately before the heater can be operated. An additional box of stones is recommended to allow selection of best-fitting stones. A licensed electrician is required for all wiring and installation per local code. Select the correct voltage configuration (240V/1PH for residential or 208V/3PH for commercial) at the time of purchase - configurations cannot be changed after purchase.
ℹ️ KIP45W (external Xenio controller) vs KIP45B (built-in controls) - same heater body, different control approach. KIP45B JH45BU1UL: 4.5kW, 100-210 cu ft, built-in manual dial controls - no controller required, simpler installation, lower total cost. Temperature dial on the left, on/off and 8-hour delay timer on the right. Choose if straightforward manual operation is preferred and digital remote control is not needed. KIP45W JH45WU1UL (this listing): 4.5kW, 100-210 cu ft, requires separate Xenio CX170 controller - digital touchscreen control, Wi-Fi connectivity, MyHarvia app access, precise temperature scheduling. Choose if remote control from outside the sauna room, smartphone app access, or digital scheduling capability are priorities. Both share the identical KIP heater body, stainless steel construction, dual-wall design, 44-lb stone capacity, 4.92" safety clearances, and UL listing. The difference is entirely in control method.
Specifications
Performance
| Power output |
4.5 kW |
| Fuel type |
Electric (high voltage) |
| Room volume |
100 to 210 cu ft |
| Max temperature |
194°F (90°C) |
| Stone capacity |
44 lbs (1 box AC3000, 5-10 cm) - sold separately |
| Stone size |
O 5-10 cm (AC3000) |
Control - W model (external controller)
| Control type |
External Xenio CX170 controller - sold separately |
| Controller interface |
Digital touchscreen - Wi-Fi enabled |
| Remote control |
MyHarvia app - iOS and Android |
| Temperature management |
Precise digital settings via Xenio panel |
| Built-in controls on heater |
None - external controller required |
Electrical
| 240V/1PH (residential) |
240VAC, 1-phase, 60Hz - 18.8A fuse - 10AWG cable |
| 208V/3PH (commercial) |
208VAC, 3-phase, 60Hz |
| IP rating |
IPX4 |
| Controller required |
Xenio CX170 - sold separately |
Safety distances
| Front |
4.92 in (125 mm) |
| Left side |
4.92 in (125 mm) |
| Right side |
4.92 in (125 mm) |
| Floor (1PH) |
7.01 in (178 mm) |
| Minimum room ceiling height |
6.56 ft (2,000 mm) |
Physical dimensions
| Width |
16.1 in (409 mm) |
| Depth |
11 in (279 mm) |
| Height |
23.6 in (599 mm) |
| Net weight (heater only) |
30 lbs (13.6 kg) |
| Gross weight (packaged) |
37 lbs (16.8 kg) |
Construction
| Body material |
Stainless steel - dual-wall construction |
| Color |
Stainless Steel |
| Exterior surface |
Cool to touch during operation |
| Stone contact |
Direct rock-to-element contact |
| Stone guard |
Protective stone guard included |
| Installation |
Wall-mounted - bracket included |
| Use environment |
Interior - wet area |
Certifications and compliance
| US/Canada certifications |
UL listed / ETL certified |
| Origin |
Made in Finland by Harvia |
| Warranty |
2-year limited (consumer use) |
Required accessories (sold separately)
| Stones (required) |
44 lbs AC3000 (1 box, 5-10 cm) - additional box recommended |
| Controller (required) |
Harvia Xenio CX170 |
What's included
Harvia KIP45W 4.5kW wall-mounted electric sauna heater - stainless steel
Wall installation bracket
Protective stone guard
Mounting screws and hardware
Installation and operating instructions
2-year limited warranty (consumer use)
Required (not included): 44 lbs AC3000 stones - 1 box, 5-10 cm (additional box recommended); Harvia Xenio CX170 controller. A licensed electrician is required for all wiring and installation per local code. Select 240V/1PH for residential or 208V/3PH for commercial at the time of purchase.
Why the Harvia KIP45W stands out

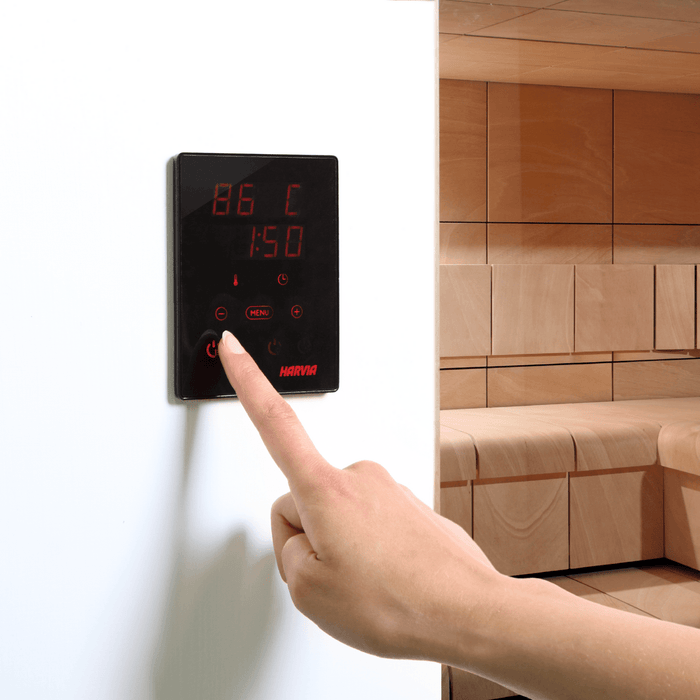

Xenio CX170 - digital control, Wi-Fi, and MyHarvia app

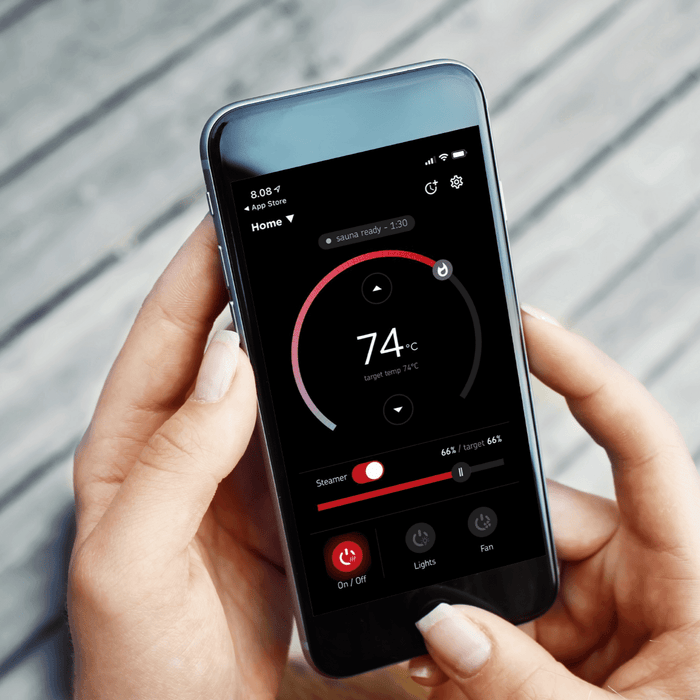

The KIP45W is designed to be operated with the Xenio CX170 - a touchscreen control panel with Wi-Fi connectivity and full MyHarvia app integration. Temperature, session duration, and scheduling can be set precisely from the Xenio panel in the sauna room or remotely from a smartphone before arriving. The MyHarvia app is available for both iOS and Android and provides complete heater control from anywhere within the Wi-Fi network. For a home sauna where remote preheat scheduling, precise temperature control, or app-based operation are priorities, the KIP45W with the Xenio CX170 provides all of these from the proven KIP heater platform. The controller is sold separately and can be surface or flush mounted at a convenient location.

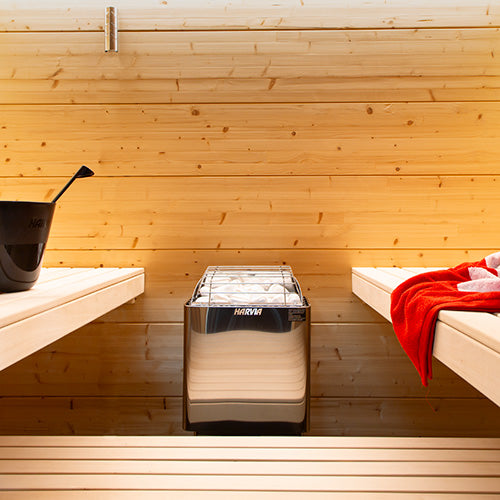

Wall-mounted - full floor space preserved

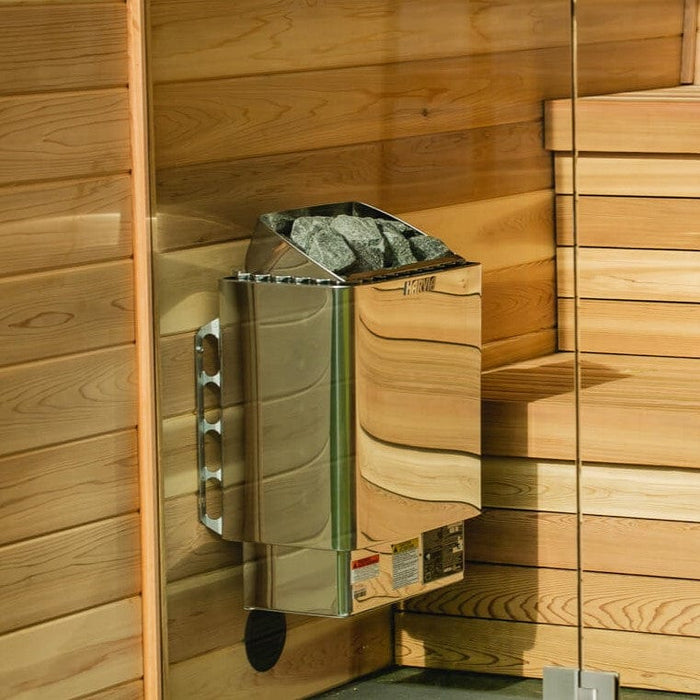

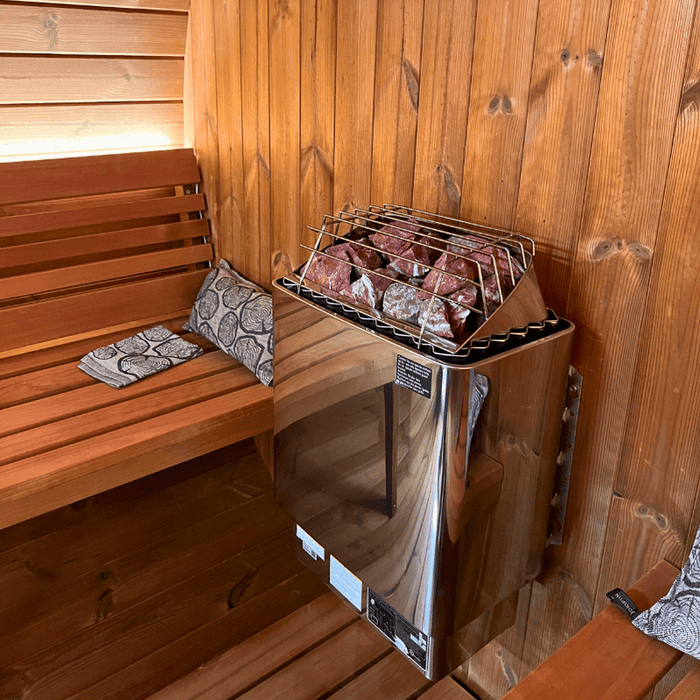

The KIP45W mounts on the sauna wall using the included bracket, leaving the full floor area usable for benches, foot space, and movement within the room. For sauna rooms from 100 to 210 cu ft where every square foot matters, wall mounting is a meaningful layout advantage. The compact 16.1"W x 11"D x 23.6"H profile keeps the heater's footprint small on the wall. The bracket is designed for direct mounting on a wooden sauna wall at the 4.92" side clearances with no additional shielding required - the dual-wall construction manages the surface temperature at those clearances.

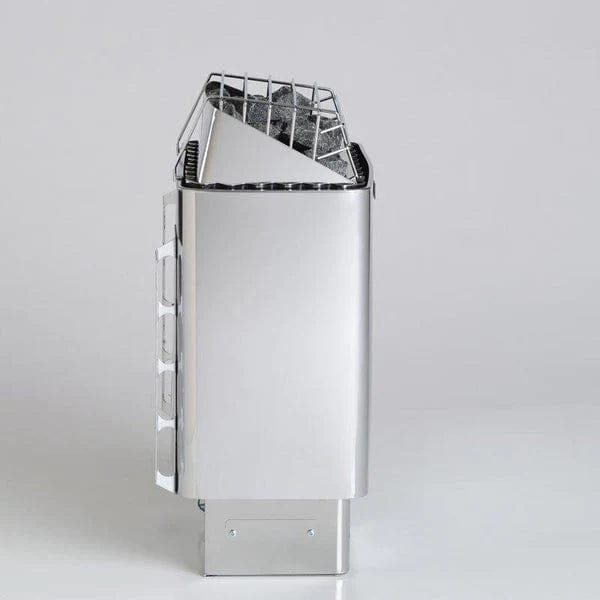

Dual-wall construction - cool exterior, safe at wood clearances
The KIP45W's dual-wall body keeps the exterior surface cool to the touch throughout the session. The outer stainless steel shell is separated from the inner heat-conducting components so that thermal energy is directed into the stone cavity and delivered as heat and steam, not radiated through the heater body. At 4.92" from combustible materials on front and sides, the cool exterior means no scorching, no discolouration, and no requirement for a non-combustible stand-off or shield between the heater body and wood walls. This makes installation straightforward on standard wooden sauna wall construction.

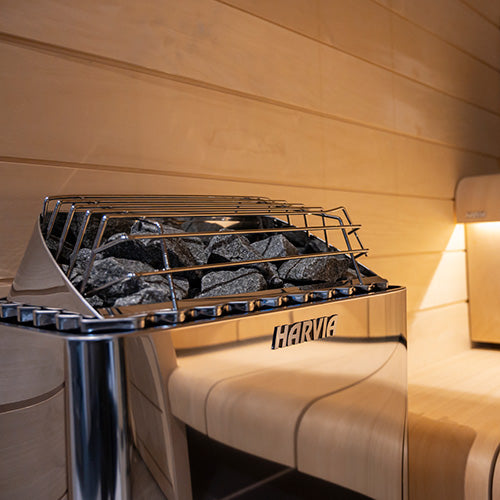

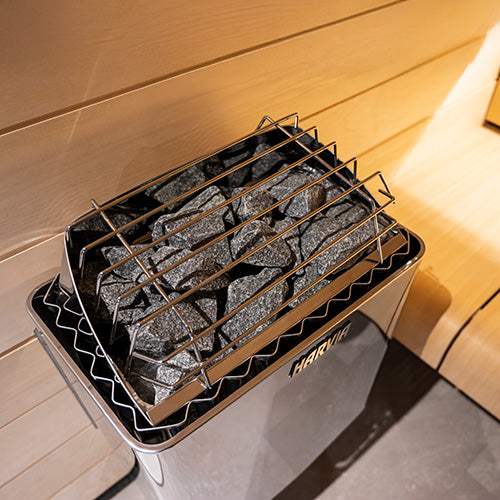

Large stone cavity with direct rock-to-element contact

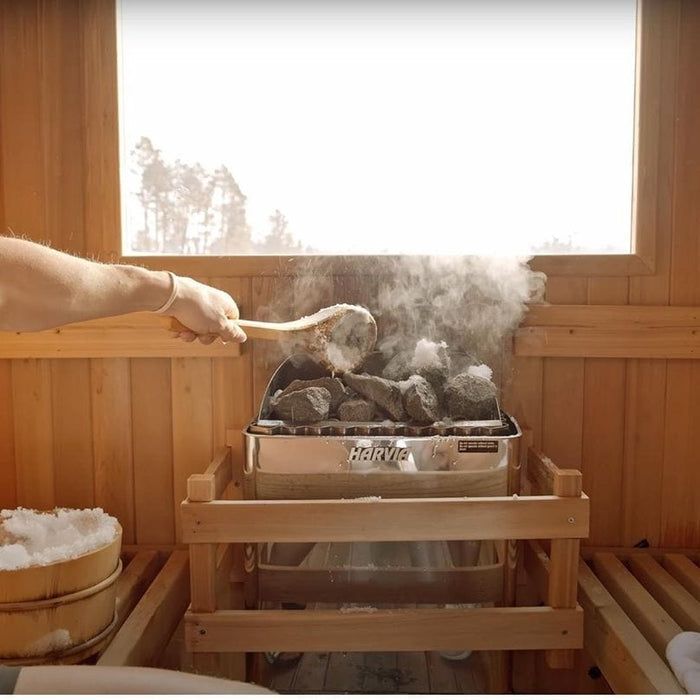

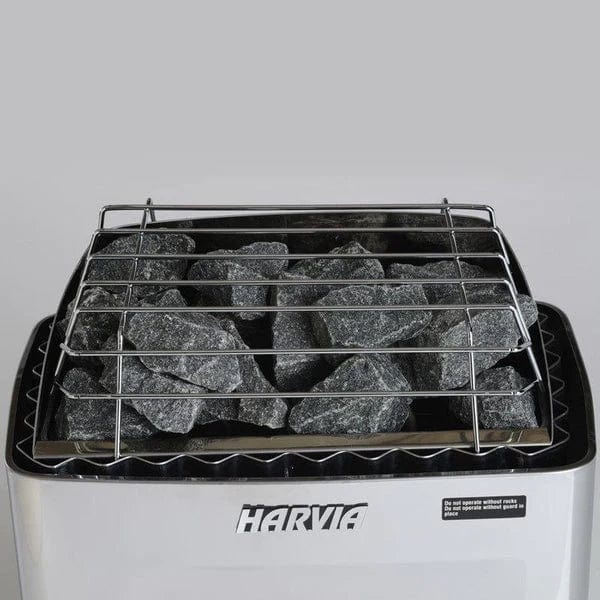

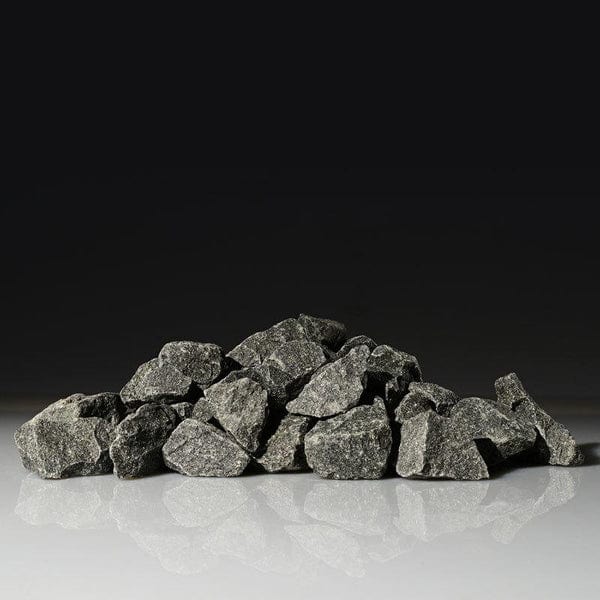

The KIP45W's stone cavity holds 44 lbs of AC3000 stones (1 box, 5-10 cm) in direct contact with the industrial-grade heating elements. Heat flows from element surface to stone mass directly - stones are charged efficiently and produce soft, even steam when water is poured. The protective stone guard surrounds the stone bed and keeps the load in position during use. For a 4.5kW heater in a room from 100 to 210 cu ft, the 44-lb stone load is proportionally generous - enough thermal mass to produce consistent steam through a full session without rapid cooling between ladles.
The KIP - a traditional favourite for decades
The Harvia KIP is recognised across the industry as the most consistently purchased and longest-running electric sauna heater design in the market. Customers regularly replace 10-plus year old KIP units with new KIP units - the platform has earned a reputation for reliability, durability, and performance that makes it the default choice for straightforward home sauna installations. The KIP45W brings this proven platform to buyers who want external digital control. The stainless steel body, wall-mount bracket, protective stone guard, and direct-contact stone design are all unchanged from the KIP that has been in homes and saunas for decades. The Xenio CX170 adds modern control to a classic heater.
KIP Series platform - 4.5kW to 10.5kW, W and B models
The KIP45W is the 4.5kW external-controller entry point of the KIP Series W-model lineup. The KIP Series covers the range from small to large home saunas at four output levels: KIP45W (4.5kW, 100-210 cu ft), KIP60W (6.0kW), KIP80W (8.0kW, 247-424 cu ft), and KIP100W (10.5kW). Each W-model variant requires the Xenio CX170 controller. Corresponding B-model variants (KIP45B, KIP60B, KIP80B) have built-in manual controls and require no separate controller. All KIP models share the same stainless steel dual-wall construction, wall-mount bracket, protective stone guard, and direct rock-to-element contact. UL listed and ETL certified. Made in Finland by Harvia. We are an authorized Harvia dealer.
About Harvia
Made in Finland - UL Listed - ETL Certified - KIP Series W-Model
Harvia KIP45W. 4.5kW. 100-210 cu ft. Xenio CX170 external controller. Stainless steel.
Harvia is a Finnish sauna and spa company established in 1950. The KIP45W is the 4.5kW external-controller configuration of the KIP Series - the traditional wall-mounted heater with a Xenio CX170 for digital touchscreen, Wi-Fi, and MyHarvia app control. Dual-wall stainless steel construction, large stone cavity with direct rock-to-element contact, protective stone guard, and wall-mount bracket. 44 lbs AC3000 stones (1 box, 5-10 cm) and Xenio CX170 controller are required and sold separately. We are an authorized Harvia dealer.
-
4.5kW electric - 100-210 cu ft - KIP Series W-model external controller
-
Xenio CX170 required - digital touchscreen - Wi-Fi - MyHarvia app
-
44 lbs AC3000 stones required (1 box) - direct rock-to-element contact
- Safety distances: 4.92" front and sides, 7.01" floor
- Dual-wall stainless steel - cool exterior - UL listed - ETL certified
KIP45W vs KIP45B vs KIP80W - choosing the right KIP configuration
KIP45W vs KIP45B vs KIP80W - external controller vs built-in vs larger room range
Three KIP configurations are most relevant for buyers considering the KIP45W. KIP45B JH45BU1UL: 4.5kW, 100-211 cu ft, built-in manual dial controls, no controller required, lower total cost. Left dial for temperature, right dial for on/off and up to 8-hour delay timer, 60-minute auto shut-off. Simpler and more affordable; right choice when digital remote control is not needed. KIP45W JH45WU1UL (this listing): 4.5kW, 100-210 cu ft, Xenio CX170 external controller required - digital touchscreen, Wi-Fi connectivity, MyHarvia app access, precise scheduling. Same heater body as KIP45B. Right choice when digital control capability is a priority. KIP80W JH80WU1IUL: 8.0kW, 247-424 cu ft, Xenio CX170 required - for larger rooms needing more output. Available in Stainless Steel or Black. All three use the same KIP dual-wall stainless steel construction, 4.92" safety clearances, and direct rock-to-element contact. Choose the KIP45W for the 100-210 cu ft range with Xenio digital and Wi-Fi control.
Manuals and Documents
Warranty
2-year limited warranty (consumer use)
The Harvia KIP45W is covered by Harvia's 2-year limited warranty from the date of purchase for consumer use. The warranty covers defects in manufacturing and materials under normal use conditions. The warranty does not cover damage caused by improper installation, use of incorrect stone type or size (non-AC3000, or stones outside the 5-10 cm specified diameter range), operating without the required minimum stone load, failure to follow the installation and operating guidelines in the manual, or damage from inadequate electrical installation. Manufacturer's note: sauna heater stones are significant to the unit's safety - the user is responsible for proper stone maintenance for the warranty to remain valid. Proof of purchase from an authorized Harvia dealer is required for warranty claims. We are an authorized Harvia dealer.
