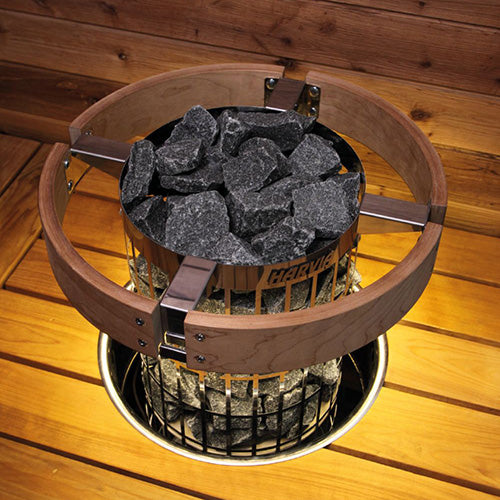

The Harvia HPCU3LUL and HPCU4LUL are safety railings with built-in LED lighting for the Harvia Cilindro Half electric sauna heaters. They increase bathing safety around the heater, and they add a decorative touch to the sauna. Each railing is made of four heat-treated birch wood arches that are connected to each other and to the heater with stainless steel mounts. A warm-white LED strip faces down onto the stones, and the soft light reflects indirectly off the heater, which makes the stone mass stand out. The HPCU3LUL is for the Cilindro Half 6 kW and 8 kW heaters. The HPCU4LUL is for the Cilindro Half 11 kW heater, which Harvia lists as the 10.5 kW PC110E. Both railings are 20.5 in (520 mm) across and 3.15 in (80 mm) high, and they weigh about 5.1 lbs. The heater, stones, and controller are sold separately. Includes installation instructions.
A guard rail that lights the stones
The Cilindro has an open stone pillar, so a rail around it helps keep bathers from touching the hot heater by accident. These railings add LEDs, so the light bounces softly off the heater and shows off the stones without shining in your eyes. The LEDs are warm white, 3000-3200 K, which suits the look of a wood-lined sauna. The railing is an addition to the heater's own safety rules, not a replacement for them, so keep to the clearances in the heater's manual.
Choose the railing that matches your heater
Pick the HPCU3LUL for the Cilindro Half 6 kW and 8 kW heaters (Harvia's instructions also list the 9 kW PC90 models), and the HPCU4LUL for the Cilindro Half 11 kW (10.5 kW PC110E). The two railings differ in the size of the opening for the heater: 12.6 in (320 mm) for the HPCU3LUL and 14.2 in (360 mm) for the HPCU4LUL. They are not interchangeable. Harvia also makes versions without lighting, the HPC3 and the HPC4. Please check with us if you are not sure which one suits your heater.
Installation and wiring
The railing fixes to the top of the heater with the supplied brackets, bolts, nuts and screws. Harvia's instructions cover a free-standing heater and a heater set into a bench with an embedding flange. The LED driver takes 100-240 V AC single-phase input and outputs 12 V DC. Mount it in the sauna no higher than 500 mm (20 in) above the floor. Per Harvia's instructions, only a licensed electrician may connect the driver's supply. Read the installation instructions before you start. Installation of the heater itself must follow its own manual and local code.
Heat-treated birch safety railings with LED lighting for Harvia Cilindro Half electric sauna heaters. HPCU3LUL for Cilindro Half 6/8 kW, HPCU4LUL for Cilindro Half 11 kW (10.5 kW PC110E). Four wooden arches joined with stainless steel mounts. Warm-white LEDs (3000-3200 K) reflect off the heater and make the stones stand out. 20.5 in (520 mm) across, 3.15 in (80 mm) high, about 5.1 lbs. LED driver and installation instructions included.
Safety railing with LED lighting HPCU3LUL - Cilindro Half 6/8 kW HPCU4LUL - Cilindro Half 11 kW Heat-treated birch wood Stainless steel mounts Warm-white LEDs 3000-3200 K 520 mm across x 80 mm high About 5.1 lbs LED driver included
Specifications
Product details
| Brand |
Harvia |
| Model - Cilindro Half 6/8 kW |
HPCU3LUL |
| Model - Cilindro Half 11 kW |
HPCU4LUL |
| Product type |
Safety railing with LED lighting |
| Material |
Heat-treated birch wood arches, stainless steel mounts |
| Weight |
About 5.1 lbs (2.3 kg), both models |
Dimensions - HPCU3LUL (6/8 kW)
| Outer diameter |
20.5" (520 mm) |
| Heater opening (inner ring) |
12.6" (320 mm) |
| Height |
3.15" (80 mm) |
Dimensions - HPCU4LUL (11 kW)
| Outer diameter |
20.5" (520 mm) |
| Heater opening (inner ring) |
14.2" (360 mm) |
| Height |
3.15" (80 mm) |
Lighting and electrical (both models)
| Light source |
Warm-white LED strip, 3000-3200 K, facing down onto the stones |
| Effect |
Soft light reflected indirectly off the heater |
| LED driver |
100-240 V AC single-phase input, 12 V DC output |
| Driver mounting |
In the sauna, no higher than 500 mm (20 in) above the floor |
| Connection |
By a licensed electrician only |
Fit - HPCU3LUL
| Fits |
Harvia Cilindro Half Series 6 kW and 8 kW (Harvia's instructions also list the 9 kW PC90 models) |
| Without lighting |
HPC3 |
| Embedding flange (optional) |
HPC2 or HPCU2L, sold separately |
Fit - HPCU4LUL
| Fits |
Harvia Cilindro Half 11 kW (10.5 kW PC110E) |
| Without lighting |
HPC4 |
| Embedding flange (optional) |
HPCU7L, sold separately |
Installation (both models)
| Mounting |
Fixed to the top of the heater with stainless steel mounts |
| Setups |
Free-standing heater, or heater set into a bench with an embedding flange |
| Clearances |
Does not replace the heater's required clearances |

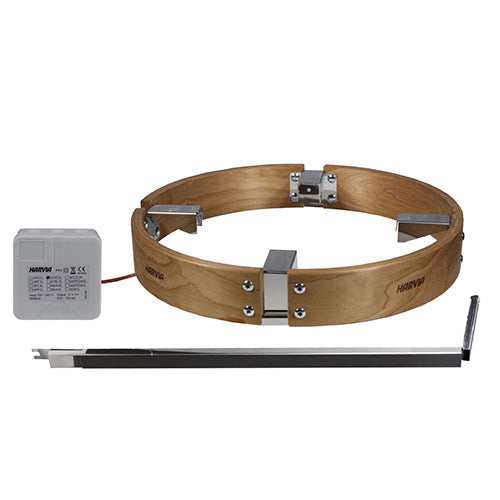

What's included
Harvia HPCU3LUL or HPCU4LUL safety railing (four birch arches), per the model you choose
Stainless steel mounts
LED strip and LED driver
Mounting brackets, bolts, nuts and screws
Installation instructions
Not included: the Harvia Cilindro Half heater, the controller, sauna stones, the supply cable, plug and switch for the LED driver, and the optional embedding flange. Follow the heater's manual and local code for clearances and electrical installation.
Why the Harvia LED Safety Railing stands out
Increases bathing safety
The railing keeps a barrier around the heater, which helps make the sauna safer for bathers.
Soft LED lighting
Warm-white LEDs reflect indirectly off the heater, so the stones stand out without harsh light.
Heat-treated birch
Four wooden arches in heat-treated birch give the railing a warm, natural look that suits a sauna.
Stainless steel mounts
The arches are connected to each other and to the heater with stainless steel mounts.
Driver and hardware included
The kit has the LED driver and the mounting brackets, bolts, nuts and screws, so you only add the supply cable, plug and switch.
Two sizes for the Cilindro Half
HPCU3LUL for the 6/8 kW heaters and HPCU4LUL for the 11 kW heater. We are an authorized Harvia dealer.
About Harvia
Harvia - HPCU3LUL and HPCU4LUL - Safety Railing with LED Lighting - Cilindro Half
Harvia LED Safety Railing. A birch railing that lights the stones.
Harvia is a Finnish sauna and spa company established in 1950. The HPCU3LUL and HPCU4LUL are the safety railings with LED lighting for the Cilindro Half Series, one for the 6 kW and 8 kW heaters and one for the 11 kW heater. Four heat-treated birch arches, joined with stainless steel mounts, make a ring around the heater that increases bathing safety, while soft LED light brings out the stones. We are an authorized Harvia dealer.
-
Heat-treated birch with stainless steel mounts
-
HPCU3LUL for Cilindro Half 6/8 kW - HPCU4LUL for Cilindro Half 11 kW
-
Warm-white LEDs - 520 mm across, 80 mm high, about 5.1 lbs
- LED driver and installation instructions included
