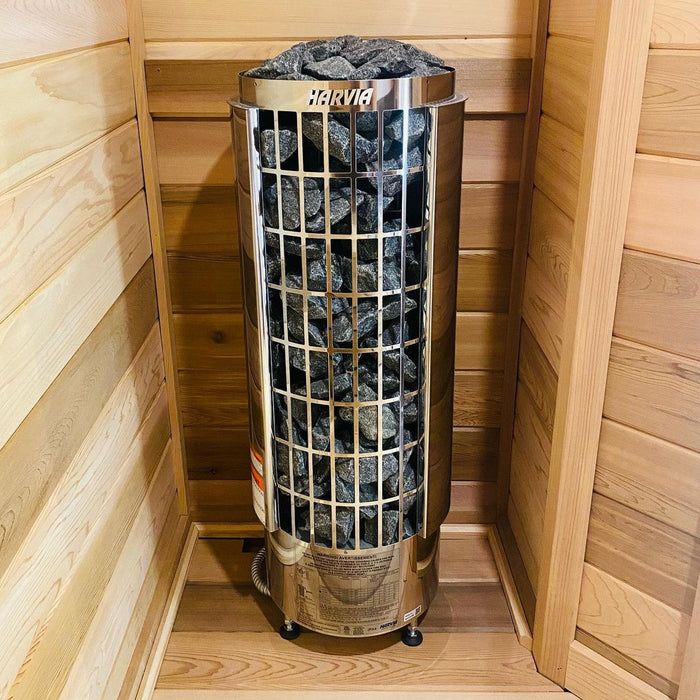

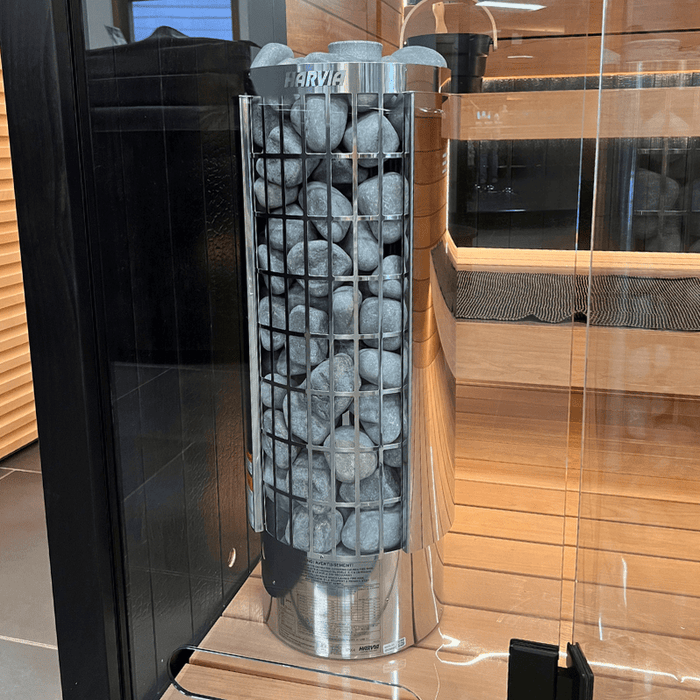

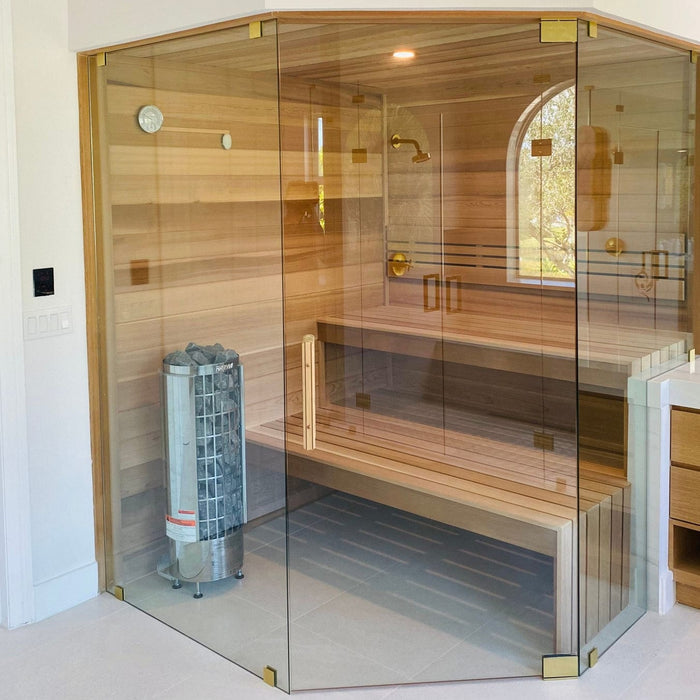

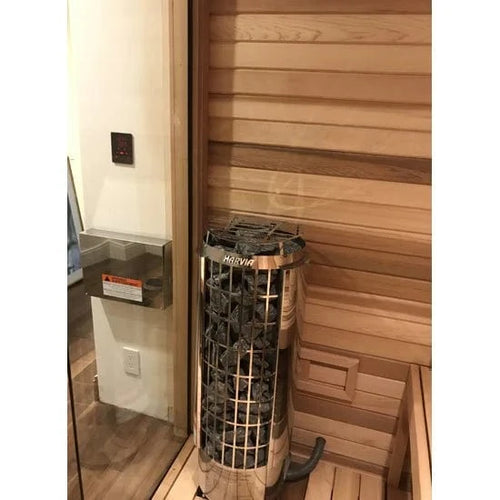

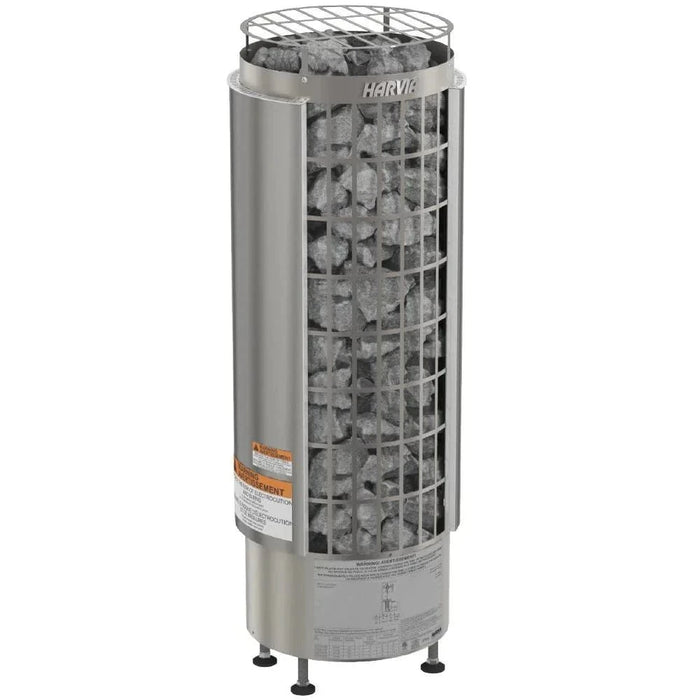

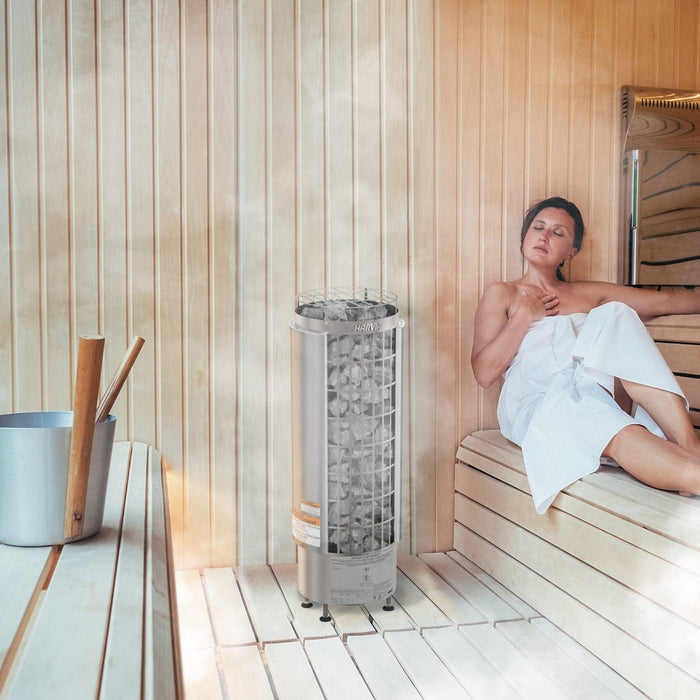

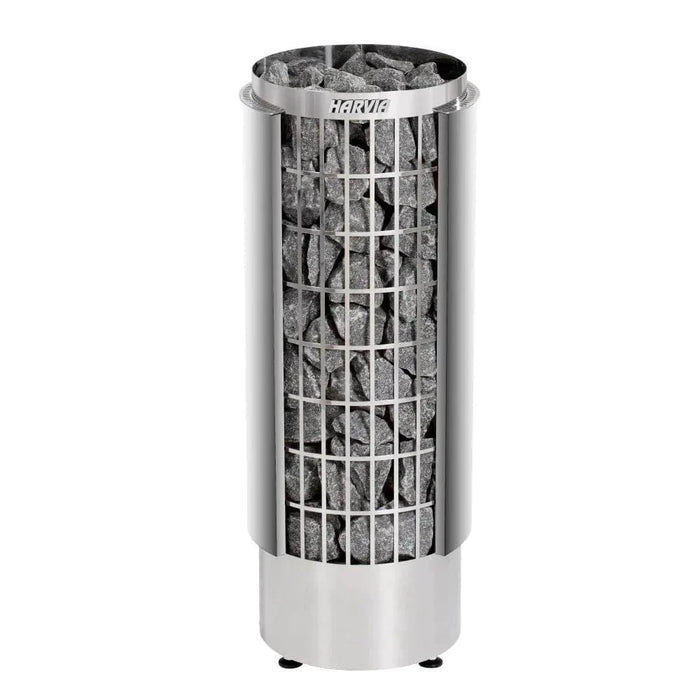

The Harvia Cilindro PC60E is a 6kW floor-standing pillar-style electric sauna heater for rooms from 141 to 294 cubic feet - a stainless steel stone column that sits in the corner or against the sauna wall and holds 200 lbs of AC3000 stones (5 boxes, 5-10 cm, sold separately) in a partially open grate-like casing. The Cilindro is Harvia's most visually distinctive heater: a tall stainless steel pillar with the stone bed fully visible and accessible through the open front, designed to be impressive to both look at and experience. The open casing makes the Cilindro the only Harvia electric heater that allows the bather to directly control the quality of the steam by choosing where they pour the water: pour on the side of the stone column for soft, gentle steam; pour directly on top of the stone pillar for sharp, intense steam. A built-in heat shield minimises the required safety clearances, allowing the Cilindro to be positioned closer to walls and benches than its stone capacity would otherwise suggest. The PC60E model requires an external controller - Xenio CX30 or Fenix FX30, sold separately. Optional flanges allow the Cilindro to be embedded into a bench. 240V/1PH. ETL certified. Made in Finland by Harvia.
Cilindro - a pillar of stone, fully visible and adjustable

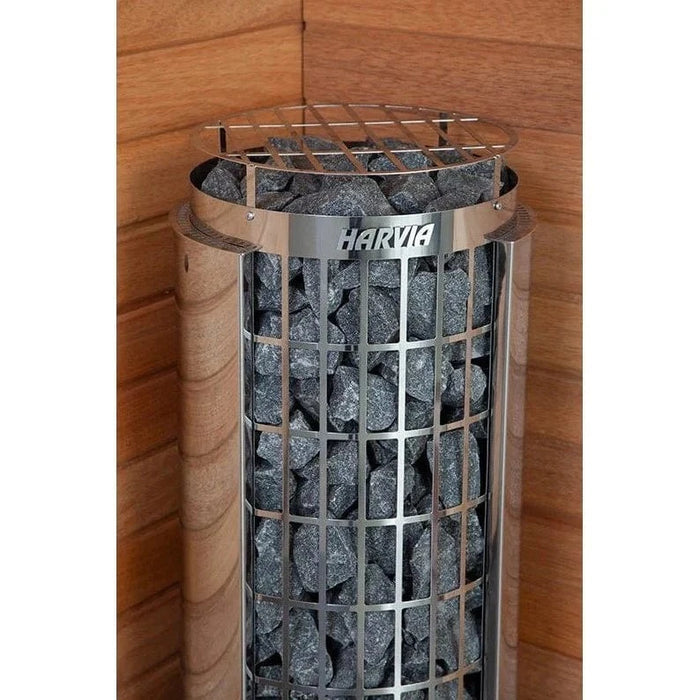

Harvia's Cilindro is described as impressive to both look at and experience - and both parts of that description are earned. The tall stainless steel pillar with 200 lbs of stones visible through the open grate casing is architecturally distinctive in a sauna room. Where conventional electric heaters present a solid steel or stainless body, the Cilindro presents the stone bed itself as the visual centrepiece. The open casing is not just aesthetic - it is functional. The large exposed stone surface allows water to be thrown at different heights and points on the stone column, and the bather controls the result: Harvia's own description states you can adjust between gentle and sharp steam by throwing water in the middle or on top of the stone pillar. This adjustability is unique to the Cilindro format among Harvia's electric heater lineup.
PC60E vs PC60 - external controller vs built-in controls
The Cilindro platform at 6kW is available in two control configurations. The PC60 (built-in controls) has manual dials integrated into the heater body - no separate controller is required. The PC60E (external controller) - this listing - has no built-in controls on the heater body and requires the Xenio CX30 or Fenix FX30 controller (sold separately) for all operation. The PC60E is the right choice for buyers who want digital touchscreen control, Wi-Fi connectivity, and MyHarvia app access from anywhere - features that the built-in dial controls of the PC60 do not provide. Both models share the same stainless steel pillar body, 200-lb stone capacity, 6kW output, and 141-294 cu ft room range. The PC60E also has a two-group wiring option (2x 16.7A) in addition to the standard single-group 25A configuration.
Built-in heat shield and optional bench embedding
The Cilindro PC60E includes a built-in heat shield that reduces the required safety clearances to non-combustible materials: just 3.9" at the front, 1.2" at the sides, and 1.2" at the back - among the tightest clearances of any Harvia electric heater. The floor clearance is 2.8" and ceiling clearance is 35". This makes the Cilindro suitable for compact sauna room layouts where a larger footprint heater would be constrained. An optional HPC2 embedding flange (sold separately) allows the Cilindro to be set into a bench platform for a fully integrated look. The HPCU2L embedding flange with LED lighting is also available. Optional HPC3 safety railing (sold separately) can be fitted around the Cilindro for added bather safety in the open stone configuration. All optional accessories are sold separately.
6kW floor-standing pillar-style stainless steel electric sauna heater for rooms from 141 to 294 cubic feet. Cilindro Half Series - open grate casing puts the stone column on full display. Adjustable steam: pour on the side for soft gentle steam, pour on top for sharp intense steam. Built-in heat shield - ultra-compact safety clearances: front 3.9", sides 1.2", back 1.2", ceiling 35". 200 lbs AC3000 stones required (5 boxes, 5-10 cm, sold separately). PC60E model: external Xenio CX30 or Fenix FX30 controller required - sold separately. 240V/1PH, 25A (single-group) or 2x 16.7A (two-group), 10AWG. Optional: HPC2 bench embedding flange, HPCU2L flange with LED, HPC3 safety railing. Dimensions: 14"W x 13"D x 3.33 ft H. Net weight: 37.5 lbs. IPX4 rated. ETL certified. 2-year warranty (consumer). Made in Finland by Harvia.
6 kW 141 to 294 cu ft Cilindro Half Series - stainless steel pillar design Open grate casing - stone column fully visible and accessible Adjustable steam - side pour soft / top pour sharp Built-in heat shield - ultra-compact clearances 200 lbs AC3000 stones required (5 boxes, 5-10 cm) PC60E - external controller required Xenio CX30 or Fenix FX30 - sold separately Safety: front 3.9", sides 1.2", back 1.2", ceiling 35" 14"W x 13"D x 3.33 ft H 240V/1PH - 25A single or 2x 16.7A two-group - 10AWG IPX4 rated Optional bench embedding flanges (HPC2 / HPCU2L) Optional safety railing (HPC3 / HPCU3L) ETL certified 2-year warranty (consumer) Made in Finland by Harvia
⚠️ 200 lbs AC3000 stones (5 boxes, 5-10 cm) required - not included. Xenio CX30 or Fenix FX30 controller required - not included. Both stones and controller must be purchased separately before the heater can be operated. An additional box of stones is recommended for selection of best-fitting stones. Note that the Cilindro uses AC3000 stones (5-10 cm) - the same size as the KIP Series - not AC3020 (10-15 cm) used in the Virta Series and wood stoves. A licensed electrician is required for all wiring and installation per local code. Ships on a wooden pallet - a delivery appointment is required.
ℹ️ Cilindro PC60E (external controller) vs PC60 (built-in controls) - same pillar, different control approach. Cilindro PC60: 6kW, 141-294 cu ft, manual dial controls built into the heater body - no separate controller required. Temperature dial and on/off/timer dial integrated. Right choice when simple built-in manual operation is preferred and digital remote control is not needed. Cilindro PC60E HPCS6U1HUL (this listing): 6kW, 141-294 cu ft, requires Xenio CX30 or Fenix FX30 external controller - digital touchscreen, Wi-Fi connectivity, MyHarvia app access, precise scheduling, two-group wiring option. Right choice when digital control capability and smartphone app access are priorities. Both share the identical stainless steel pillar body, open grate casing, 200-lb stone capacity, adjustable steam quality, built-in heat shield, and 1.2" side and back clearances. The Cilindro PC80E (8kW) covers the same 141-294 cu ft range at higher output if more power is needed for rooms with cold surfaces or outdoor locations.
Specifications
Performance
| Power output |
6 kW |
| Fuel type |
Electric (high voltage 240V/1PH) |
| Room volume |
141 to 294 cu ft |
| Max temperature |
194°F (90°C) |
| Stone capacity |
200 lbs / 90 kg (5 boxes AC3000, 5-10 cm) - sold separately |
| Stone size |
O 5-10 cm (AC3000) |
| User group |
Households |
Cilindro open casing - adjustable steam
| Outer casing |
Partially open at front - stone column visible and accessible |
| Pour on side of stones |
Soft, gentle steam |
| Pour on top of stone pillar |
Sharp, intense steam |
| Heat shield |
Built-in - reduces required safety clearances |
| Bench embedding |
Optional HPC2 / HPCU2L flanges (sold separately) |
| Safety railing |

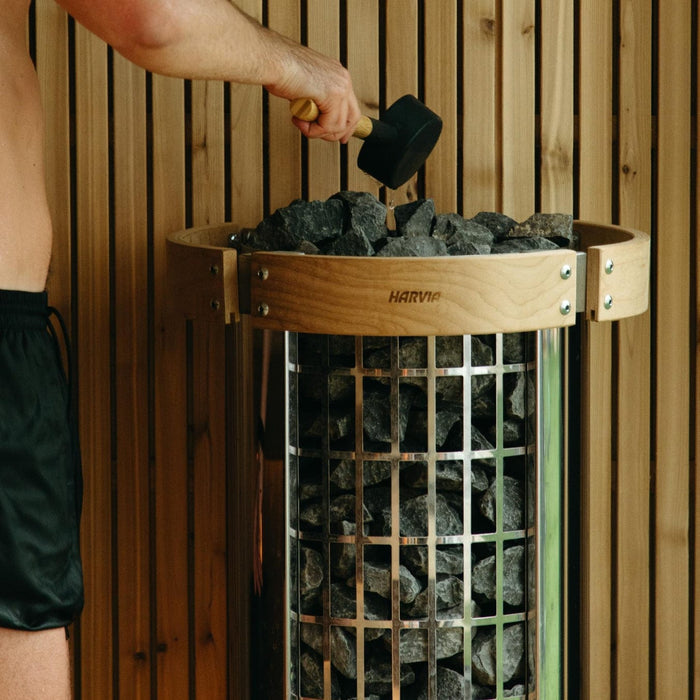

Optional HPC3 / HPCU3L (sold separately) |
Safety distances (non-combustible materials)
| Front (non-combustible) |
3.9 in (99 mm) |
| Sides (non-combustible) |
1.2 in (30 mm) |
| Back (non-combustible) |
1.2 in (30 mm) |
| Ceiling clearance |
35 in (889 mm) above heater top |
| Floor (1PH) |
2.8 in (71 mm) |
| Minimum room ceiling height |
6.56 ft (2,000 mm) |
Physical dimensions
| Width |
14 in (356 mm) |
| Depth |
13 in (330 mm) |
| Height |
3.33 ft / 40 in (1,016 mm) |
| Net weight (heater only) |
37.5 lbs (17.0 kg) |
| Gross weight (packaged) |
39.7 lbs (18.0 kg) |
| Package height |
3.33 ft (1,016 mm) |
| Package width |
14.76 in (375 mm) |
| Package depth |
14.76 in (375 mm) |
Electrical - PC60E (external controller)
| Voltage / phase |
240VAC, 1-phase, 60Hz |
| Fuse (single group) |
Min. 25A |
| Fuse (two-group option) |
2x min. 16.7A |
| Supply cable |
10AWG |
| IP rating |
IPX4 |
| Control |
External Xenio CX30 or Fenix FX30 - sold separately |
| Built-in controls |
None - external controller required |
Certifications and optional accessories
| US/Canada certifications |
ETL certified |
| Origin |
Made in Finland by Harvia |
| Warranty |
2-year limited (consumer use) |
| Bench embedding flange |
Harvia HPC2 (for Cilindro 6/8kW) |
| Bench flange with LED |
Harvia HPCU2L (for Cilindro 6/8kW) |

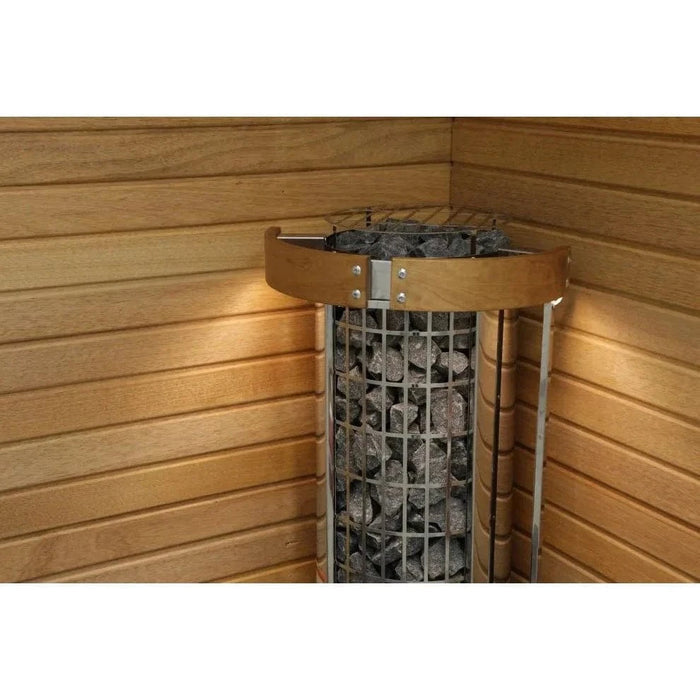

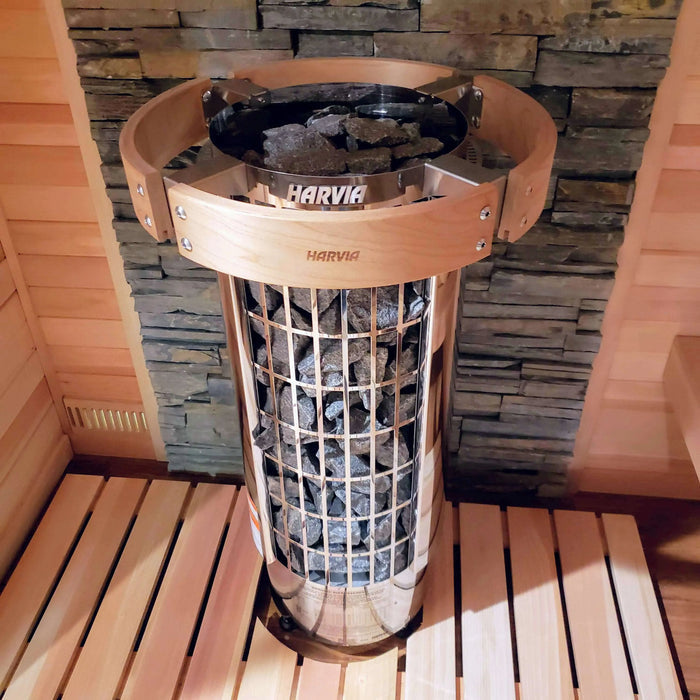

| Safety railing |
Harvia HPC3 (for Cilindro 6/8kW) |
| Safety railing with LED |
Harvia HPCU3L (for Cilindro 6/8kW) |
What's included
Harvia Cilindro PC60E 6kW stainless steel pillar-style electric sauna heater
Installation and operation manual
2-year limited warranty (consumer use)
Required (not included): 200 lbs AC3000 stones - 5 boxes, 5-10 cm (additional box recommended); Xenio CX30 or Fenix FX30 controller. Optional accessories (sold separately): HPC2 bench embedding flange; HPCU2L bench embedding flange with LED; HPC3 safety railing; HPCU3L safety railing with LED. A licensed electrician is required for all wiring and installation per local code. Ships on a wooden pallet - delivery appointment required.
Why the Harvia Cilindro PC60E stands out
Adjustable steam - you control soft or sharp with each pour
Every other Harvia electric heater produces essentially the same steam quality regardless of where water is poured - the stone bed is enclosed and water hits the same surface area. The Cilindro is different. Harvia's description of the open casing is direct: you can adjust between gentle and sharp steam by throwing water in the middle or on top of the stone pillar. Pour down the side of the stone column and steam disperses softly and broadly. Pour directly on top and steam rises sharply and intensely. The bather controls the quality of each round of steam in real time. This adjustability is a meaningful experiential feature that no other Harvia electric heater configuration provides.
200 lbs of stones in a compact pillar - massive capacity, small footprint
The Cilindro PC60E holds 200 lbs (5 boxes AC3000) in a 14"W x 13"D x 40"H stainless steel pillar. For context, the Virta HL90E - a standard Virta floor heater - holds 110 lbs in a 16"W x 13"D x 33"H body. The Cilindro holds 82% more stone mass than the HL90E in a similar footprint. This extraordinary stone-to-volume ratio is the result of the pillar architecture: the stones are stacked vertically in a column that extends the full 40" height of the heater rather than filling a horizontal tray. Harvia's own description acknowledges this: the Cilindro allows users to place the heater containing a massive amount of stones in a small space.
Ultra-compact clearances with built-in heat shield
The Cilindro PC60E's built-in heat shield reduces the required safety clearances to non-combustible materials to just 1.2" at the sides and back - smaller than any other Harvia electric heater in the lineup. The front clearance is 3.9" and the floor clearance is 2.8". For a compact sauna room in the 141-294 cu ft range where every inch of floor and bench space matters, the Cilindro can be positioned against a non-combustible wall surface with minimal intrusion. The optional HPC2 or HPCU2L bench embedding flanges (sold separately) allow the Cilindro to be set directly into a bench platform - eliminating even the floor clearance from the usable bench equation.

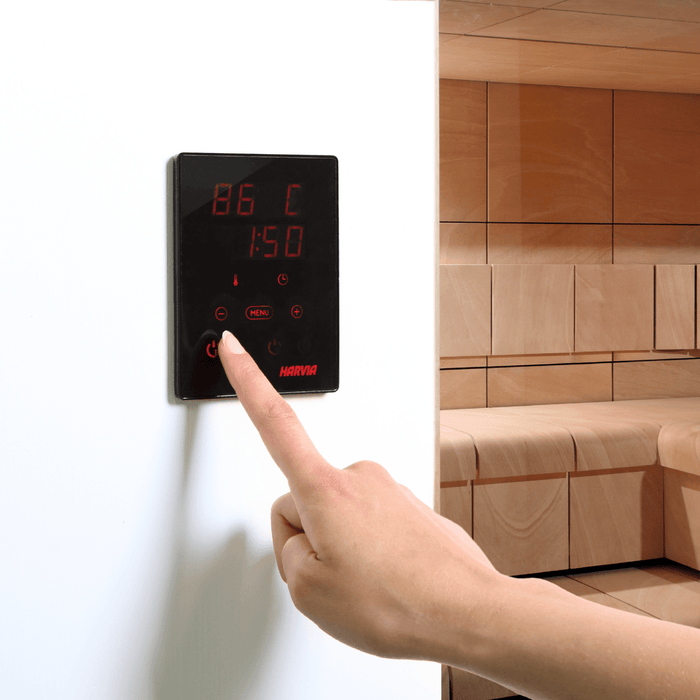

Xenio CX30 or Fenix FX30 - Wi-Fi control, MyHarvia app

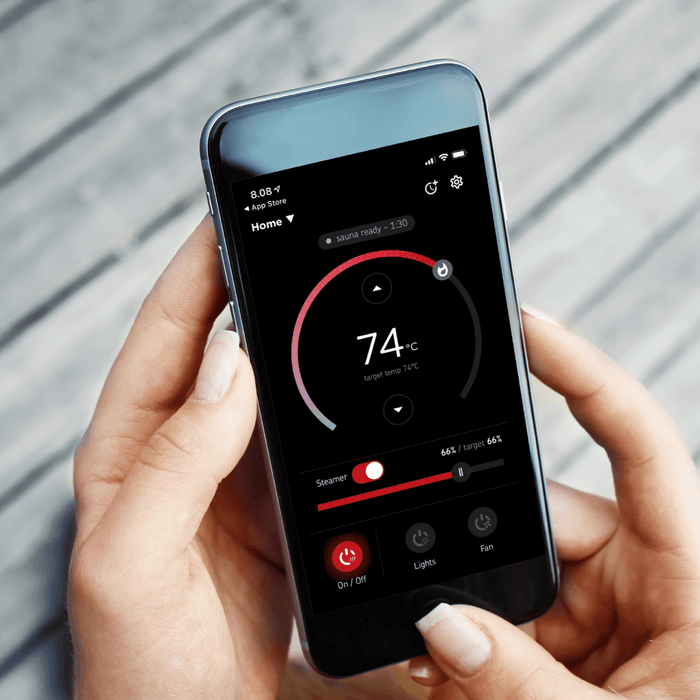

The PC60E is operated by an external Xenio CX30 or Fenix FX30 controller (both sold separately). The Xenio CX30 is a touchscreen controller with Wi-Fi connectivity and full MyHarvia app integration - temperature, session duration, and scheduling can all be managed remotely from a smartphone before arriving at the sauna. The Fenix FX30 adds integrated AI that adapts to the bather's preferences and provides three customisable heating profiles with the same Wi-Fi and app capability. Both controllers surface and flush mount in the sauna room or adjacent space. For the bather who wants the Cilindro's distinctive stone pillar experience with the convenience of app-controlled preheating and scheduling, the PC60E with either controller provides both.

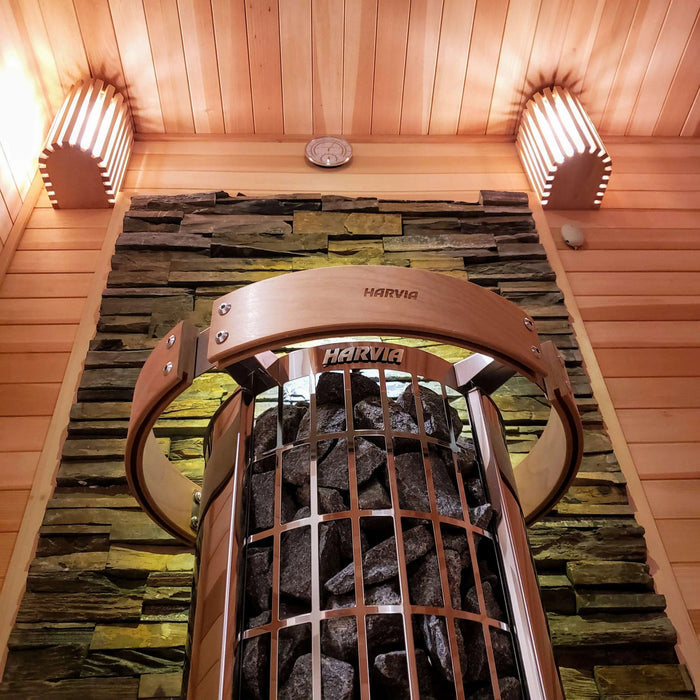

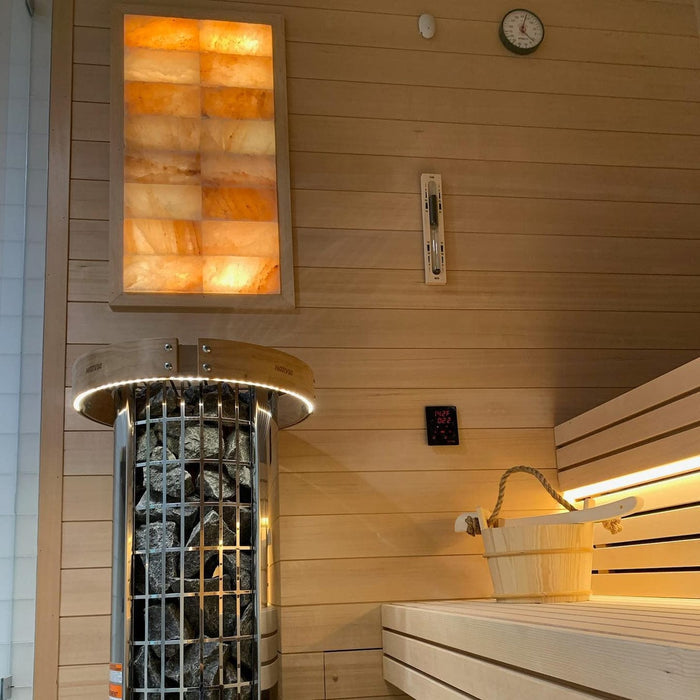

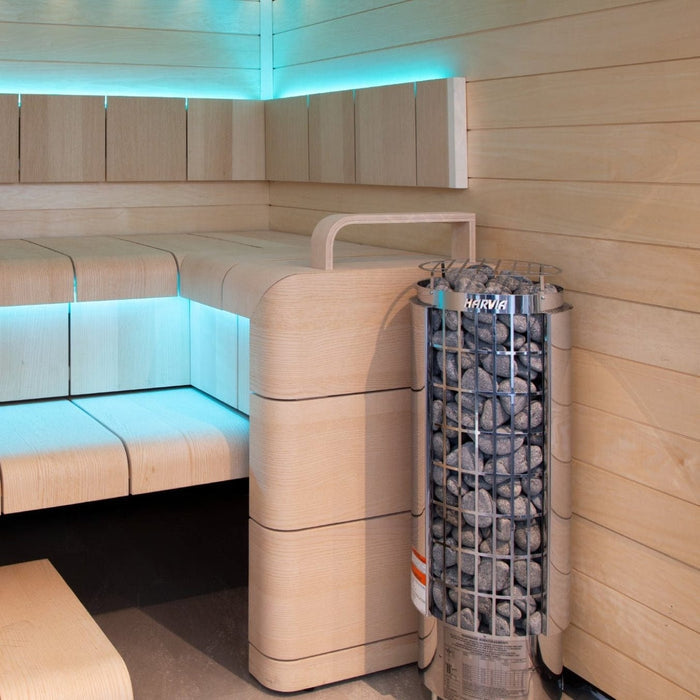

Optional bench embedding - Cilindro as architecture

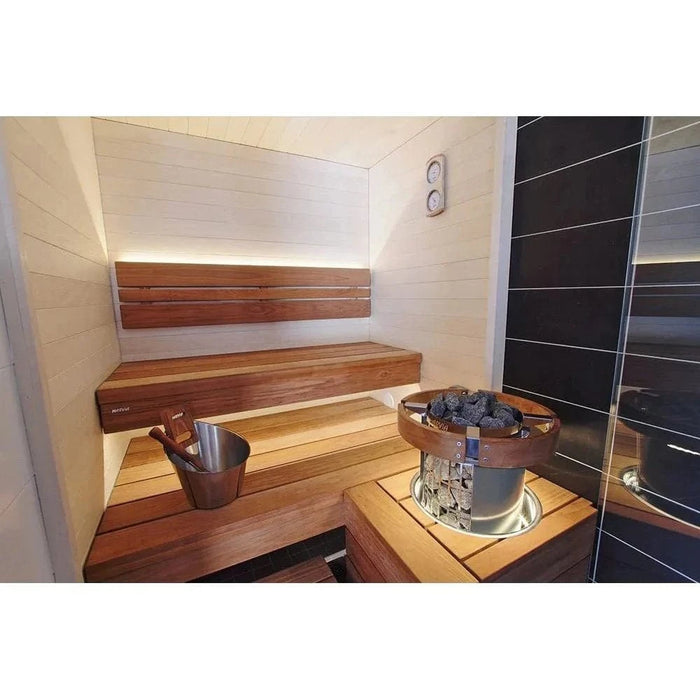

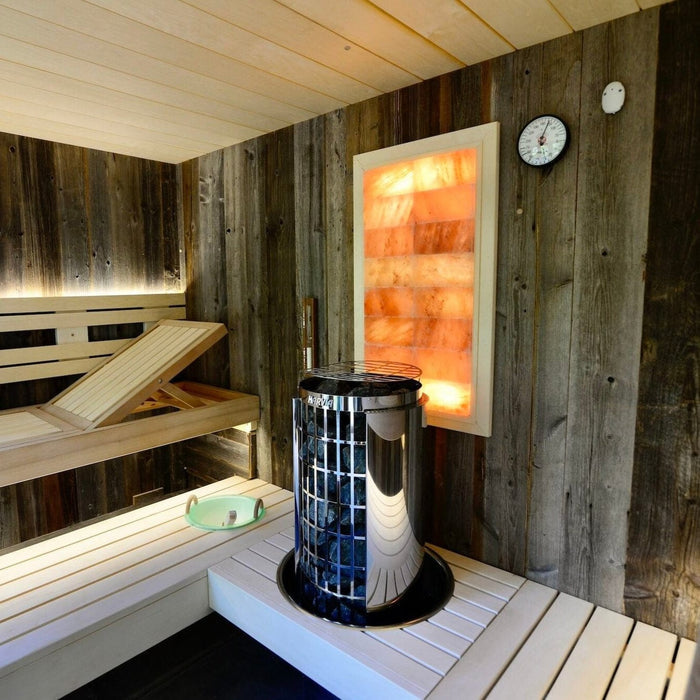

The HPC2 and HPCU2L flanges (sold separately) allow the Cilindro PC60E to be embedded into a sauna bench platform so that only the stone column rises above the bench surface. This creates a built-in integration that makes the Cilindro part of the sauna architecture rather than a separate appliance sitting on the floor. The HPCU2L version adds LED lighting around the flange for a distinctive ambient effect in the sauna room. The HPC3 and HPCU3L safety railings (sold separately) provide a protective barrier around the open stone column in standard floor-standing installations where direct contact with the heated stones during the session is a concern.
Cilindro Series - PC60E and related configurations
The HPCS6U1HUL is the 6kW external-controller (E) configuration of the Cilindro Half Series. The same Cilindro platform is available as: Cilindro PC60 (built-in controls, same body, same stone capacity, no separate controller required) and Cilindro PC80E / PC80 at 8kW for the same 141-294 cu ft range with more output. The Cilindro Full Series (PC90E, PC90, PC120E, PC120) uses a fully enclosed cylindrical body with a different stone loading approach and a larger room range. All Cilindro models at 6kW and 8kW are compatible with the HPC2, HPCU2L, HPC3, and HPCU3L optional accessories. Designed and made in Finland by Harvia. We are an authorized Harvia dealer.
About Harvia
Made in Finland - ETL Certified - Cilindro Half Series - External Controller
Harvia Cilindro PC60E. 6kW. 141-294 cu ft. 200 lbs of stones. Adjustable steam. Bench-embeddable.
Harvia is a Finnish sauna and spa company established in 1950. The Cilindro PC60E is the 6kW external-controller configuration of the Cilindro Half Series - a stainless steel stone pillar with an open grate casing that exposes 200 lbs of AC3000 stones and allows the bather to control steam quality by choosing where water is poured. Built-in heat shield for ultra-compact clearances (1.2" sides and back). Optional bench embedding flanges and safety railings. Xenio CX30 or Fenix FX30 controller and 200 lbs AC3000 stones (5 boxes) required and sold separately. We are an authorized Harvia dealer.
-
6kW electric - 141-294 cu ft - Cilindro Half Series pillar design
-
200 lbs AC3000 stones required (5 boxes) - open grate - adjustable steam quality
-
Built-in heat shield - 1.2" sides and back, 3.9" front clearances
-
PC60E - external Xenio CX30 or Fenix FX30 required - Wi-Fi - MyHarvia app
-
Optional bench embedding (HPC2 / HPCU2L) - ETL certified
Cilindro PC60E vs PC60 vs Virta HL90E - Cilindro vs conventional floor heater
Cilindro PC60E vs PC60 vs Virta HL90E - pillar heater vs conventional floor heater
Three 6-9kW floor heaters are relevant for buyers in the small to medium home sauna range. Cilindro PC60 (built-in controls): 6kW, 141-294 cu ft, no separate controller required, same open-grate pillar body as PC60E, 200 lbs stones (5 boxes AC3000). Right when Cilindro's open-grate steam adjustability and pillar design are the priority and built-in manual dials are preferred over digital control. Cilindro PC60E HPCS6U1HUL (this listing): 6kW, 141-294 cu ft, Xenio CX30 or Fenix FX30 external controller required. Same pillar body as PC60, adds Wi-Fi, MyHarvia app, and two-group wiring option. Right when digital control and smartphone app access are priorities alongside the Cilindro experience. Virta HL90E HL9U1UL: 9.0kW, 177-494 cu ft, conventional enclosed floor heater, 110 lbs stones (3 boxes AC3020), separated elements with pull-out replacement, front maintenance hatch, 2" side clearances. Right when a conventional enclosed heater format with the largest stone load at standard steam quality, higher output, and separated-element serviceability is the specification. Choose the Cilindro PC60E for the distinctive open-pillar steam-adjustable experience with 200 lbs of stones and ultra-compact clearances in the 141-294 cu ft range.
Manuals and Documents
Warranty
2-year limited warranty (consumer use)
The Harvia Cilindro PC60E is covered by Harvia's 2-year limited warranty from the date of purchase for consumer use. The warranty covers defects in manufacturing and materials under normal use conditions. The warranty does not cover damage caused by improper installation, use of incorrect stone type or size (non-AC3000, or stones outside the 5-10 cm specified diameter range), operating without the required minimum stone load, failure to follow the installation and operating guidelines in the manual, or damage from inadequate electrical installation. Manufacturer's note: sauna heater stones are significant to the unit's safety - the user is responsible for proper stone maintenance for the warranty to remain valid. Proof of purchase from an authorized Harvia dealer is required for warranty claims. We are an authorized Harvia dealer.
