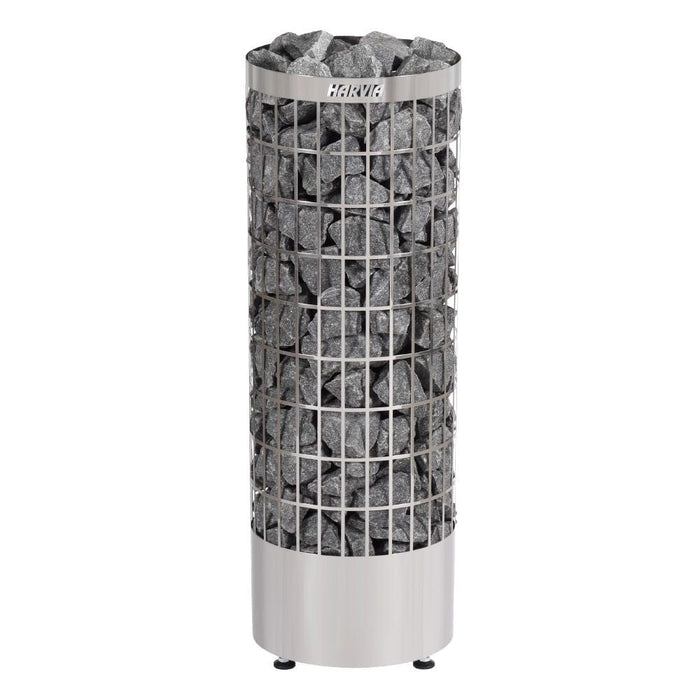

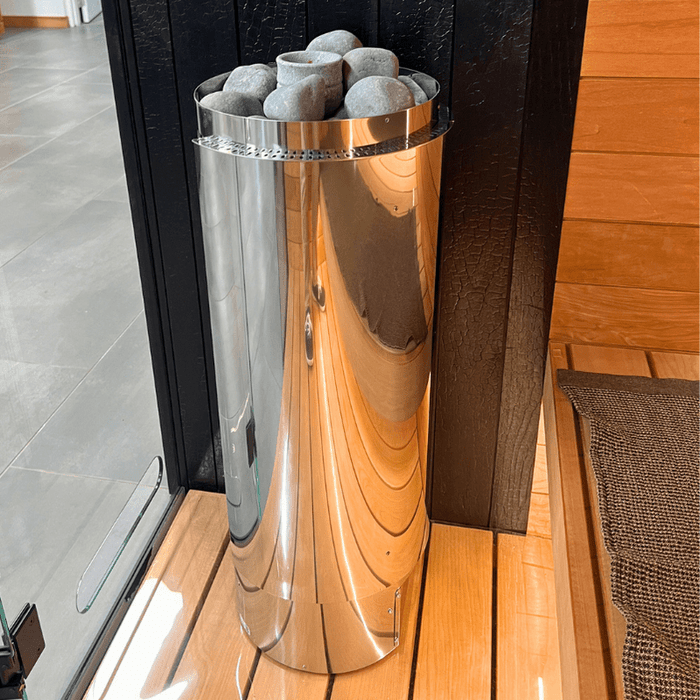

The Harvia Cilindro PC110E is a 10.5kW floor-standing pillar-style electric sauna heater for rooms from 141 to 636 cubic feet. The Cilindro is unlike any other Harvia heater in the lineup: a cylindrical stainless steel column with a grate-like outer shell, heating elements running down the center through the stone mass, and 264 lbs of AC3000 stones loaded around and above the elements. The partially open front of the "Half" casing (the "H" in HPCS) exposes a large stone surface directly to the sauna room, allowing bathers to interact with the stones directly: pour water on the side of the heater for soft, gentle steam, or pour straight on top of the stone pillar for a sharp, intense burst. A Xenio or Fenix control unit is required for operation and sold separately. Delivery is by scheduled pallet freight.
Pillar design - adjustable steam, massive stone mass

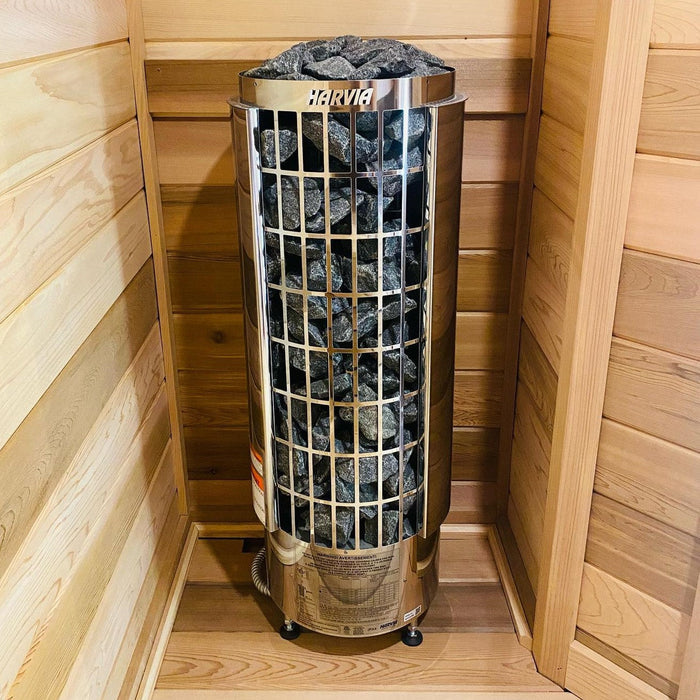

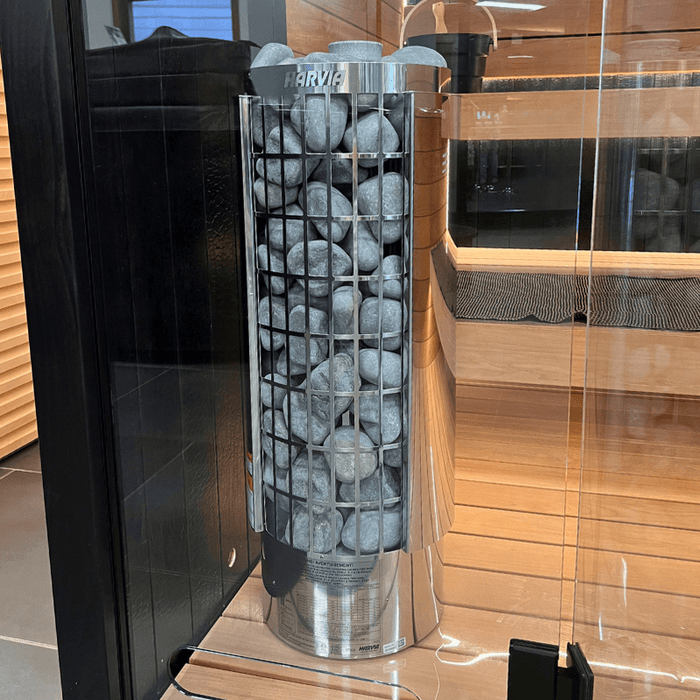

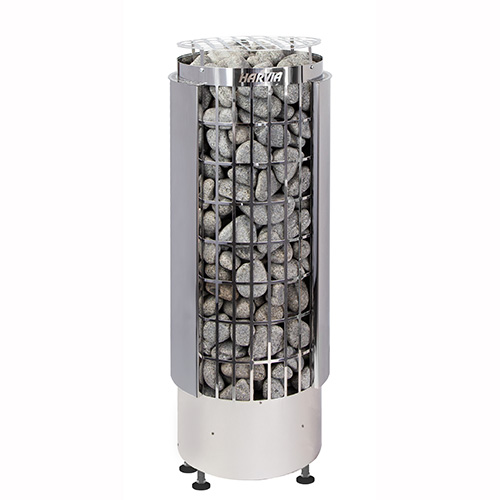

The Cilindro's cylindrical pillar form is the most visually distinctive heater design in the Harvia residential lineup. The grate-like outer shell is partially open at the front, wrapping around a tall column of 264 lbs of AC3000 stones with stainless steel heating elements running through the center. This architecture serves a specific purpose: the exposed stone mass gives bathers direct interaction with the stones during the session. The steam experience is adjustable in a way no other Harvia heater offers. Pouring water onto the side or middle of the stone pillar produces soft, gentle steam - the water travels through the outer layer of cooler stones before reaching the hot core, moderating the steam burst. Pouring water directly onto the top of the stone pillar produces sharp, intense steam - the water hits the hottest stones at the top of the column directly. A single Cilindro heater therefore offers two distinct steam experiences without any adjustment to settings or hardware - purely by changing where on the heater the bather chooses to ladle water.
Built-in heat shield - minimized safety distances and flexible placement
The Cilindro PC110E includes a built-in heat shield integrated into the outer shell design. This shield protects the adjacent sauna wall from the radiant heat output of the pillar and reduces the required safety distances to combustible surfaces - giving sauna designers and builders more flexibility in placement within the 141-636 cu ft room range. The Cilindro is designed for side wall or corner installation. Its circular footprint and tall pillar profile mean it occupies relatively little floor area for its output and stone mass compared to rectangular wall heaters, allowing benches to be positioned closer to the heater than a flat-face heater of equivalent capacity would permit.
Xenio or Fenix control required - "E" suffix designation

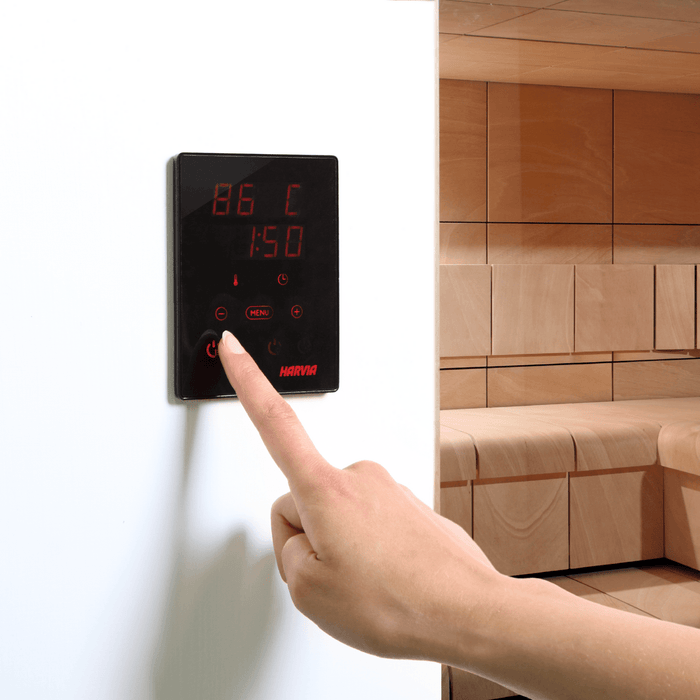

The "E" in PC110E designates external control - the Cilindro PC110E is controlled by a separate Xenio or Fenix control unit that must be purchased separately. The heater cannot operate without a control unit. At 10.5kW, a Xenio CX30 or CX45 is compatible; the corresponding Fenix FX30 or FX45 touchscreen controls are also compatible. Confirm the correct control tier with the IOM or contact BathingBrands before ordering. AC3000 stones in the 5-10 cm size range are specified for the Cilindro - confirm size before purchasing, as the Cilindro uses AC3000 5-10cm, not the AC3020 10-15cm used by most other Harvia heaters. A licensed electrician is required for all electrical connections. Do not connect to a GFI/GFCI breaker.
10.5kW floor-standing pillar-style electric sauna heater for rooms from 141 to 636 cubic feet. Cilindro Half Series - cylindrical grate-like outer shell, partially open front. Elements run down center through stone column. Two steam modes: pour on side for soft steam, pour on top for sharp steam. Built-in heat shield - minimizes safety distances. 264 lbs AC3000 5-10cm stones required (6 boxes, sold separately). Xenio or Fenix control required (sold separately). 240V/1PH - 43.75A. Stainless steel elements. Side wall or corner installation. HPC4 safety railing and HPC7 embedding flange compatible. Pallet delivery - scheduled appointment required. 46.3 lbs heater. ETL certified. 2-year warranty (consumer). Made in Finland by Harvia.
10.5 kW 141 to 636 cu ft Cilindro Half Series - pillar design Elements through center of stone column Two steam modes - soft side / sharp top Built-in heat shield - minimized safety distances Side wall or corner installation 264 lbs AC3000 5-10cm stones (6 boxes) Xenio or Fenix control required (sold separately) 240V / 1PH | 43.75A nominal Stainless steel elements HPC4 safety railing compatible HPC7 / HPCU7L embedding flange compatible Pallet delivery - 46.3 lbs heater ETL certified 2-year warranty (consumer) Made in Finland by Harvia
⚠️ Xenio or Fenix control required - not included. AC3000 stones (5-10 cm) required - not included. The Cilindro PC110E cannot operate without a control unit. 264 lbs of AC3000 sauna stones (6 boxes, 5-10 cm) must also be purchased separately. Note: Cilindro uses AC3000 in 5-10 cm size - not AC3020 10-15 cm. Confirm the correct stone size before ordering. An additional box is recommended. A licensed electrician is required. Do not connect to a GFI/GFCI breaker.
ℹ️ Cilindro Half (H) vs full Cilindro - what "Half" means. The "H" in HPCS11U1H designates the Cilindro Half series - a partially open front outer casing that exposes the stone surface directly to the sauna room on the front face. The full Cilindro (without H) has a more enclosed casing. The Half casing is what enables the two distinct steam modes and the direct bather interaction with the stone mass that defines the Cilindro PC110E experience. The built-in heat shield on the back protects the wall regardless of the open front.
Specifications
Electrical
| Power output |
10.5 kW |
| Voltage / Phase |
240V / 1-phase / 60 Hz |
| Nominal amperage |
43.75 Amps |
| Control included |
No - Xenio or Fenix control required (sold separately) |
| Max sauna temperature |
194°F |
| Certification |
ETL certified |
Room sizing and stones
| Room volume |
141 to 636 cu ft |
| Stones required |
264 lbs (6 boxes AC3000, 5-10 cm) - sold separately |
| Stone specification |
AC3000 5-10 cm - NOT AC3020 10-15 cm |
| Additional box recommended |
Yes - natural stones vary in shape and size |
Physical
| Design |
Pillar / cylinder - Cilindro Half (H) - partially open front |
| Mounting |

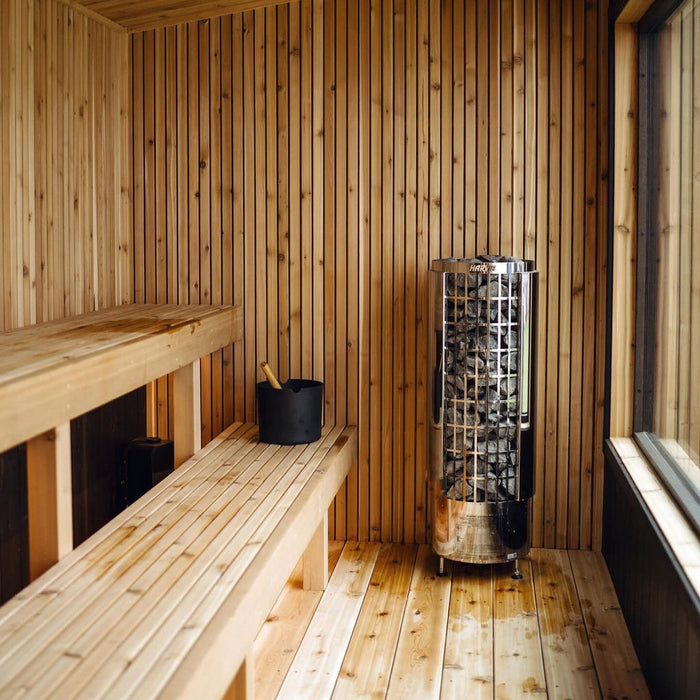

Floor-standing - side wall or corner |
| Heater weight |
46.3 lbs (21 kg) |
| Shipping weight (with stones) |
310.3 lbs |
| Elements |
Stainless steel - run down center through stone mass |
| Heat shield |
Built-in - protects wall, minimizes safety distances |
| Origin |
Made in Finland by Harvia |
Steam interaction - two modes
| Soft gentle steam |
Pour water onto the side or middle of the stone pillar |
| Sharp intense steam |
Pour water directly onto the top of the stone pillar |
| Why it works |
Side pour passes through cooler outer stones - top pour hits hottest stones directly |
Compatible controls (sold separately)
| Xenio CX30 |
Digital control - compatible with 10.5kW |
| Xenio CX45 |
Digital control - compatible with higher kW range |
| Fenix FX30 / FX45 |

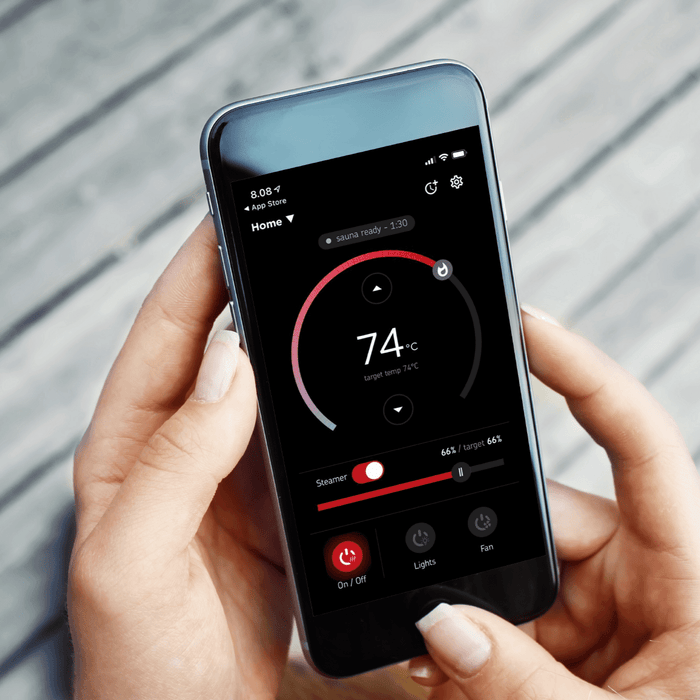

4.3" touchscreen - MyHarvia 2 app |
| Note |
Confirm correct Xenio/Fenix tier with IOM before ordering |
Compatible accessories (sold separately)
| HPC4 |

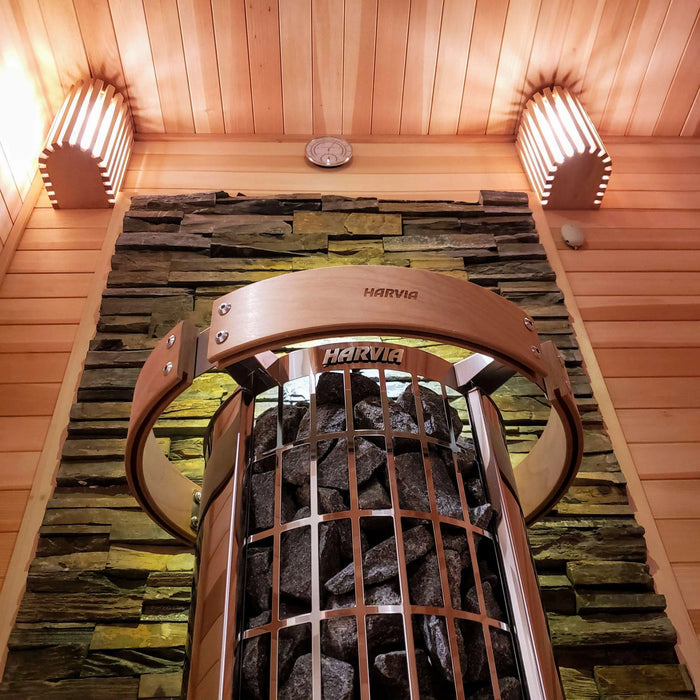

Safety railing - increases bathing safety around Cilindro |

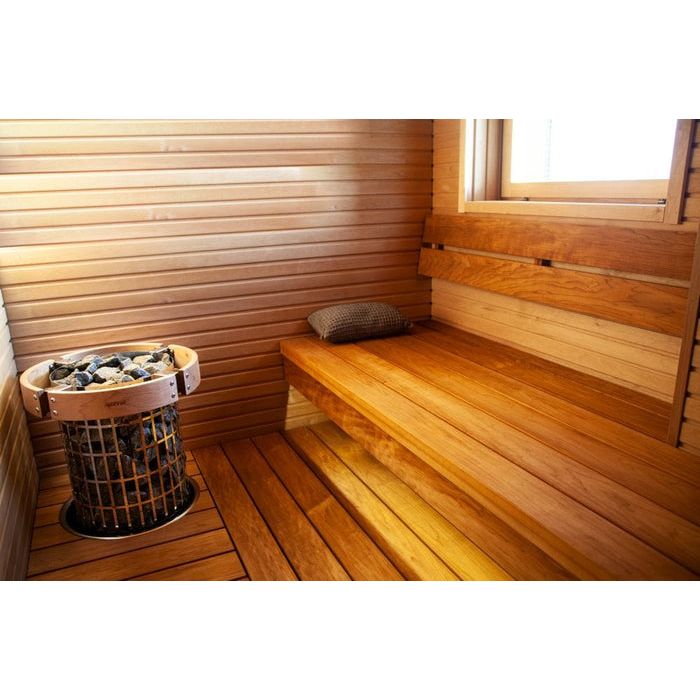

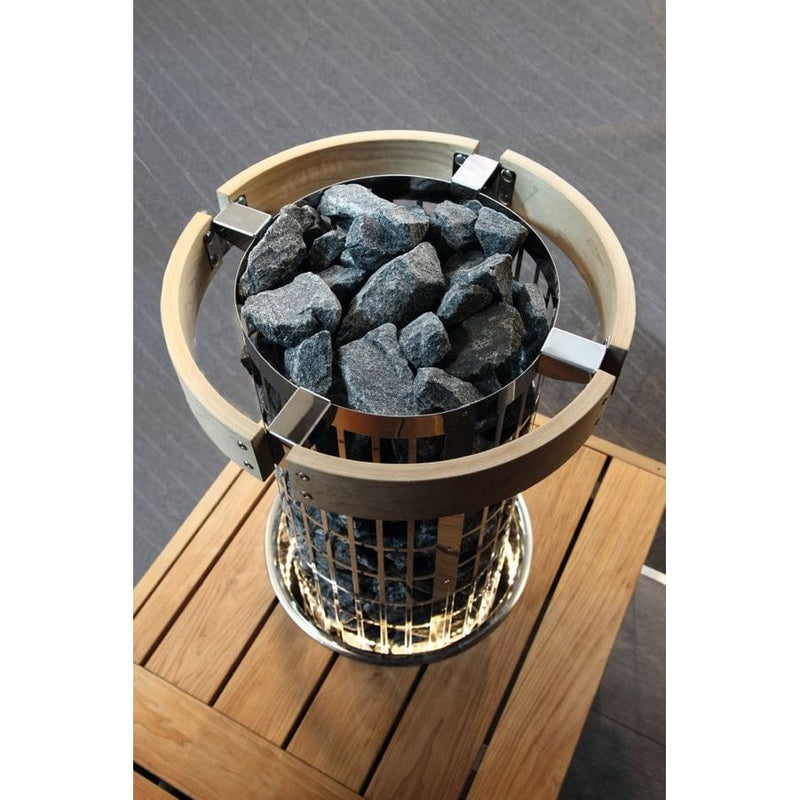

| HPC7 |

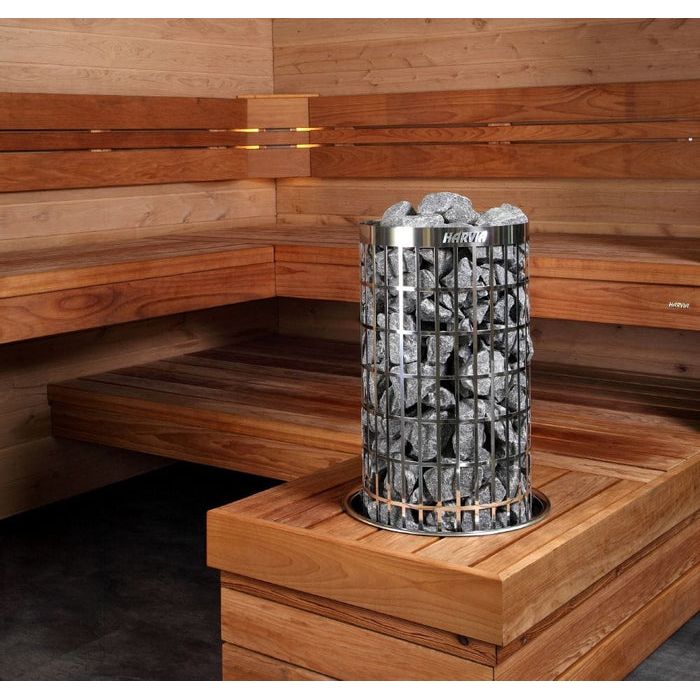

Embedding flange - for recessed Cilindro 10 installation |

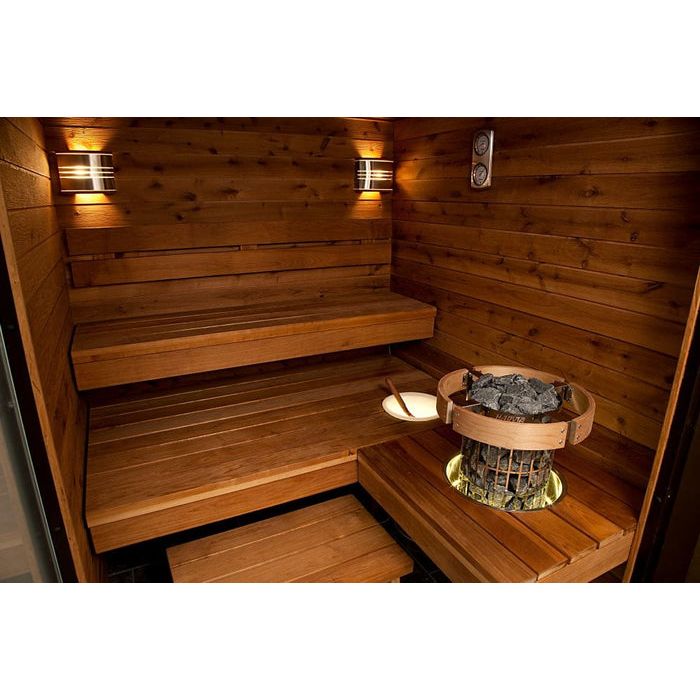

| HPCU7L |
Embedding flange with LED lights - illuminated recess |
| Both flanges |
For embedding Cilindro into a built-in platform or bench |
What's included
Harvia Cilindro PC110E 10.5kW pillar-style sauna heater with built-in heat shield
Installation and operation manual
2-year limited warranty (consumer use)
Required (not included): Xenio or Fenix control unit (sold separately at BathingBrands); 264 lbs AC3000 stones - 6 boxes, 5-10 cm (sold separately - additional box recommended - note AC3000 5-10cm not AC3020 10-15cm). Optional accessories (sold separately): HPC4 safety railing; HPC7 embedding flange; HPCU7L embedding flange with LED lights. A licensed electrician is required. Do not connect to a GFI/GFCI breaker.
Why the Harvia Cilindro PC110E stands out
Two distinct steam experiences - one heater
The Cilindro's partially open front and tall stone column provide two steam modes accessible to any bather in any session without changing settings. Pour water on the side for soft, layered steam - the water filters through cooler outer stones before reaching the hot core, producing a moderate, sustained steam burst suited to gentle sauna bathing. Pour directly on the top for sharp, intense steam - the water contacts the hottest stones at the column summit, producing an immediate, dense burst. No other Harvia heater offers this bather-controlled steam variability.
264 lbs of stones - massive thermal mass
At 264 lbs, the Cilindro PC110E holds more stones than any other Harvia heater in its power class. The large stone mass creates substantial thermal storage - once heated, the stone column retains heat for extended sessions and produces generous steam from water ladles throughout. The 264-lb stone load is the same as the Legend 150 wood-burning stove, achieving in an electric pillar heater the thermal mass performance typically associated with wood-burning sauna stoves.
Elements through the center - even stone heating
The stainless steel heating elements run vertically through the center of the stone column rather than sitting at the base or periphery. This central element positioning heats the stone mass from within - stones throughout the column are heated more evenly than in heaters where elements heat only the base stones. Even stone heating improves the consistency of steam production and the longevity of the stone mass before stones need to be turned or replaced.
Built-in heat shield - wall protection, flexible placement
The built-in heat shield on the Cilindro's back surface protects adjacent wall construction and reduces the required safety distance to combustible materials. For a floor-standing pillar heater in a sauna room, the ability to place it closer to the wall than the standard safety clearance for an unshielded heater gives more flexibility in bench layout and room configuration within the 141-636 cu ft room range. Side wall and corner placement are both supported.
Cylindrical pillar - sauna room centrepiece
The Cilindro is described by Harvia as "impressive to both look at and experience." The tall cylindrical pillar in stainless steel with visible stones through the grate-like outer shell is unlike any rectangular wall heater - it reads as a sauna room sculpture rather than an appliance. For sauna rooms where the heater is intended as a visual focal point, the Cilindro's form provides a design statement that flat-face heaters cannot replicate. The embedding flange accessories (HPC7, HPCU7L) allow it to be set into a platform for a fully integrated architectural appearance.
141-636 cu ft range - widest in the Harvia electric lineup
The 141-636 cu ft adjusted range covers a wider span than most single Harvia heater models - from small single-person saunas at the low end to large residential saunas at the upper end. The wide range reflects the Cilindro's high stone mass and efficient element positioning: the 264-lb stone column can sustain heat effectively across a broader room volume range than a wall-mounted heater with a fraction of the stone load. Use the Size Your Sauna document below and calculate adjusted cubic footage before confirming the Cilindro PC110E is correctly sized for the specific room.
About Harvia
Made in Finland - ETL Certified - Cilindro Half Series
Harvia Cilindro PC110E. 10.5kW. 141-636 cu ft. Pillar design. 264 lbs stones. Two steam modes.
Harvia is a Finnish sauna and spa company with over 70 years of manufacturing history. The Cilindro PC110E is Harvia's 10.5kW floor-standing pillar-style sauna heater - a cylindrical stone column with elements through the center, partially open front for bather steam interaction, built-in heat shield, and 264 lbs of AC3000 stones. Xenio or Fenix control required (sold separately). 264 lbs AC3000 5-10cm stones (6 boxes) required (sold separately). Pallet delivery. We are an authorized Harvia dealer.
-
10.5kW, 141-636 cu ft - 240V/1PH, 43.75A - ETL certified - made in Finland
-
Pillar design - elements through center - partially open front (Half series)
-
Two steam modes - pour side for soft, pour top for sharp
-
Built-in heat shield - minimized safety distances - side wall or corner install
-
264 lbs AC3000 5-10cm stones (6 boxes) required - Xenio/Fenix control required - both sold separately
Cilindro PC110E vs KIP / Spirit / Virta - which Harvia heater to choose
Cilindro PC110E vs KIP / Spirit - different heater architectures, different sauna experiences

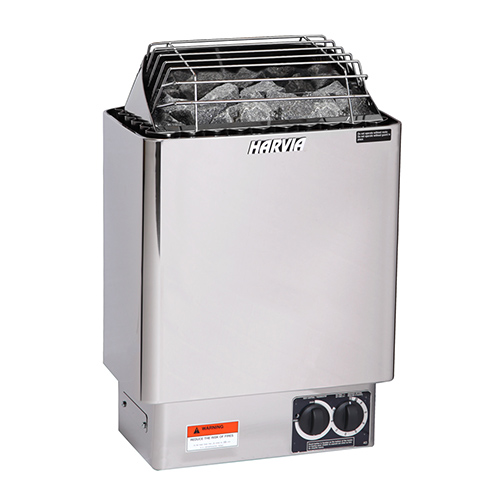

The Cilindro PC110E is a fundamentally different heater architecture from the KIP, Spirit, Wall, and Virta series. KIP and Spirit are wall-mounted rectangular heaters for 106-294 cu ft rooms - compact, low-profile, suitable for small to medium home saunas. The Cilindro PC110E is a floor-standing pillar for 141-636 cu ft - tall, sculptural, with 264 lbs of stones accessible to bathers for direct steam interaction. Choose KIP or Spirit for a standard wall-mounted installation in a smaller room. Choose the Cilindro PC110E when the sauna is large enough for a floor-standing pillar, the bather wants interactive steam control, the room design calls for a pillar centrepiece, or the maximum stone mass in an electric heater is the priority. The Cilindro PC110E requires a pallet delivery appointment; KIP and Spirit ship via standard parcel or UPS.
Manuals and Documents
Warranty
2-year limited warranty (consumer use)
The Harvia Cilindro PC110E is covered by Harvia's 2-year limited warranty from the date of purchase for consumer use. The warranty covers defects in manufacturing and materials under normal use conditions. The warranty does not cover damage caused by improper installation, use without the required stone load, use of incorrect stone type or size, connection to a GFI/GFCI breaker, operating without the required Xenio or Fenix control, or failure to follow Harvia's installation and operating guidelines. A licensed electrician is required for all electrical connections. Proof of purchase from an authorized Harvia dealer is required for warranty claims. We are an authorized Harvia dealer.
