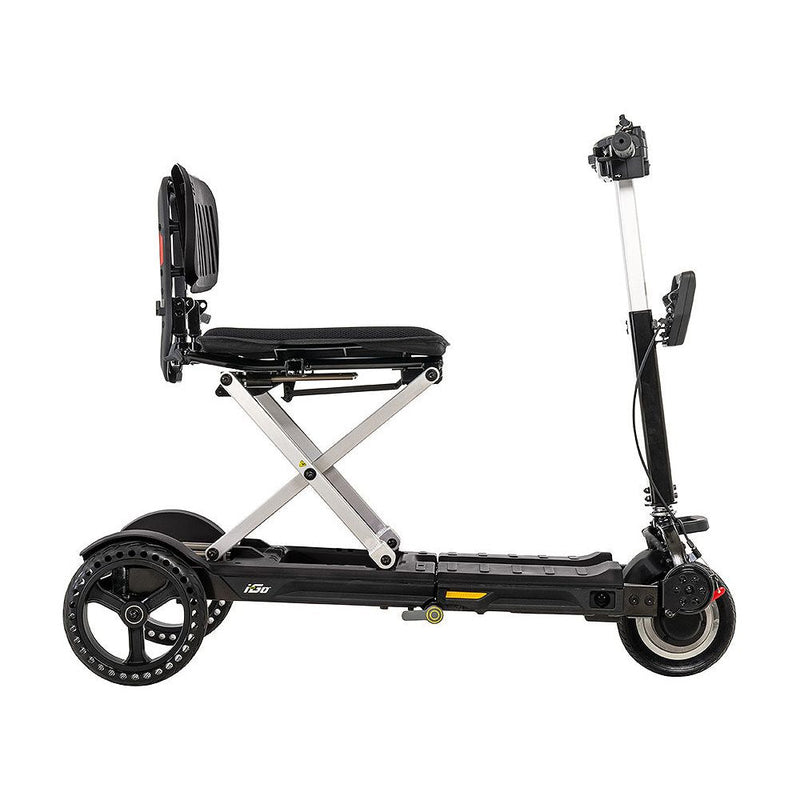

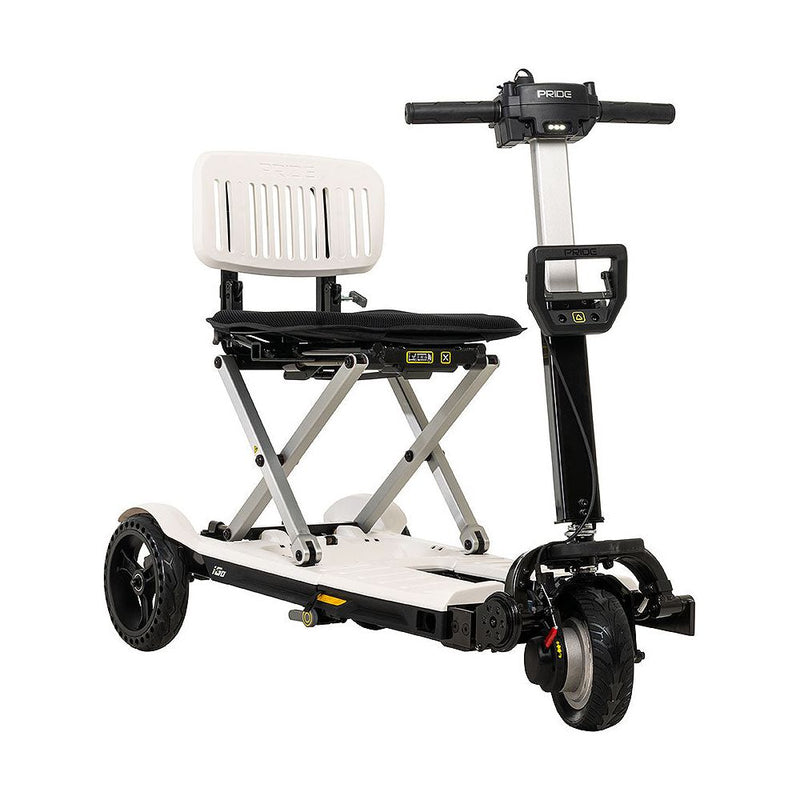

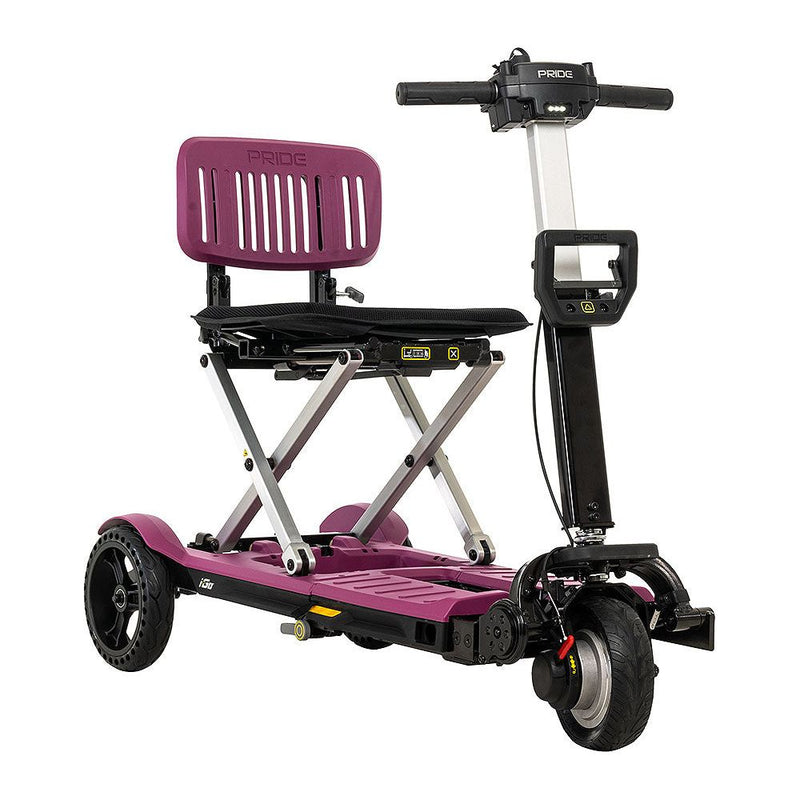

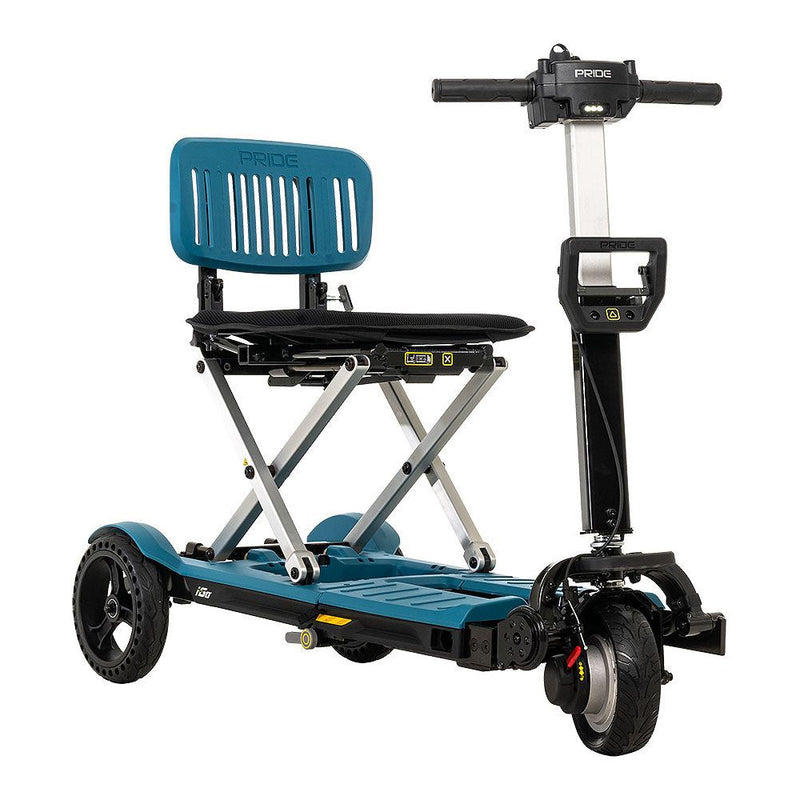

The iGo is the scooter for frequent travelers. It easily folds and disassembles into two lightweight pieces that can be carried like regular luggage onto an airplane or train. The supplied lithium-ion battery is airline-compliant.

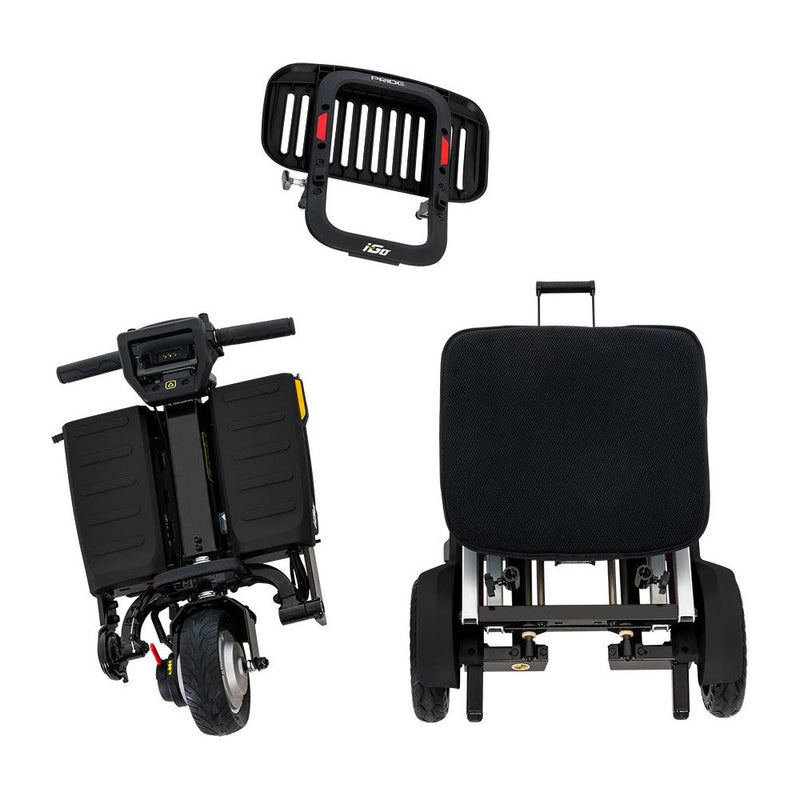

- Feather-touch disassembly separates the base into two pieces, weighing only 32 lbs. each
- Storage under the seat- you can still close the seat with the seat down
- Compact and less than 12" high when separated and seat back removed (fit under a bed in a cruise ship cabin)
- Adjustable tiller

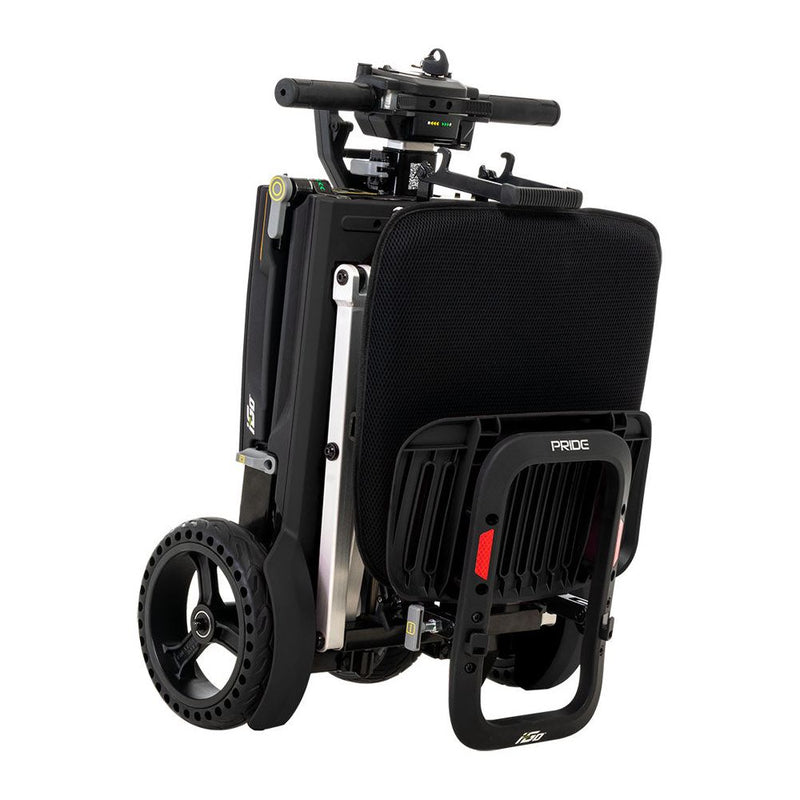

- This is a compact, portable light weight travel folding scooter 3-in-1 storage and is easily towable like a suitcase
- Foldable seat with removable base cushion and seat back
- Two-position telescoping and angle adjustable tiller, lowest position used for storage and the highest used for driving and towing
- Perforated rear rubber tires
- Spring-loaded Lithium-ion battery loaded in right side of the floor deck
- Controller located on the left side of the floor deck
- LED headlight
- USB charging port in console
- Spacious foot and passthrough room
Specifications
Weight Capacity |
275 lb |
|
|
Overall Length |
44" |
|
|
Overall Width |
20,3" |
|
|
Seat Depth |
16" |
|
|
Seat Width |
16" |
|
|
Per-Charge Range, Maximum |
9,3 mi |
|
|
Maximum Speed |
4 mph |
|
|
Turning Radius |
45,9" |
|
|
Weight, without batteries |
55,8 lb |
|
|
Weight, with batteries |
60,6 lb |
|
|
Heaviest Piece Weight |
32,8 lb |
|
|
Disassembly |
2 Pieces and Folds |
|
|
Front Wheel Diameter |
8" |
|
|
Rear Wheel Diameter |
9" |
|
|
Ground Clearance |
4,2" |
|
|
Drivetrain Type |
Front Wheel Hub Motor |
|
|
Motor Type |
Brushless DC |
|
|
Brake Type |
Regenerative and Electromechanical |
|
|
Battery Type |
25.2V 9.6AH Lithium-ion (aircraft approved) |
|
|
Battery Weight |
4,8 lb |
|
|
Battery Charger |
3.5 AH LI Charger |
|
|
Goes In Reverse |
No |
|
|
Freewheel Mode |
No |
|
|
Tiller Style |
Straight Handle Bars |
|
|
Owner's Manual
Brochure
Warranty
LIFETIME LIMITED WARRANTY
For the lifetime of your product from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
Structural Frame Components, including:
* Main Frame * Fork
* Seat Post * Tiller Frame
TWO-YEAR LIMITED WARRANTY
For two (2) years from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
* Transaxle * Brake * Bushings
* Bearings * Motor Brake (electronic function ONLY)
Also, electronic assemblies including:
* Electronic Controllers * Chargers
* Harnesses * Any Other Electrical Subassembly
SIX-MONTH WARRANTY
The battery is covered by a separate six-month warranty, provided by the battery manufacturer. The batteries are not warranted by Pride.
NOTE: Starting from date of product delivery, battery charge must be maintained to ensure warranty coverage. For mobility products which are not used regularly, or during periods of storage prior to and after purchase date, batteries must be charged once a week, for 24 hours. Failure to do so will void battery warranty.
WARRANTY EXCLUSIONS
This warranty does not extend to those items which may require replacement due to normal wear and tear.
* ABS Plastic Shrouds * Motor Brushes * Upholstery and Seating
* Brake Pads * Tires and Tubes * Fuses/Bulbs
* Circumstances beyond the control of Pride
* Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Pride Mobility Products
* Repairs and/or modifications made to any part without specific consent from Pride
Exclusions also include components with damage or failure caused by:
* Contamination
* Abuse, misuse, accident, or negligence
* Battery fluid spillage or leakage
* Use other than normal design specifications
* Improper operation, maintenance, or storage
NOTE: If there is an increase in the operational noise level in the transaxle, the warranty does not apply. An increase in operational noise level usually occurs due to abusive and excessive strain on the scooter.
NOTE: Gradual deterioration in performance because the battery has been left in a discharged state, left in cold conditions for an extended period of time, or worn out through heavy use is not covered.
SERVICE CHECKS AND WARRANTY SERVICE
Warranty service must be performed by an authorized Pride Provider. Do not return faulty parts to Pride without prior written authorization. All transportation costs and shipping damage incurred while submitting parts for repair or replacement are the responsibility of the purchaser. Please contact your authorized Pride Provider for informa- tion on the current cost associated with a service visit.
There is no other express warranty.
IMPLIED WARRANTIES
Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one (1) year from the date of original purchase and to the extent permitted by law. Any and all implied warranties are excluded. This is the exclusive remedy. Liabilities for consequential damages under any and all warranties are excluded.
Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion or limitation of incidental or consequential damages. So, the above limitation or exclusion may not apply to you.
