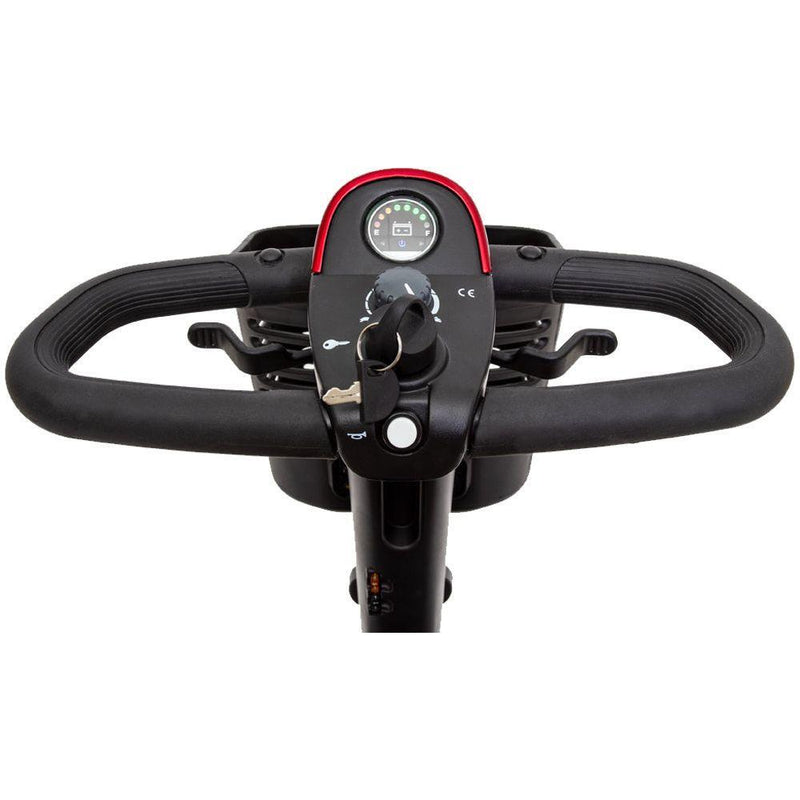

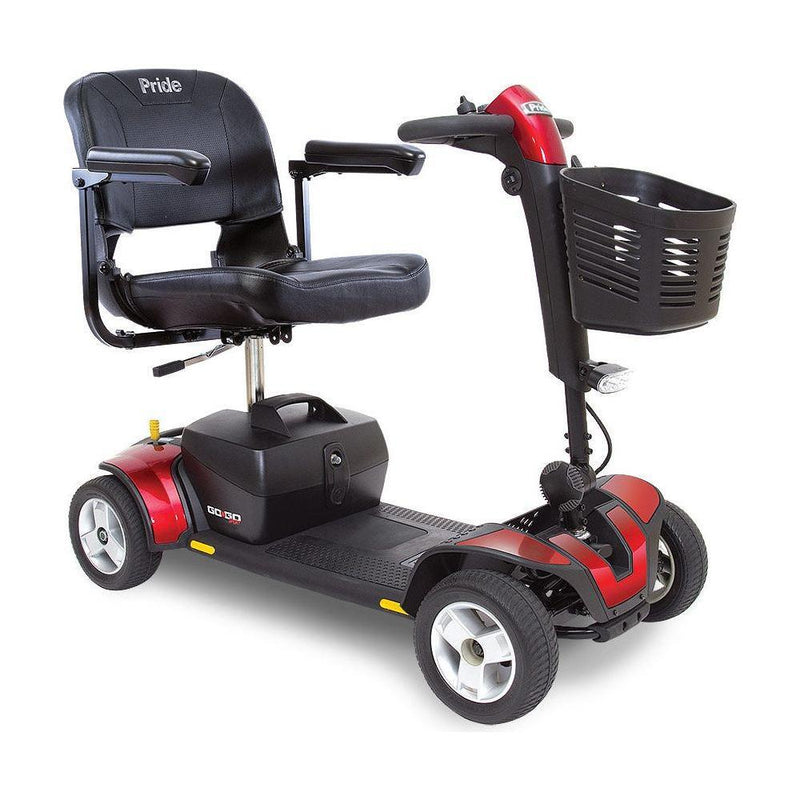

- There’s a reason this scooter is top-rated and top reviewed. With comfort features like a height-adjustable seat, flip-back armrests, and an ergonomic delta tiller, you’ll never want to travel any other way. Use one-handed steering to effortlessly cruise through shopping malls or grocery store aisles, then store your purchases in the front storage basket. A tiller charge port and off-board dual voltage charger give multiple options to quickly recharge your scooter and steer to your next destination.
Specifications
| Weight Capacity |
325 lb |
|
|
| Overall Length |
43" |
|
|
| Overall Width |
21,25" |
|
|
| Seat Depth |
17" |
|
|
| Seat Width |
17" |
|
|
| Per-Charge Range, Maximum |
12 mi |
|
|
| Maximum Speed |
4,7 mph |
|
|
| Turning Radius |
50,5" |
|
|
| Weight, without batteries |
100 lb |
|
|
| Weight, with batteries |
127,4 lb |
|
|
| Heaviest Piece Weight |
44 lb |
|
|
| Disassembly |

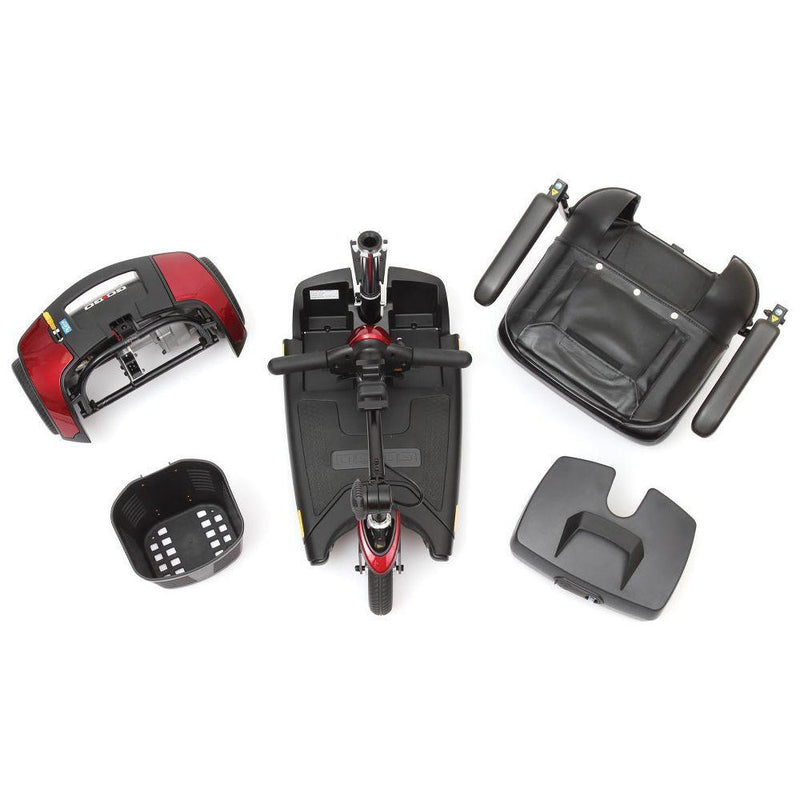

Disassembles into 5 lightweight pieces |
|
|
| Front Wheel Diameter |
9" |
|
|
| Rear Wheel Diameter |
9" |
|
|
| Ground Clearance |
3" |
|
|
| Tire Type |
Solid |
|
|
| Drivetrain Type |
Rear-wheel drive, sealed transaxle |
|
|
| Motor Type |
24-volt DC motor |
|
|
| Brake Type |
Regenerative and Electromechanical Dual Braking System |
|
|
| Battery Type |
Two 12-volt, deep-cycle |
|
|
| Battery Weight |
27,4 lb |
|
|
| Battery Charger |
2-amp, off-board |
|
|
| Goes In Reverse |
Yes |
|
|
| Freewheel Mode |
No |
|
Owner's Manuals
Brochure
Owners Manual
Warranty
LIFETIME LIMITED WARRANTY
For the lifetime of your product from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
Structural Frame Components, including:
* Main Frame * Fork
* Seat Post * Tiller Frame
TWO-YEAR LIMITED WARRANTY
For two (2) years from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
* Transaxle * Brake * Bushings
* Bearings * Motor Brake (electronic function ONLY)
Also, electronic assemblies including:
* Electronic Controllers * Chargers
* Harnesses * Any Other Electrical Subassembly
SIX-MONTH WARRANTY
The battery is covered by a separate six-month warranty, provided by the battery manufacturer. The batteries are not warranted by Pride.
NOTE: Starting from date of product delivery, battery charge must be maintained to ensure warranty coverage. For mobility products which are not used regularly, or during periods of storage prior to and after purchase date, batteries must be charged once a week, for 24 hours. Failure to do so will void battery warranty.
WARRANTY EXCLUSIONS
This warranty does not extend to those items which may require replacement due to normal wear and tear.
* ABS Plastic Shrouds * Motor Brushes * Upholstery and Seating
* Brake Pads * Tires and Tubes * Fuses/Bulbs
* Circumstances beyond the control of Pride
* Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Pride Mobility Products
* Repairs and/or modifications made to any part without specific consent from Pride
Exclusions also include components with damage or failure caused by:
* Contamination
* Abuse, misuse, accident, or negligence
* Battery fluid spillage or leakage
* Use other than normal design specifications
* Improper operation, maintenance, or storage
NOTE: If there is an increase in the operational noise level in the transaxle, the warranty does not apply. An increase in operational noise level usually occurs due to abusive and excessive strain on the scooter.
NOTE: Gradual deterioration in performance because the battery has been left in a discharged state, left in cold conditions for an extended period of time, or worn out through heavy use is not covered.
SERVICE CHECKS AND WARRANTY SERVICE
Warranty service must be performed by an authorized Pride Provider. Do not return faulty parts to Pride without prior written authorization. All transportation costs and shipping damage incurred while submitting parts for repair or replacement are the responsibility of the purchaser. Please contact your authorized Pride Provider for informa- tion on the current cost associated with a service visit.
There is no other express warranty.
IMPLIED WARRANTIES
Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one (1) year from the date of original purchase and to the extent permitted by law. Any and all implied warranties are excluded. This is the exclusive remedy. Liabilities for consequential damages under any and all warranties are excluded.
Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion or limitation of incidental or consequential damages. So, the above limitation or exclusion may not apply to you.
