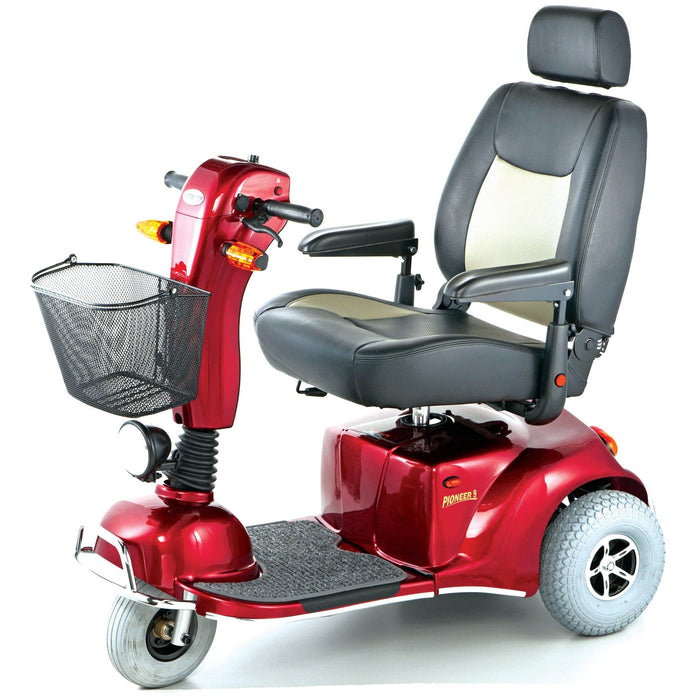

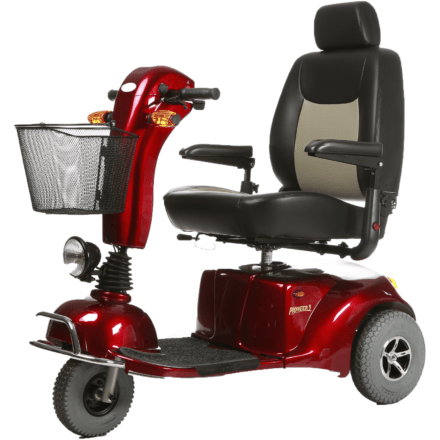

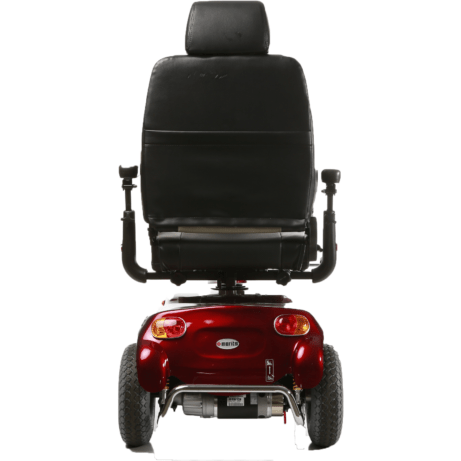

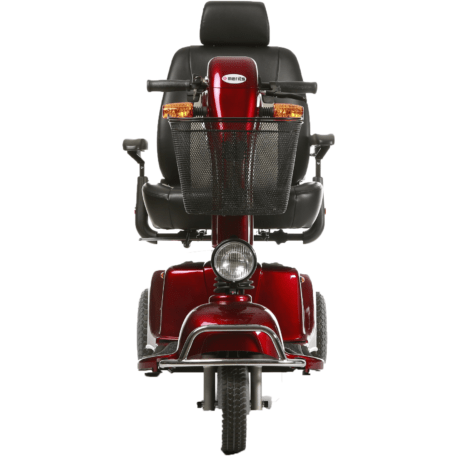

Merits Health Pioneer 9 DLX3 S331 Heavy Duty 3-Wheel Bariatric Scooter
Introducing the Merits Health Pioneer 9 Heavy Duty Mobility Scooter, your ultimate solution for a bariatric 3-wheel scooter that combines power, comfort and an impressive weight capacity. Take command of your mobility and explore the world with confidence, thanks to the outstanding features of the Pioneer 9 DLX3 S331 3-Wheel Scooter.
Unmatched Bariatric Comfort:

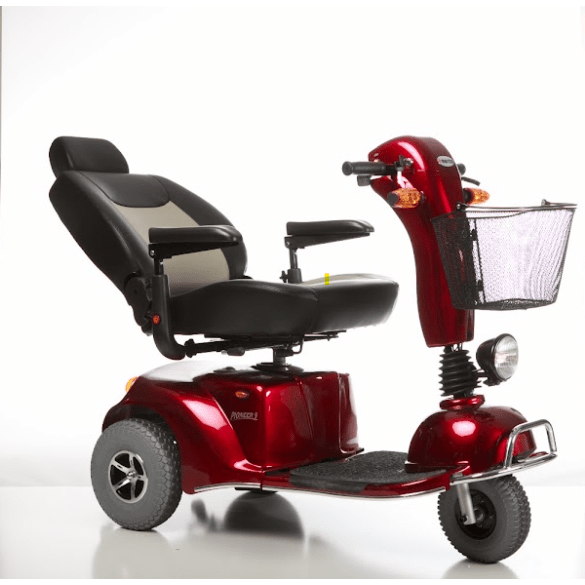

The Pioneer 9 boasts an extraordinary weight capacity of 500 lbs, setting it apart as a heavy-duty champion among scooters. Its generously wide 22-inch seat, accompanied by an extra-high 22-inch backrest, ensures unrivaled comfort during long journeys. This contoured, semi-reclining captain's seat is fully adjustable, with slide and swivel capabilities for easy entry and exit.
Powerhouse Battery:
Equipped with AH70 batteries, this scooter delivers not only exceptional weight support but also an astonishing driving range of 32 miles on a single charge, leading the pack in heavy-duty scooters. With a maximum speed of 6 mph, you'll effortlessly navigate various terrains and enjoy extended outings.
Conquer Any Terrain:
The Pioneer 9 excels in outdoor adventures with its flat-free tires on all three wheels, providing peace of mind wherever your path takes you. The 10-inch front tire and 12.5-inch rear tires provide a substantial ground clearance of 4 inches, enabling smooth rides over uneven surfaces and rough terrain. Its impressive 12-degree incline rating ensures you can conquer hills and obstacles with ease.
Safety First:
Safety is paramount with the Pioneer 9. Its intelligent, regenerative and electromagnetic brakes guarantee a secure stop, even when turning. The scooter automatically reduces speed by half during turns, ensuring your safety on any terrain. Front and rear bumpers protect the shroud from scratches and other damage.
Illuminating Package:
The Pioneer 9 DLX3 features a comprehensive lighting package, including a bright front headlight for visibility during the day and night. Additional lights include rear lights, side lights and tiller lights, ensuring you're visible to others on the road and safe during nighttime excursions.
Front Basket:
Need a place to stow your personal items? The spacious front basket, complete with a convenient carrying handle, is the perfect size for your everyday essentials.
Specification
| Technical Specs |
| Max Speed |
Up to 6mph |
| Range |
Up to 32 miles |
| Turning Radius |
50″ |
| Ground Clearance |
4″ |
| Motor |
DC 24V 400W |
| Controller |
Dynamic Rhino 160A |
| Battery |
12V/ U1 (34AH) x 2pcs |
| Charger |
6A off-board |
| Gradient |
10° |
| Casters |
9″ foam filled tires |
| Drive Wheels |
9″ foam filled tires |
| Brakes |
intelligent, regenerative, electromagnetic |
| Dimensions |
| Seat Width |
20″ |
| Seat Depth |
20″ |
| Seat Height |
20″ |
| Backrest Height |
22″ |
| Overall Length |
47″ |
| Overall Height |
45″ |
| Overall Width |
27" |
Features
- Hydraulic, adjustable tiller
- 22”W x 20”D x 22”H, sliding, captain seat
- Half speed inhibit switch
- Headlight, tail lights, turn signals and hazard lights
- 4” ground clearance
- Three wheels provide a tighter turning radius for increased maneuverability
Manuals
Warranty
1-YearFrame
1-YearElectronics
1-YearMotor / Brakes
1-YearBatteries
Coverage
- Frame 1 Year
- Electronics 1 year
- Motor/Brakes 1 year
- Batteries 1 year
Remedies and costs
Merits Health Products, Inc. will repair or replace parts as required, provided that an authorization for such return has been acquired by an established dealer and that the part or parts in question are returned fully insured with freight prepaid to us within the prescribed period of warranty. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.
Not covered
Merits Health Products, Inc will not warranty any parts damaged by improper installation and/or repair on the part of the individual owner's neglect, accident or misuse, nor those parts altered or serviced by an agency not authorized by us.
FAQ
What is the weight capacity of the Pioneer 9?
The Pioneer 9 has an impressive weight capacity of 500 lbs, making it suitable for a wide range of users.
How far can I travel on a single charge with the Pioneer 9?
The Pioneer 9 offers an outstanding driving range of up to 32 miles on a single charge, allowing for extended outings with confidence.
Is the Pioneer 9 suitable for outdoor use?
Yes, the Pioneer 9 is designed to excel in outdoor adventures, with flat-free tires, a robust motor, and an impressive 12-degree incline rating.
Does the Pioneer 9 have safety features?
Absolutely, the Pioneer 9 prioritizes safety with intelligent brakes, speed reduction during turns, and front and rear bumpers for added protection.
