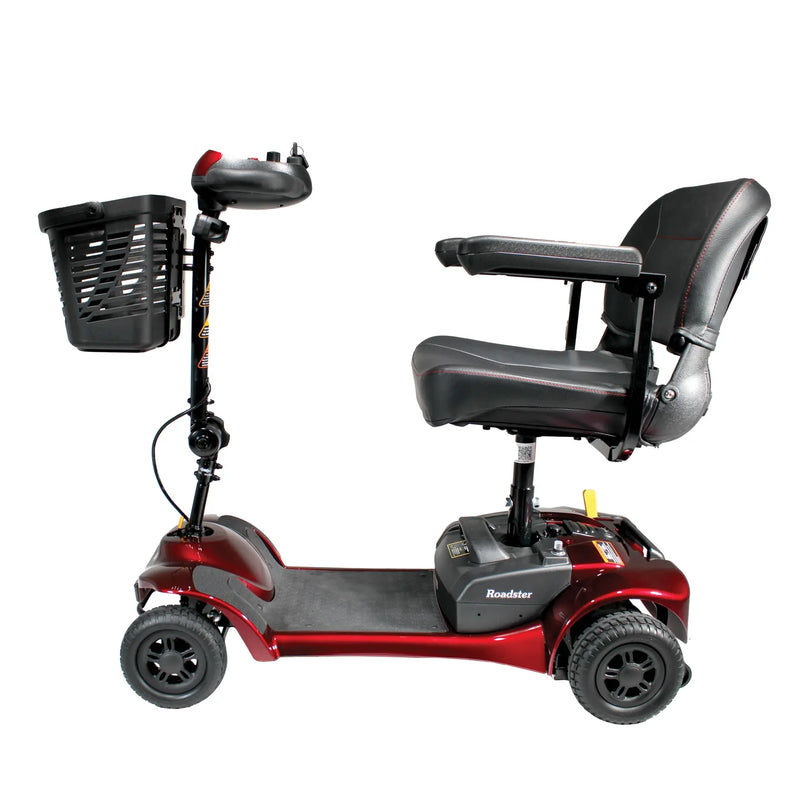

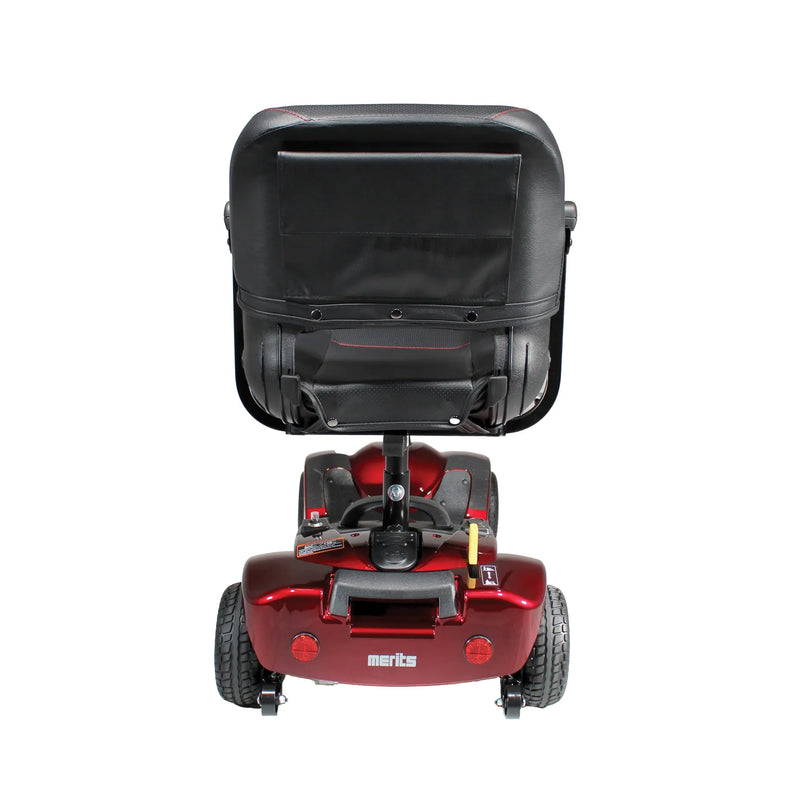

Merits Health Roadster 4 S741A 4-Wheel Mobility Scooter
Roadster 4 - Your Lightweight and Convenient Mobility Solution

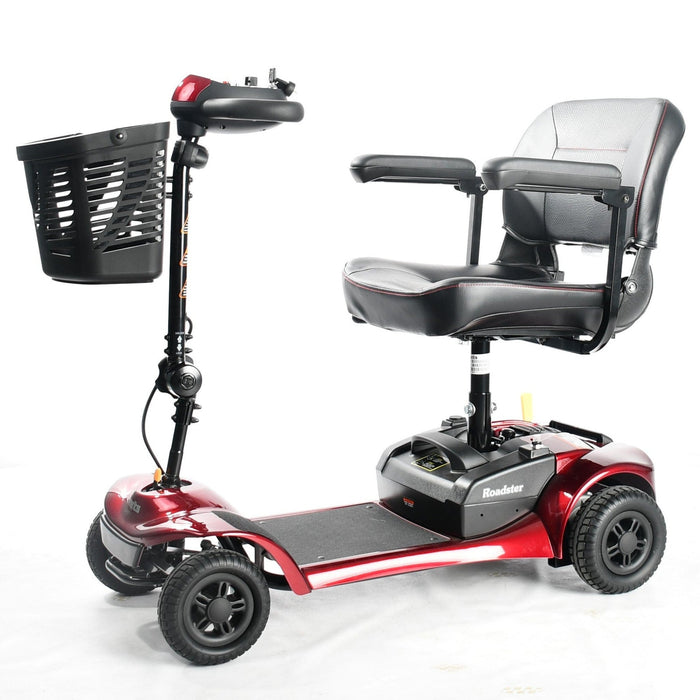

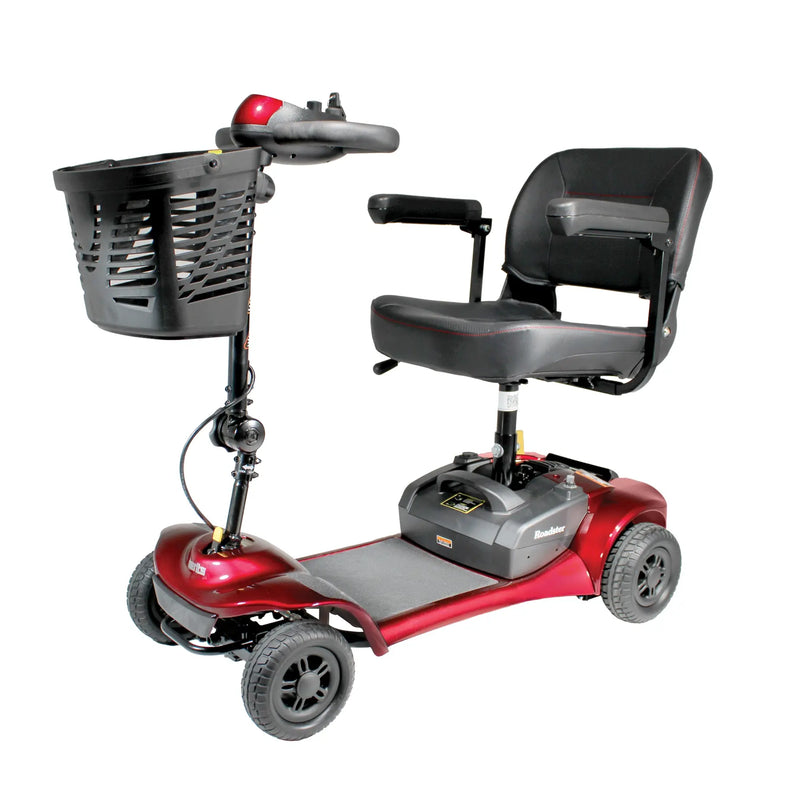

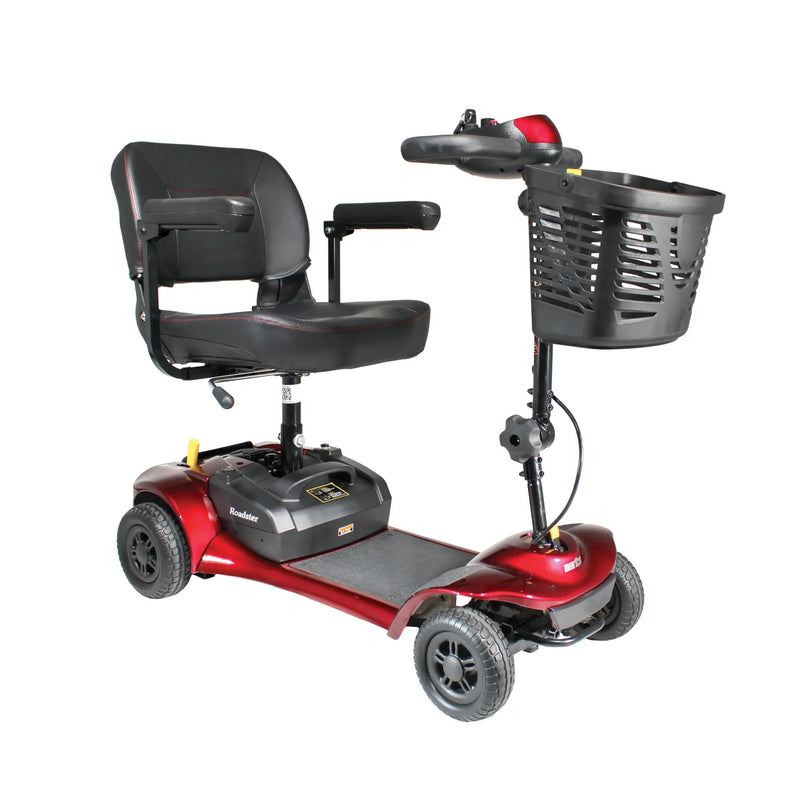

Explore the world with the Merits Health Roadster 4-Wheel Mobility Scooter, the epitome of affordability, portability and comfort. This lightweight and easily disassembled scooter is designed to make your daily adventures effortless, ensuring you maintain your independence without compromise.
Portable Mobility Scooter:
The Merits Health Roadster S741A 4-Wheel Mobility Scooter weighs only 106 lbs! It's one of the lightest mobility scooters on the market. Two 12AH batteries give you a driving range of up to 6 miles per charge, at a top speed of 4 miles per hour. The Roadster has a weight capacity of 300 lbs.

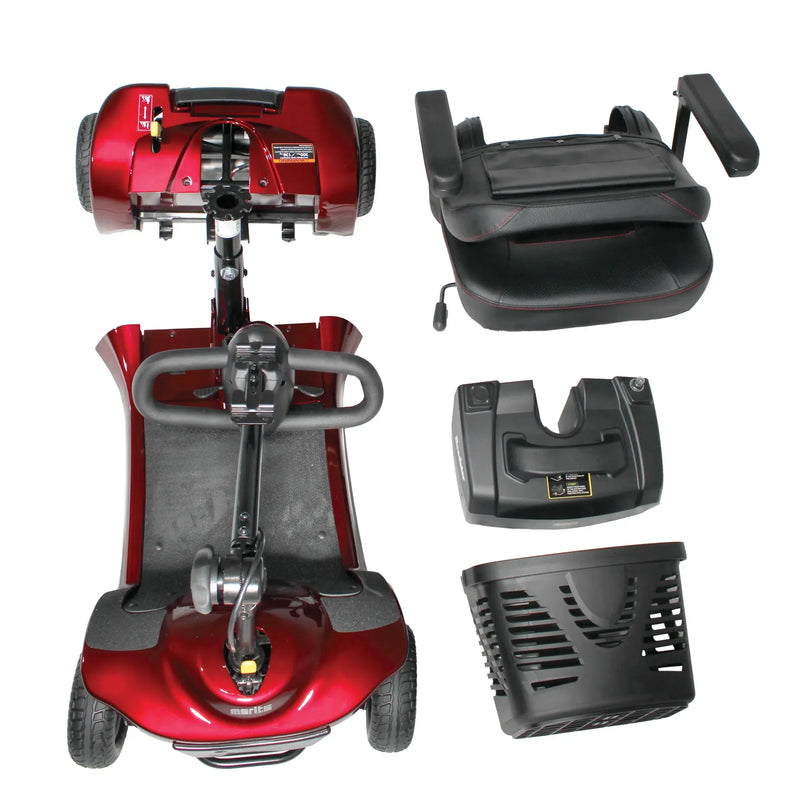

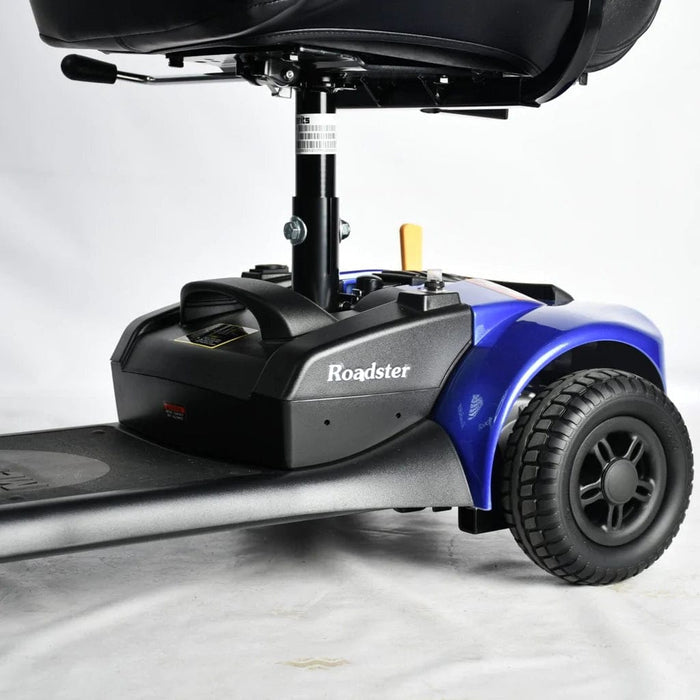

To transport the scooter, start by folding the seat forward and removing it from the base. Then take out the battery pack and fold down the tiller. When disassembled, the heaviest piece is just 36 lbs. This lightweight scooter can fit in the trunk of most cars, and easily fits in any truck or SUV.
Stable Scooter:

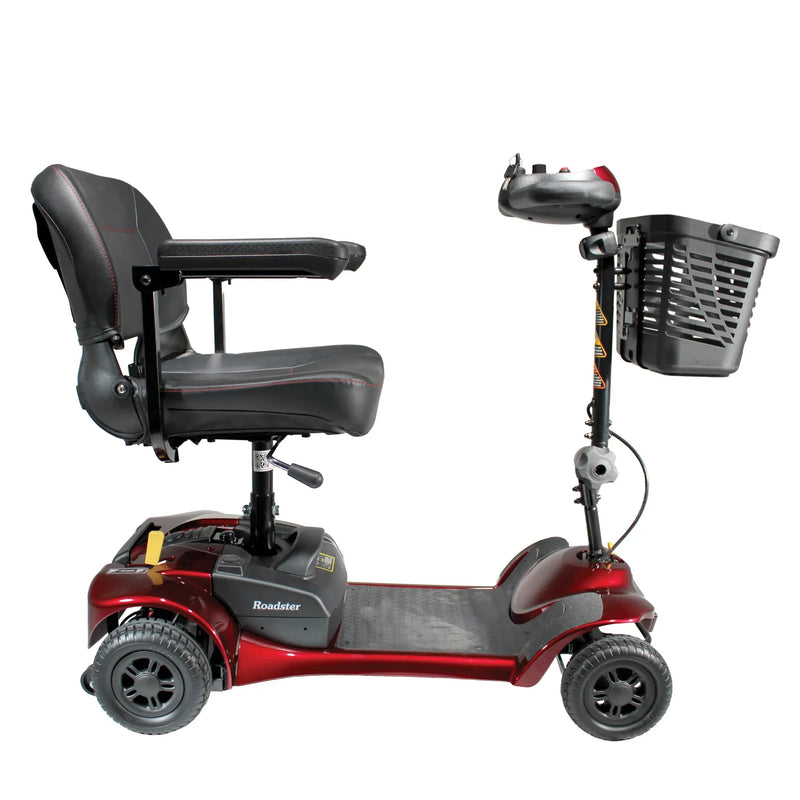

With 8-inch front wheels and 8-inch rear wheels, the Roadster S741A is very stable. You can ride safely in the mall, on sidewalks, around your neighborhood, and in your home. And anti-tip wheels keep you stable when you go over obstacles or up a hill.

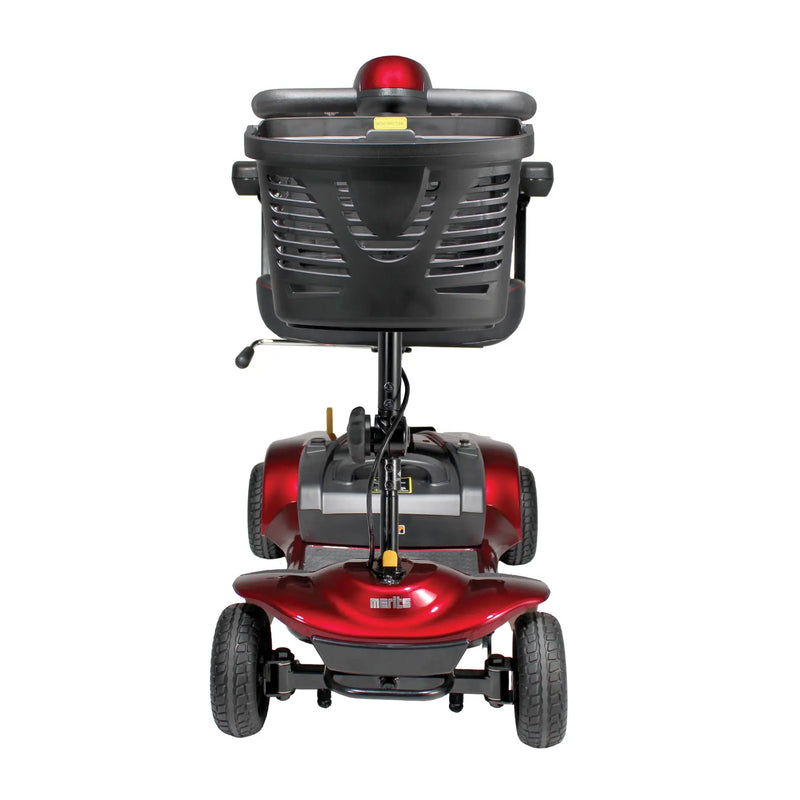

When riding indoors, the non-marking PU wheels give you peace of mind and keep your floors clean. The overall width of the Merits Health Roadster is just 21 inches, meaning you can easily fit through any doorway. You'll even be able to maneuver around obstacles or in tight spaces with the Roadster's 43.3-inch turning radius.
Unbeatable Comfort:
The Merits Health S741A has a wide foot platform for comfortable riding. Tall riders can even put their feet on the wheel rims to stretch their legs. The comfortable 18-inch deluxe stadium seat swivels and is height adjustable, and the armrests flip back for added safety and convenience when getting on or off the scooter. The armrests are also width adjustable.
Adjustable Tiller:

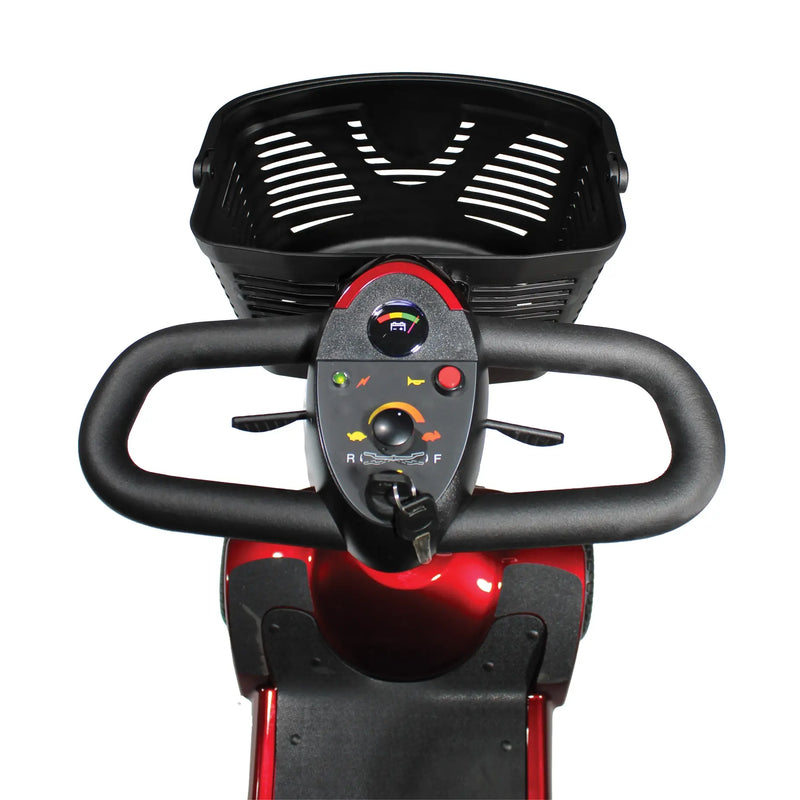

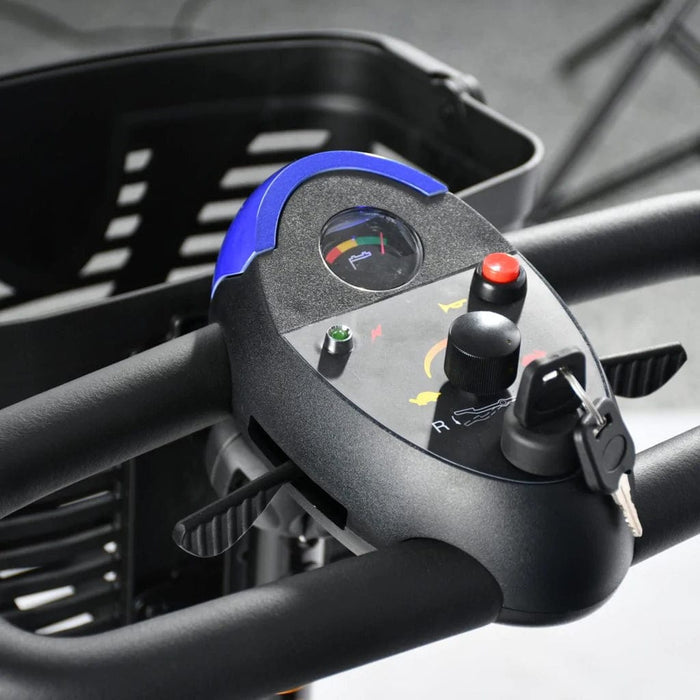

Need to change the angle on the tiller? No problem! Easily adjust the tiller to find the perfect driving position. A few user-friendly controls on the tiller give you complete control. Put the key in the ignition to turn the Roadster S741A on and off.
Turn the speed control knob to slow down or speed up, and use the handy levers to drive forward or backward. Don't forget to keep an eye on the battery gauge to see how much power you have left.
Convenient Front Basket:
You'll need a place to put your personal items when you're on the go. The convenient front basket is large enough to hold personal items, or even carry your shopping.
Specification
| General |
| Product Number |
S741A |
| Weight Capacity |
300 lbs |
| Drive Configuration |
Rear wheel drive (RWD) |
| Maximum Speed |
4 mph |
| Range Per Charge |
Up to 6 miles |
| Turning Radius |
43.3 in |
| Ground Clearance |
2 in |
| Gradient (Incline) |
6 degrees |
| Brakes |
Intelligent, regenerative, electromagnetic |
| Seating |
| Seat Type |
Deluxe stadium seat |
| Seat Width |
18 in |
| Seat Depth |
17 in |
| Seat-to-Deck Height |
16 in to 18 in |
| Seat-to-Ground Height |
19 in to 21 in |
| Backrest Height |
15 in |
| Dimensions and Weight |
| Overall Length |
30 in |
| Overall Width |
21 in |
| Overall Height |
36 in |
| Weight of Heaviest Piece |
36 lbs |
| Product Weight |
106 lbs |
| Technical |
| Motor |
DC 24V / 100W |
| Controller |
Dynamic R-series 50A |
| Battery Size |
12V / 12AH (2 required) |
| Off-Board Charger |
2A |
| Front Wheel |
8 in PU |
| Rear Wheel |
8 in PU |
| Coverage and Billing |
| Medicare Coverage |
Group 1 |
| Medicare Code |
K0800 |
Features
-
Four-Wheel Stability: The four-wheel design provides added stability and confidence across a variety of everyday surfaces.
-

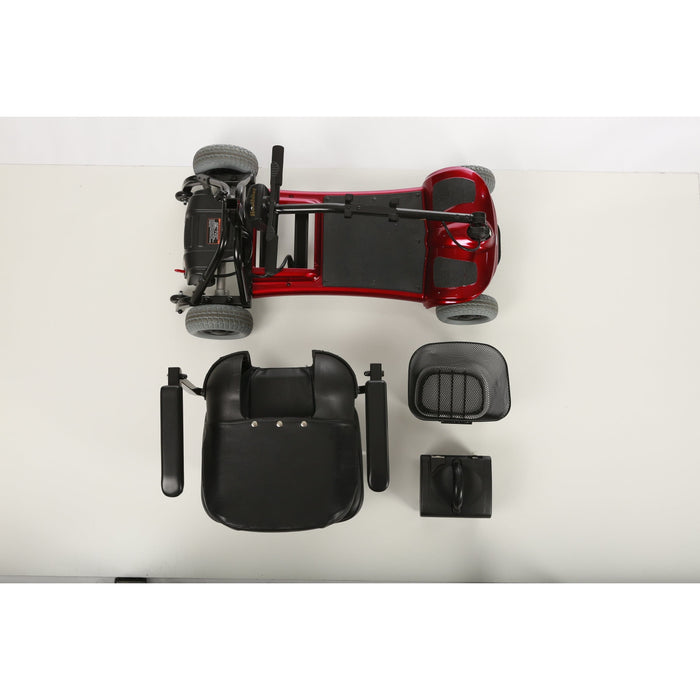

Travel-Ready Design: Easily disassembles into five lightweight pieces for convenient transportation and storage, with an auto latching lockup design.
-
Ergonomic Controls: An angle-adjustable tiller and loop throttle provide comfortable operation by palm or finger and easy transfers on and off the scooter.
-
Detachable Battery: The removable battery pack simplifies charging and makes transportation even more convenient.
-
300 lbs Weight Capacity: Dependable support in a scooter that weighs only 106 lbs.
-
18" Deluxe Stadium Seat: Adjustable seat height, with flip-up and width adjustable armrests.
-
Non-Marking Puncture Proof Tires: 8 in PU front and rear wheels that won't scuff floors and have nothing to go flat.
-
Built-In Handles: Lifting handles built into the frame for easier loading.
-
Extra Charging Port: An extra charging port under the dashboard for easy plug in.
-
Non-Slip Foot Mat: A wide foot platform with a non-slip mat for comfortable riding.
-
Simple Dashboard: An easy to read dashboard with key ignition, speed control knob, throttle levers and battery gauge.
-
No Tools Needed: Set-up requires no tools at all.
Manuals
Warranty
Manufacturer Warranty
18 Months For Electronic Controllers, Harnesses, Chargers, Motors
Remedies and costs
Merits Health Products, Inc. will repair or replace parts as required, provided that an authorization for such return has been acquired by an established dealer and that the part or parts in question are returned fully insured with freight prepaid to us within the prescribed period of warranty. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.
Not covered
Merits Health Products, Inc will not warranty any parts damaged by improper installation and/or repair on the part of the individual owner's neglect, accident or misuse, nor those parts altered or serviced by an agency not authorized by us.
FAQ
How much weight can the Roadster 4 support?
The Roadster 4 has a weight capacity of 300 lbs, while the scooter itself weighs only 106 lbs.
Will it fit in the trunk of my car?
Yes. The Roadster 4 disassembles into five pieces with no tools needed. Fold the seat forward and lift it off the base, take out the battery pack and fold down the tiller. The heaviest single piece is 36 lbs, and built-in handles make lifting easier, so it fits in the trunk of most cars and easily in any truck or SUV.
How far can it travel on a single charge, and how fast does it go?
The Roadster 4 travels up to 6 miles per charge with a top speed of 4 mph. It runs on two 12V 12AH batteries, and the removable battery pack plus the extra charging port under the dashboard let you charge it either on or off the scooter.
Can I use it indoors and fit through doorways?
Yes. At 21 in wide and 30 in long, the Roadster 4 fits through standard doorways, and the non-marking PU wheels won't scuff your floors. The turning radius is 43.3 in, so allow that much room to turn around in hallways and tight corners.
Do the tires ever go flat?
No. The 8 in front and rear wheels are solid PU, so there are no inner tubes to puncture. The four-wheel design and anti-tip wheels keep you steady over obstacles and small inclines, with a 6 degree gradient rating and 2 in of ground clearance.
