The Afikim Afiscooter C3 is a full-size 3-wheel mobility scooter built for users who want performance, comfort, and range in equal measure. Its 3-wheel format delivers a tighter turning radius than 4-wheel equivalents — 50 inches — making it the more agile choice for indoor environments like restaurants, shops, and narrow hallways, without sacrificing the stability and ride quality that full-size scooters are designed to provide. The Afiscooter C3 is engineered for both indoor and outdoor daily use, with a full front-and-rear suspension system, wide pneumatic tires, and 4 inches of ground clearance giving it the capability to handle uneven pavement, parking lots, kerb transitions, and rough outdoor surfaces that compact travel scooters cannot manage comfortably.
Adjustable orthopedic captain's seat with swivel — designed for dining and comfort
The captain's seat on the Afiscooter C3 is not a standard mobility scooter seat — it is an adjustable orthopedic padded seat specifically designed for extended riding comfort and practical daily use. The swivel mechanism is the feature that distinguishes it most clearly from fixed seats: drive up to a restaurant table, swivel the seat to face forward, and sit at the table without transferring out of the scooter. The seat width is 18 inches as standard, with a 20-inch seat option available for larger users. Boarding is made easier by the swivel action — the seat can be rotated outward to facilitate a more natural transfer on and off the scooter rather than requiring the user to pivot into a fixed forward-facing position.
Full front-and-rear suspension, pneumatic tires, and 4-inch ground clearance
The Afiscooter C3's suspension system covers both axles — front and rear — with shock absorbers integrated throughout. This is a full suspension setup rather than the partial or no-suspension configuration found on many entry-level and mid-range scooters, and it produces a meaningfully smoother ride over uneven surfaces. The pneumatic (air-filled) tires — 4.10/3.50-6" on both front and rear — absorb road vibration at the wheel level in addition to the suspension system, producing a layered comfort benefit that solid or foam-filled tire alternatives cannot match. The 4-inch ground clearance allows the C3 to clear typical urban obstacles — sidewalk cracks, speed bumps, shallow kerb drops — without grounding the chassis, and the 9-degree maximum climbing angle (16% gradient) handles inclined driveways and ramps within standard accessibility specifications.
25–28 mile range, up to 9.3 mph, 24V 950W motor, and Delta tiller with LCD display
The standard 12V 48Ah dual-battery configuration delivers a 25-to-28-mile range on a single charge — sufficient for a full day of errands, outings, or extended outdoor use without recharging. An extended range option with 12V 70Ah batteries is available for users who regularly require more distance. Top speed reaches 9.3 mph under optimal conditions with a lower 6.2 mph figure at conservative settings. The 24V DC 950W rear-wheel-drive motor is controlled through an SD 120A controller, managed via the Delta tiller — a tilting handlebar-style control interface with an integrated LCD display and left and right side finger-touch controls that can be operated from either hand, accommodating users with limited grip strength or single-hand dexterity. The 8-amp onboard charger handles recharging at a standard outlet.
A full-size 3-wheel mobility scooter with full front-and-rear suspension and orthopedic swivel captain's seat. Overall length 51". Overall width 26". Height without canopy 50". Ground clearance 4". Weight without batteries 165 lbs. Weight capacity 297 lbs. Travel range 25–28 miles. Maximum speed 6.2–9.3 mph. Turning radius 50". Pneumatic tires 4.10/3.50-6" front and rear. Standard batteries: 2× 12V 48Ah (extended range 12V 70Ah available). 24V DC 950W rear-wheel-drive motor. SD 120A controller. Delta tiller with LCD display and left/right finger-touch controls. 8-amp charger. LED headlight. Lockable front compartment. Max climbing angle 9° (16%). Optional accessories: hard-top canopy, rear lockbox, 20-inch seat, crutch holder. 2-year warranty on electrical components / 1-year on mechanical. Manufactured by Afikim Electric Vehicles.
3-wheel full-size scooter Full front and rear suspension Shock absorbers Orthopedic swivel captain's seat 18" seat (20" option available) Pneumatic tires — front and rear 4" ground clearance 50" turning radius 25–28 mile range Up to 9.3 mph top speed 24V 950W rear-wheel-drive motor Delta tiller with LCD display Left and right finger-touch controls 8-amp charger LED headlight Lockable front compartment Optional hard-top canopy Optional rear lockbox 297 lb weight capacity 2-year electrical / 1-year mechanical warranty
Specifications
Dimensions and weight
| Overall length |
51" |
| Overall width (standard wheels) |
26" |
| Overall height (no canopy) |
50" |
| Overall height (with canopy) |
65" |
| Overall height (folded) |
31" |
| Ground clearance |
4" |
| Weight (no batteries) |
165 lbs |
| Weight capacity (incl. driver) |
297 lbs |
| Canopy weight |
26 lbs |
Performance
| Travel range |
25–28 miles |
| Maximum speed |
6.2–9.3 mph |
| Max climbing angle |
9° (16%) |
| Turning radius |
50" |
Drive system and batteries
| Motor |
24V DC 950W rear-wheel drive |
| Controller |
SD 120A |
| Battery type (standard) |
2× 12V 48Ah |
| Battery type (extended range) |
2× 12V 70Ah (optional) |
| Charger |
8-amp |
Tires and suspension
| Tire type |
Pneumatic (air-filled) |
| Front tire size |
4.10/3.50-6" |
| Rear tire size |
4.10/3.50-6" |
| Suspension |
Full front and rear suspension
with shock absorbers |
Controls and features
| Tiller type |
Delta tiller — adjustable |
| Display |
LCD |
| Controls |
Left and right finger-touch controls |
| Seat width (standard) |
18" |
| Seat type |
Orthopedic padded captain's seat
with swivel |
| Headlight |
LED — energy efficient |
| Storage |
Lockable front compartment |
Options and accessories
| Canopy |
Hard-top canopy (optional) |
| Rear storage |
Lockable rear box (optional) |
| Wider seat |
20" seat (optional) |
| Mobility aid holder |
Crutch holder (optional) |
| Extended battery |
12V 70Ah (optional) |
Warranty
| Electrical components (2 years) |
Motor, transaxle, EMB, controller,
charger, harnesses, boards,
sensors, switches, fuses |
| Mechanical components (1 year) |
Bearings, bushings,
shock absorbers, seat |
| Warranty exclusions |
Tires, brake pads, bulbs,
upholstery, plastic shrouds,
normal wear and tear |
| Manufacturer |
Afikim Electric Vehicles |
Afiscooter C3 — Dimensions Overview
What's included
Afiscooter C3 3-wheel mobility scooter
Orthopedic padded swivel captain's seat (18")
Full front and rear suspension system
Pneumatic tires — front and rear
2× 12V 48Ah batteries (standard)
8-amp battery charger
Delta tiller with LCD display
Left and right finger-touch controls
LED headlight
Lockable front storage compartment
SD 120A controller
User manual
Why the Afiscooter C3 stands out
Swivel orthopedic seat — dine at the table
The padded orthopedic captain's seat swivels to face any direction — drive up to a restaurant table, rotate to face forward, and sit without transferring. The swivel also makes boarding and disembarking significantly easier by allowing the seat to rotate outward toward the user rather than requiring a pivot into a fixed position.
Full front and rear suspension
Both axles carry independent suspension with shock absorbers — a full system, not a front-only or rear-only setup. Combined with pneumatic tires on all wheels, the C3 absorbs road vibration and impact at two levels, producing a ride quality that compact and entry-level scooters cannot replicate over uneven outdoor surfaces.
25–28 mile range — all-day confidence
The standard dual 12V 48Ah battery configuration delivers 25 to 28 miles of real-world range — enough for a full day of outings, errands, and extended outdoor use without recharging mid-day. Extended range 12V 70Ah batteries are available for users who regularly travel further or want a larger safety margin.
3-wheel design — 50-inch turning radius
The 3-wheel format produces a 50-inch turning radius — tighter than most 4-wheel full-size scooters — making the C3 more manoeuvrable in shops, restaurants, lifts, and narrow corridors while maintaining the full-suspension stability and pneumatic tire performance of a full-size outdoor platform.

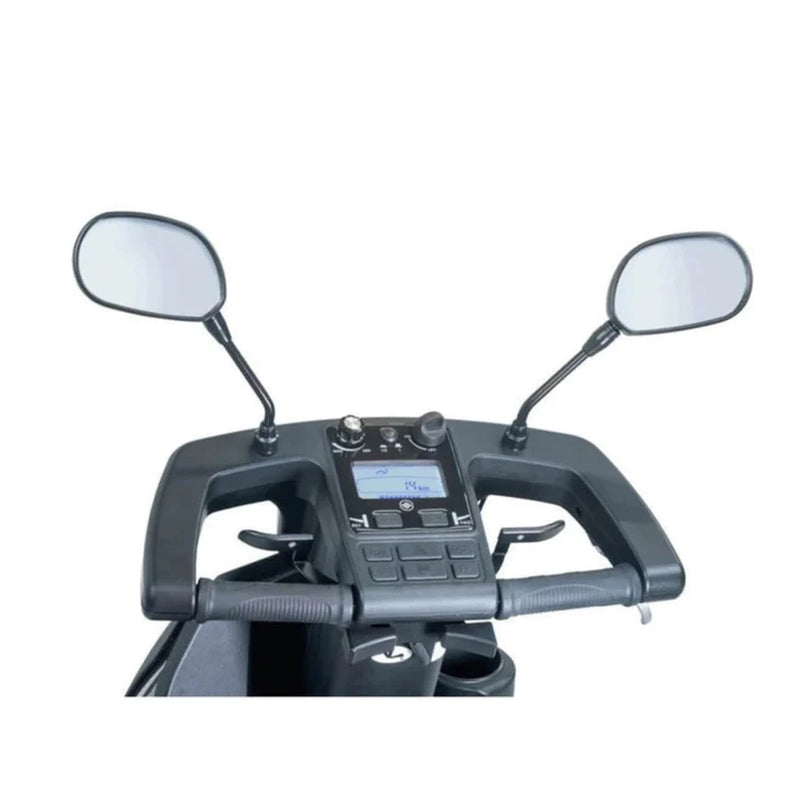

Delta tiller — left and right finger controls
The Delta tiller is adjustable and features both left and right side finger-touch controls alongside the LCD display. This dual-side control layout accommodates users with limited grip strength or single-hand dexterity — either hand can manage speed and direction independently without requiring a specific hand configuration.
Hard-top canopy option — all-weather use
An optional hard-top canopy fits directly onto the C3 frame, providing protection from rain and direct sun during outdoor use. The canopy adds 26 lbs and raises the overall height to 65 inches. The lockable rear storage box and crutch holder complete the accessory range for users who need practical daily carry capacity.
About Afikim Electric Vehicles
Afikim Electric Vehicles — Professional Mobility Engineering
Full-size performance, all-terrain capability, and daily comfort in one scooter.
Afikim Electric Vehicles is a specialist manufacturer of mobility scooters and electric vehicles, engineering products to a standard that prioritises real-world performance and daily usability over compact dimensions. The Afiscooter C3 reflects that engineering philosophy directly: full front-and-rear suspension, pneumatic tires, a 25-to-28-mile range, and an orthopedic swivel seat are not features typically found in combination on a 3-wheel platform of this size. Afikim builds these specifications into the C3 because the users who depend on full-size mobility scooters for daily independence deserve a product that handles the range of conditions — outdoor terrain, dining environments, long-distance outings — that daily life actually involves.
-
Full front and rear suspension — shock absorbers on both axles, pneumatic tires
-
Orthopedic swivel captain's seat — padded, adjustable, swivels for dining
-
25–28 mile range — standard 48Ah or extended 70Ah batteries
-
50-inch turning radius — 3-wheel agility in full-size platform
-
Delta tiller with dual finger-touch controls — left and right side operation
Accessories and Customisation
Configurable for your daily routine — indoors, outdoors, and all weather.
The Afiscooter C3 is available with a range of factory-fitted options that extend its capability for specific daily use cases. The hard-top canopy is the most significant: it converts the C3 into an all-weather scooter for users who live in climates where rain or strong sun would otherwise restrict outdoor use. The canopy is fitted directly to the C3 frame and adds 26 lbs to the vehicle weight; overall height with the canopy fitted is 65 inches, which should be considered when assessing access through doorways and covered car parks.
The optional lockable rear storage box provides secure carry capacity for shopping, bags, and personal items without requiring the user to manage a basket or hang items from the tiller. The crutch holder keeps mobility aids accessible without storage compromises. The optional 20-inch seat replaces the standard 18-inch seat for larger users without other modifications to the vehicle. Extended range 70Ah batteries are a direct swap for the standard 48Ah units and do not change the vehicle's physical dimensions. All options should be specified at the time of order.
Manuals and Documents
Afikim Afiscooter C3 — User Manual and Brochure
The official Afikim user manual covers assembly, operation, battery charging, maintenance, troubleshooting, and safety guidelines for the Afiscooter C3. Review the manual before first use to ensure the scooter is correctly configured for your weight, height, and intended environment. The brochure provides a full specification and accessory overview.
Documents
Warranty
2-year electrical warranty / 1-year mechanical warranty
The Afikim Afiscooter C3 is covered by a manufacturer warranty from Afikim Electric Vehicles. For two years from the date of delivery, Afikim will replace free of charge any of the following parts found to be defective in material or workmanship: power unit (motor, transaxle, and EMB), controller, charger, harnesses, and electronic sub-assemblies including boards, sensors, switches, potentiometers, fuses, gas pistons, and brakes.
For one year from the date of delivery, Afikim will replace free of charge: bearings, bushings, shock absorbers, and the seat. Warranty service requires examination by an authorised Afikim representative before replacement parts are issued.
This warranty does not cover items subject to normal wear and tear, including plastic shrouds, motor brushes, brake pads, tires and tubes, bulbs and lights, upholstery, rust, noises, or damage resulting from circumstances beyond the manufacturer's control. We are an authorised Afikim dealer.
