The Echo Revive Hydrogen Water Bath Machine uses advanced electrolysis technology to generate high-purity hydrogen by splitting water molecules. It is energy-efficient, environmentally friendly, and features:

• High-efficiency electrolysis system with advanced SPE electrodes.

• Reliable quality and automation for ease of use.

• Safety features include water shortage, high temperature, and power limitation protection.

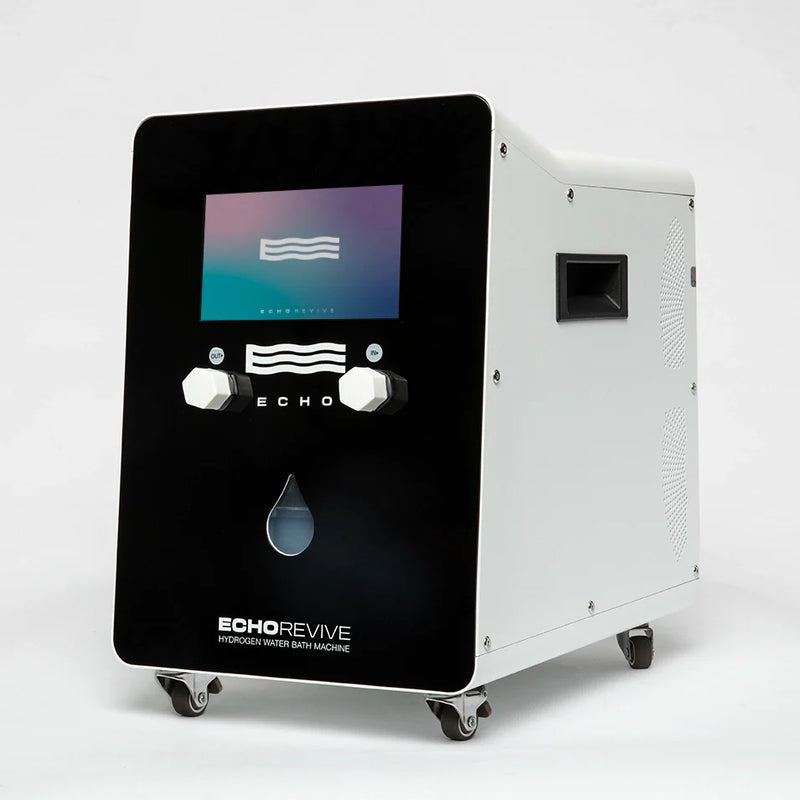

Echo Revive Hydrogen Water Bath Machine

Upgrade your bath experience with the Echo Revive. This innovative device infuses your bath water with hydrogen gas, a natural antioxidant known for its wellness properties. Relax, rejuvenate, and enjoy the potential benefits of hydrogen-enriched water for enhanced comfort and self-care.

6” Touch Screen
Lab Tested & Quality Assurance Approved
PPM: Up to 1.6 ppm
Weight: 40 lbs
Hydrogen Cycle Time: 15, 30, or 45 min. cycles
Product Dimensions: 15 x 11 x 15 in.
6" touch screen display
Shipping Dimensions: 20 x 14 x 21 in.

Why it's Special

Premium Hydrogen Generator – Echo Water utilizes advanced SPE & PEM technology, featuring a high PEM membrane surface area. This design enhances energy efficiency and delivers effective hydrogen production for a premium hydrogen-enriched water experience.

Portable Design – The Revive comes with a handle and wheels which can be locked for improved mobility.

Easy to Use 6” Touch Screen Display – Our intuitive touch panel display provides real time feedback on filter life, total dissolved solids & more.

Effortless Control & Peace of Mind – Our intuitive 6” touch screen display allows you to quickly manage activation times, as well as receive real time alerts for machine settings such as when the water level, replacement reminders, and more. Relax and unwind in a peaceful environment thanks to the Revive's whisper-quiet operation and optimized efficiency.

The Echo Revive Hydrogen Water Bath Machine operates by electrolyzing high-resistivity water (> 2 MΩ·cm) to produce hydrogen and oxygen.

1. Water is added to the anode compartment of the electrolysis tank. Once powered on, the machine decomposes water molecules into hydrogen ions (H+) and hydroxide ions (OH-):

   • Anode Reaction: OH- ions release oxygen (O2), which exits through the oxygen outlet, carrying some water back to the tank for reuse.

   • Cathode Reaction: Hydrogen ions (H+) pass through the SPE ion membrane under electric force, gain electrons, and form hydrogen gas (H2).

2. The hydrogen gas, containing trace amounts of water, passes through the gas-water separator to remove excess water before exiting through the hydrogen outlet.


The machine's electrical control system is divided into three main components: the electrolytic power supply, control board, and display panel. Here’s how to operate it:

1. Power On:

   • Turn on the power switch to activate the machine. The system enters standby mode, and the touch screen will illuminate.

2. Water Level Check:

   • Before proceeding, ensure the water tank is filled with pure water above the minimum level.

3. Timer Adjustment:

   • Use the Increase (+) or Decrease (-) keys on the touch screen to set the desired operating time.

4. Start Operation:

   • Press the Start/Pause button to begin hydrogen production. The hydrogen flow meter will display real-time flow and release hydrogen from the outlet.

5. Safety Features:

   • The machine includes built-in protections to ensure safe operation:

     • Water Shortage Protection: Stops operation if water levels are too low.

     • High-Temperature Protection: Prevents overheating by pausing operation if internal temperatures rise excessively.

     • Power Limitation Protection: Limits power usage to avoid overloading the system.

1. General Guidelines

• Ventilation: Do not use the hydrogen generator in a confined, unventilated space.
• Placement: Ensure the generator is positioned horizontally with the front panel facing the operator for ease of use.
• Environment:
  • Operating temperature: 0–40°C
  • Humidity: Less than 85%
  • Avoid direct sunlight and open flames.
  • Ensure good ventilation and proper grounding of the power supply.

2. Electrical Requirements

• Power Supply: The generator requires a 110V, 50–60 Hz power source.
• Grounding: Ensure the power connection has a reliable ground to prevent electrical hazards.

3. Initial Setup

• Water Tank Preparation:
  • Add distilled water to the tank before first use.
  • Allow the distilled water to settle for 5 minutes before turning on the machine.
• Water Quality: Use soft water only (e.g., deionized or secondary distilled water). Ensure the water resistivity exceeds 2 MΩ·cm. Using unqualified water can cause ion deposits, block electrodes, and damage the motor.

4. Water Tank Maintenance

• Filling Requirements:
  • Maintain at least 2/3 of the tank's capacity (approximately 7 1/2 cups for a 2.0L tank).
• Water Change and Cleaning:
  • Replace water and clean the tank monthly to prevent microorganism growth and water turbidity.
  • Cleaning procedure:
    1. Empty the tank.
    2. Add a small amount of fresh water.
    3. Shake the machine gently in all directions.
    4. Drain the water until it runs clear and free of debris.

5. Transportation

• Ensure the tank is entirely empty during transport to avoid water overflow and damage to electrical components.

6. Safety Precautions

• Water Levels: The electrolytic tank must not run dry during transport or operation.
• Repairs and Maintenance:
  • Always turn off and unplug the machine before opening the chassis or performing repairs.
  • Avoid working on the machine while it is powered on to prevent electric shock.
• Fuse Replacement:
  • Turn off the machine and unplug it before replacing the fuse.
  • Use only the specified fuse model (F6A L220V). Using incorrect models may lead to fire hazards.

Following these guidelines will ensure your hydrogen generator's safe and efficient operation.

Specifications

Specifications

Model	ZHDY-W13-A
Voltage	AC 110–220V, 50Hz
Power	<480 W
Dimensions (L x W x H)	340 x 290 x 420 mm
Weight	15 kg (40 lbs)

Echo Revive View

Unpacking & Installation

1. Check for Damage:

   • Inspect the packaging and the machine for any visible signs of damage.

2. Verify Contents:

   • Refer to the packing list and confirm that all listed components and spare parts are included and intact.

3. Report Issues:

   • If you notice any damage or missing items, immediately contact both the transportation company and the manufacturer for assistance and resolution.

Completing these steps ensures your machine is ready for safe and proper use.

Setup is quick and easy – no installation required. Follow the steps below.

1. Preparing the Working Environment

• Ensure the machine is installed in an environment that complies with the conditions outlined in Section 5.2 of this manual (e.g., temperature, humidity, and ventilation requirements).

2. Filling the Water Tank

1. Open the top cover of the water tank.
2. Add 7.5 cups of deionized water or secondary distilled water. When looking at the machine from the front, you’ll notice gaps on both the left and right sides of the tank. Fill the tank until the water level reaches the bottom of these gaps.
3. Close the top cover securely.
   Note: Always fill the water tank before turning on the machine to avoid damage to the electrolytic tank.
4. Note: you can watch a video below on how to fill the water tank

3. Connecting the Power Supply

1. Locate the power cord in the spare parts kit.
2. Connect the power cord to the machine and ensure it is properly grounded.

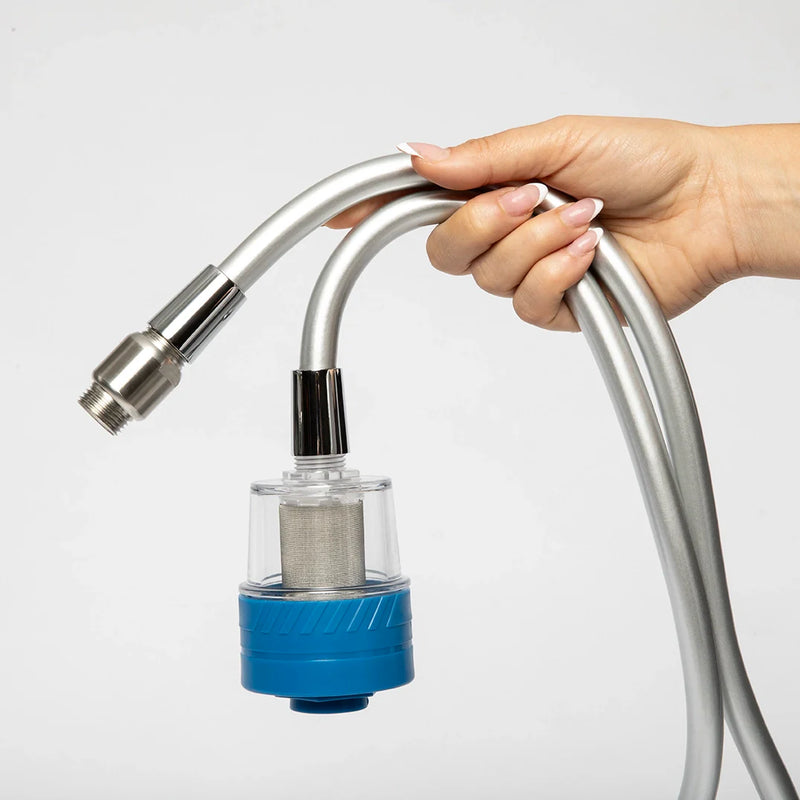

4. Connecting the Suction Tube

• Take the suction tube from the spare parts and securely attach it to the hydrogen outlet.
• Place both tubes in the bath water

5. Powering On the Machine

1. Turn on the power switch located on the back panel.
2. Confirm that the screen on the front panel lights up, indicating the machine is in standby mode.

6. Starting Hydrogen Production

1. Press the Start/Pause button at the bottom center of the screen.
2. The machine will begin producing hydrogen with the default settings:
   • Timer: 15 minutes
   • Hydrogen production: First gear
3. The countdown timer will appear on the screen, and when it finishes, the machine will automatically enter standby mode.

7. Adjusting the Timer

1. Press the Start/Pause button again to initiate the next timing cycle.
2. Adjust the timer using the "+" and "–" buttons on the lower right corner of the screen:
   • Each press of "+" increases the timer by 15 minutes, up to a maximum of 60 minutes.
   • Each press of "–" decreases the timer by 15 minutes.
     Note: Avoid running the machine continuously for more than 60 minutes to prevent overheating.

You can watch the video below on how to fill the water tank:

Small video format : Click Here

Following these steps ensures the safe and efficient operation of your hydrogen generator.



Tank Maintenance & Filter Cleaning

Tank Maintenance

Replace water and clean the tank monthly to prevent microorganism growth and water turbidity.

1. Draining the Tank

1. Locate the drainage ports on the back of the machine (two plugs to the bottom left). These have plugs in them
2. Push the blue part inward and pull the plug out to remove the plug
3. Empty the tank

2. Cleaning the Tank

1. Add a small amount of fresh water.
2. Shake the machine gently in all directions.
3. Drain the water until it runs clear and free of debris.

3. Refill the Tank with Water

1. Add 7.5 cups of fresh deionized water or secondary distilled water. When looking at the machine from the front, you’ll notice gaps on both the left and right sides of the tank. Fill the tank until the water level reaches the bottom of these gaps.
2. Close the top cover securely.
   Note: Always fill the water tank before turning on the machine to avoid damage to the electrolytic tank.

Filter Cleaning

How to clean the Filter: Click Here

How to clean the second filter: Click Here



You can view the unboxing video of the Echo Revive: Click Here



 Alarm Guide & Troubleshooting

Alarm Display	Reason	Solution	Photo
"TDS is high; please reboot after changing the water."	Adding impure water or water containing salt.	Discharge the water from the tank through the drain. Add pure water and change it several times. Clean the tank before restarting.
"Temperature is high."	The internal temperature has reached 70°C.	Allow the machine to cool down for a while, or change the water before restarting.
"Please check the TDS sensor."	The TDS sensor is either not recognized, improperly installed, or damaged.	Check the TDS sensor for proper installation. Replace the sensor if it is damaged.
"Low water level"	The water level in the tank is too low.	Refill the water tank, ensuring it is more than half full.
"Water level is high."	The water level exceeds the maximum limit.	Drain excess water using the back drain hole until the level is appropriate.
"Pump error"	The water pump pressure is blocked, or the pump is broken.	Drain water using drain hole 2 for 2–3 minutes while the machine is operating. Replace the pump if necessary.



---

Issue	Cause	Solution	Photo
No red light on the switch button	The fuse is blown.	Check the wall plug and surge protector. Use a flat-blade screwdriver to open the fuse compartment (refer to the picture). Replace the fuse with a 4A fuse (extras are in the bag or fuse holder). Orientation does not matter. Reinstall the fuse compartment and ensure it is securely in place.
Abnormal noise or idling sound of the water pump	Pressure buildup in pump.	Drain the water using drain hole 2 for 2–3 minutes while the machine is running to release pressure inside the pump.
Tube leaks at the machine end	Loose connection or insufficient washer	Use an adjustable wrench to tighten the chrome nut by 1/8–1/4 turn clockwise.
Blue water drop doesn’t fill with H₂O	Reservoir is empty or not filled properly	Drain the unit/machine completely and refill the reservoir with water.

Warranty Coverage

This warranty is limited in scope and covers only the following defects:

Any factory defects to the internal or external components of the device.

Any material physical flaw in the device manifesting in the exterior enclosure, including splits or cracks in the case, delamination of glued surfaces, and broken or defective screens or displays, impacts the device's performance and is not caused by improper use or handling of the equipment.

This limited warranty covers only the core equipment. It does not cover any other accessories attached to the device, including plumbing fixtures and fittings, tubing, filters, or other components and accessories.

This limited Warranty is personal to you as the original owner and cannot be transferred to anyone else. You will be responsible for all costs associated with handling and transportation related to the original equipment and any replacement equipment.

Cases Not Covered Under Warranty

1. Improper Use:

   • Any damage resulting from a violation of the guidelines in the user manual is not covered.

2. Water Quality Issues:

   • Using water with a resistivity below 2 MΩ·cm can damage the electrolytic tank (e.g., unclean deposits on the ion membrane’s platinum layer). This is not covered under warranty.

3. Unauthorized Disassembly:

   • Disassembling the machine without the manufacturer’s permission voids the warranty.

For assistance, contact the manufacturer’s customer support. To maintain warranty eligibility, follow the user manual.

Warranty Exceptions

This warranty does not cover filters or other parts that are designed to be replaced from time to time.

Your Remedies

If the equipment is deemed defective by Echo Technologies during the time, you, as the original owner, continue to own the equipment. we will be responsible, in our sole discretion, for either repairing the equipment or providing a new or refurbished replacement product or the equivalent credit amount (Warranty Credit) to you equal to a prorated percentage of your original purchase price (less any taxes, handling, transportation, or other fees). Any credit amounts given must be applied exclusively to the purchase of a new product from us, according to the following schedule:

During the first 2 years of your ownership, the warranty Credit shall be 100% of the original purchase price (less any taxes, handling, transportation, or other fees).

During year 3 of original ownership by you, the warranty credit shall be 75% and decrease by 10% for each additional year through year 10.

Warranty Schedule



Year	Coverage
Year 1	100%
Year 2	100%
Year 3	75%
Year 4	65%
Year 5	55%
Year 6	45%
Year 7	35%
Year 8	25%
Year 9	25%
Year 10	25%



Repair Cost Schedule

At our discretion, we may choose to repair the device rather than or before issuing a replacement or a credit. Repairs are billed at $125 per hour plus parts and shipping. These costs will be Prorated based on the warranty schedule below.

During the first 2 years of your ownership, the Warranty Credit shall be 100% of the original purchase price (less any taxes, handling, transportation, or other fees).

During year 3 of original ownership by you, the warranty credit shall be 75% and decrease by 10% for each additional year through year 10.



Year	Coverage	Hourly Rate	Hourly Cost	Parts Discount
Year 1	100%	$125	$0.00	100%
Year 2	75%	$125	$31.25	75%
Year 3	65%	$125	$43.75	65%
Year 4	55%	$125	$56.25	55%
Year 5	45%	$125	$68.75	45%
Year 6	35%	$125	$81.25	35%
Year 7	25%	$125	$93.75	25%
Year 8	25%	$125	$93.75	25%
Year 9	25%	$125	$93.75	25%
Year 10	25%	$125	$93.75	25%



Additional Conditions

For this limited warranty to be valid, you must:

• Purchase the machine from an authorized dealer.
• Be the original consumer or purchaser. Coverage terminates if you sell or otherwise transfer possession of the equipment.
• Provide proof of original purchase via a copy of the original store receipt reflecting proof of purchase date, place of purchase, and purchase price.
• Customer service and Technical Support will go through troubleshooting steps before sending out a full replacement unit.
• Only one replacement is permitted per item. No further replacements will be provided if a replacement has already been received under warranty.
• This limited Warranty will be void and shall not apply to products that have been intentionally or negligently damaged, dropped, stained, exposed to sunlight, exposed to harsh chemicals or elements, exposed to cold or freezing temperatures, water damaged, dropped, exposed to insects or animals, improperly vented, or overheated, used with hard water, or otherwise physically damaged or soiled (including by bodily fluid).
• Overheating
• Deterioration in performance over time caused by failure to properly and regularly clean, change the filters, and do general routine maintenance.
• The machine must be used with a surge protector; damage from power surges will not be covered.

ALL OTHER OBLIGATIONS AND WARRANTIES, WHETHER EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED. WE SHALL NOT BE LIABLE UNDER THIS LIMITED WARRANTY FOR ANY COSTS, FEES, DAMAGES, OR OTHER AMOUNTS, OTHER THAN AS SPECIFIED HEREIN. IN NO EVENT SHALL OUR LIABILITY TO YOU EXCEED YOUR ORIGINAL PURCHASE PRICE.

FAQ

How does the Echo Revive Hydrogen Bath Machine work?

The Echo Revive uses electrolysis to generate molecular hydrogen and infuses it into the bathwater, providing a relaxing, hydrogen-enriched soak.

Is it easy to operate the Echo Revive?

Yes, it features a simple one-touch button that makes the process straightforward. Just place the machine in the bath, press the button, and it starts infusing hydrogen into the water.

How long does it take to prepare a hydrogen-infused bath?

It takes just a few minutes for the machine to infuse hydrogen into the water, after which the bath is ready for use.

What are the dimensions of the Echo Revive machine?

The Echo Revive has dimensions of 16 inches (L) x 12 inches (W) x 17 inches (H), making it compact and easy to store in any bathroom.

Can the machine be used in any standard bathtub?

Yes, the Echo Revive is designed to work in any standard-sized bathtub.

How portable is the Echo Revive?

The Echo Revive is lightweight and portable, making it easy to move between rooms or even take it along when traveling.

Does the Echo Revive need special maintenance?

Routine cleaning and general upkeep are required to maintain optimal performance, but no specialized maintenance is needed.



Free eBook with purchase

The Benefits of Hydrogen Infused Water – Free Educational Book

The Benefits of Hydrogen Infused Water is an educational wellness guide designed to help readers understand what hydrogen-infused water is, how it works, and why it has gained attention in the health and longevity community.

Written in clear, easy-to-understand language, this book explains the science behind molecular hydrogen and its potential role in supporting overall wellness. It is ideal for both beginners who are new to hydrogen water and individuals who want a deeper understanding of its daily use and benefits.

What this book covers

• An introduction to hydrogen-infused water
• How molecular hydrogen interacts with the body
• The role of hydrogen as a selective antioxidant
• Potential wellness and hydration benefits
• Why hydrogen water is used by health-conscious individuals, athletes, and wellness professionals
• How to incorporate hydrogen water into a daily routine

Who this book is for

This book is perfect for:

• Anyone curious about hydrogen water

• Customers who want science-based education before using hydrogen technology

• Wellness-focused individuals looking to make informed health choices

It provides clarity, builds confidence, and helps readers better understand the purpose and value of hydrogen water.

Why this book is valuable

Rather than making claims without explanation, this book focuses on education and understanding. It helps readers make informed decisions by explaining the concepts behind hydrogen-infused water in a straightforward and approachable way.

We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase. Restock fees will be deducted in amounts ranging from 15% to 25% of the value of the item being returned. The minimum restock fee on lower-value orders will be $15.
To start a return, you can contact us at support@mediriser.com

At Medriser, we're committed to ensuring your order reaches you in a timely manner. Our shipping policy guarantees that your order will be processed and dispatched within 1-2 business days from the date of purchase. Once your order is shipped, you can expect it to arrive at your doorstep within 3-5 business days. We partner with reliable shipping carriers to ensure safe and efficient delivery of your medical supplies and healthcare products. For any inquiries regarding your order status or shipping, please don't hesitate to contact our customer care team for assistance.

Payment Policy:
Medriser offers convenient payment options to make your shopping experience seamless. We accept major credit cards, including Visa, Mastercard, American Express, and Discover, as well as PayPal for secure online transactions. Your payment information is encrypted and protected to ensure your privacy and security. For any payment-related inquiries or assistance, please feel free to reach out to our customer care team. We're here to help make your purchase process as smooth and hassle-free as possible.

Our Price Matching Policy

At Mediriser, we are dedicated to offering you the most competitive prices online. We maintain strong partnerships with our suppliers to establish minimum advertised pricing guidelines for all our competitors. This means that every other online store selling the same product is expected to offer it at the same price.

Price Match Guarantee

If, within 14 days of your purchase, you discover another online store offering a lower price for the same product, please bring it to our attention. We will promptly contact the brand to ensure they comply with the minimum advertised price policy. If you qualify for a refund, we will credit the price difference back to your credit card.

Your Confidence Matters

We want you to shop with absolute confidence, knowing that you are receiving the best possible price for the product. If you find that our own website has reduced the price of the item you ordered within 14 days of your purchase, we will also refund the price difference.

Requesting Your Partial Refund

To request a partial refund, simply follow these steps:

Email us at support@mediriser.com with links to the product on both our website and the other dealer's website where you found the price difference.

Ensure that you make this request within 14 days from the date of your order.

We will process the credit accordingly and ensure that you receive the best deal possible.

Limitations of Our Price Match Guarantee

While we are committed to providing competitive pricing, our Price Match Guarantee does come with certain limitations:

You must purchase the item from our website before requesting the Price Match Guarantee.

Promotions such as rebates, holiday sales, and "buy one, get one free" offers do not qualify.

The item must be in stock on the competitor's website and be sold as brand new.

The competitor must be an online store and may not have a physical retail location.

The website in question cannot be a discounter or auction site (e.g., eBay, Overstock, Walmart, Amazon, etc.).

The competitor must be an Authorized Retailer of the product.

Our Price Match Guarantee includes both the item price and shipping charges but excludes sales tax.

Contact Us for Price Match Inquiries at support@mediriser.com

If you have any questions or wish to confirm whether we can price match a product before making your purchase, please reach out to us. We are here to assist you in securing the best deals on the products you need. Your satisfaction and savings are our top priorities at Mediriser.
