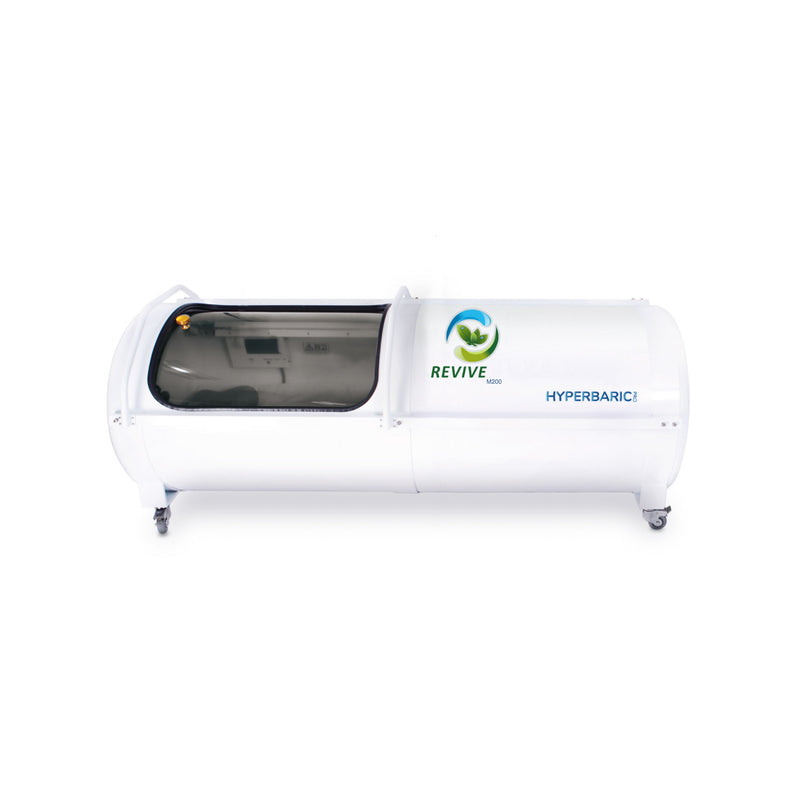

This Hyperbaric Oxygen Chamber provides pressures up to 3.0 ATA and is designed for durability and comfort. It also offers ease of entry and exit along with many more advanced features, available today in hyperbaric product market space.

The chamber body easily passes through doorways 90 cm wide. The handles can also be detached which would allow the unit to pass through an 85 cm doorway.

Safety features and advanced design:

1. Pressure cut off by software – Automatic pressure relief when the pressure increases over 210 kPa in the chamber.
2.  Mechanical Pressure cut off – A safety valve (certified product) is installed to prevent the internal pressure from increasing over 220 kPA.
3.  Emergency release switch – Quickly release the pressure from inside to stop the session and depressurize the chamber by operating one-touch valve in case of emergency.
4. Automatic emergency power off system – Automatic pressure relief in case of power failure or power off.
5. Custom Controls – Automatically controls your session time, pressure, and temperature and depressurizes the chamber upon completion of the session.

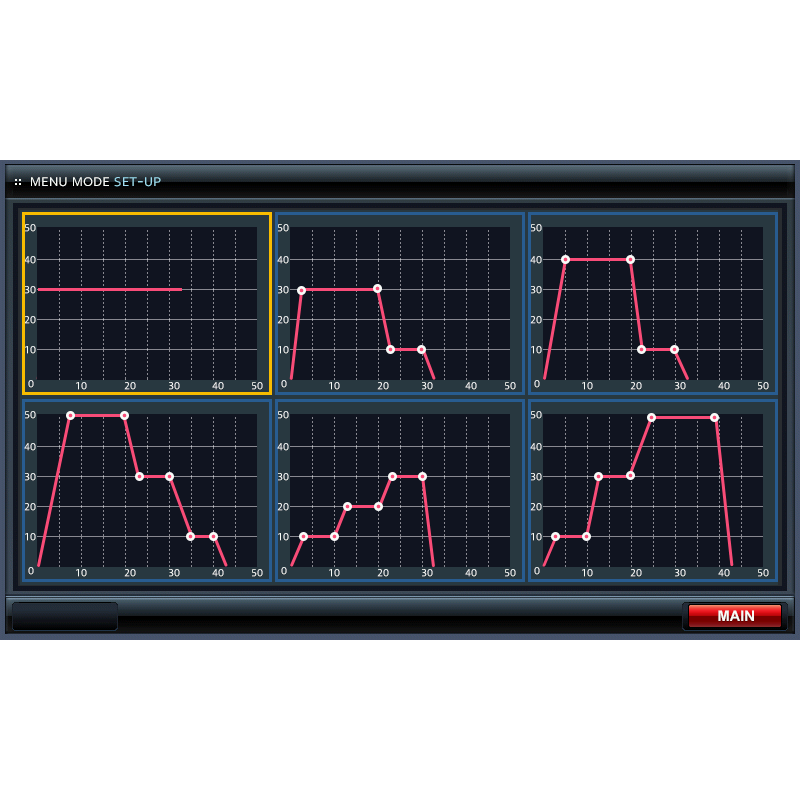

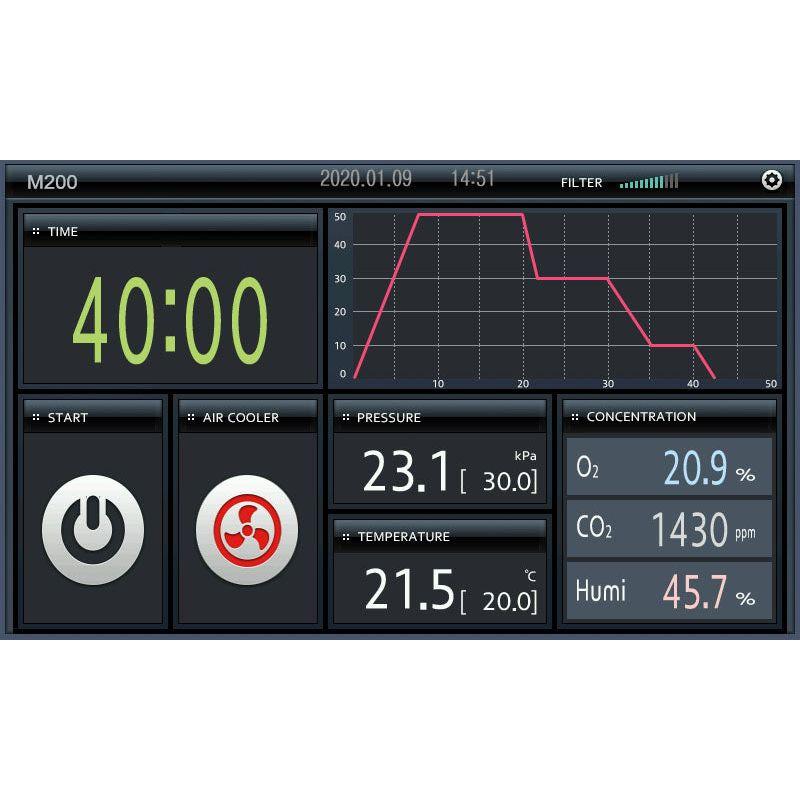

6. Real-Time Graph – Allows users to observe the current treatment progress.
7. The System detects temperature, humidity, and carbon dioxide inside the chamber and displays it on the inside allowing automatic ventilation at all times.
8. The Interphone system allows the user to stay in communication even in case of a power failure.

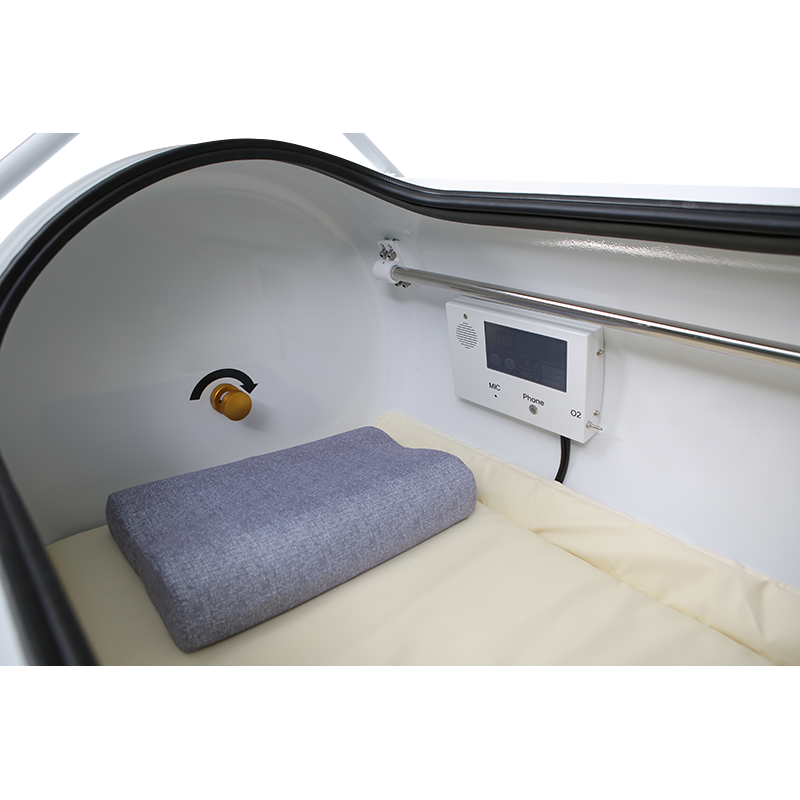

9. A wide transparent window allows being seen from inside the chamber and helps address the anxiety concern of some.
10. 40L / min ~ 100L / min pressure valve can adjust the flow rate according to the operator’s choice.
11. Easy installation and operation.
12. 2 Ports available to increase the oxygen.

International Sales
We sell internationally and can provide our systems to your international voltage and plug type requirements.

Hyperbaric Oxygen Chamber Features

• Air Conditioning system included to keep you comfortable
• during your session. Can be cooled down to 18C (64.4F).
• Equipped with an internal pressure gauge to allow the user
• to observe the pressure.
• Can be operated continuously making it ideal for doctors office.
• Can be operated without the assistance of a 2nd person.
• Business financing available. Call for details.
• Can fit through a 33.5-inch doorway.

Oxygen Concentrator



FDA Approved providing stable oxygen purity at 10 LPM with 95% purity after 5 minutes. Provides a hefty 640 Watt Motor for long-lasting durability and 18 to 20 PSIG suitable for high-pressure chambers! Click here for the Specifications





Air Compressor

 Adjustable pressure control system Oil-free low noise design provides high volume Air Flow at 120 LPM. Provides activated carbon two-way filtering technology. Effectively Purifies air and all dust contaminants.





Air Dehumidifier

Dehumidifier provided as a standard option also saves over $700 in cost.







Grounding System

Includes:
1. Hyperbaric Chamber ground connection port. (System requires a blank port of chamber).
2. Silver infused Queen size fabric

Size:  27.56 x 78.74 INCHES (70 CM X 200 CM).
3. Rubber mat can alternately be utilized internally or externally to the chamber and measures 35 inches by 23.5 inches.

The Rubber mat is included for those customers who want the ease of disinfection of the chamber and can be wiped down with 70% disinfectant after every session.

Operation:
Plug the white wire into the 3rd outlet ground connection to establish your ground connection.



Air Conditioning

Typically maintains the temperature at 70 degrees.Also included an internal cooling fan!

Water Cooling system.
Weight: 42 Lbs.
Size:13X16X22 inches
Voltage:110v-120v
operating current：5-6A
Power:300Wor details.

 ★ FDA Approved ★ PSA molecular sieve high technology. ★ Non-Toxic and ECO-Friendly. ★ 18 to 20 PSIG @ 95% Purity. ★ Continuous flow oxygen production, no oxygen tank required. ★ 630 Watt (10 Amps) Heavy-duty motor.



INTERNAL AND EXTERNAL PRESSURE GAUGE



Internal and External high-precision pressure gauges,  allowing you to control pressure changes at any time.

Allows for accurate observation of pressure inside and outside the chamber.





Emergency Pressure Relief Valve



Patented design emergency relief valve,in case of emergency,the user can press the release button from interior to depressurize the chamber quickly,then open the zippers to exit the chamber quickly.



Specifications

HYPERBARIC CHAMBER	Usage : Operation Pressure : Size : Weight: Material : Maximum Weight Limit	One Patient 10~200 kPa (1.1 ~ 3.0 ATA) 86-inch (L) x 31.5 W – interior 220 kg or 485 lbs Steel 250 kg or 550 lbs

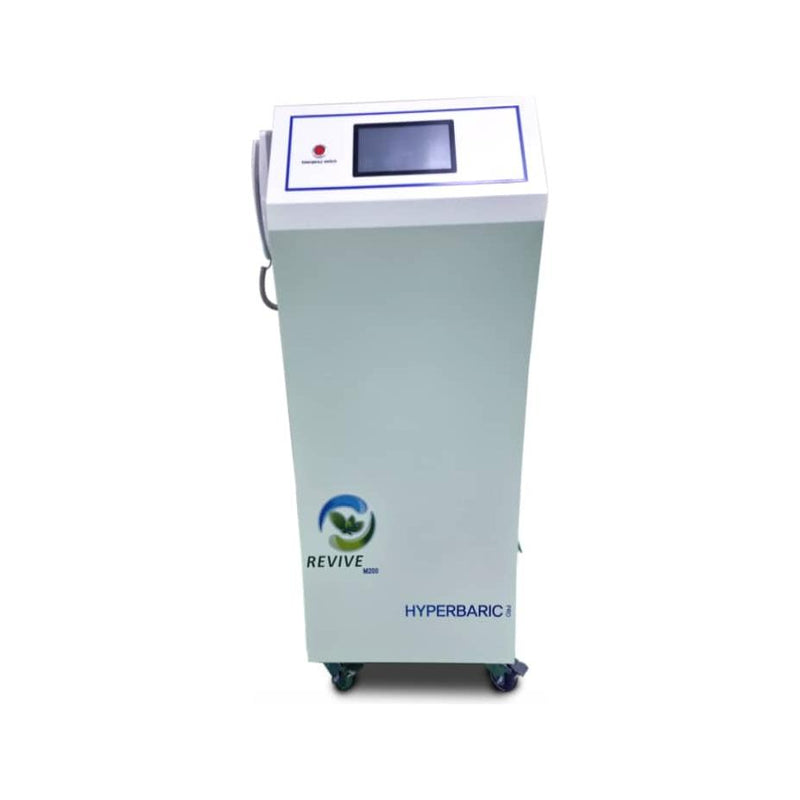

ALL IN ONE SYSTEM	Air Volume : Voltage : Power Consumption : Size: Weight : Material Installation Space	100 L / Min 115 VAC, 50/60 Hz 950 VA (W) 17.7″ x (D) 25.3″ x (H) 43″ 94 kg Steel (W) 3000 mm / 118-inches (D) 1500 mm / 59-inches

Warranty

Oxygen Health Systems Warranty Period is 3 years, full coverage warranty on the main chamber with a 20-year warranty on all soft chamber windows. Oxygen Health Systems further guarantees its hardware oxygen concentrator, air conditioner, dehumidifier, air compressor, etc. against defects for 1 year from the date of purchase.

Warranty certification

We pride ourselves on painstaking accuracy and crafting our equipment with the very highest quality raw materials. Based on 7 years of performance data we know with a high degree of certainty that if there are manufacturing defects, they are most likely to occur within the first 12 months.  Should any faulty materials and/or workmanship on the equipment be found, we provide troubleshooting guidance. Upon that, should the issue remain unresolved, we provide complete replacement of all affected components. Oxygen Health Systems at its option and sole discretion will replace the warranty item(s). The warranty does not cover damage as a result of misuse, overuse, mishandling, unauthorized modification, sheathing change, inadequate maintenance, improper equipment handling or user operation.

FAQ

Q: Can I do HBOT by myself or is it a 2 person job. Set up / / machine on?
Answer: You can use all of our hyperbaric chambers alone. You do not need a second person to get you inside.

Q: What all do I need with this hyperbaric chamber?
Answer: This hyperbaric chamber comes with everything you need to get started. Oxygen concentrator, masks, chamber, set up manual, and our support!
