Uninflated size: 89"L x 41.7"H x 27.5"W

Inflated size: 92"L x 44.8"H x 42. 5"W (Center)

Weight: 30lbs

Brand: Elite Hyperbaric

Operating Pressure: 1.5 ATA | 4.96 PSI | 34.2 KPA

★ Non-toxic/ECO-Friendly ★ Portable/Foldable ★ Safe/One-person operation ★ Warranty 3 Years

Main Body-The Bladder: High strength Double-sided 44 oz medical grade TPU coated PET polyester material that is certified non-toxic and sourced from Germany called Dacron (Used for years by NASA in space suits).

Air Relief Valve: Dual pressure relief valves at the foot of the chamber and a patented emergency relief valve. In the event of an emergency, you can press the release button from inside the chamber which will quickly depressurize so you can then exit the chamber.

Internal and External Gauge: Both are included, therefore the patient and a person outside of the hyperbaric chamber can monitor the internal pressure while completing their hyperbaric oxygen therapy session.

Oxygen Concentrator: A 10 liter per minute Drive DeVilbiss Concentrator is included. 15 LPM Total Oxygen Flow, 70 LPM, Air Flow, 18 to 20 PSIG giving you 95% air purity. FDA approved. 3-year warranty:

• 13″ L: Length is 13 inches.
• 12″ W: Width is 12 inches.
• 24.5″ H: Height is 24.5 inches.
• Weight: 42lbs
• Watt: 640

Installation: We can even arrange installation services for a truly worry-free experience. (additional fees apply).

Certification: CE, ISO9001, ISO14001, ISO13485.

Accessories: Included is a 300-watt dehumidifier to help ensure you have the most relaxing experience so you can focus on healing. Includes a negative ion unit to enhance your treatment. You will receive pure oxygen with negative ions, which helps promote the body's immune system. A finger pulse oximeter will measure your blood oxygen saturation. A walkie-talkie communication system, two oxygen masks, two headsets, and two nasal cannulas for direct oxygen.

Total Weight: 123 lbs including the AC Unit

All Equipment Voltage: Total System 1460 Watts,110-120 volts and 220 available upon request. Oxygen concentrator 640 watts, compressor 520 watts, dehumidifier 300 watts. Additional upgrade for the air conditioner 550 watt.

Includes video training for easy setup and ongoing customer support.

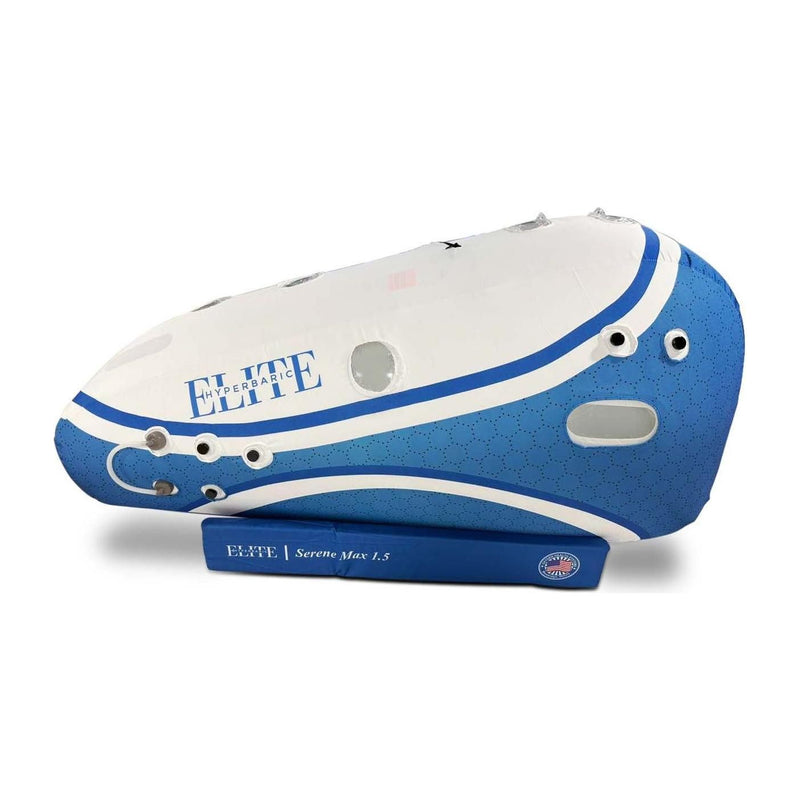

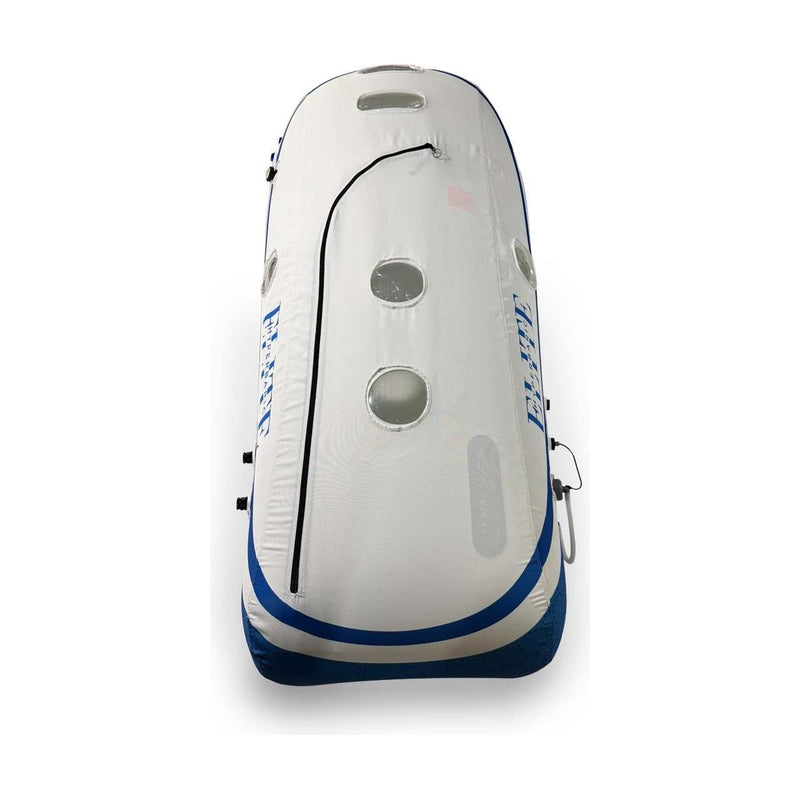

Chamber Capsule 32 inch Diameter with 7 strategically placed windows.

Drive Medical Devilbiss 10 LPM FDA approved oxygen generator 20 PSIG

Mattress

Internal Metal Frame with Quick Connects for a professional look. ( Portable frame also available upon request.)

Dehumidifier


 Negative Ion Generator unit.


 A muffler designed to reduce noise in the chamber.

 2 Oxygen Masks, 2 Headsets, and 2 Nasal Cannulas included to breathe oxygen directly.


 Communications System.


 LED Interior Lighting System.

 Finger Pulse Oximeter to measure blood oxygen saturation.

Oxygen Concentrator



FDA Approved providing stable oxygen purity at 10 LPM with 95% purity after 5 minutes. Provides a hefty 640 Watt Motor for long-lasting durability and 18 to 20 PSIG suitable for high-pressure chambers! Click here for the Specifications

Dehumidifier provided as a standard option also saves over $700 in cost.

CHECK IN OPTIONAL ADDONS SECTION:

We have the option to order an Air Conditioning system. We are the only hyperbaric manufacturer to offer an air conditioning system for use with Hyperbaric Oxygen Chamber Systems. Call for details.

Our New Air Conditioner is a two-part system with a condenser on the inside of the chamber and the cooling unit on the outside of the Chamber. This system provides all the comfort you will need during your sessions or during extended usage of the system.

2 layer zipper with center flap for an anti-leak design. Our zipper system provides double protection and reduces stress on the zipper system to provide many years of usage. Additionally, the outer cover zips up for additional chamber support to support the longevity of our system.
We use the industry’s first “highly sealed triple reinforced fasteners.” Sealed with silicone and 2 layer zipper to completely sealed and prevent leakage for years to come.

Internal and External high-precision pressure gauges,  allowing you to control pressure changes at any time.

Allows for accurate observation of pressure inside and outside the chamber.

Patented design emergency relief valve,in case of emergency,the user can press the release button from interior to depressurize the chamber quickly,then open the zippers to exit the chamber quickly.

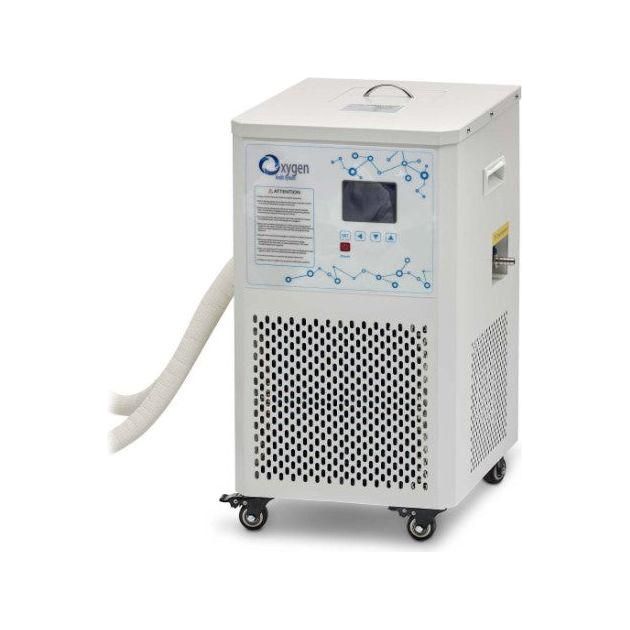

Air Conditioning

Optional Air Conditioning Systems: Typically maintains the temperature at 70 degrees. Water Cooling system.
Weight: 42 Lbs.
Size:13X16X22 inches
Voltage:110v-120v
operating current：5-6A
Power:300W

Also included an internal cooling fan!

This dual-action air conditioning system works to provide significant cooling in two ways:
1) It cools the air from the air compressor. Over time the air from the air compressor can warm up due to equipment heat.
2) Routes Ice cold water to an interior condenser. This provides a significant cooling effect.
Both actions will remove humidity from the air in the chamber..

★ FDA Approved ★ PSA molecular sieve high technology. ★ Non-Toxic and ECO-Friendly. ★ 18 to 20 PSIG @ 95% Purity. ★ Continuous flow oxygen production, no oxygen tank required. ★ 630 Watt (10 Amps) Heavy-duty motor.

Price - 2500$

Grounding System

Includes:
1. Hyperbaric Chamber ground connection port. (System requires a blank port of chamber).
2. Silver infused Queen size fabric

Size:  27.56 x 78.74 INCHES (70 CM X 200 CM).
3. Rubber mat can alternately be utilized internally or externally to the chamber and measures 35 inches by 23.5 inches.

The Rubber mat is included for those customers who want the ease of disinfection of the chamber and can be wiped down with 70% disinfectant after every session.

Operation:
Plug the white wire into the 3rd outlet ground connection to establish your ground connection.

Our grounding system has documented benefits to support inflammation response positively while providing a static-free environment for safety. See Pubmed Article

Price - 199$

Disinfection Option - Purify-One-UV-Wand

Purify-One’s industry-leading UV Wand offers best-in-class disinfecting performance, providing both superior coverage and efficiency, as well as an unparalleled useful life (10+ years).

• Size: 14.5” x 1.625” x 1.25”
• Weight: 6.5 oz
• Wavelengths: UV-C: 270-280nm / UV-A: 380-405nm
• Irradiance: 12 mJ / cm2
• Voltage: DC 5v / 2A
• Wattage: 8w
• Control: 60 minute timer
• Battery: 2,000 Mah (~90 mins of continuous use)
• Color: White
• Warranty: One Year

Price - 399$

Oxygen Health Systems Warranty Period is 3 years, full coverage warranty on the main chamber with a 20-year warranty on all soft chamber windows. Oxygen Health Systems further guarantees its hardware oxygen concentrator, air conditioner, dehumidifier, air compressor, etc. against defects for 1 year from the date of purchase.

Warranty certification

We pride ourselves on painstaking accuracy and crafting our equipment with the very highest quality raw materials. Based on 7 years of performance data we know with a high degree of certainty that if there are manufacturing defects, they are most likely to occur within the first 12 months.  Should any faulty materials and/or workmanship on the equipment be found, we provide troubleshooting guidance. Upon that, should the issue remain unresolved, we provide complete replacement of all affected components. Oxygen Health Systems at its option and sole discretion will replace the warranty item(s). The warranty does not cover damage as a result of misuse, overuse, mishandling, unauthorized modification, sheathing change, inadequate maintenance, improper equipment handling or user operation.

Q: Can I do HBOT by myself or is it a 2 person job. Set up / zip up / machine on?
Answer: You can use all of our hyperbaric chambers alone. You do not need a second person to get you inside and zipped up.

Q. How big is the main window?

Answer: The main window is 7.5 inches (vertical)  by 17 inches (Horizontal), and the side windows have a 7-inch diameter.

Q: What all do I need with this hyperbaric chamber?
Answer: This hyperbaric chamber comes with everything you need to get started. Oxygen concentrator, masks, chamber, set up manual, and our support!

Q: Do you ship to Alaska & Hawaii:

Answer: We absolutely ship to Alaska and Hawaii! Please email us at the email address below or call us at 251-292-1169  with your address for a shipping quote. Email us at support@mediriser.com for any shipping support.

Q. Do I need to install firewalls for using this system ?

Answer:

Although, it’s always great to take precautions. Our system runs the interior of the chamber at 40% and the exterior of the chamber will have a net oxygen percentage of a bit lower than when they started their session. So in your room, the oxygen that is converted from the room mixed air into 95% oxygen that will enter the chamber resulting in 40% Oxygen inside the chamber that will evacuate and redistribute into the room resulting in the same percentage of oxygen or lower than the room originally started with. i.e the net oxygen percentage in the room itself is never increased.

So, the difference between our system and hospital grade chambers is that they use compressed oxygen tanks that are very dangerous, and the net oxygen evacuated from the chamber would raise the room oxygen percentage if the output of the chamber were to vent inside the room.

Q. How do oxygen molecules get 400% deeper into your tissues as they do with Hyperbaric Oxygen Therapy ?

Full Scientific Answer:

They actually shrink under this pressure and can squeeze through constricted blood vessels, inflamed tissue, cross the blood-brain barrier, enter lymph nodes, cerebrospinal fluid, and musculoskeletal system. Essentially, oxygen is delivered into all of our tissues, including areas where circulation is diminished, which is an extremely important component as oxygen is essential for the function and maintenance of every cell in our body, regardless of whether it's an organ, muscle, or bone.

This is analogous to what you see in a can of soda as the CO2 particles are under pressure, and therefore decrease their sizes enough that they dissolve into the liquid. When you pop the can open, the pressure is released, the CO2 particles increase in size and you see the fizz. This is exactly what happens to your oxygen molecules as they decrease in size under pressure and dissolve into the blood plasma. This exponentially increases oxygen delivery through the body and makes it possible for oxygen to enter inflamed tissue or tissue that is starving for oxygen (hypoxic) to support optimal cellular activity.

Oxygen is the final electron acceptor in the Electron Transport Chain, which is where all of the ATP is produced. This is known as aerobic respiration, or how our cells breathe. Oxygen is essential to life, but it is how it affects the function of every cell in the human body that makes it necessary for life. Without oxygen, we can't make energy for our brain, organs, or any tissue. The more oxygen we can deliver to our tissues, the healthier, energetic and mentally well we feel. It has a very high affinity for electrons (high electronegativity), making it a good electron acceptor and perfect in its role. In summary, Oxygen allows us to make ATP, which is the energy currency of our body, thereby required by all cellular processes to function and therefore heal to support normal bodily and brain function, including organs, bones, joints, muscle, etc.
