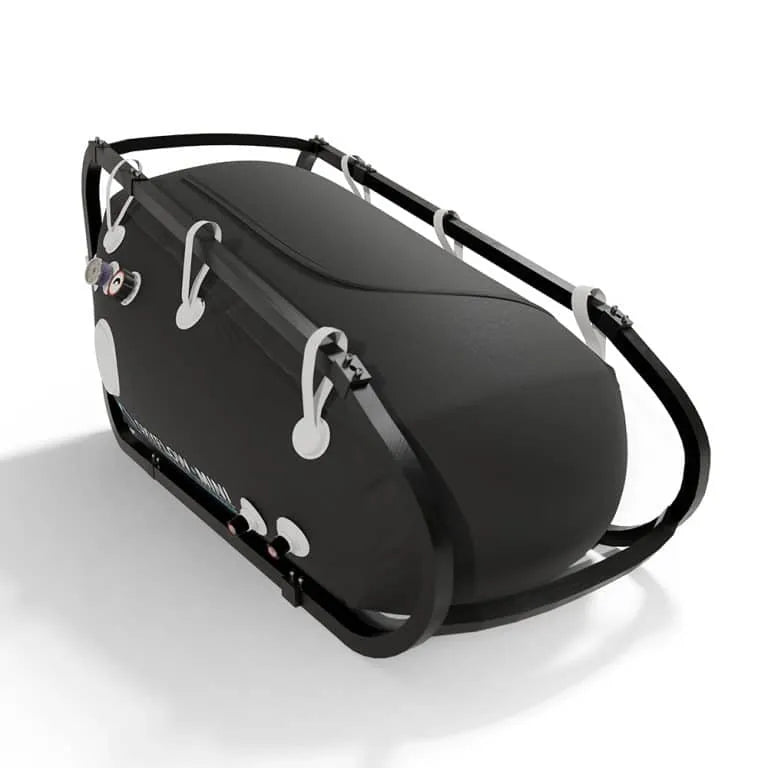

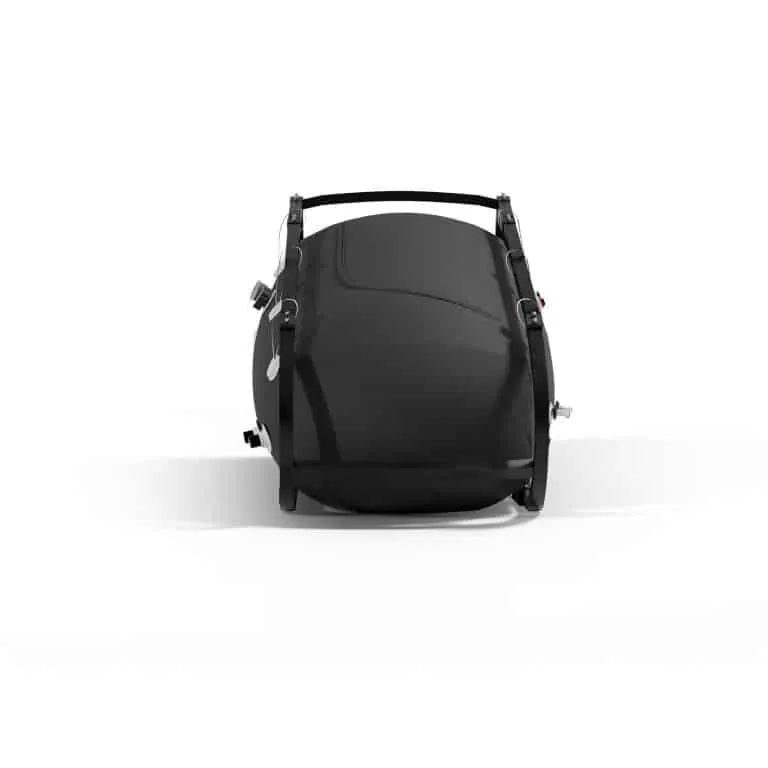

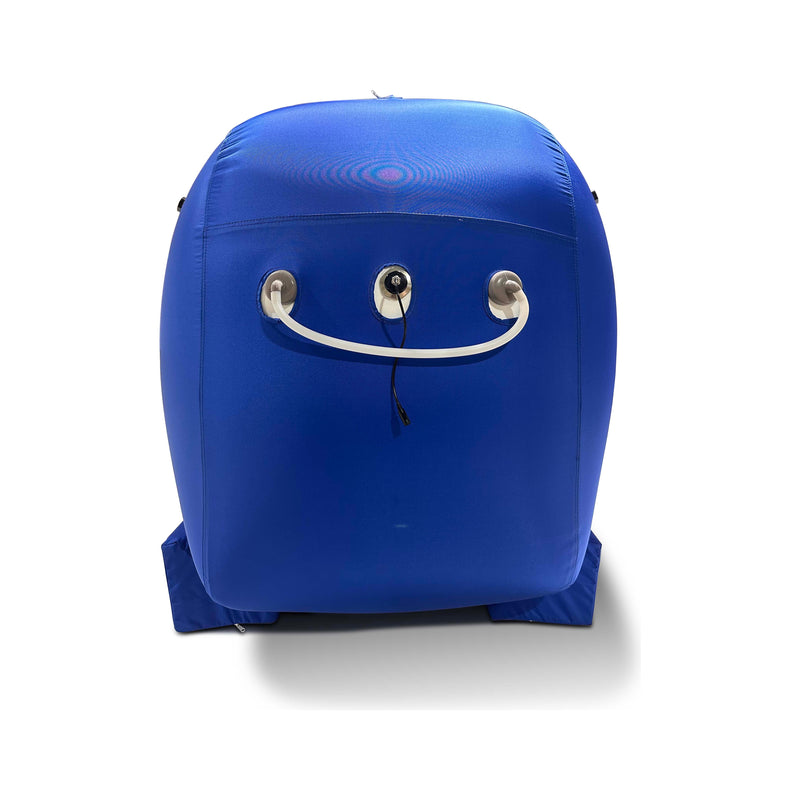

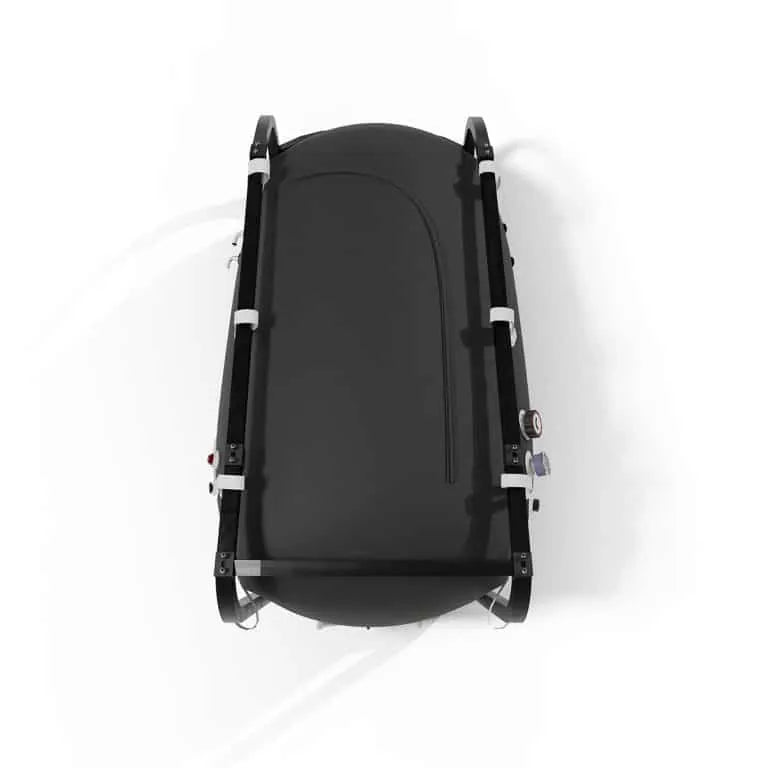

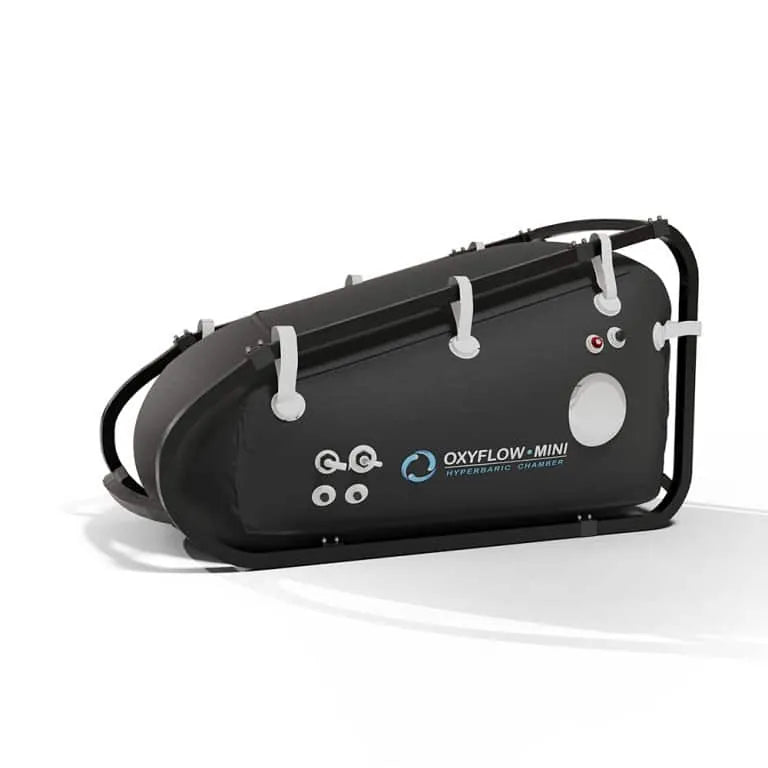

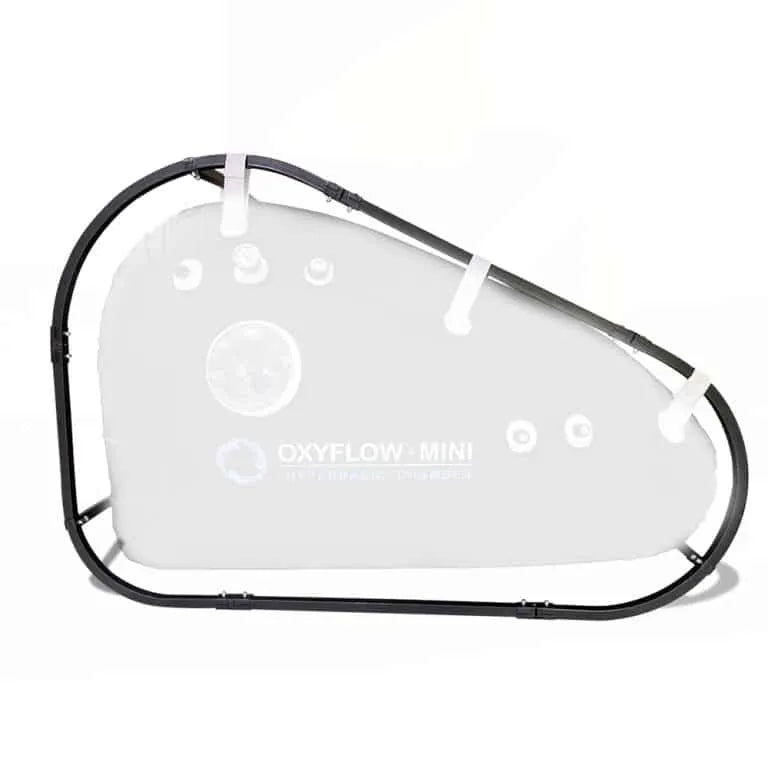

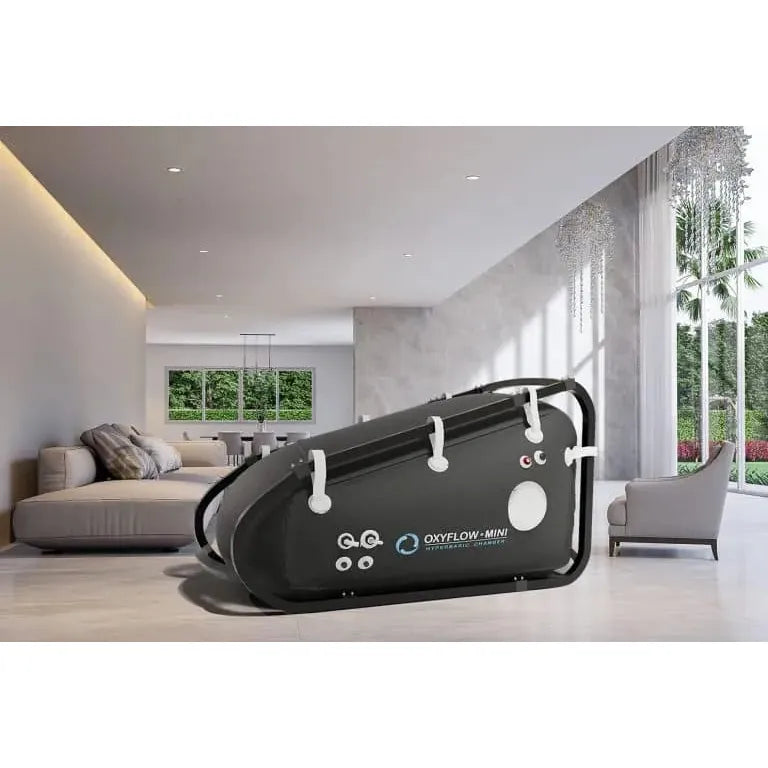

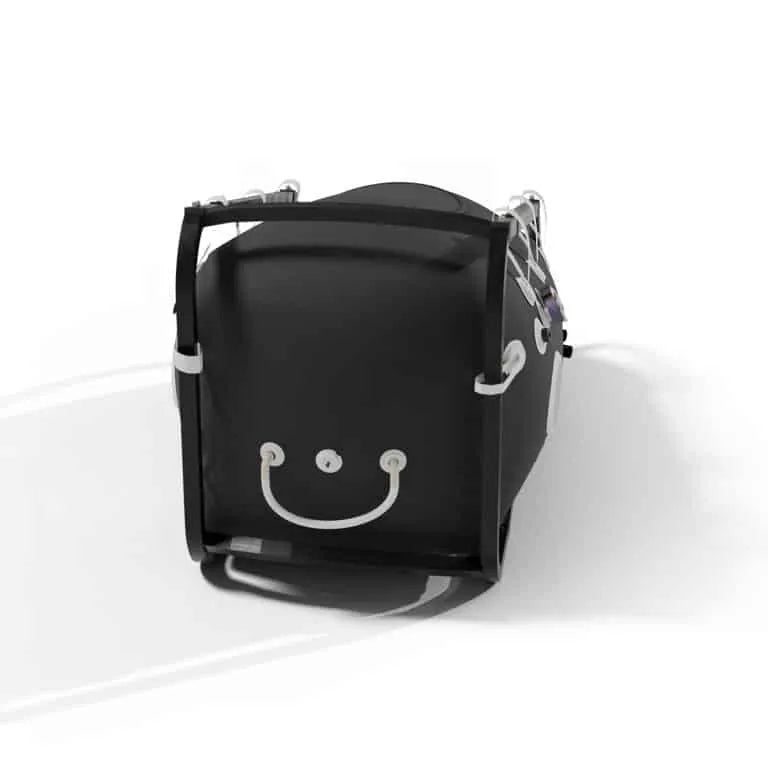

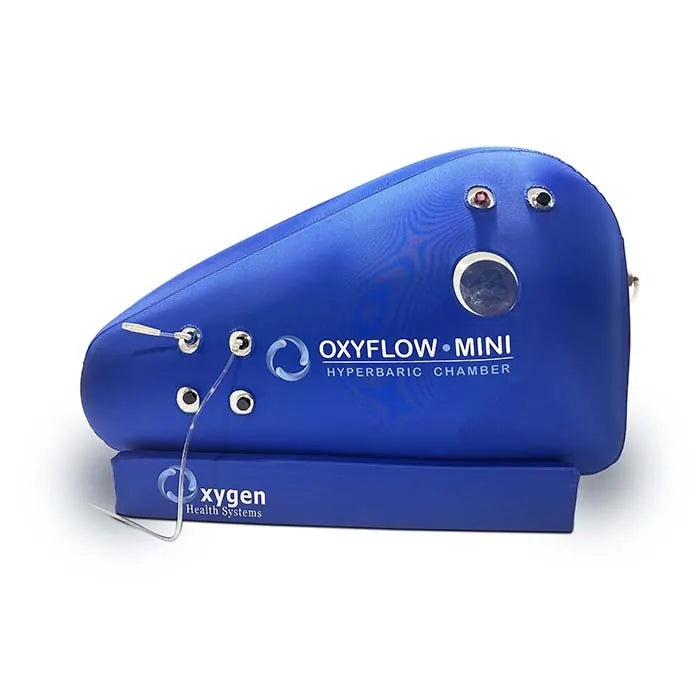

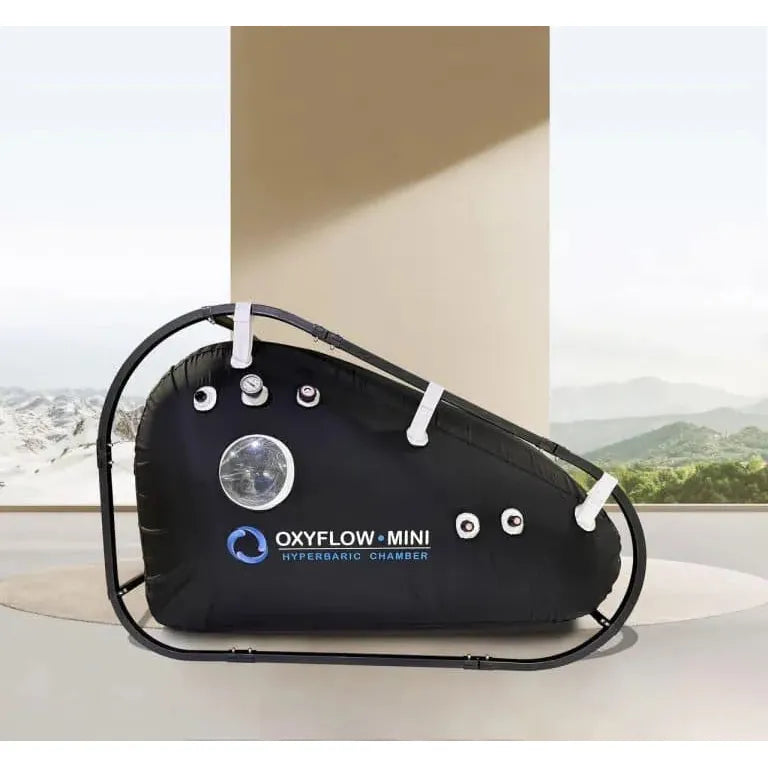

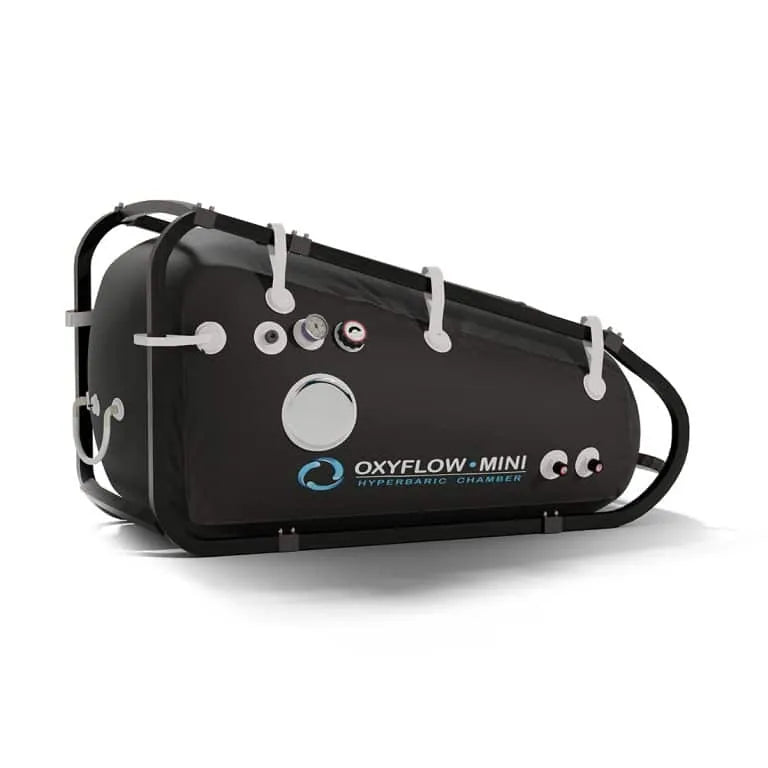

Hyperbaric Oxygen Chamber Oxyflow Mini Sitting Type 1.4 ATA with External frame

Compact Sitting-Type Chamber with Adjustable Lounge Chair at 1.4 ATA

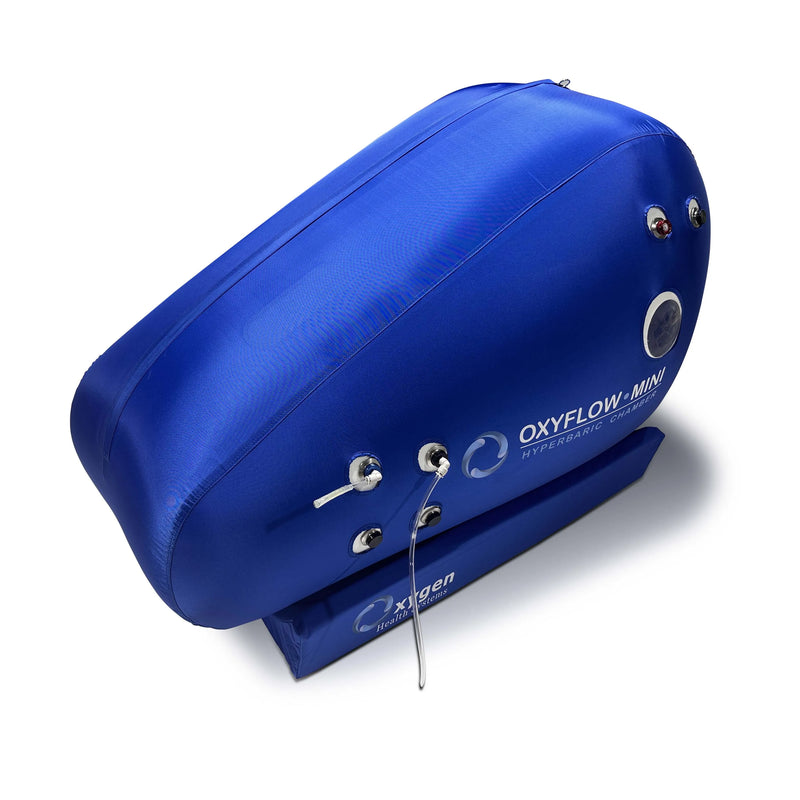

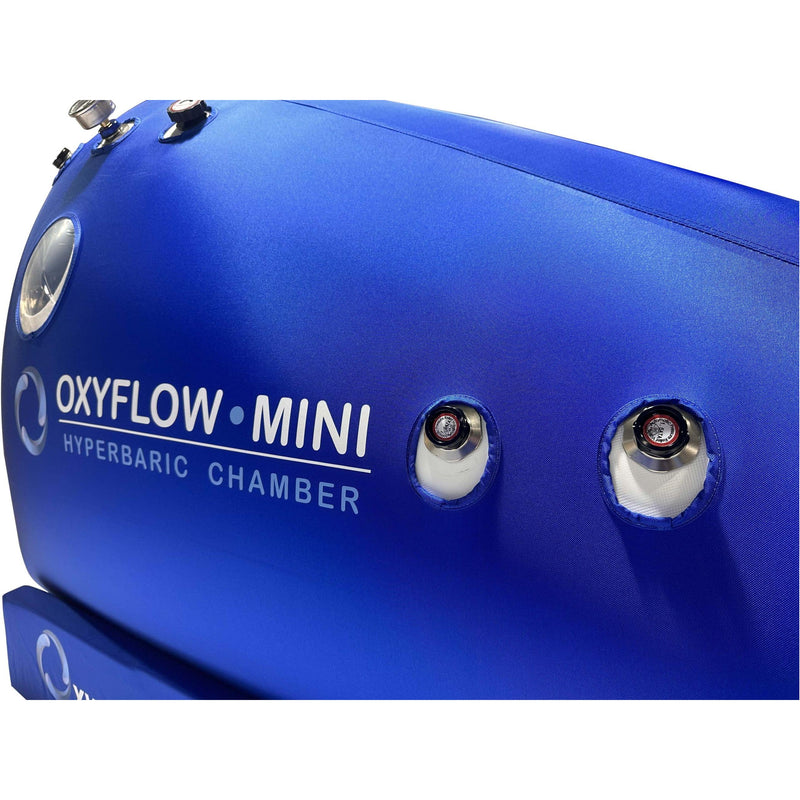

The OxyFlow Mini Sitting Type Chamber delivers 1.4 ATA (42 KPA) hyperbaric oxygen therapy in a compact, upright-friendly format designed for home use and medical facilities. Measuring 73 inches long by 44.8 inches tall by 42.5 inches wide when inflated, it provides a spacious interior for a single user with a fully adjustable zero-gravity lounge chair that moves from fully flat to fully upright in fine incremental steps - a capability no other portable chamber manufacturer offers.

Powered by a Drive Medical DeVilbiss FDA-approved 10 LPM oxygen generator delivering 95%+ oxygen purity at 18-20 PSIG, with a 3-zipper system featuring two zippers and a center flap outer cover, and 4 transparent viewport windows (2 on each side), this system combines therapeutic effectiveness with premium safety and durability in a compact footprint.

Financing Options available:

1. Personal Financing options -> Click Here
2. Business Financing options -> Click Here

Important Notes:

• This hyperbaric chamber can be operated independently without assistance of a 2nd person.

Proprietary 3-Zipper System and Penta-Welded Seams

The OxyFlow Mini features a proprietary 3-zipper system - two zippers with a center flap on the chamber body plus an outer cover zipper - providing multi-layer leak protection and dramatically reducing stress on the zipper assembly. All seams are triple and penta-welded with zero toxic glues used anywhere in construction. Materials are certified non-toxic, phthalate-free, medical-grade 44 oz TPU embodied with NASA-grade PET polyester sourced from Germany, rated for continuous long-term use.

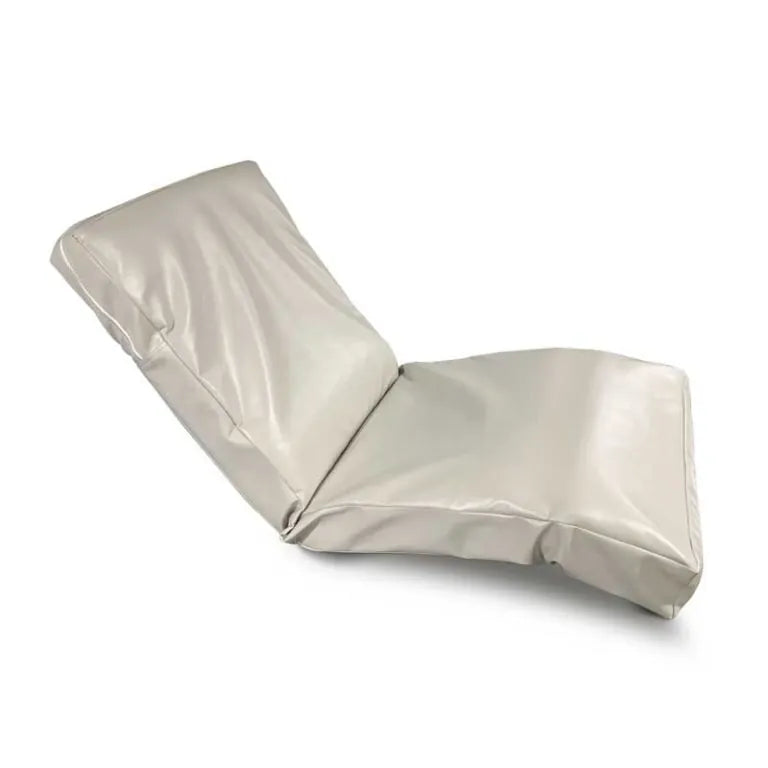

Self-Supporting Lounge Chair - 180 Degree Adjustment Range

The included fully adjustable lounge chair adjusts from lying flat to 90 degrees upright in fine increments with independent head and lower section control. It is self-supporting at any angle, holds up to 150 kg (330 lbs) without rear support, and maintains perfect balance with no risk of tipping. Users above 150 kg may use a wedge pillow for additional back support. Videos are available on request.

Items Included In The Order

Standard inclusion

Drive DeVilbiss 10 LPM Oxygen Concentrator

95%+oxygen purity

10 LPMflow rate

640 Wmotor power

18-20 PSIGpressure output

---

Dimensions13"L x 12"W x 24.5"H | Weight: 42 lbs | Power: 640 W

Oxygen purity95%+ stable purity at 10 LPM - reaches full operating purity within 5 minutes of startup

Pressure output18-20 PSIG - fully compatible with 1.4 ATA / 42 KPA operation

TechnologyPSA molecular sieve continuous flow oxygen production - no external oxygen tank required

DesignNon-toxic and eco-friendly - 630 W (10 Amps) heavy-duty motor for long-lasting continuous durability

CertificationFDA Approved | 3-year warranty

FDA Approved 95%+ O2 purity No oxygen tank required 640 W heavy-duty motor PSA molecular sieve 3-year warranty

Standard inclusion

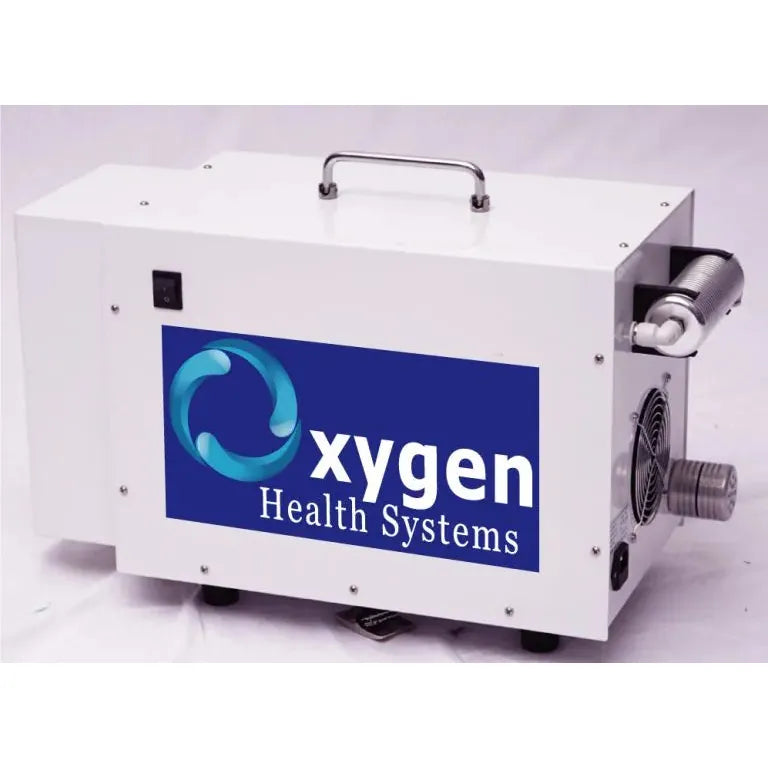

Air Compressor

72 LPMairflow

Oil-freedesign

Dual filterinlet and outlet

Adjustablepressure control

---

Dimensions15"L x 9.5"W x 10.2"H | Weight: 40 lbs | Power: 520 W

Airflow72 LPM high-volume output for consistent pressurization across every session

Pressure controlAdjustable pressure control system for precise session-by-session management

DesignOil-free, low-noise, non-toxic, eco-friendly construction

FiltrationSuper-adsorption activated carbon filtration with double inlet and outlet filters - purifies air to micron level

CO2 managementCO2 exhausted through pressure relief valves - prevents buildup for more effective treatments

72 LPM airflow Oil-free Low-noise Activated carbon filtration Double inlet and outlet filter CO2 exhaust design

Standard inclusion - saves $700+

Air Dehumidifier

Includedno extra charge

$700+competitor cost

Competitors charge over $700 for a dehumidifier. The OxyFlow Mini ships with one as standard in every order.

---

Power300 W | Dimensions: 9"L x 5"W x 11"H | Weight: 11 lbs

FunctionReduces in-chamber humidity to keep users comfortable and dry throughout every session

Competitor costOther brands charge over $700 for this as a paid add-on - with the OxyFlow Mini it ships included as standard

Included free of charge - a premium feature saving over $700 vs competitor systems that charge extra for dehumidification.

Standard inclusion

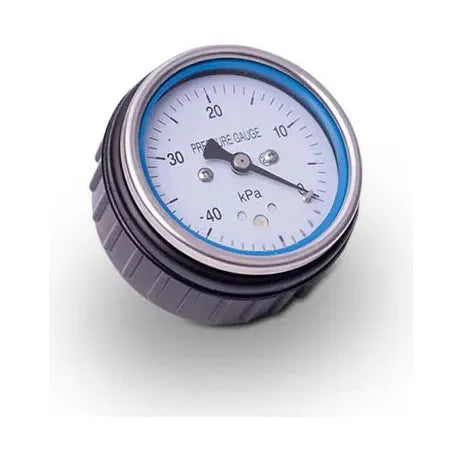

Internal and External Pressure Gauges

Dualgauge system

High precisionaccuracy

High-precision pressure gauges installed both internally and externally, allowing accurate observation and control of pressure changes at any time from both inside and outside the chamber.

---

External gaugeMounted outside the chamber for easy monitoring by an attendant or caregiver during sessions

Internal gaugeMounted inside so the user can monitor and control pressure independently at all times

Main relief valveMain pressure relief valve operable both internally and externally - allows depressurization from inside or outside the chamber

Safety system - standard inclusion

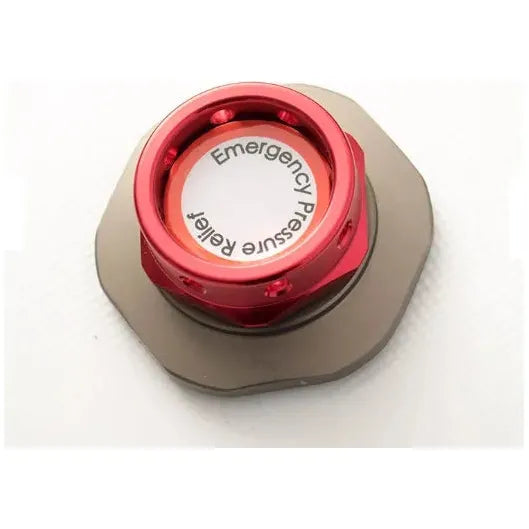

Emergency Pressure Relief Valve

Patenteddesign

Interioruser-operated

Instantdepressurization

---

DesignPatented emergency relief valve for rapid safe in-chamber depressurization

OperationUser presses the interior release button from inside - no tools or external assistance required

ActionInstantly depressurizes the chamber allowing the user to open the zippers and exit quickly and safely

Main valveMain pressure relief valve separately operable from both inside and outside the chamber

Safety first - a single press of the interior button initiates rapid pressure relief, putting full control in the hands of the user inside the chamber at all times.

Optional - not included standard

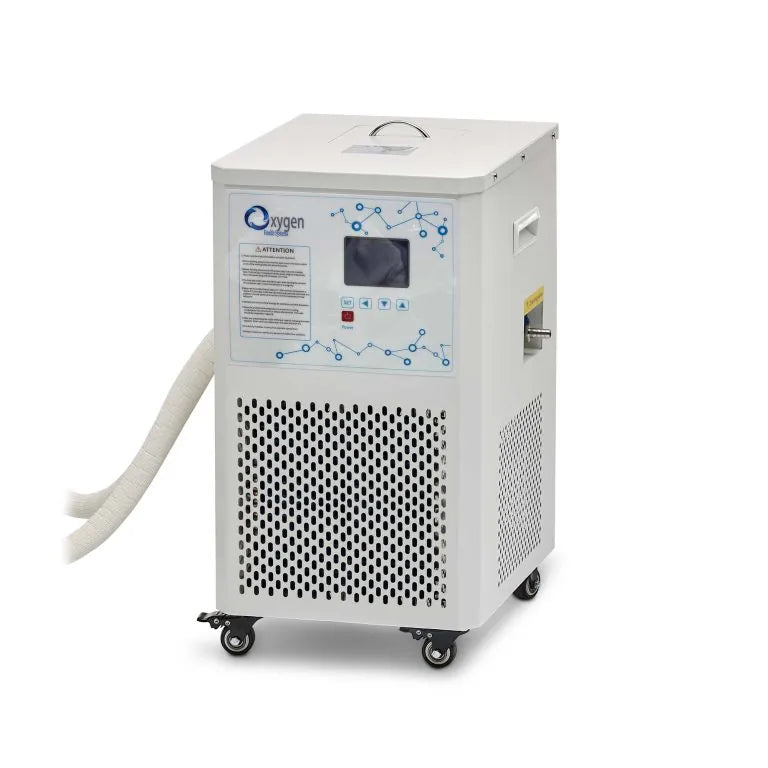

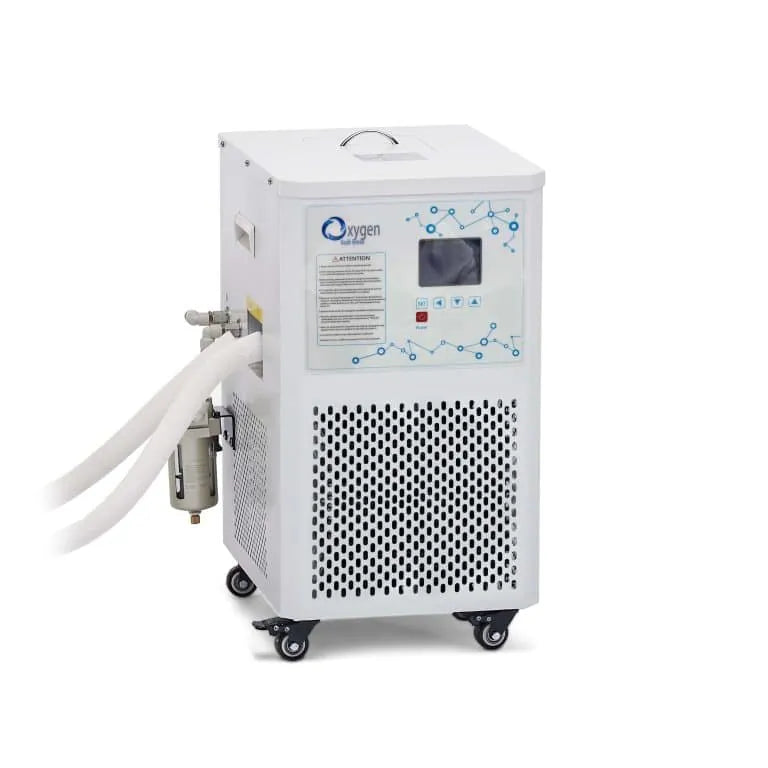

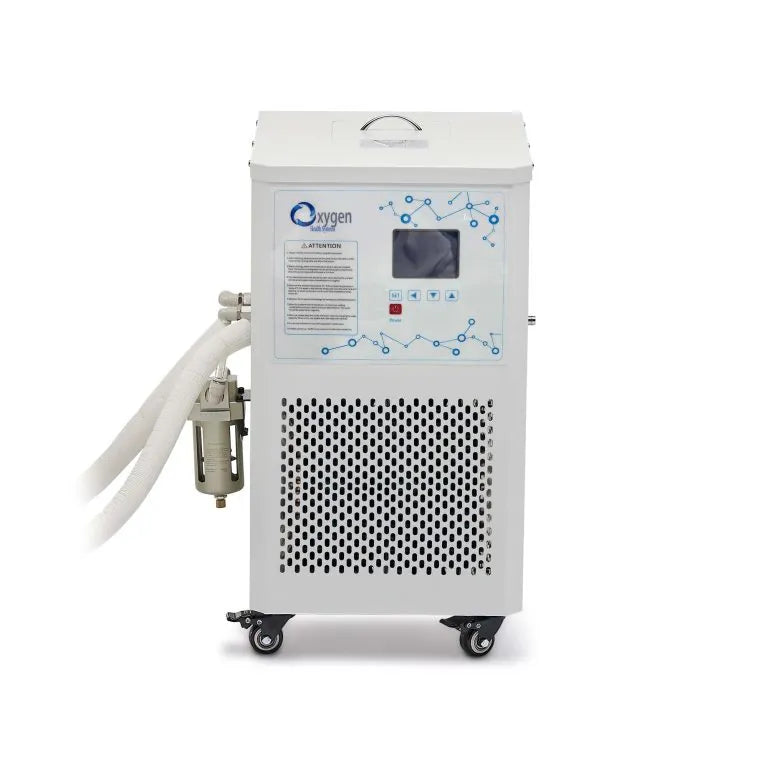

Dual-Action Air Conditioning System

~70 Fmaintained temp

300 Wpower

42 lbsweight

Dual-actioncooling system

---

Dimensions13" x 16" x 22" | Weight: 42 lbs | AC unit spec: 68 lbs, 550 W, temp range -5 to 30 C (water)

Voltage110V-120V | 5-6A operating current | 300 W

Cooling action 1Cools incoming compressed air from the compressor - counteracts heat buildup from equipment operation over time

Cooling action 2Routes ice-cold water to an interior condenser providing a significant direct cooling effect inside the chamber

Humidity removalBoth cooling actions work together to remove humidity from the chamber air throughout every session

Internal fanInternal cooling fan also included for additional air circulation

Dual-action cooling Interior condenser Humidity removal Internal fan included ~70 degrees maintained

Price - $2,500

Disinfection option

Purify-One UV Wand (Price - $399.00)

10+ yearsuseful life

UV-C and UV-Adual wavelength

8 Wwattage

~90 minsbattery life

---

Size14.5" x 1.625" x 1.25"

Weight6.5 oz

WavelengthsUV-C: 270-280 nm / UV-A: 380-405 nm dual-spectrum disinfection

Irradiance12 mJ / cm2 industry-leading output

VoltageDC 5V / 2A standard USB charging

Wattage8 W

Timer60-minute built-in timer for hands-free operation

Battery2,000 mAh - approximately 90 minutes continuous use per charge

Warranty1 year from date of purchase

Best-in-class disinfection 10+ year lifespan Dual UV-C and UV-A Cordless and portable 60-min timer

Optional - not included standard

Grounding System

3 itemscomplete kit

Onlysoft-shell manufacturer

---

Item 1Hyperbaric chamber ground connection port (requires a blank port on the chamber)

Item 2Silver-infused queen size fabric - 70 cm x 200 cm (27.56" x 78.74")

Item 3Rubber mat 35" x 23.5" - can be used internally or externally, wipeable with 70% disinfectant after every session

OperationPlug the white wire into the 3rd outlet ground connection to establish your ground connection

PurposeRemoves possible static electricity from the chamber and user during sessions - for environments conducive to static buildup

The only soft-shell hyperbaric chamber manufacturer to offer a grounding system - developed for customers who require the next level of safety in static-prone environments.

Warranty

Oxygen Health Systems

Warranty

3 yearschamber warranty

20 yearswindow warranty

Lifetimesupport

---

Coverage summary

Full 3-year coverage on the main chamber body with a 20-year warranty on all soft chamber windows. Hardware including the oxygen concentrator, air conditioner, dehumidifier, and air compressor is covered against defects for 1 year from the date of purchase. Lifetime support included with every order.

Warranty certification

Based on 7 years of performance data, manufacturing defects are most likely to occur within the first 12 months. Should faulty materials or workmanship be found, we first provide troubleshooting guidance. If the issue remains unresolved, we provide complete replacement of all affected components at our sole discretion.

The warranty does not cover damage resulting from misuse, overuse, mishandling, unauthorized modification, sheathing change, inadequate maintenance, improper equipment handling, or user operation.
